CHENLIFT (SUZHOU) MACHINERY CO., LTD.
Sales & Support:
 |
| Place of Origin: | Original of China |
| Brand Name: | CHEN LIFT |
| Certification: | CE ISO9001:2008 IPAF member |
| Model Number: | MX600SN |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wrapped in pallets/ wooden case |
| Delivery Time: | 30 day after receipt of deposit |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets/ month |
| Model: | MX600SN | Lift Capacity: | 230kg |
|---|---|---|---|
| Platform Size: | 2.27*0.81m | Extension Loading: | 113kg |
| Measurement: | 2.43*0.81*1.85m | Battery: | 4*6V/225Ah |
| Total Weight: | 1850kg | Color: | Customizable |
| Material: | Q345 Steel | Driving: | Hydraulic Motor |
| High Light: | self propelled work platform,scissor lift self propelled |
||

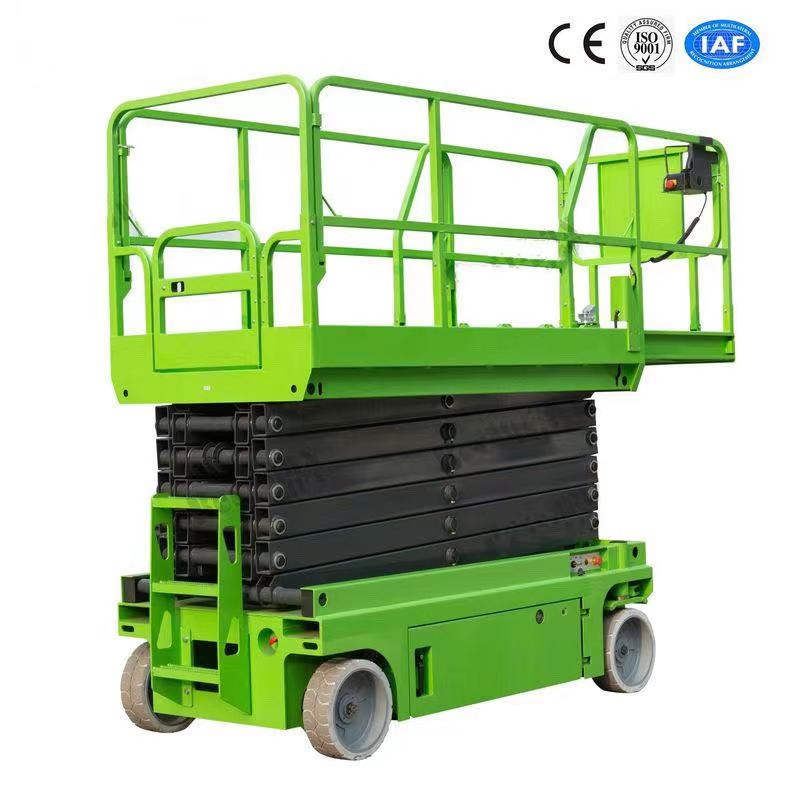

6 Meters Lifting Height Self Propelled Scissor Lift Aerial Work Platform
Description:
Self propelled scissor lift, with automatic walking function, can be in different work condition, do not need external power supply, do not need artificial traction.
Mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk, easily moved, spacious working platforms, high working efficiency.
Scissor lift can be move while extended and controlled from platform by the operator.
Most models are equipped with zero inside turning radius capability, can be easily and flexibly operated in crowed working conditions such as construction site,elevator, and narrow corridor. Lift-down, turning, forward and backward movements can be easily operated by one person.
Parameters
|
Model |
MX600SN |
|
Load capacity |
230kg |
|
Extension load capacity |
113kg |
|
Max Worker number |
2 |
|
Working height |
8m |
|
Platform floor height |
6m |
|
Measurement |
2.43*0.81*1.85m |
|
Extension platform size |
2.27*0.81m |
|
Ground clearance(stowed) |
0.1m |
|
Ground clearance(raised) |
0.019m |
| Wheel base | 1.85m |
|
Turning Radius(inside) |
0m |
|
Turning Radius(outside) |
2.1m |
| Lifting / drive motor | 24V/3.3kW |
| Travelling speed(stowed) | 3.0km/h |
| Travelling speed(raised) | 1.0km/h |
| Lifting/ lowering speed | 35/25 sec |
| Batteries | 4*6V/225Ah |
| Charger | 24V/ 30A |
| Gradeability | 25% |
| Max working slope | 2°/3° |
| Tyre Size | 380*129 |
| Weight | 1850kg |
All Specification
| Model | MX580S | MX600SN | MX800SN | MX800S | MX1000S | MX1200S |
| Load | 230 kg | 230 kg | 230 kg | 450 kg | 320 kg | 230 kg |
| Extension Load | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg | 113 kg |
| Platform Height | 5.8 m | 6 m | 8 m | 8 m | 10 m | 11.8 m |
| Working Height | 7.8 m | 8 m | 10 m | 10 m | 12 m | 13.8 m |
| Platform Size | 1.67*0.74m | 2.27*0.81m | 2.27*0.81m | 2.27*1.12m | 2.27*1.12m | 2.27*1.12m |
| Platform Extension Length | 0.9 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m |
| Lift/Drive Motor | 24v/3.3 kw | 24v/3.3 kw | 24v/3.3 kw | 24v/3.3 kw | 24v/3.3 kw | 24v/4.5 kw |
Safety Precaution
Why choose Chen Lift Self Propelled Scissor Lift?
· High Quality product
· Reasonable Price
· Easy payment mode
· Timely delivery
· Good after Service
· Client-centric approach
· One year warranty
Thank you for your reading and welcome your inquiry. We will respond you as soon as possible.
Contact Person: Mr. Aijun Liu
Tel: 0086-13951119762
Fax: 86-512-67339762
