3Kw with 450Kg Loading Reaching Height 12m Motorized Scissor Lift

3Kw with 450Kg Loading Reaching Height 12m Motorized Scissor Lift

  • 3Kw with 450Kg Loading  Reaching Height 12m Motorized  Scissor Lift
  • 3Kw with 450Kg Loading  Reaching Height 12m Motorized  Scissor Lift
  • 3Kw with 450Kg Loading  Reaching Height 12m Motorized  Scissor Lift
  • 3Kw with 450Kg Loading  Reaching Height 12m Motorized  Scissor Lift
3Kw with 450Kg Loading  Reaching Height 12m Motorized  Scissor Lift
Product Details:
Place of Origin: Original of China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SJZ 0.45-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets/ wooden case
Delivery Time: 30 days after receipt of deposit
Payment Terms: T/T or L/C
Supply Ability: 100 sets/ month
Contact Now
Detailed Product Description
Model: SJZ 0.45-12 Material: Manganese Steel
Measurement: 2.75*1.59*2.00m Platform Size: 2.45*1.35m
Motor Power: 0.75Kw Lifting Power: 3Kw
Loading Capacity: 450Kg Platform Height: 12m
Working Height: 14m Color: Customizable
High Light:

scissor lift mobile

,

automobile scissor lift



3Kw with 450Kg Loading Reaching Height 12m Motorized Scissor Lift​



Design details:



Description: This motorized scissor lift is an ideal aerial working platform for replacing lights, cutting unnecessary branches, mending roof, painting walls and etc. With a motor device and a spring towing handle for pulling, pushing & steering the table, it is convenient for a single person to move and operate. Made up of stronger and rigid manganese steel ensure loading max 450kg safely.



Parameters



Model

SJZ0.45-12

Maximum height

12m

Rated load

450KG

Stood height

2.00m

Platform size

2.45 x 1.35m

Lifting power

3KW

Motorized power

0.75KW

Motorized Speed

0-16.8

Lifting time

102s

Cylinder

Ø100*3

Control voltage

DC24V

Tire

500-8

Battery

200AH*2

Anti-wind capacity

Max 5 force

Gradebility

5

Total Weight

2000kg

Measurement

2.75 m x 1.59 m x 2.00m



Main Features:



1.Pointing control for lifting up and lowering down

2. Stable and well-performed motor for smoothly lifting up and lowering down

2. Manganese steel lifting arm in high strength with retangle shape

3. With anti-skid platform surface and detachable fence to protect the operater

4. The control panels are available on the platforms and ground, convenient for the operater

5. Auxiliary lowering device to assit descending the machine when the power failure

5. Fine grinding cylinder in good sealing performance

6. With Axle sleeve to effectively prevent th dust and oter impurties

7. The outriggers can be fixed on any position within 90° to suit different working circumstance and the length of the outriggers has connection to the payload.

8. With level gauge to indicate the horizontal situation of the machine, only the bubble is in the middle of the gauge, the machine can be lifted.

9. The Hydraulic power pack comprise start up valve, 0 leakage solenoid valve, High pressure gear pump and high compensated VSC lowering system



Safety Precaution:

  • The operation voltage on the platform is 24V
  • Emergency stop button on the platform and ground
  • Auxiliary lowing system
  • Anti-burst device for cylinder
  • Overload safety protection device
  •  Hose burst valve safety
  • Rain-proof design electric cabinet
  • Fence on the platform
  • For the Electrical part, all steel tube cable outlets will be protected by insulating ferrules.
  • For the Electrical cabinet, the  protection index is IP 55, Rain-proof, with sufficiently large louvers for good ventilation and magnetic/thermal protection of the motor pump unit

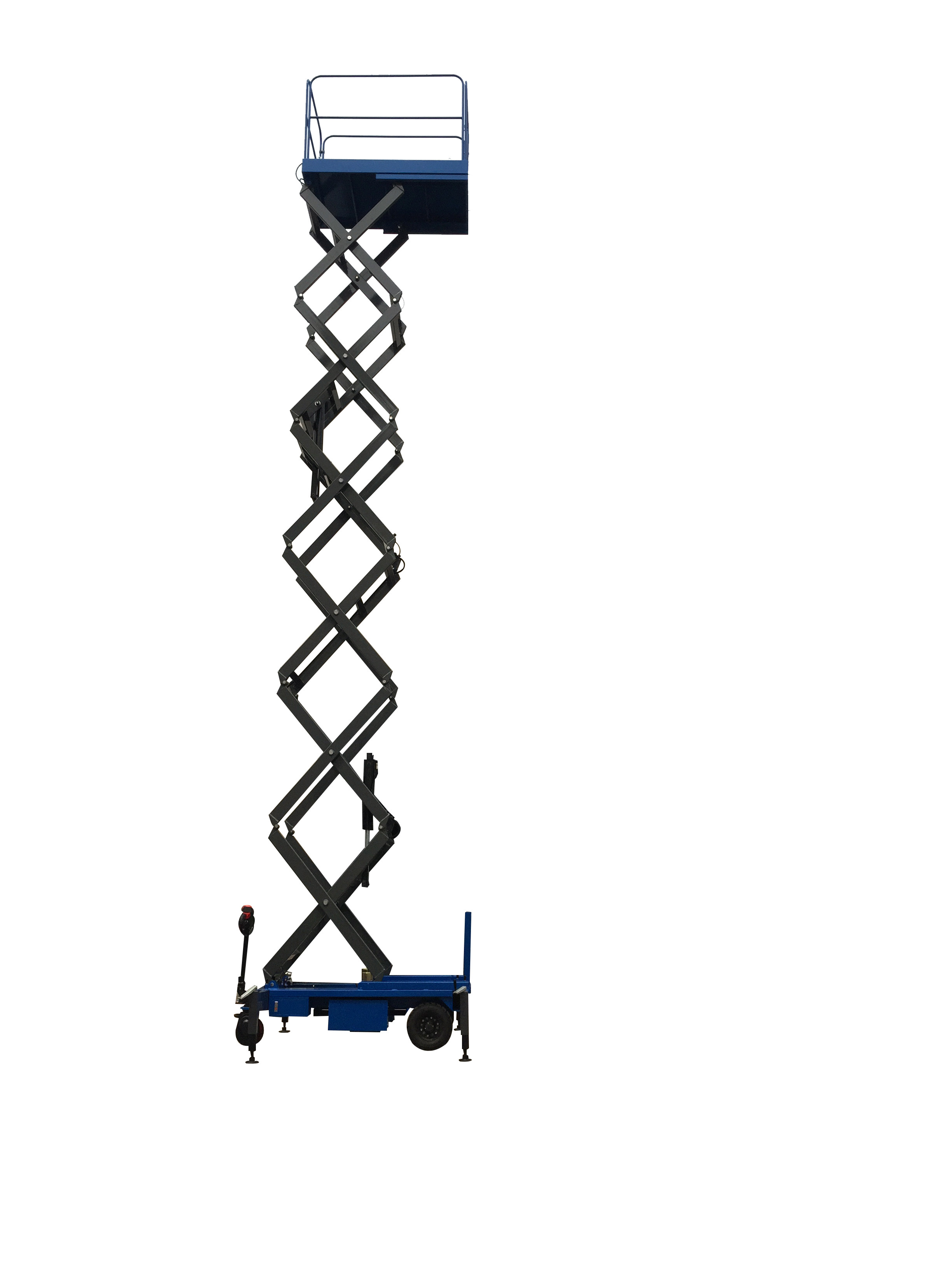

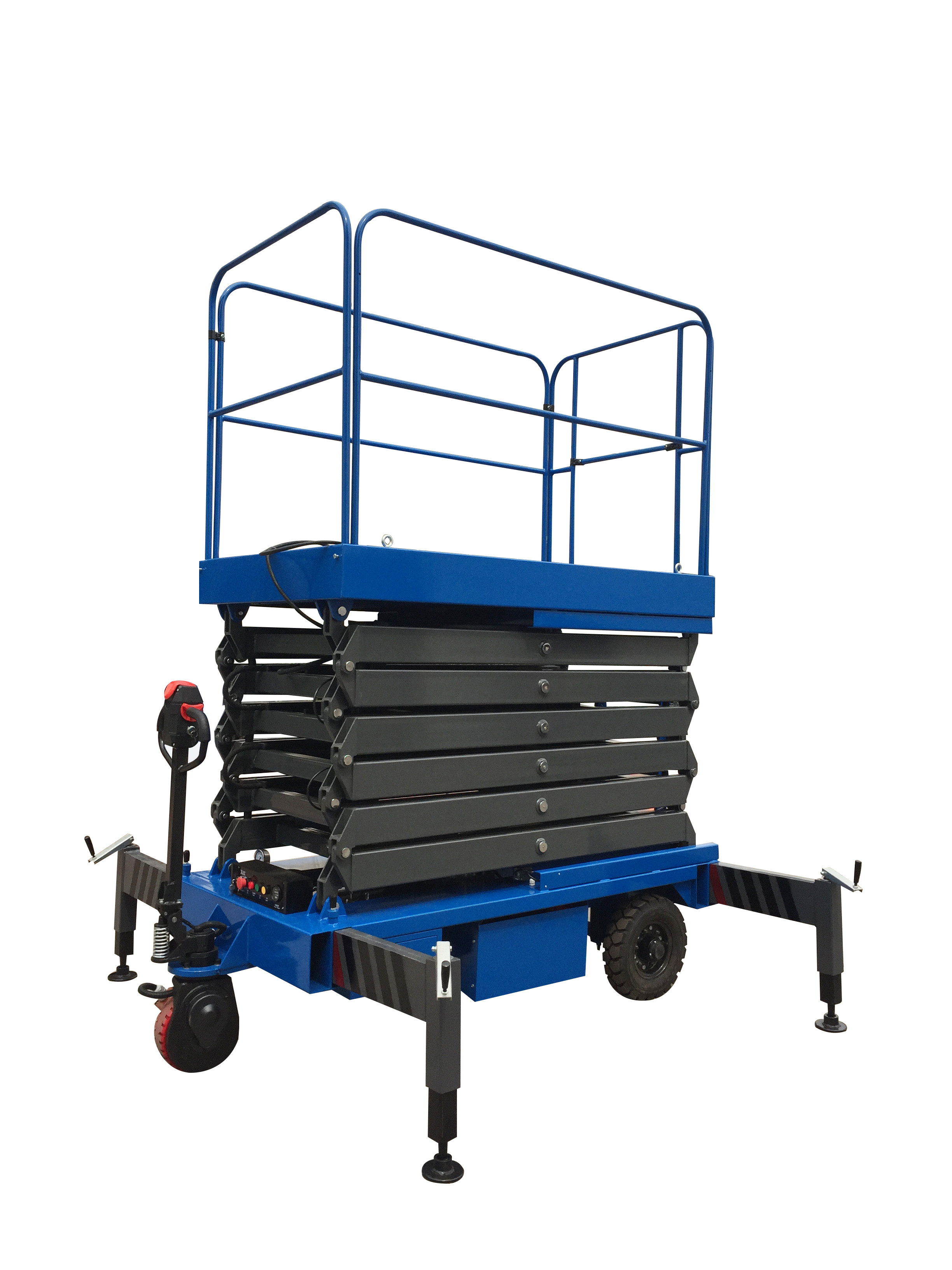

3Kw with 450Kg Loading  Reaching Height 12m Motorized  Scissor Lift 0

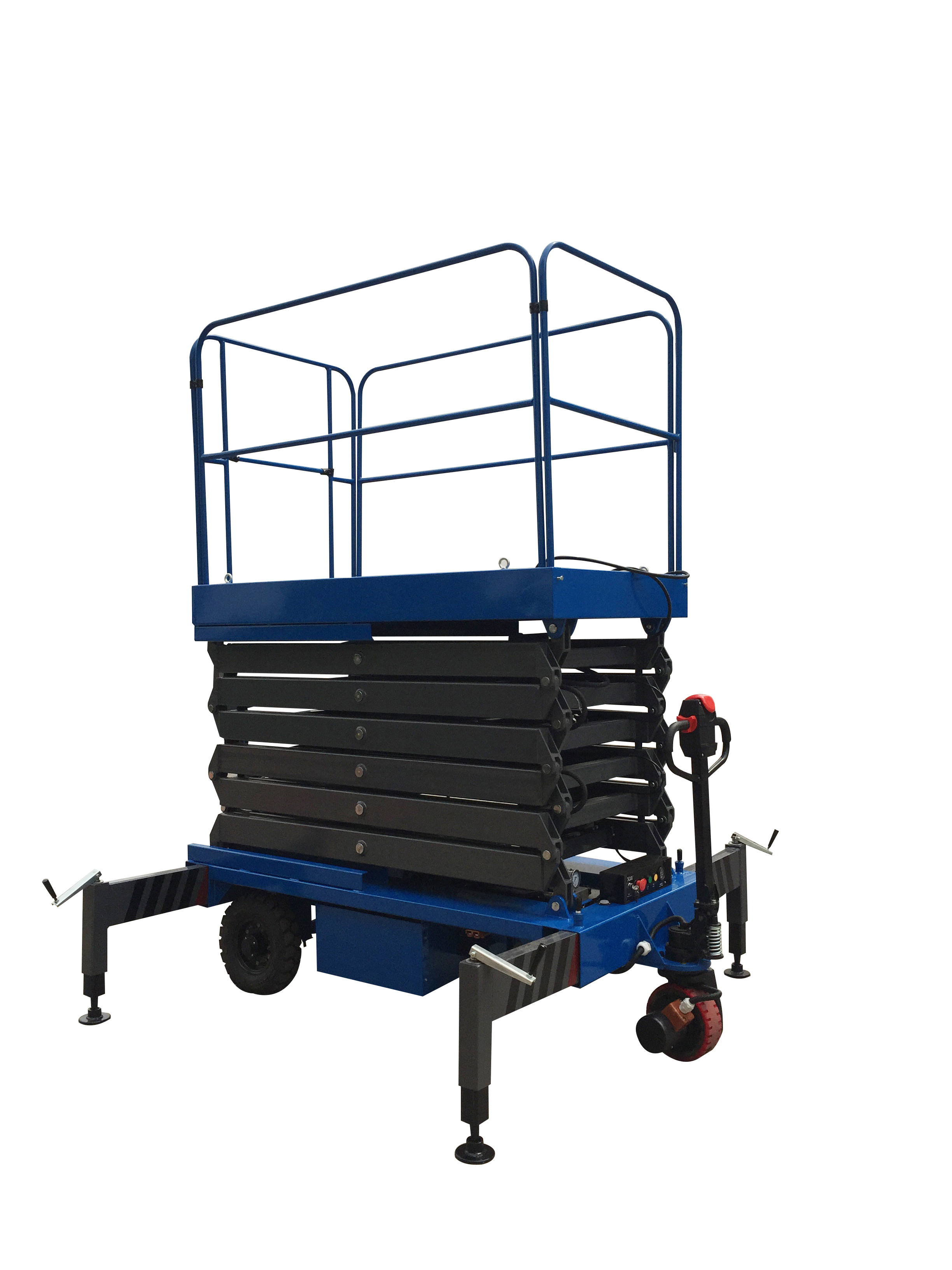

3Kw with 450Kg Loading  Reaching Height 12m Motorized  Scissor Lift 1

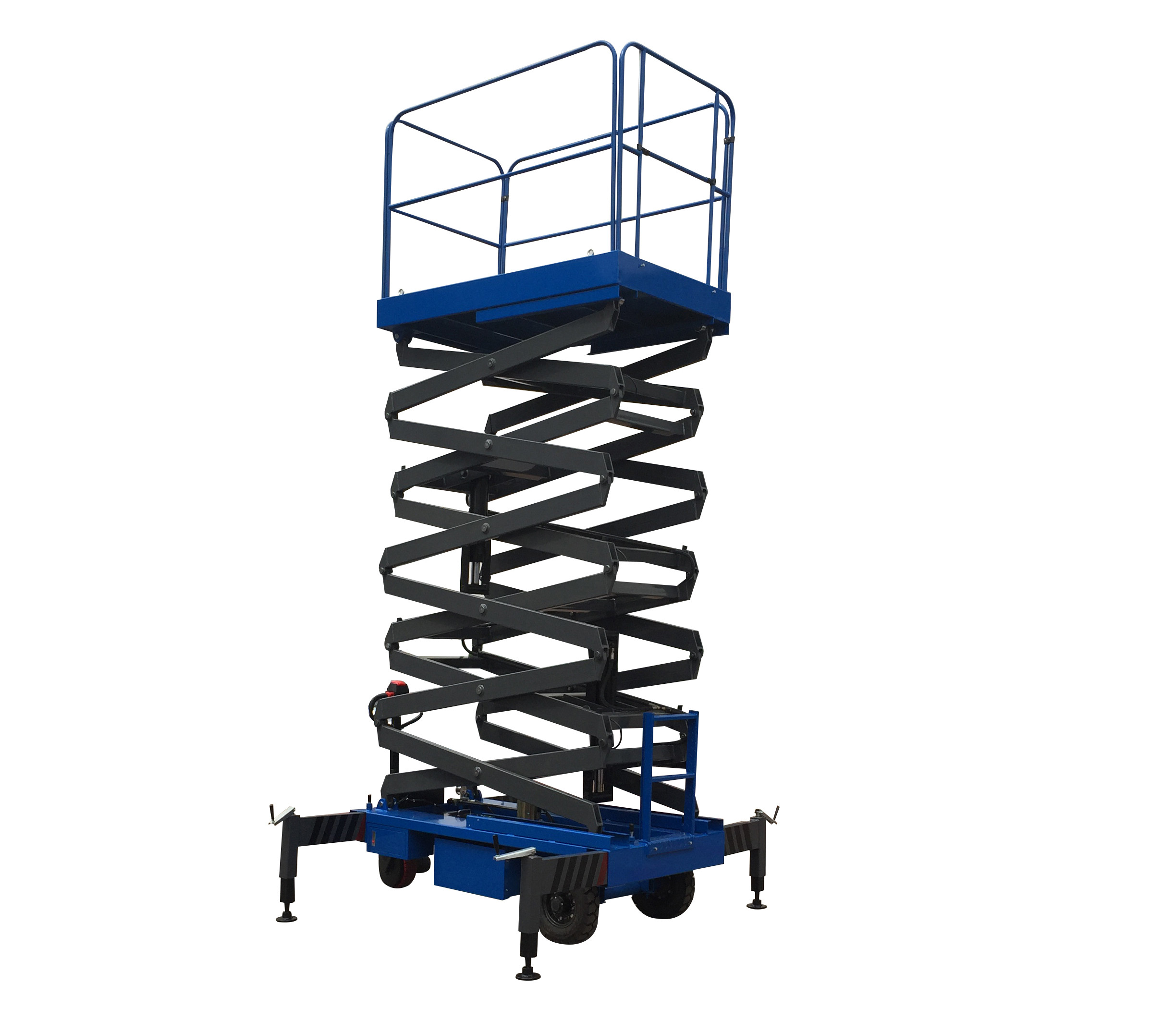

3Kw with 450Kg Loading  Reaching Height 12m Motorized  Scissor Lift 2



Why to choose CHEN LIFT Motorized Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 15 Years Experience



Communication with Customers



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:
