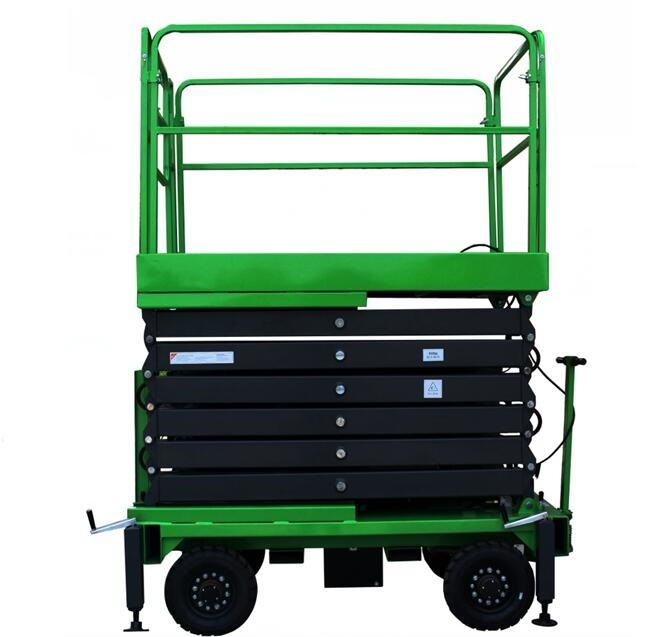

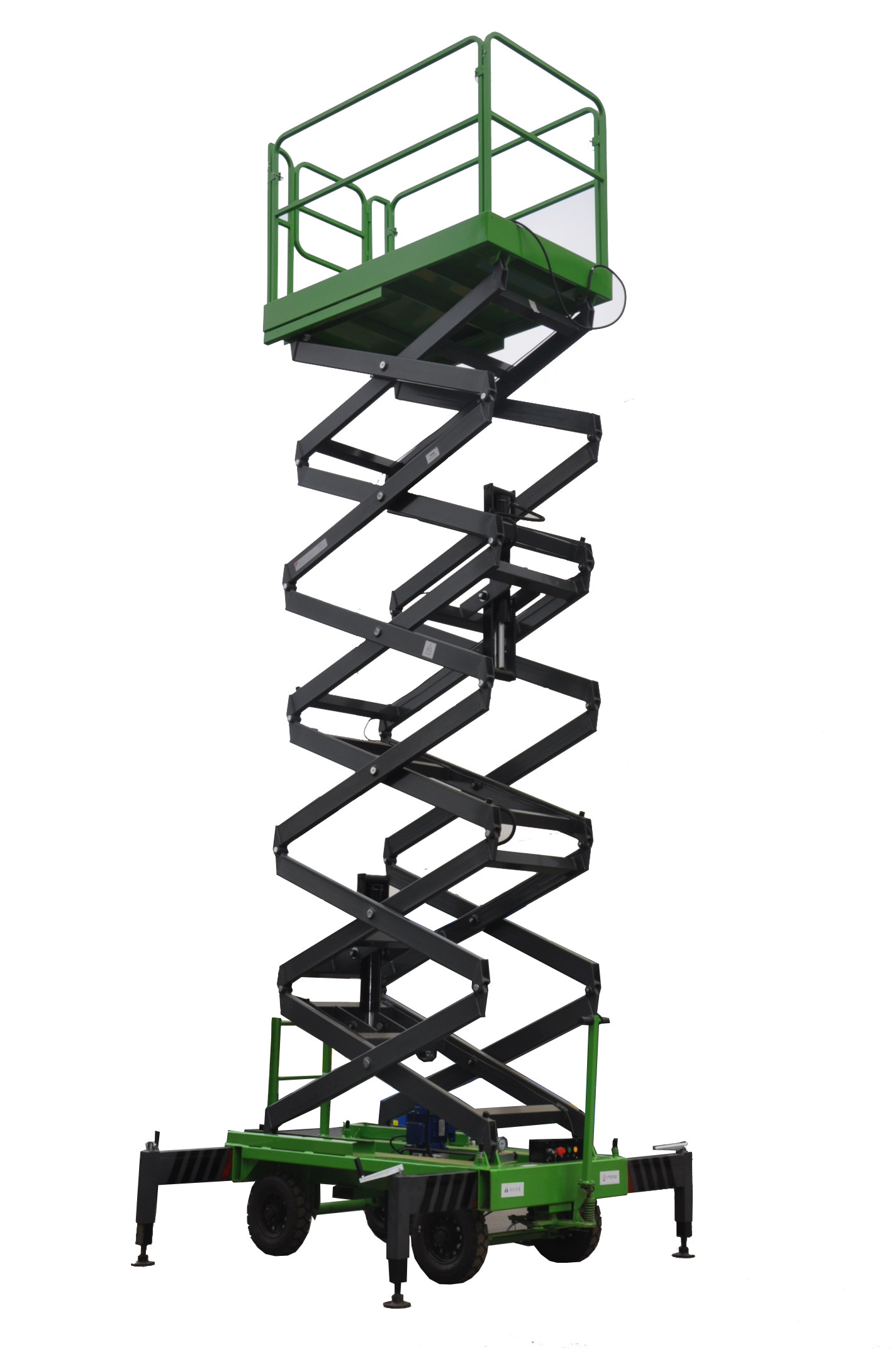

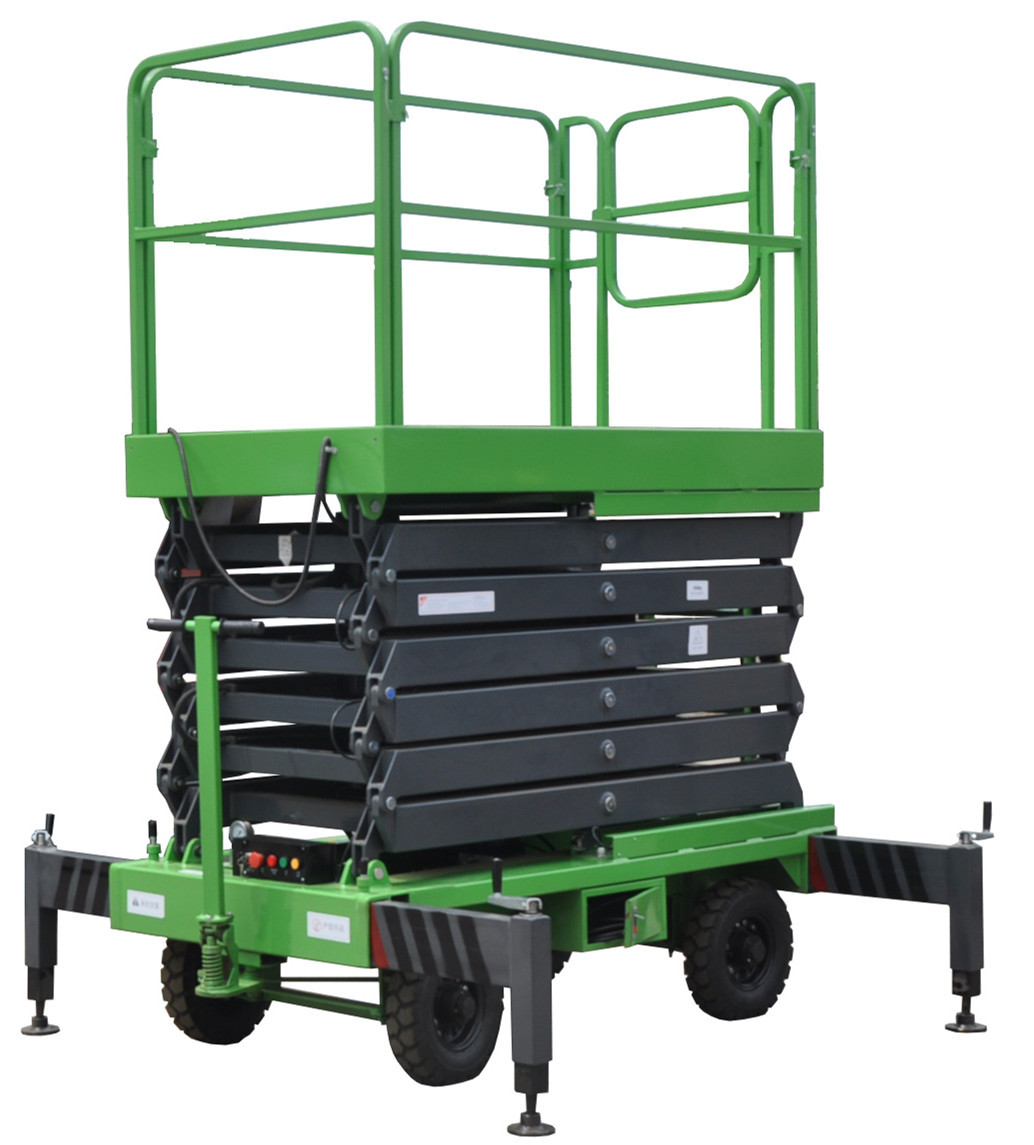

7.5 Meters Manual Pushing Mobile Scissor Lift X-Lift Platform 500Kg In Green

7.5 Meters Manual Pushing Mobile Scissor Lift X-Lift Platform 500Kg In Green

  • 7.5 Meters Manual Pushing Mobile Scissor Lift X-Lift Platform 500Kg In Green
  • 7.5 Meters Manual Pushing Mobile Scissor Lift X-Lift Platform 500Kg In Green
  • 7.5 Meters Manual Pushing Mobile Scissor Lift X-Lift Platform 500Kg In Green
7.5 Meters Manual Pushing Mobile Scissor Lift X-Lift Platform 500Kg In Green
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: MK750
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or Wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: L/C, T/T
Supply Ability: 100 sets/ month
Contact Now
Detailed Product Description
Loading Capacity: 500Kg Platform Height: 7.5m
Working Height: 9.5m Platform Size: 1.80*1.00m
Motor Power: 1.5kw Power Voltage: AC380V
Lifting Time: 72s Overall Size: 1.85*1.24*1.50m
High Light:

scissor lift mobile

,

automobile scissor lift



7.5 Meters Manual Pushing Mobile Scissor Lift X-Lift Platform In Green Color



Product Description
Manual Pushing Scissor Lift is a scissor structure man lift for aerial work which can be towed by man power.
It is for one or two persons aerial working purpose.
The maximum platform height is 3m, 6m, 7.5m, 9m, 11m, 12m, 14m, 16m.
And the maximum loading capacity is 300Kg, 500Kg, 1000Kg.
The mechanical structure make the platform stability, wide operating and high loading capacity.
Normal scissor lift lifting power is AC power, DC and both AC&DC power are also available for option.

Scissor lift platform is easily operated by the control box both on the platform and ground. The supporting legs can guarantee the stability of the lift. More safety for workers working on the platform with the guardrail. Besides the AC power, you also can add motorized device for assist walking.

Application for Scissor Lift
Scissor lift platform can be used in the factory, warehouse, public places, stations and so on.
It provides you a good choice for aerial working.



Parameter:

Loading Capacity 500kg
Platform Height 7500mm
Platform Size 1800mm*1000mm
Motor Power 1.5kw
Power Voltage AC380V
Lifting Time 72s
Total Weight 1100kg
Overall Size 1850*1240*1500mm



Main Features:
1. Pointing control of lifting up and down.
2. Manganese steel lifting arm in high strength with rectangle shape
3. Anti skid floor in platform
4. The control panels are available on the platforms and ground
5. Fine grinding cylinder in good sealing performance
6. Neatly folding guardrails
7. Battery and battery charger in bulit
8. Optional extension platform



Standard Configuration for Manual Pushing Around Scissor Lift

  1. AC power: 220V 50Hz/60Hz, single phase, or 380V 50Hz/60Hz, three phases
  2. Rain-proof electric cabinet
  3. Beacon light
  4. Inflated Tyre
  5. Forklift slot
  6. Towing hook
  7. Chinese domestic brand hydraulic power pack
  8. Pressure gauge
  9. Auxiliary release valve
  10. Level gauge
  11. Emergency stop button both on platform and ground
  12. Key lock power switch
  13. Lockable stabilizer
  14. Anti-skid floor on platform with removable handrails
  15. Toe protection boards on the platform
  16. Operation voltage at 24V
  17. Ladders for access to the stowed platform (Ladder for easy accessibility)
  18. Limit switch provided for top motor shut off
  19. Removable control box on platform
  20. Interlock doors on platform
  21. Detachable/Foldable Fence
  22. Powder coating painting
  23. Spring mounted handles
  24. Nylon bush assembled in between each scissor
  25. Short Circuit and leakage protection system

Optional Configuration for Manual Pushing Around Scissor Lift

  1. Platform extension
  2. Overloading protection
  3. DC power supply
  4. Battery Indicator for DC power
  5. Hour meter for DC power
  6. AC&DC power supply
  7. Motorized device for easily pulling
  8. Horn available for motorized device
  9. Explosion proof type
  10. Maintenance supporting bar
  11. Solid Tyre
  12. Overseas brand hydraulic power pack
  13. Outrigger sensor
  14. Horn on the platform
  15. AC power to the platform
  16. Platform working light
  17. Anti-burst valve on cylinder



Major Parameters:

  • Model: MK750
  • Loading Capacity 500kg
  • Maximum Platform Height 7500mm
  • Maximum Working Height 9500mm
  • Platform Size 1800*1100mm
  • Lifting Power 1.5kw
  • Power Voltage AC380V
  • Lifting Time 72s
  • Total Weight 1100kg
  • Overall Size 1850*1240*1500mm


Safety Precautions​:
1. The operation voltage on the platform is 24V
2. Emergency stop button on the platform and ground
3. Auxiliary lowering device
4. Hose burst valve safety
5. Rain-proof design electirc cabinet
6. Fold-able fence on the platform
7. Outrigger on the chassis for more stability​



Why choose CHEN LIFT Mobile Scissor Lift?

  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 20 Years Experience

7.5 Meters Manual Pushing Mobile Scissor Lift X-Lift Platform 500Kg In Green 0



Other Related Products
7.5 Meters Manual Pushing Mobile Scissor Lift X-Lift Platform 500Kg In Green 1



Communication with Customers:

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30 days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
