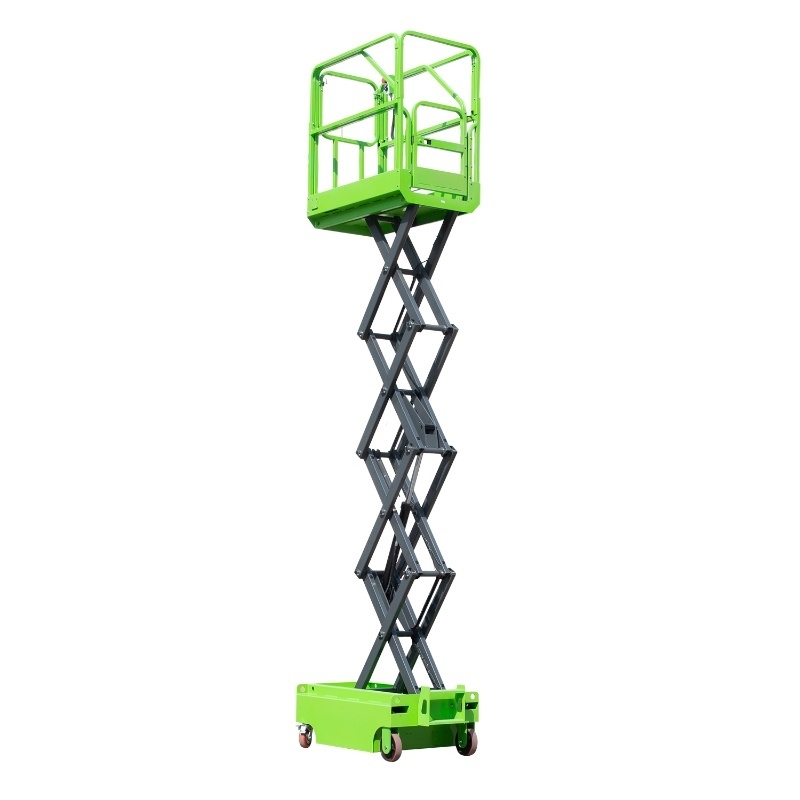

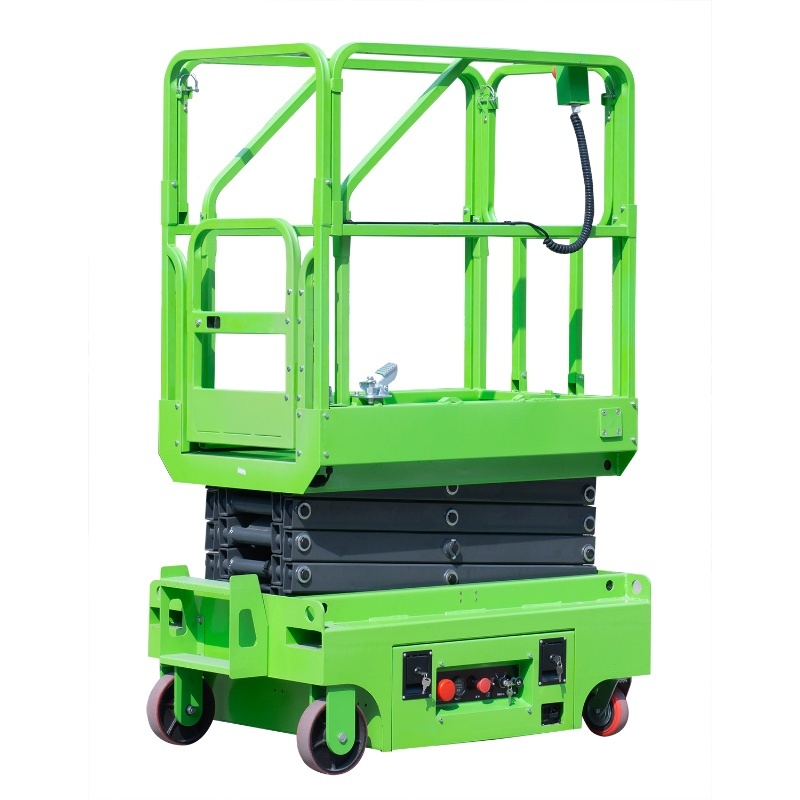

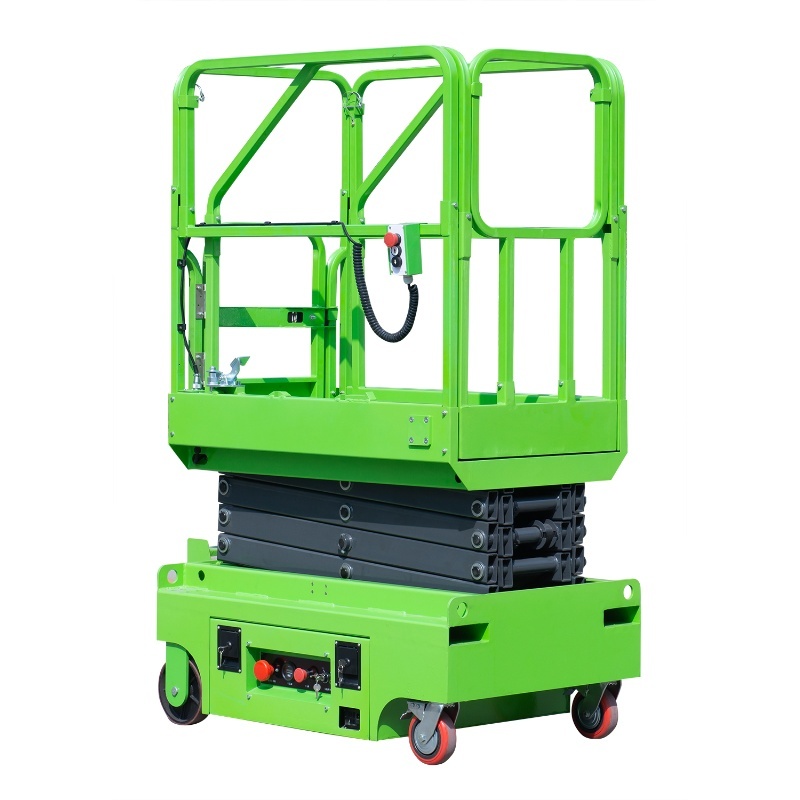

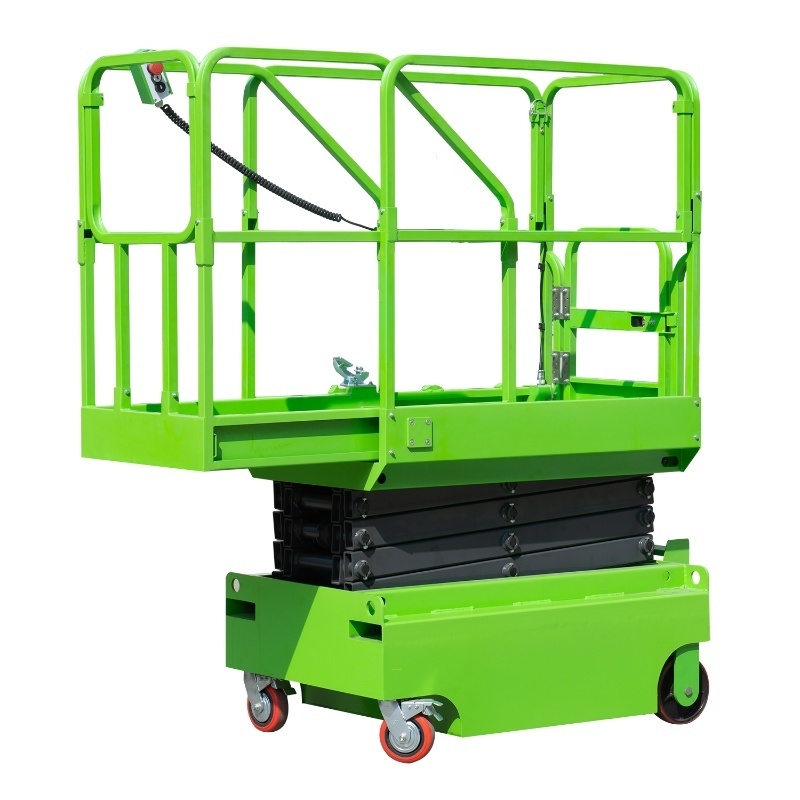

Platform Height Max 3m Lifting Capacity 240kg Hydraulic Mobile Scissor Lift

Platform Height Max 3m Lifting Capacity 240kg Hydraulic Mobile Scissor Lift

    • Platform Height Max 3m Lifting Capacity 240kg Hydraulic Mobile Scissor Lift
    • Platform Height Max 3m Lifting Capacity 240kg Hydraulic Mobile Scissor Lift
    • Platform Height Max 3m Lifting Capacity 240kg Hydraulic Mobile Scissor Lift
    • Platform Height Max 3m Lifting Capacity 240kg Hydraulic Mobile Scissor Lift
    • Platform Height Max 3m Lifting Capacity 240kg Hydraulic Mobile Scissor Lift
    • Platform Height Max 3m Lifting Capacity 240kg Hydraulic Mobile Scissor Lift
  • Platform Height Max 3m Lifting Capacity 240kg Hydraulic Mobile Scissor Lift

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE ISO9001:2008 IPAF member
    Model Number: MK300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiatable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 days after receipt of deposit
    Payment Terms: L/C, T/T
    Supply Ability: 1000 units/ month
    Contact Now
    Detailed Product Description
    Model: MK300 Loading Capacity: 240kg
    Platform Height: 3m Color: Customizable
    Lift Mechanism: Scissor Lift Application: Indoor Or Outdoor Aerial Work
    Platform Size: 1.15* 0.6 M Extension Platform: Optional Configuration
    Stowed Size: 1.3* 0.76* 1.43 M Lift Motor: 0.8 Kw



    Platform Height Max 3m Lifting Capacity 240kg Hydraulic Mobile Scissor Lift



    Quick Detail:



    Name Mobile Scissor Lift Brand Name Bestmax
    Loading Capacity 240Kg Platform Height 3m
    Working Height 5 m Color Green Color or Optional
    Lifting Power 0.75Kw Power Supply AC/DC



    Description:



    Mini Mobile Scissor Lift has compact design structure(without outrigger, so the preparation time will be less, and enhance the working efficiency) less weight(can push easily by manpower)
    The operators can operate the machine up&down on platform and ground. (It lifts by battery power)



    The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



    Main Features:



    1. Pointing control of lifting up and down.

    2. Manganese steel lifting arm in high strength with rectangle shape

    3. Anti-skid floor in platform

    4 The control panels are available on the platforms and ground.

    5. Fine grinding cylinder in good sealing performance

    6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.





    Safety Precaution:



    1. The operation voltage on the platform is 24V

    2. Emergency stop button on the platform and ground

    3. Auxiliary platform lowering

    4. Telescopic legs on the chassis

    5. Hose burst valve safety

    6. Rain-proof design electric cabinet

    7. Fence on the platform



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack ,NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Antiskid checkered plate
    • Tire: Ø400-8 Inflated tires
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Rubber Solid Tire
    • Flame Proof Control CabinetPlatform Height Max 3m Lifting Capacity 240kg Hydraulic Mobile Scissor Lift



    Platform Height Max 3m Lifting Capacity 240kg Hydraulic Mobile Scissor Lift



    Applications:



    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



    Why to choose Xunte Mobile Scissor Lift?

    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 20 Years Experience



    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
