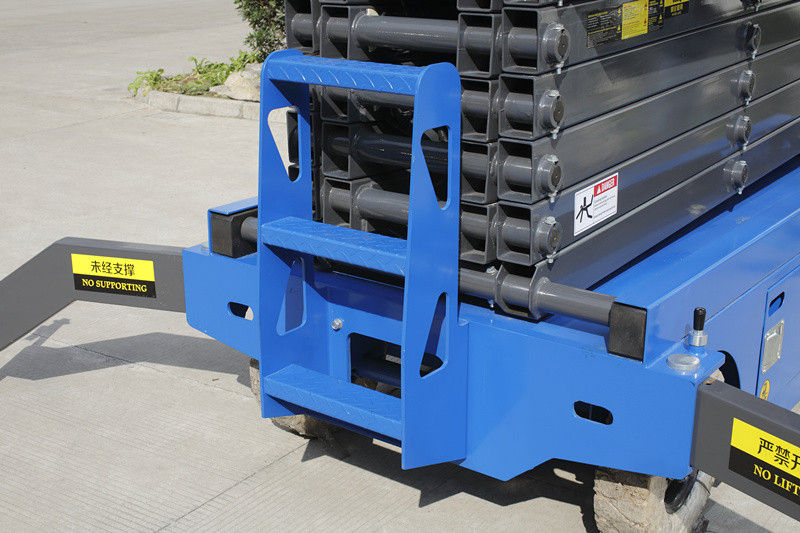

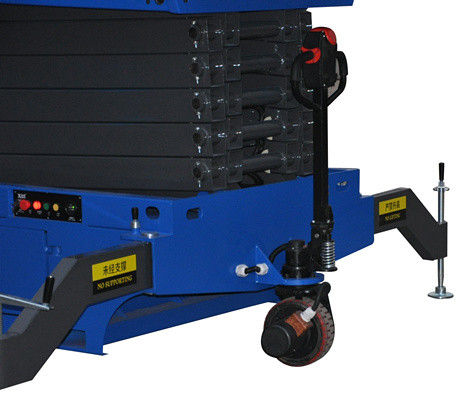

6m Height Mobile Scissor Lift with Motorized Device of Loading Capacity 300kg

    • 6m Height Mobile Scissor Lift with Motorized Device of Loading Capacity 300kg
    • 6m Height Mobile Scissor Lift with Motorized Device of Loading Capacity 300kg
    • 6m Height Mobile Scissor Lift with Motorized Device of Loading Capacity 300kg
    • 6m Height Mobile Scissor Lift with Motorized Device of Loading Capacity 300kg
    • 6m Height Mobile Scissor Lift with Motorized Device of Loading Capacity 300kg
  • 6m Height Mobile Scissor Lift with Motorized Device of Loading Capacity 300kg

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE ISO9001:2008 IPAF member
    Model Number: XE60R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden caseLoading Capacity
    Delivery Time: 30 days after receipt of deposit
    Supply Ability: 100 set per month
    Contact Now
    Detailed Product Description
    Model: XE60R Material: High Strength Magnese Steel
    Loading Capacity: 300kg Maximum Height: 6m
    Minimum Height: 1.3m Platform Size: 1.65*0.75m
    Measurement: 2.05*0.95*1.3m Weight: 760kg
    Color: Customizable

    6m Height Mobile Scissor Lift with Motorized Device of Loading Capacity 300kg



    Parameter:



    Loading Capacity 300kg
    Maximum Height 6000mm
    Minimum Height 1300mm
    Platform Size 1650*750mm
    Lifting Power 2.2Kw
    Pulling Power 0.75Kw
    Power Voltage 24V
    Pulling Speed 6 km/h
    Lifting Time 55s
    Gradeablity 5
    Wind Loading <6
    Cylinder Ф100*1
    Gear Pump 6ml/r
    Net Weight 760kg
    Outrigger Length 500mm
    Measurement 2050*950*1300mm



    Description:



    All the XE Series Mobile Scissor Lft can have extension platfrm, and the size of the extension platform has relations to the platform size and the lifting height. So does the length of the outriggers in order to match the lifting height of machine to provide supporting.



    Main Features:

    1. Pointing control of lifting up and down.

    2. Driven by electricity, you can control forward and backward on ground, only the machine is totally closed otherwise the pulling device can not work

    3. Use slider design which can minimize the orbit a lot, now the orbit of our machine in its highest position is 5cm and this is much smaller than the standard 20cm.

    4. The surface of the machine has been derusted by the blasting machine, two bottom-two surface way to paint the machine.

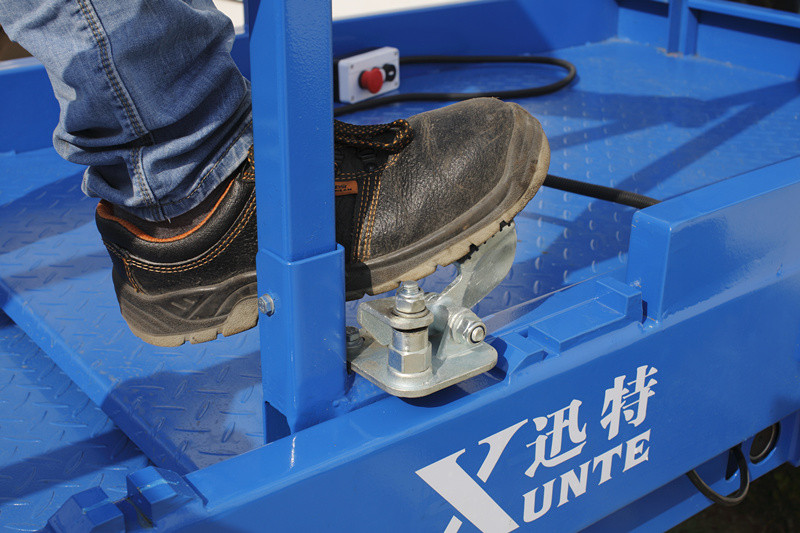

    5. Detachable fence on the platform

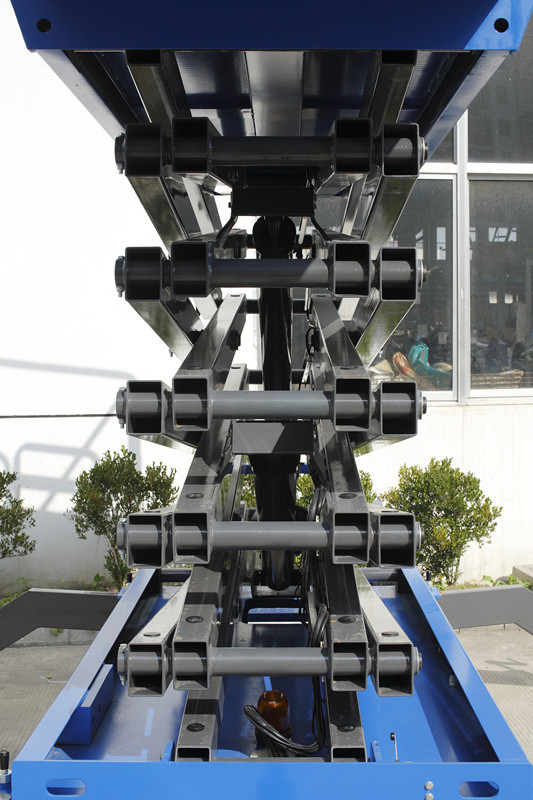

    6. Manganese steel lifting arm in high strength with rectangle shape

    7. Anti skid floor in platform

    8. The control panels are available on the platforms and ground.

    9. Fine grinding cylinder in good sealing performance

    10.Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.





    Optional Features:



    Extension Platfrom

    Loading Capacity: 150Kg

    Platform Size: 900*750mm





    Safety Precaution:



    1.The operation voltage on the platform is 24V

    2.Emergency stop button on the paltform and ground

    3.Auxiliary platform lowering

    4.Telescopic legs on the chassis

    5.Explosion-proof device for oil tube

    6.Low battery protector

    7. Charging Protection system





    Major Parameters

    • Model: XE60R
    • Loading Capacity     300kg
    • Maximum Height     6000mm
    • Minimum Height       1300mm
    • Platform Size            1650*750mm
    • Lifting Power             2.2kw
    • Power Voltage          1phase/220V/50HZ
    • Lifting Time               55s
    • Cylinder                    Ф80(1Pcs)
    • Gear Pump                6ml/r
    • Total Weight              760kg
    • Measurement            2050*950*1300mm



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack ,NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Antiskid checkered plate
    • Tire: Ø500-8 Inflated tires
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Rubber Solid Tire
    • Flame Proof Control Cabinet



    Applications:



    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





    Why to choose Xunte Mobile Scissor Lift?

    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience





    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
