Stationary Hydraulic Lift Platform Scissor Lift For Loading 5 Tons Cargo

Stationary Hydraulic Lift Platform Scissor Lift For Loading 5 Tons Cargo

    • Stationary Hydraulic Lift Platform Scissor Lift For Loading 5 Tons Cargo
    • Stationary Hydraulic Lift Platform Scissor Lift For Loading 5 Tons Cargo
  • Stationary Hydraulic Lift Platform Scissor Lift For Loading 5 Tons Cargo

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE; ISO; IPAF
    Model Number: SJG 5-1.6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiable
    Packaging Details: Wrapped in pallet
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 1000 units/month
    Contact Now
    Detailed Product Description
    Load Capacity: 5000Kg Platform Size: 2500*2000mm
    Travelling Height: 4Kw Lift Drive / Actuation: Hydraulic
    Lift Mechanism: Scissor Lift

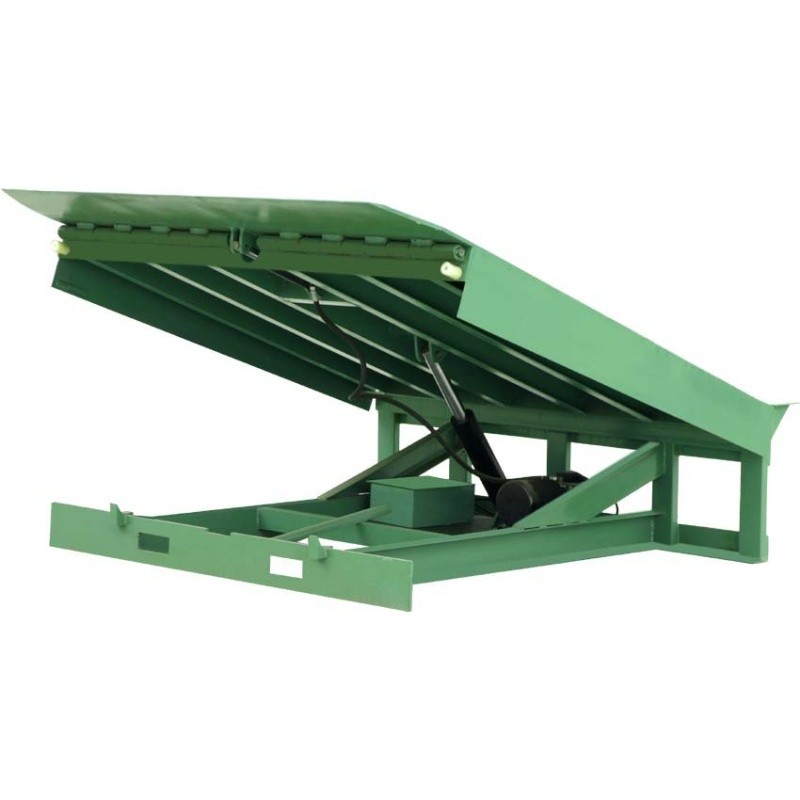

    Stationary Hydraulic Lift Platform Scissor Lift For Loading 5 Tons Cargo



    Description of Stationary Scissor Lift
    Stationary Scissor Lifts are widely used for carrying the goods in stability. It is mainly used in production lines transferring goods between different heights loading and uploading, lifting for parts, assembling, the platforms, the driving types, the control panels and all the accessories are available for different working conditions and requirements.



    Major Parameters

    Name Hydraulic Lift Platform Brand Name Bestmax
    Loading Capacity 5000Kg Lifting Height 1.60 m
    Platform Size 2500*2000mm Color Optional
    Lifting Power 4 Kw Power Supply

    AC



    Main Features:

    1. Easily installation and maintenance

    2. Excellent mechanical structure, which works in lower initial lifting height with maximum lifting stroke.

    3. The antiskid design endows the platforms with excellent antiskid property

    4. Fine grinding cylinder in good sealing performance

    5. Gas Shield Welding (in stronger hardness and everlasting)

    6. Built-in pressure release valve

    7. Auxiliary platform lowering when electricity off

    8. Oil less bearing mounted in the joint parts, pin roll with grease fitting.

    9. Overall hook by CNC torch flame cut

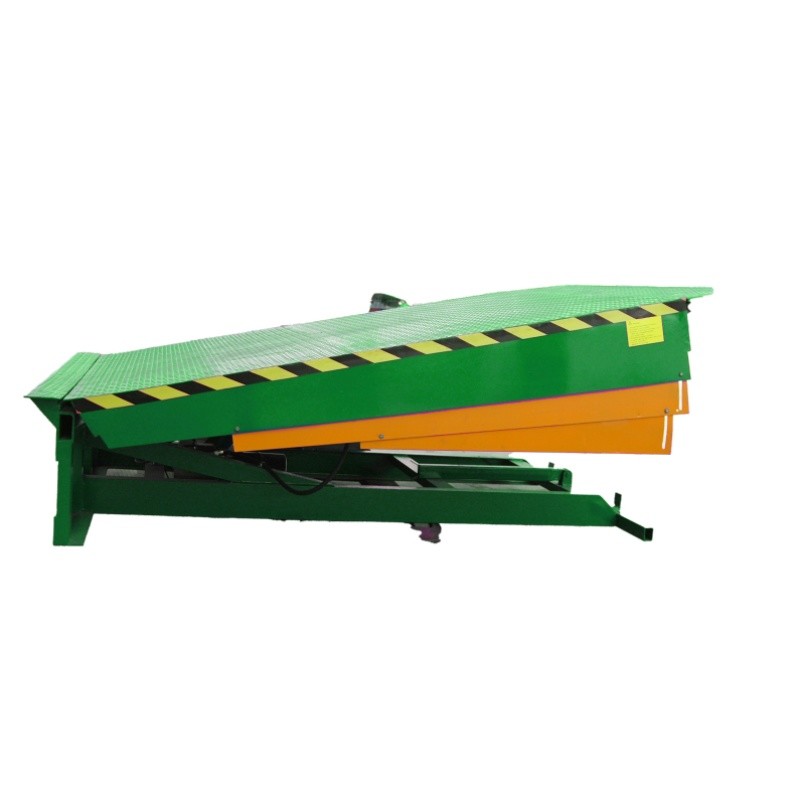

    Stationary Hydraulic Lift Platform Scissor Lift For Loading 5 Tons Cargo



    Configurations:

    • Electric system:Schneider contactor, SANLICO button, CHNT electrical

    • Hydraulic System:Hycman brand power pack ,NOK sealing

    • Scissor Arm Support:Hi-strength Manganese steel rectangle tube Q345 B

    • Platform Surface:Antiskid checkered plate

    • High-pressure Oil Pip:Double wire hydraulic intensifier rubber hose



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V; manual pump

    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher

    • Extension Platform

    • Flame Proof Control Cabinet

    Stationary Hydraulic Lift Platform Scissor Lift For Loading 5 Tons Cargo





    Applications:

    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



    Why to choose Bestmax Hydraulic Lift Platform?

    • High Quality

    • Reasonable Price

    • Good after Service

    • 1 Year Warranty

    • More Than 20 Years Experience
