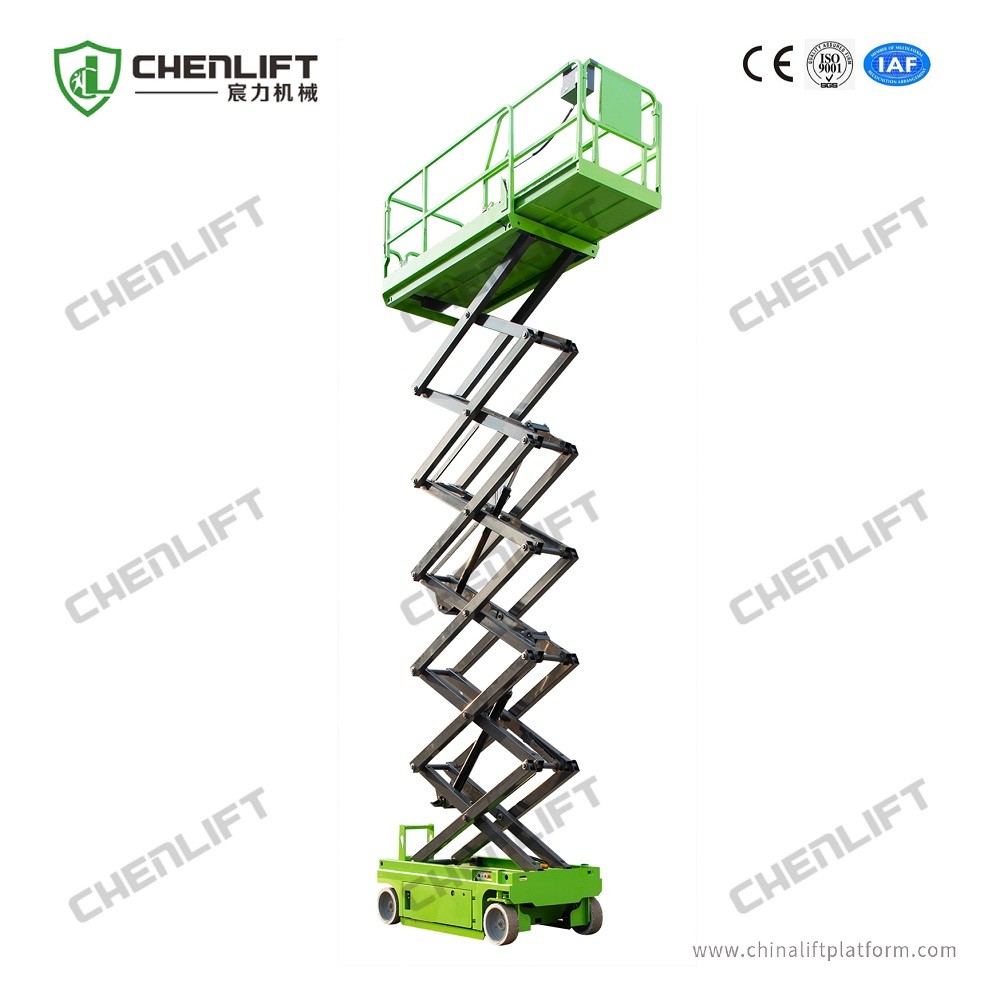

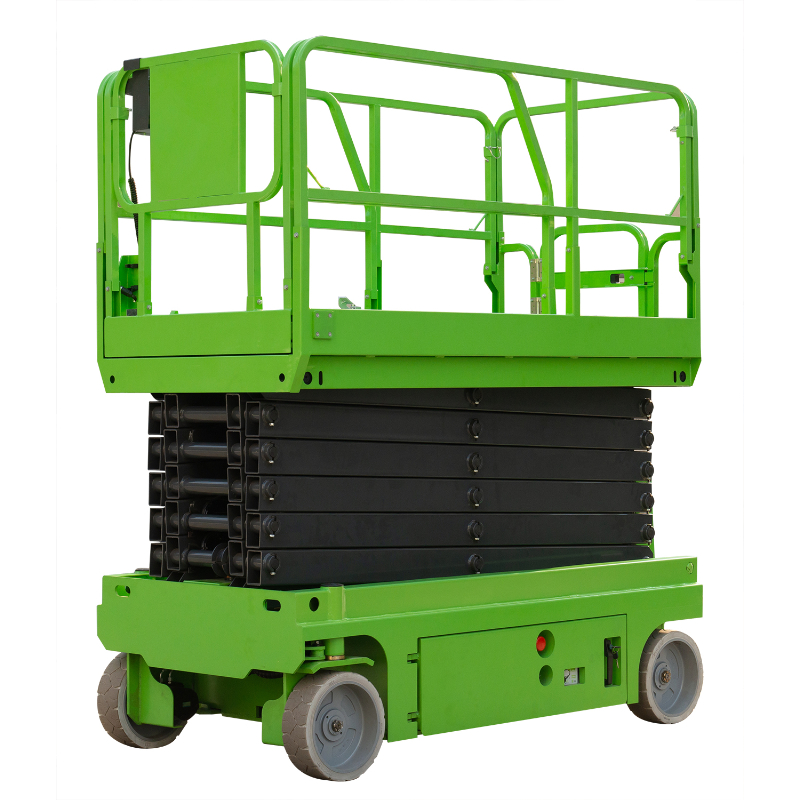

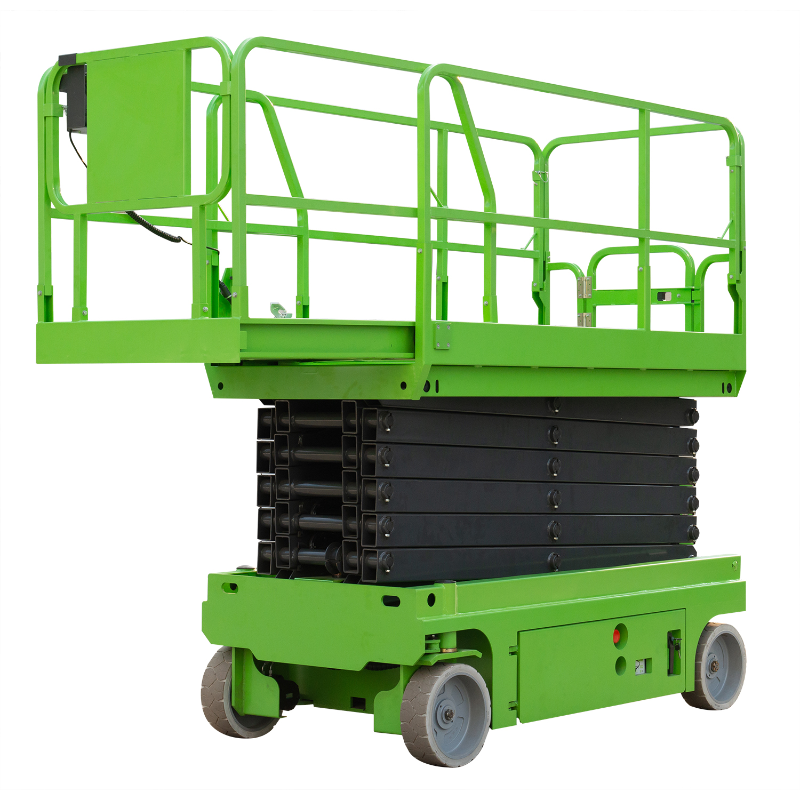

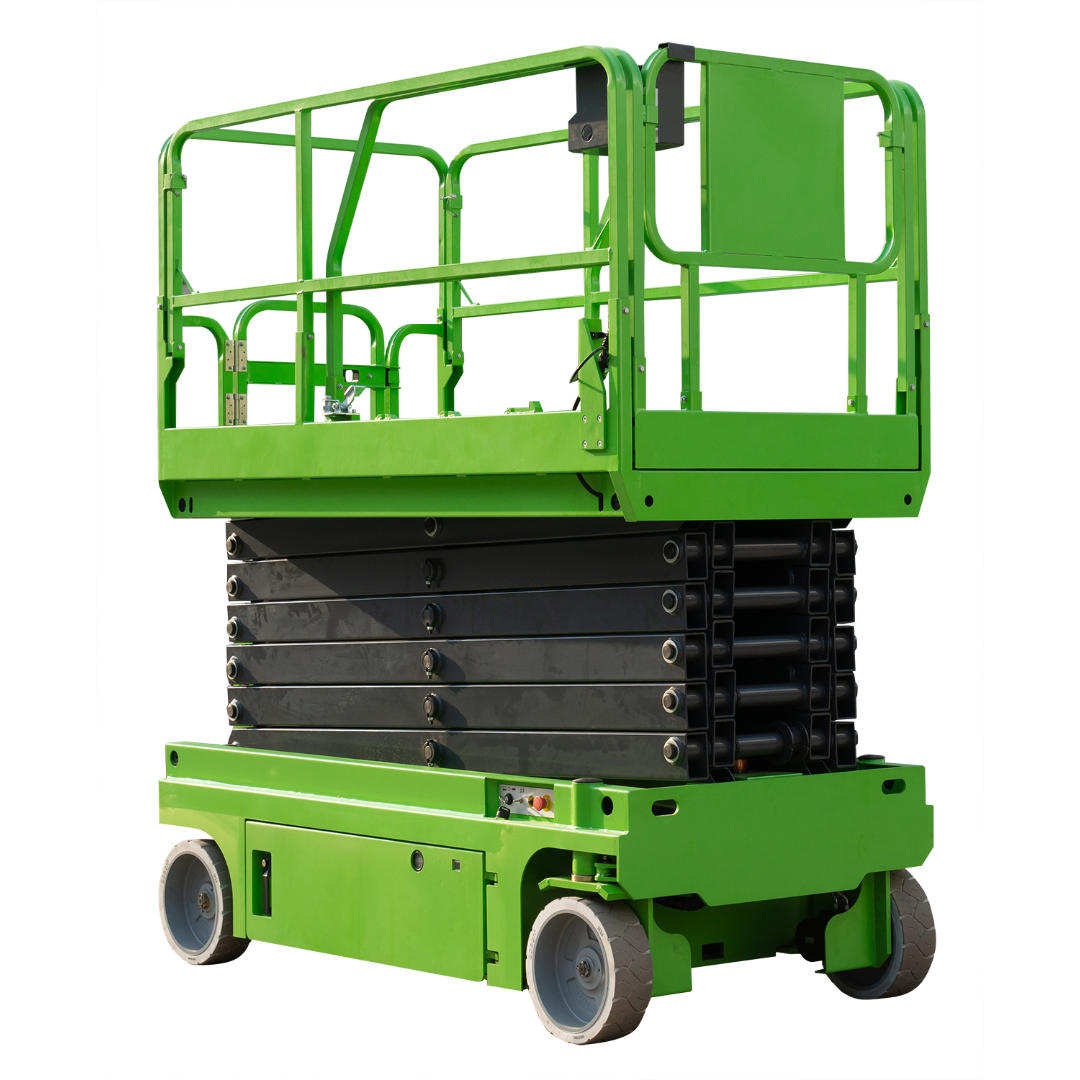

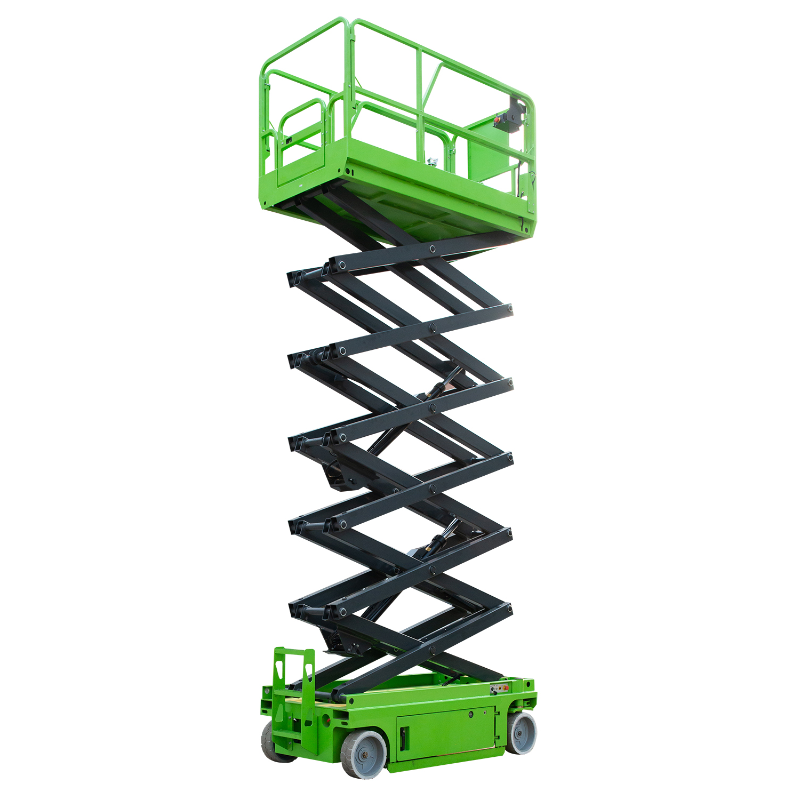

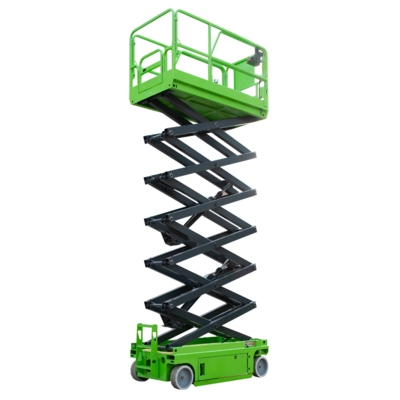

10m Hydraulic Lift Platform Electric Self Propelled Scissor Lift with Extension Platform 450Kg Loading

10m Hydraulic Lift Platform Electric Self Propelled Scissor Lift with Extension Platform 450Kg Loading

    • 10m Hydraulic Lift Platform Electric Self Propelled Scissor Lift with Extension Platform 450Kg Loading
    • 10m Hydraulic Lift Platform Electric Self Propelled Scissor Lift with Extension Platform 450Kg Loading
    • 10m Hydraulic Lift Platform Electric Self Propelled Scissor Lift with Extension Platform 450Kg Loading
  • 10m Hydraulic Lift Platform Electric Self Propelled Scissor Lift with Extension Platform 450Kg Loading

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE ISO9001: 2008 IPAF member
    Model Number: MX800S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 days after receipt of deposit
    Payment Terms: L/C, T/T
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 450Kg Platform Height: 8m
    Platform Size: 2.27*1.12m Working Height: 10m
    Motor Power: 1.5Kw Keywords: Scissor Lift



    10m Hydraulic Lift Platform Electric Self Propelled Scissor Lift with Extension Platform 450Kg



    Description:

    1. Self propelled scissor lift, with automatic walking function, can be in different work condition, do not need external power supply, do not need artificial traction.

    2. Mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk, easily moved, spacious working platforms, high working efficiency.

    3. Scissor lift can be move while extended and controlled from platform by the operator.

    4. Most models are equipped with zero inside turning radius capability, can be easily and flexibly operated in crowed working conditions such as construction site, elevator, and narrow corridor. Lift-down, turning, forward and backward movements can be easily operated by one person.



    Parameters

    Model MX800S
    Load capacity 450kg
    Extension load capacity 113kg
    Max Worker number 2
    Working height 10m
    Platform height 8m
    Platform size 2.27*1.12m
    Extension platform 0.90m
    Ground clearance(stowed) 0.09m
    Ground clearance(raised) 0.019m
    Wheel base 1.36m
    Turning Radius(inside) 0m
    Turning Radius(outside) 2.20m
    Lifting / drive motor 24V/3.3kw
    Travelling speed(stowed) 3.0 km/h
    Travelling speed(raised) 1.0 km/h
    Lifting/ lowering speed 40/30 sec
    Batteries 4*6V/ 225Ah
    Charger 24V/ 30A
    Gradeability 25%
    Max working slop 2°/3°
    Tyre Ф380*129



    Standard Configuration:

    proportional control Auto-brake system

    Auto-lock door on platform Extension Platform

    Drivable when lifted Traceless tire

    4 x 2 Driving Auxiliary lowering device

    Emergency stop button Horn

    Fault diagnosis system Tilting protection system

    Action buzzer Time Recorder

    Supporting bar Fork Lift Slot

    Charging protection system strobe light

    Detachable fence Automatic pothole protection



    Optional Configuration:

    • Overload protection sensor with alarm
    • DC Power connection to the platform
    • Working light on the platform
    • Airway tube to the platform



    10m Hydraulic Lift Platform Electric Self Propelled Scissor Lift with Extension Platform 450Kg Loading



    Why choose Our Self Propelled Scissor Lift?
    · High Quality product
    · Reasonable Price
    · Easy payment mode
    · Timely delivery
    · Good after Service
    · Client-centric approach
    · One year warranty



    Our Service
    1. We can design the customized the machines based on your requirement.
    2. After knowing your detailed need, the right models will be recommened to you with good price.
    3. Shipment can be arranged from our port to your destination port.
    4. Opetion video can be sent to you if needed.
    5. Parts of machines can be sent to you by express within 7 days if needed.



    Thank you for your reading and welcome your inquiry. We will respond you as soon as possible.
