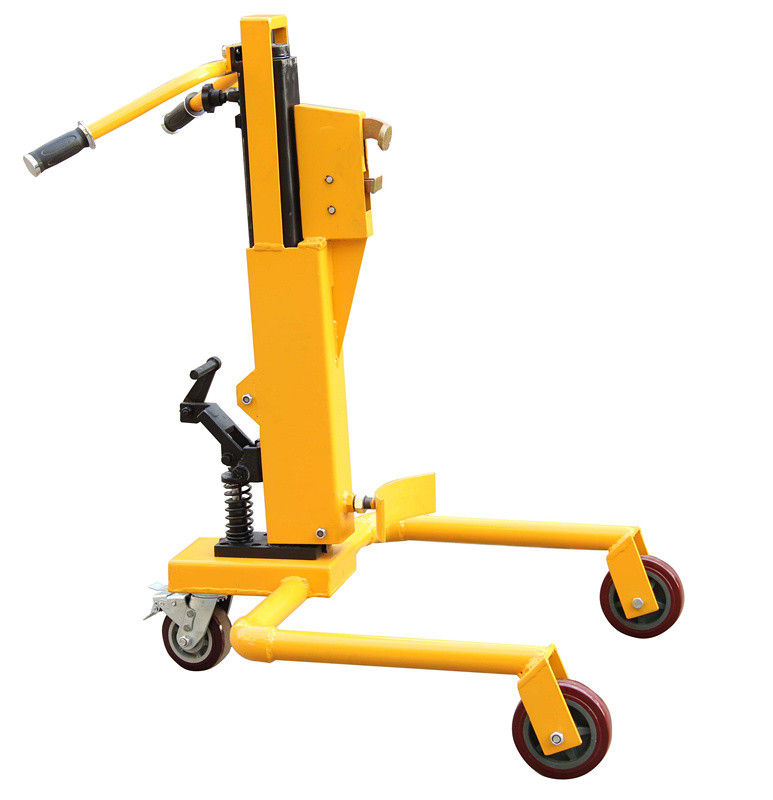

350Kg Load 300mm Lifting Height Pedaled Hydraulic Drum Stacker Lift Scale Type​ A

350Kg Load 300mm Lifting Height Pedaled Hydraulic Drum Stacker Lift Scale Type​ A

    • 350Kg Load 300mm Lifting Height Pedaled Hydraulic Drum Stacker Lift Scale Type​ A
    • 350Kg Load 300mm Lifting Height Pedaled Hydraulic Drum Stacker Lift Scale Type​ A
    • 350Kg Load 300mm Lifting Height Pedaled Hydraulic Drum Stacker Lift Scale Type​ A
  • 350Kg Load 300mm Lifting Height Pedaled Hydraulic Drum Stacker Lift Scale Type​ A

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: DT350A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets
    Delivery Time: 30 days
    Payment Terms: T/T L/C
    Supply Ability: 200 sets/month
    Contact Now
    Detailed Product Description

    350Kg Load 300mm Lifting Height Pedaled Hydraulic Drum Stacker Lift Scale Type​ A


    Quick Detail:

    Name Pedaled Hydraulic Drum Lift Brand Name Xunte
    Loading Capacity 350Kg Color Yellow
    Lifting Height 1100mm
    Stowed Height 1120mm
    Type Eagle-gripper



    Description:

    The Pedaled Hydraulic Drum Stacker is designed to lift heavy drums; the eagle-gripper type structure design is quite suitable for loading steel and plastic drums. The operation of the drum stacker is simple and labor-saving. It is used for the transporting, loading and unloading liquid like dyes, paintings, adhesive, oil and so on. In general, the Hydraulic Drum Lift can provide you with safe and easy transportation of drums.




    Main Features:

    • Lifting is realized by pedaling, it is equipped with ergonomic handler which helps to operate the machine safely and easily..

    • The gantry is made up of special-rolled industrial-manufactured C-type steel which is strong and safe.

    • High-quality oil cylinder with 600mm lifting height.

    • It will grip the drum during lifting automatically.

    • Different Eagle-gripper type for different drum lifts.

    • It is suitable for moving the drums on the sacle with 550mm depth, 680mm width and 180 height.


    Major Parameters


    Model

    Loading Capacity

    (KG)

    Net Weight

    (KG)

    Wheel Dimension

    (mm)

    Inner/Outer Width of Front Supporting Leg

    (mm)

    Outline Dimension

    (mm)

    Lifting Height(mm)
    DT350A    350 50

    Ф150*50

    Ф125*50

    690,890 920*890*1120    300



    Applications:

    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.


    Why to choose Xunte Pedaled Hydraulic Drum Lift ?


    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience
