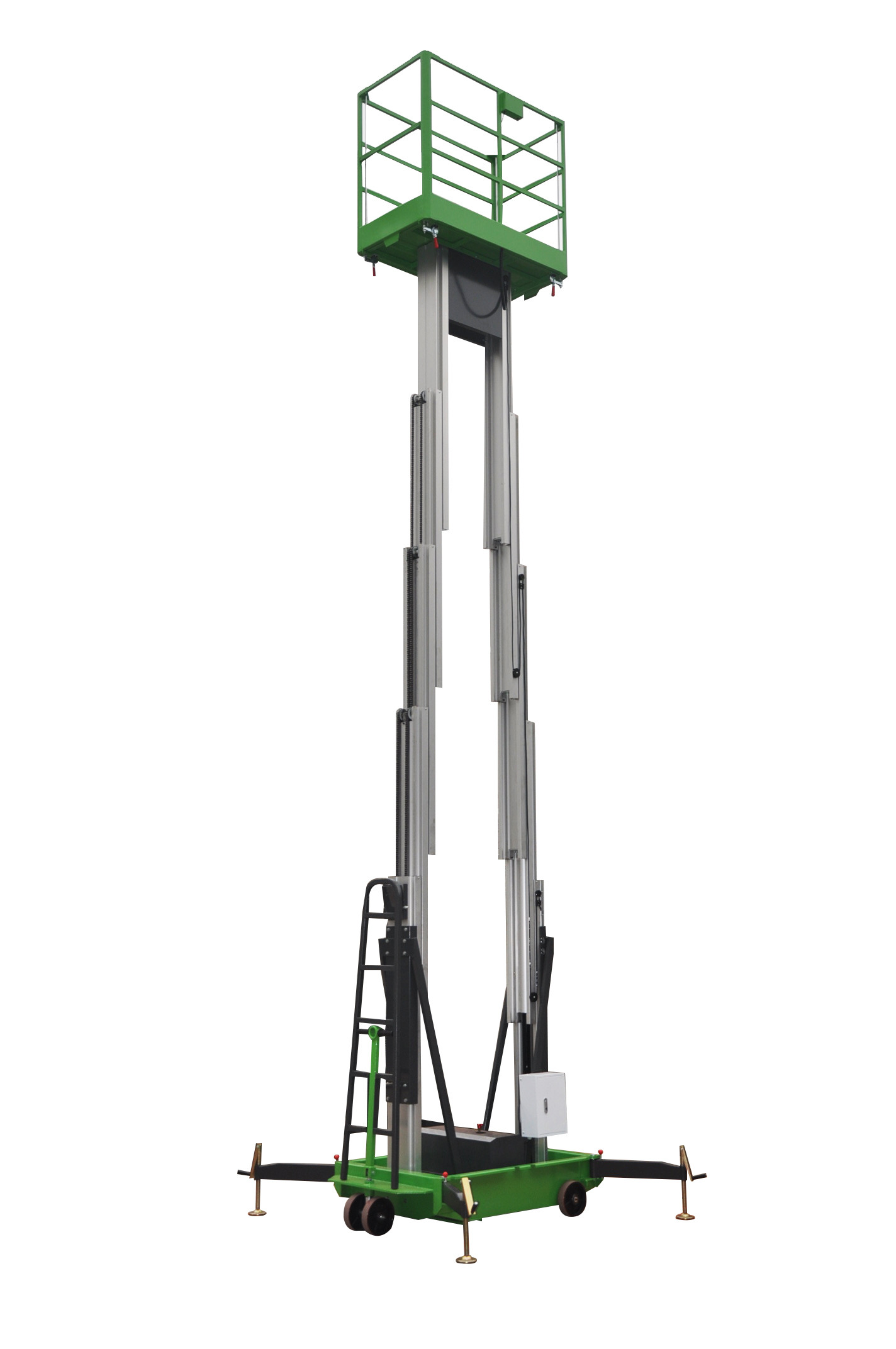

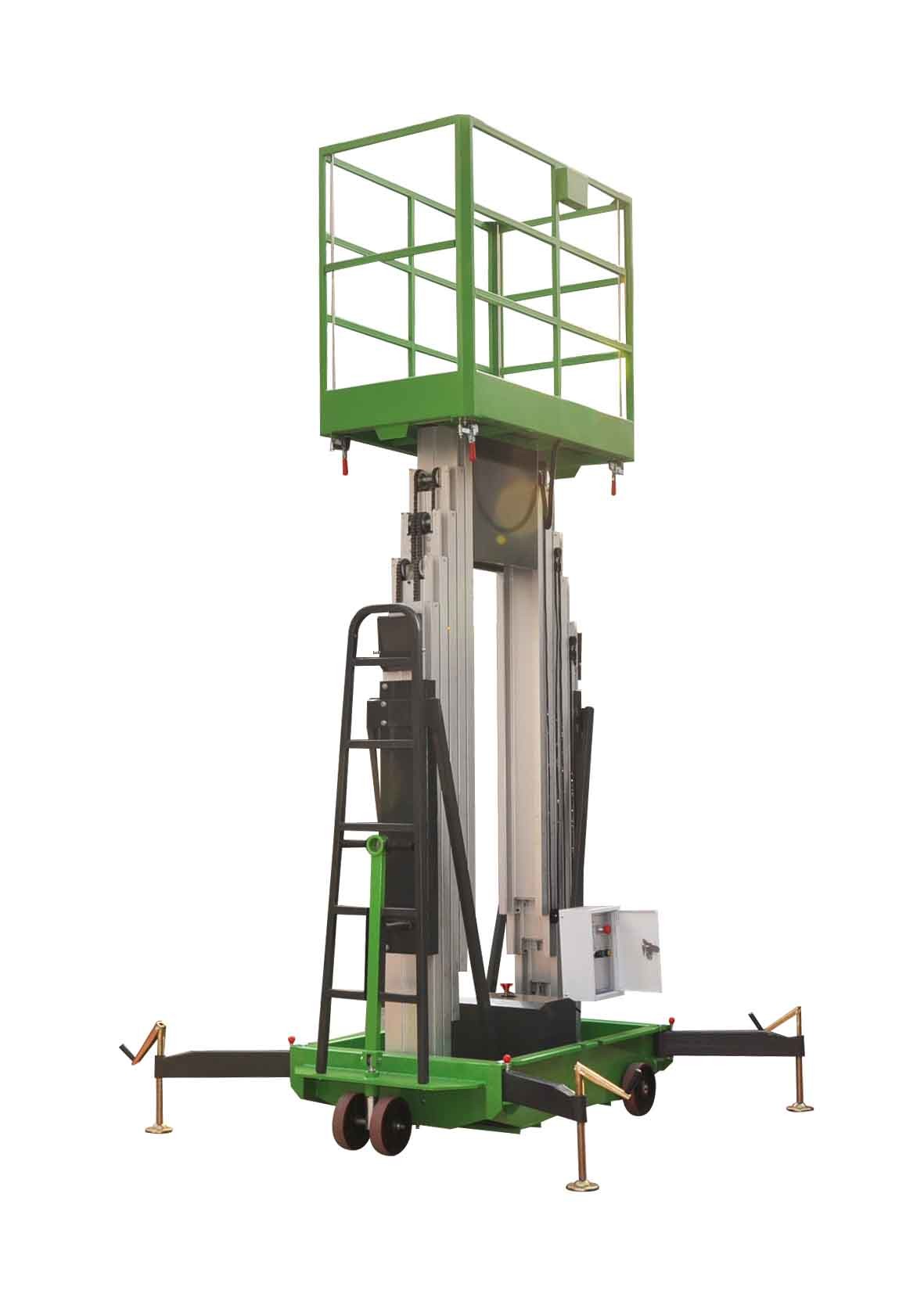

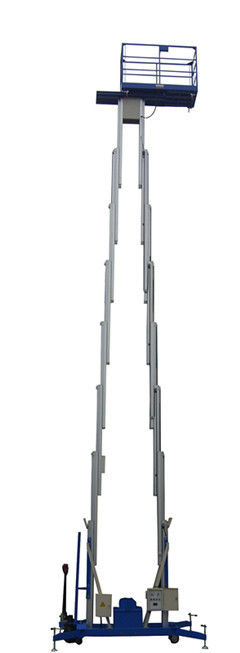

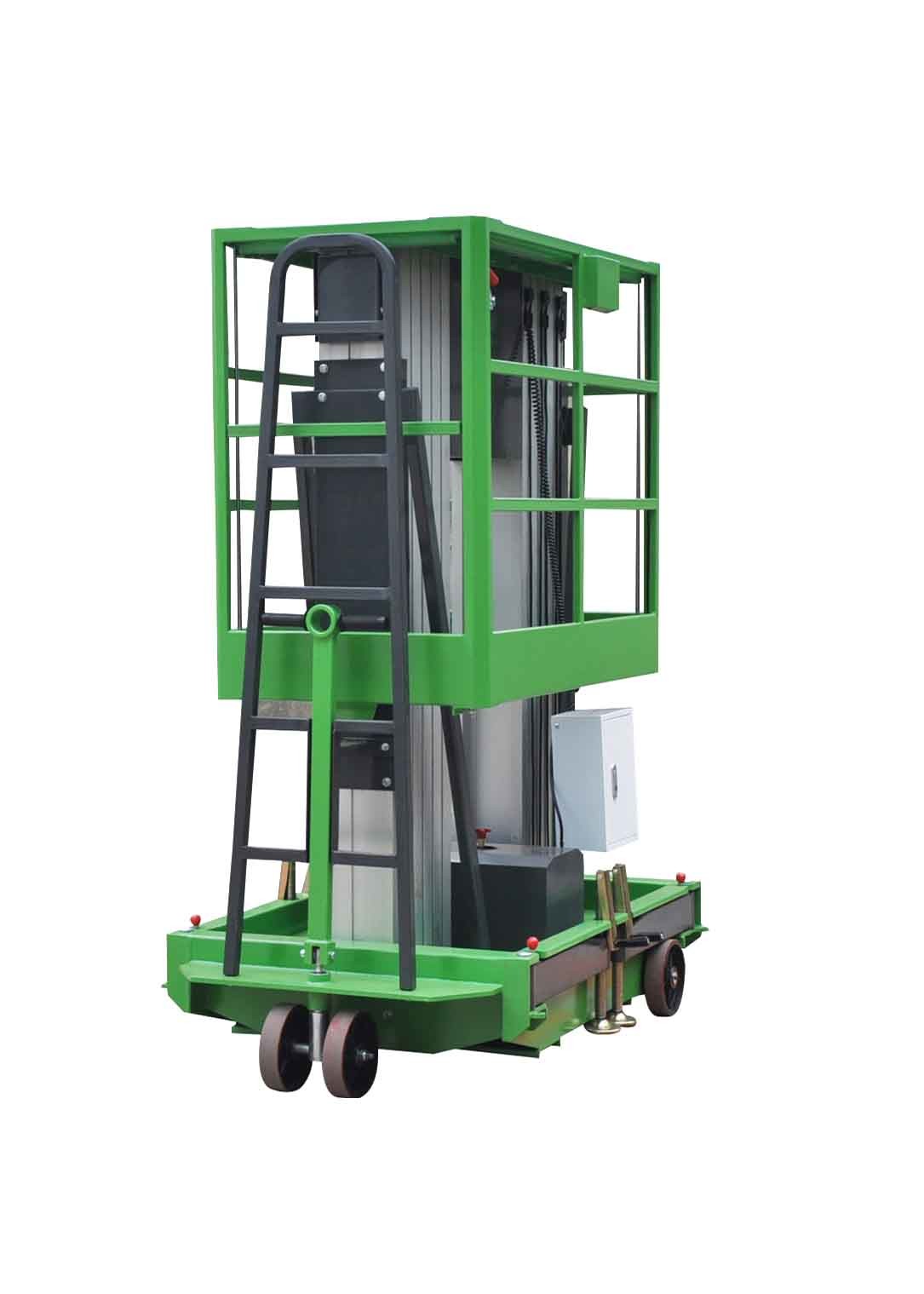

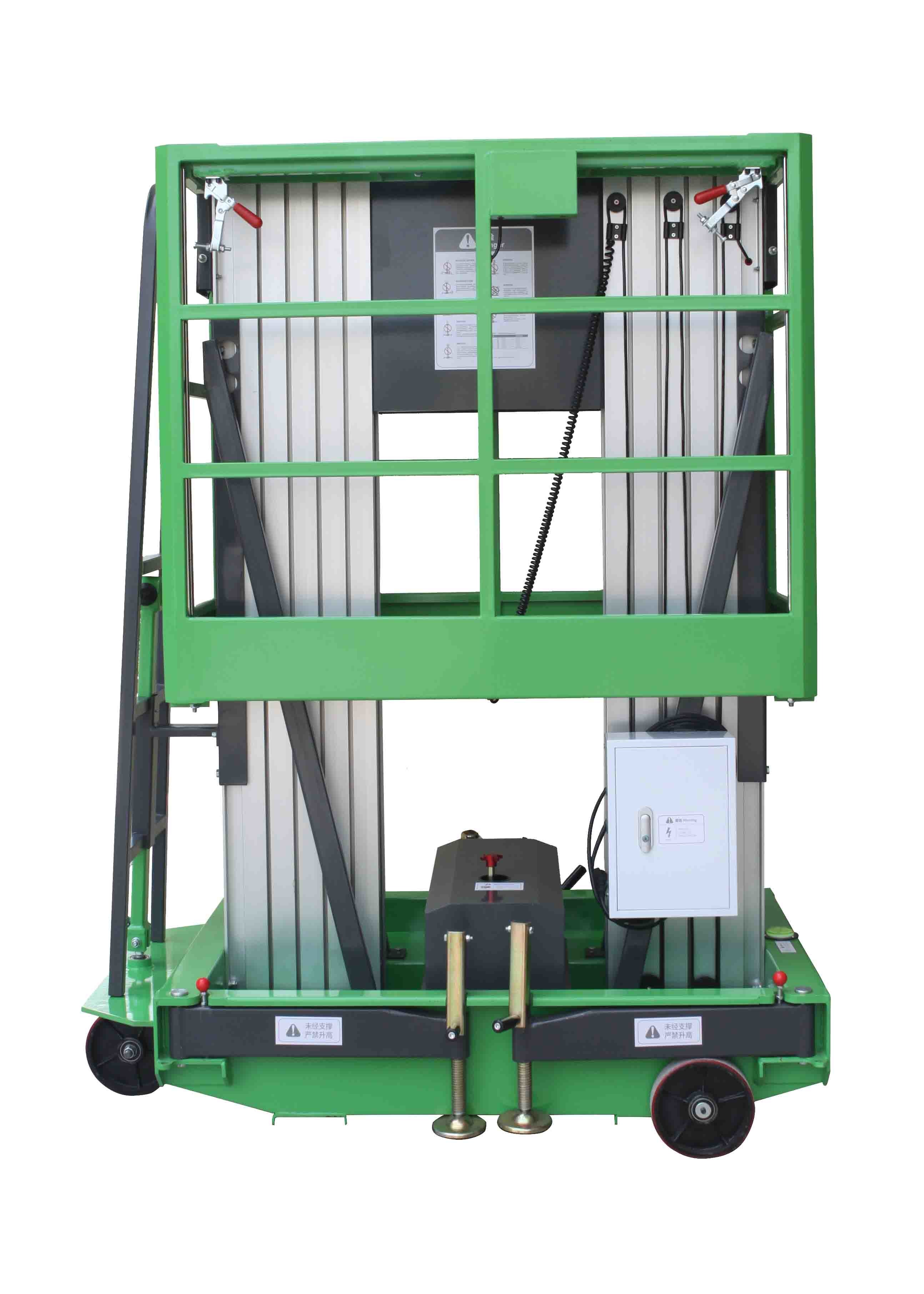

Platform Height Max 10m Double Mast Aluminum Vertical Lift Loading Capacity 200kg with Extension Platform

Platform Height Max 10m Double Mast Aluminum Vertical Lift Loading Capacity 200kg with Extension Platform

    • Platform Height Max 10m Double Mast Aluminum Vertical Lift Loading Capacity 200kg with Extension Platform
    • Platform Height Max 10m Double Mast Aluminum Vertical Lift Loading Capacity 200kg with Extension Platform
    • Platform Height Max 10m Double Mast Aluminum Vertical Lift Loading Capacity 200kg with Extension Platform
    • Platform Height Max 10m Double Mast Aluminum Vertical Lift Loading Capacity 200kg with Extension Platform
    • Platform Height Max 10m Double Mast Aluminum Vertical Lift Loading Capacity 200kg with Extension Platform
    • Platform Height Max 10m Double Mast Aluminum Vertical Lift Loading Capacity 200kg with Extension Platform
    • Platform Height Max 10m Double Mast Aluminum Vertical Lift Loading Capacity 200kg with Extension Platform
  • Platform Height Max 10m Double Mast Aluminum Vertical Lift Loading Capacity 200kg with Extension Platform

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE ISO9001:2008 IPAF member
    Model Number: ME1000-2(GTWY10-200)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallet or in wooden case
    Delivery Time: 30 days after down payment
    Payment Terms: T/T L/C
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Model: ME1000-2(GTWY10-200) Lift Capacity: 200kg
    Platform Height Max: 10m Working Height Max: 12m
    Platform Size: 1.52m*0.62m Overall Dimension: 1.76m*1m*2m
    Weight: 780kg Color: Customizable

    ME1000-2(GTWY10-200) Double Mast Aluminum Vertical Lift



    Quick Detail:



    Name Double Mast Aluminum Vertical Lift Brand Name Bestmax
    Loading Capacity 200Kg Platform Height 10m
    Platform Size 1.52*0.62m Color Customizable
    Lift Power 1.10Kw Power Supply AC/DC
    Motorized Power 0.75Kw





    Description:



    Mobile aluminum aerial work platform with motorized pulling device and extension platform, compared with mast aluminum AWP, it is equipped with the electric motorized device with moving and turning function. It is in manually traction; easily move, saving manpower and time. Driven by hydraulic motor, turning and lifting by battery in DC power, no external power required. It brings more efficiency and convenience as an ideal and most useful aerial working facility. The electric Self-propelled device can be configured in any of the lifts. And the extension platform can extend 0.8m on one side, there is no need for you to moveth machine to other place within 0.8m, Only double mast aerial work platform can equipped with extension platform.





    Applications:



    It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 12m and lifting capacity varies from 200kg to 250kg.The power sources could be 220V, 380V or chargeable battery.





    Main Features:



    1. Most rigid aluminum alloy profile

    2. Auxiliary platform lowering

    3. Multi-guide pulley on mast

    4. Durable base system

    5. Chassis with level gauge

    6. DC working power on the platform

    7. Easily rolls through a narrow space

    8. Emergency stop button

    9. Over load protection

    10 .Built-in pressure release valve

    11. Dual activated up/down switch

    12. Locking Key Switch

    13. Optional extended platform

    14. Entry ladder





    Specifications:





    PRODUCTIVITY
    Lift capacity 200kg
    Working height 12m
    Platform floor height 10m
    Platform length 1.52m
    Platform width 0.62m
    Ground Clearance 0.05m
    Lifting Power 1.1kw
    Lifting Speed 0.09-0.1m/s
    Descending Speed 0.08m/s
    Anti Wind Capacity Max. force 5
    Overall length 1.76m
    Overall width 1.00m
    Overall height 2.00m
    Outrigger footprint:
    A Length 2.1m
    B Width 2m
    C Corner access 0.10m
    D Wall access front 0.24m
    E Wall access side 0.52m
    Weight 780kg







    Platform Height Max 10m Double Mast Aluminum Vertical Lift Loading Capacity 200kg with Extension Platform





    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Flame proof electric cabinet



    Competitive Advantage:



    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience





    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1. Strict quality control system on the whole process of production
    2. Imported key arts to ensure the high quality of our products
    3. Advanced equipment and tools for examination and quality control
    4. 100% strict examining products before shipment
    5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: Find the list below which we are offering with the machine when shipment for free:

    Item Model Quantity
    O-shape rubber ring 40×3.1 4
    O-shape rubber ring 11×1.9 2
    O-shape rubber ring 40×30×6 1
    Spanner   1
    screwdriver 4# 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.

    :
