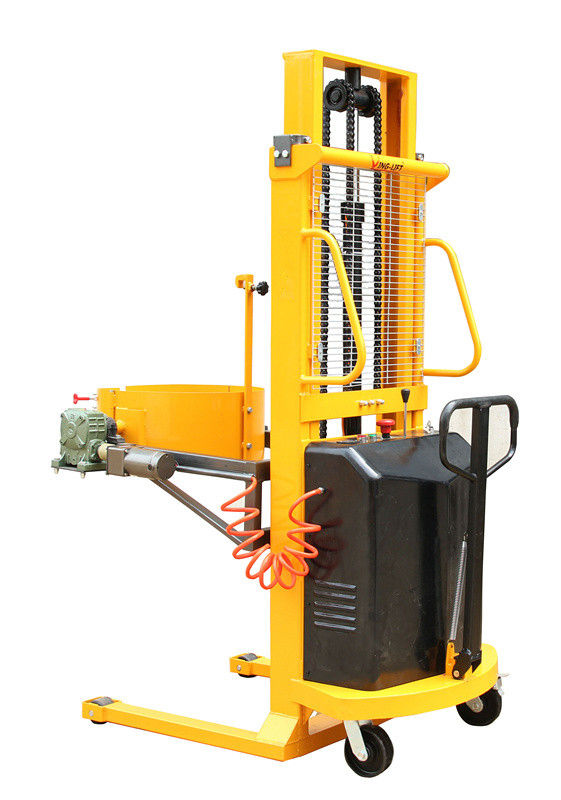

2.45m Lifting Height Electric Drum Lifter Handling Equipment with 450Kg Load

2.45m Lifting Height Electric Drum Lifter Handling Equipment with 450Kg Load

    • 2.45m Lifting Height Electric Drum Lifter Handling Equipment with 450Kg Load
    • 2.45m Lifting Height Electric Drum Lifter Handling Equipment with 450Kg Load
    • 2.45m Lifting Height Electric Drum Lifter Handling Equipment with 450Kg Load
    • 2.45m Lifting Height Electric Drum Lifter Handling Equipment with 450Kg Load
    • 2.45m Lifting Height Electric Drum Lifter Handling Equipment with 450Kg Load
  • 2.45m Lifting Height Electric Drum Lifter Handling Equipment with 450Kg Load

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Model Number: YL450A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wrapped in pallet or in wooden case
    Delivery Time: 30day after down payment
    Payment Terms: T/T L/C
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description

    2.45m Lifting Height Electric Drum Lifter Handling Equipment with 450Kg Load


    Quick Detail:

    Name Electric Drum Lift Brand Name Xunte
    Loading Capacity 450Kg Color Yellow
    Lifting Height 2450mm
    Lifting Speed 120mm/s
    Power Supply DC



    Description:

    The Electric Drum Lift has simple and light-weight structure; the Gripper type structure design is quite suitable for loading steel and plastic drums. The operation of the drum lift is simple and labor-saving. It is used for the transporting, loading and unloading liquid like dyes, paintings, adhesive, oil and so on. In general, the Electric Drum Lift can provide you with safe and easy transportation of drums.


    Main Features:

    • Use high-quality hydraulic pump unit which can provide strong driving force and long-lasting and maintenance-free battery.

    • The gantry is made up of special-rolled industrial-manufactured C-type steel which is strong and safe.

    • High-quality oil cylinder with fast lifting speed and the lifting height can reach 2450mm. The drum lift can electrical tilt 180°.

    • With electronic balance which has functions like resting to zero, taring and weighting. The accuracy of the electrical balance can reach ±3‰.


    Major Parameters

           Model: YL450A

    • Loading Capacity                                 450kg

    • Net Weight                                           304Kg

    • Wheel Dimension                                 Φ80*55,Φ150*50

    • Inner/Outer Width of Front Leg(mm)    640/800

    • Outline Dimension(mm)                       1400*950*1920

    • Turning Radius (mm)                           1750

    • Pump Unit Power (Kw/h)                      1.5

    • Battery Parameter (Ah/V)                     120/12

    • Lifting Height (mm)                                2450

    • Lifting Speed (mm/s)                              120


    Why to choose Xunte Electrical Drum Lift?

    • High Quality

    • Reasonable Price

    • Good after Service

    • 1 Year Warranty

    • More Than 10 Years Experience
