Industrial Adjustable 6M Truck Mounted Lift 500KG for Hotel Exhibition Hall

    • Industrial Adjustable 6M Truck Mounted Lift 500KG for Hotel Exhibition Hall
    • Industrial Adjustable 6M Truck Mounted Lift 500KG for Hotel Exhibition Hall
    • Industrial Adjustable 6M Truck Mounted Lift 500KG for Hotel Exhibition Hall
  • Industrial Adjustable 6M Truck Mounted Lift 500KG for Hotel Exhibition Hall

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE
    Model Number: SJC0.5-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets
    Delivery Time: 30 days
    Payment Terms: T/T L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 500kg Lifting Height: 6m
    Platform Size: 1.85x0.88m Lifting Power: 1.1kw
    Lifting Time: 54s Minimum Height: 0.95m

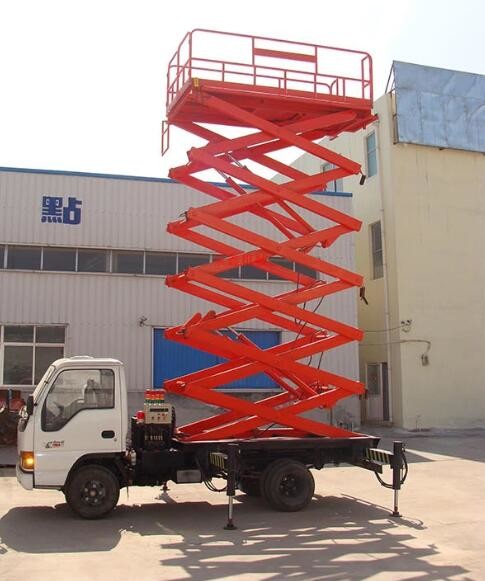

    Industrial Adjustable 6M Truck Mounted Lift 500KG for Hotel Exhibition Hall​





    Quick Detail:



    Name Truck-mounted Scissor Lift Brand Name Bestmax
    Loading Capacity 500Kg Lifting Height 6m
    Platform Size 1.85*0.88m Color Red or Optional
    Lifting Power 1.1Kw Power Supply DC





    Description:



    Truck-mounted Scissor Lifts are aerial working platform which combine with an automobile, the lifts are driven by DC or the engines of the vehicle The lifting platform is movable everywhere due to the vehicle can be driven as wishes. It is suitable for the aerial working for long distance and the frequently changing places.



    The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.





    Main Features:

    • Power by the vehicle or battery , without the external power supply
    • The control panels are available both on the platform and the pedestal
    • Different models are available with the maximum working height at 6m to 16m
    • Pointing control of lifting up and down.
    • Manganese steel lifting arm in high strength with rectangle shape
    • Anti-skid floor in platform
    • The control panels are available on the platforms and ground.



    Safety Precaution:



    1. The operation voltage on the platform is 24V

    2. Emergency stop button on the platform and ground

    3. Auxiliary platform lowering

    4. Telescopic legs on the chassis

    5. Hose burst valve safety

    6. Rain-proof design electric cabinet

    7. Fence on the platform





    Major Parameters:

    • Model: SJC0.5-6
    • Loading Capacity 500kg
    • Maximum Height 6000mm
    • Minimum Height 950mm
    • Platform Size 1850*880mm
    • Lifting Power 1.1kw
    • Power Voltage 1phase/220V/50HZ
    • Lifting Time 54s
    • Cylinder Ф80(2Pcs)
    • Gear Pump 6ml/r



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack ,NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Antiskid checkered plate
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Rubber Solid Tire
    • Flame Proof Control Cabinet



    Applications:



    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning , light replacement etc.





    Why to choose Xunte Truck-mounted Scissor Lift?



    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience
