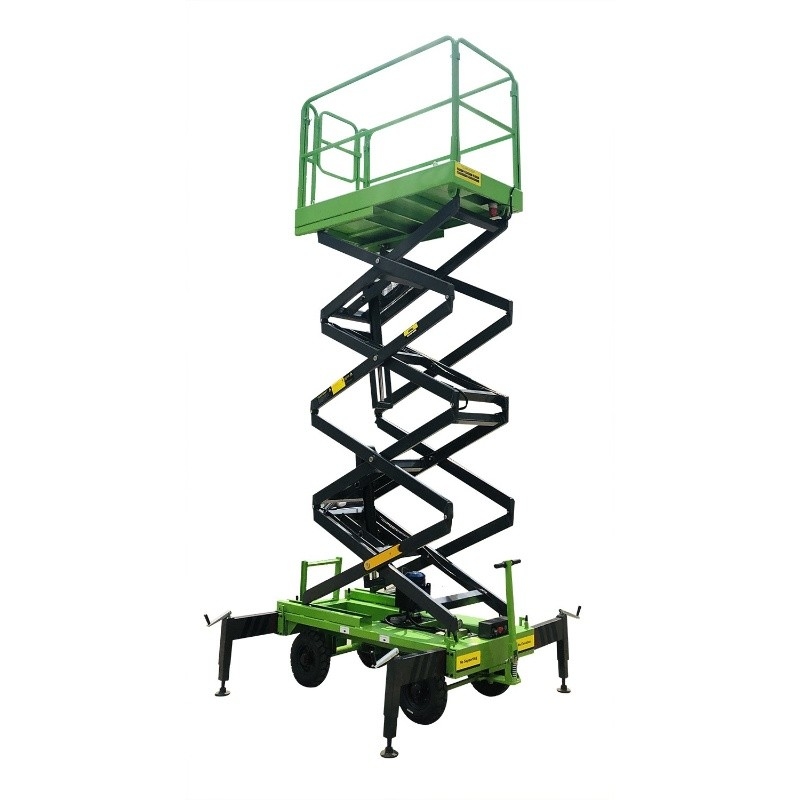

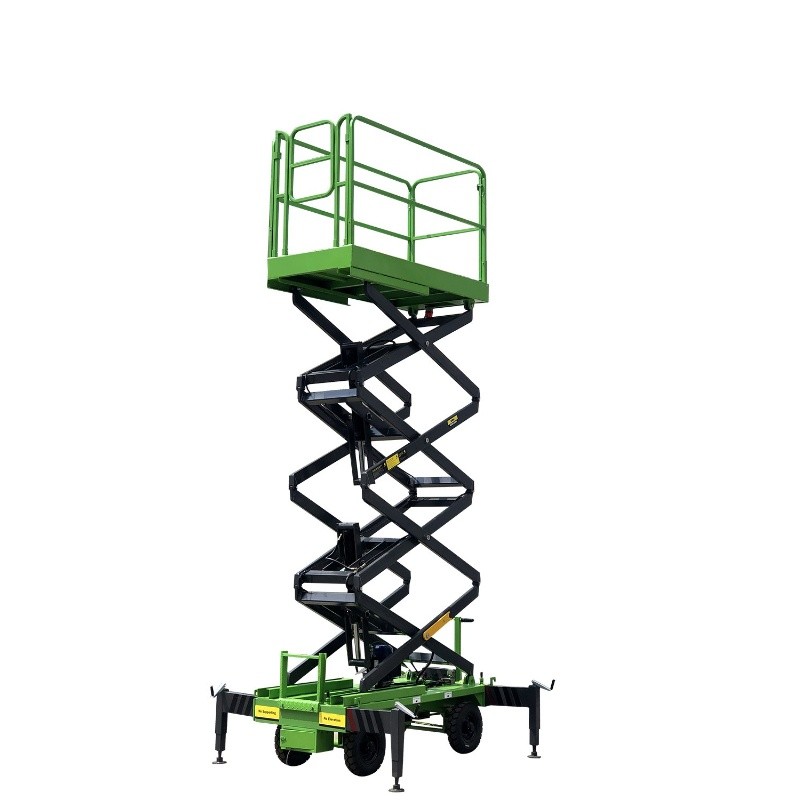

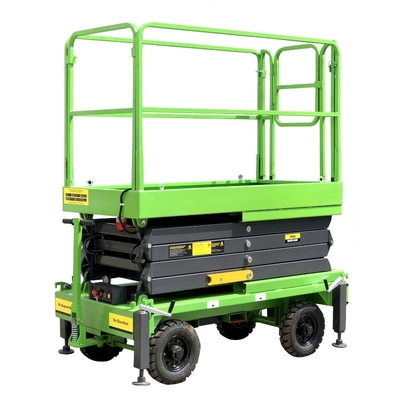

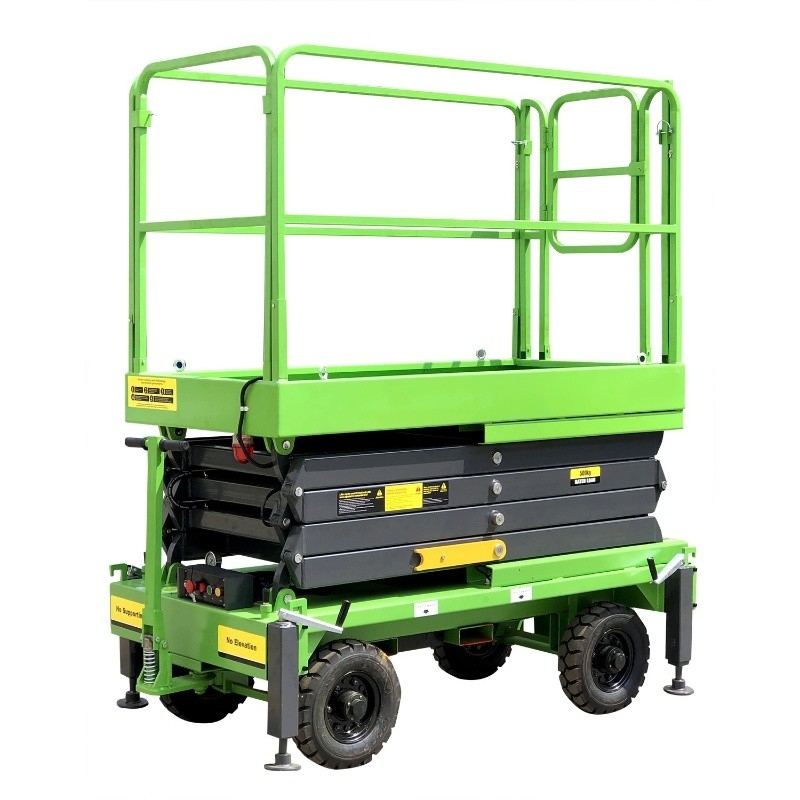

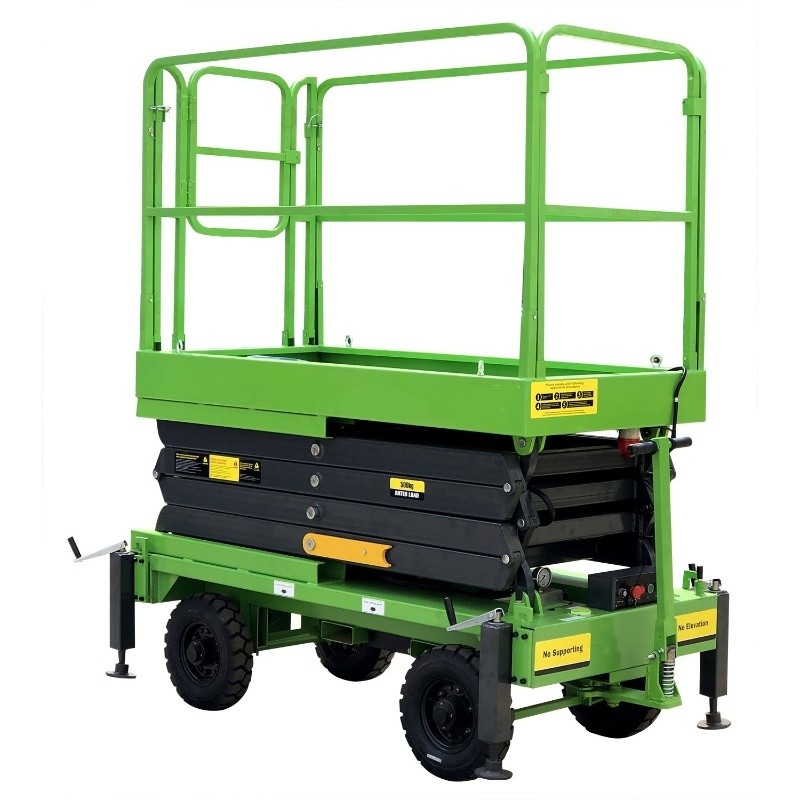

Manual Mobile Scissor lift Hydraulic Vertical Lifting Platform 6m 8m for Library Restaurant

    • Manual Mobile Scissor lift Hydraulic Vertical Lifting Platform 6m 8m for Library Restaurant
    • Manual Mobile Scissor lift Hydraulic Vertical Lifting Platform 6m 8m for Library Restaurant
    • Manual Mobile Scissor lift Hydraulic Vertical Lifting Platform 6m 8m for Library Restaurant
  • Manual Mobile Scissor lift Hydraulic Vertical Lifting Platform 6m 8m for Library Restaurant

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: SJY0.45-6 with Extension

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: T/T or L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 450kg Platform Height: 6m
    Platform Size: 1.85*0.88m Extension Platform Length: 1m
    Extension Platform Loading Capacity: 100kg Lifting Power: 1.1kw
    Lifting Time: 54s Weight: 650kg
    Measurement: 1900*1080*1100mm



    Manual Mobile Scissor lift Vertical Lifting Platform 6m 8m for Library / Restaurant



    Quick Detail:



    Name Mobile Scissor Lift Brand Name Xunte
    Loading Capacity 450Kg Platform Height 6m
    Platform Size 1.85*0.88m Color Orange or Optional
    Lifting Power 1.1kw Power Supply AC/DC



    Description:



    Mobile Scissor lifts are also called as mobile scissor aerial work platform, they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.



    The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



    Main Features:



    1. Pointing control of lifting up and down.

    2. Manganese steel lifting arm in high strength with rectangle shape

    3. Anti-skid floor in platform

    4 The control panels are available on the platforms and ground.

    5. Fine grinding cylinder in good sealing performance

    6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.



    Safety Precaution:



    1. The operation voltage on the platform is 24V

    2. Emergency stop button on the platform and ground

    3. Auxiliary platform lowering

    4. Telescopic legs on the chassis

    5. Hose burst valve safety

    6. Rain-proof design electric cabinet

    7. Fence on the platform



    Major Parameters

    • Model: SJY0.45-6 with Extension
    • Loading Capacity 450kg
    • Maximum Height 6000mm
    • Minimum Height 1100mm
    • Platform Size 1850*880mm
    • Lifting Power 1.5kw
    • Power Voltage 1phase/220V/50HZ
    • Lifting Time 55s
    • Cylinder Ф80(2pcs)
    • Gear Pump 6ml/r
    • Total Weight 650kg
    • Measurement 1900*1080*1100mm



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack, NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Anti-skid checkered plate
    • Tire: Ø400-8 Inflated tires
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Rubber Solid Tire
    • Flame Proof Control Cabinet



    Applications:



    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



    Why choose Xunte Mobile Scissor Lift?



    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience



    Manual Mobile Scissor lift Hydraulic Vertical Lifting Platform 6m 8m for Library RestaurantManual Mobile Scissor lift Hydraulic Vertical Lifting Platform 6m 8m for Library Restaurant



    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:



    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
