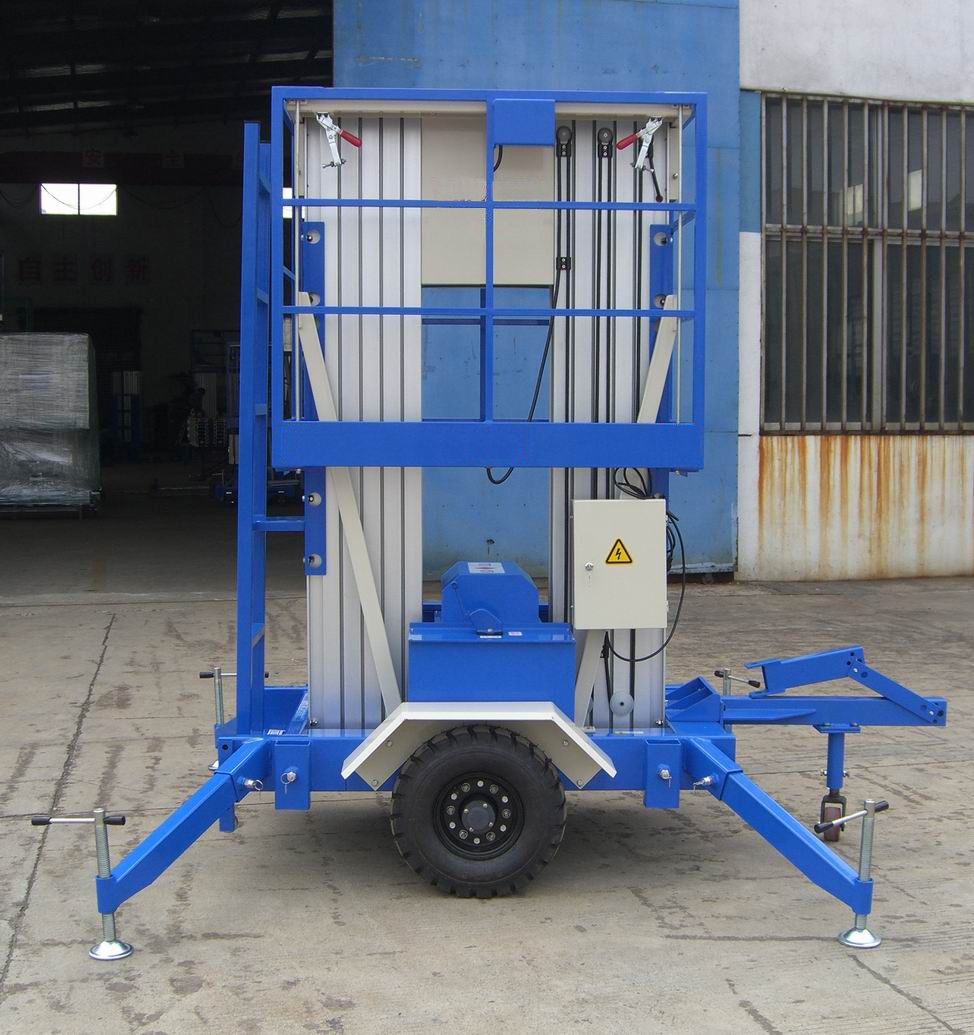

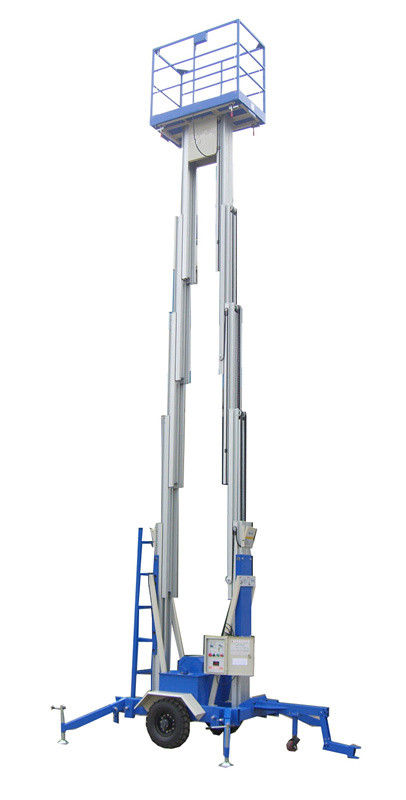

Double Mast Towing Hydraulic Lift Platform 10 Meters

Double Mast Towing Hydraulic Lift Platform 10 Meters

    • Double Mast Towing Hydraulic Lift Platform 10 Meters
    • Double Mast Towing Hydraulic Lift Platform 10 Meters
    • Double Mast Towing Hydraulic Lift Platform 10 Meters
    • Double Mast Towing Hydraulic Lift Platform 10 Meters
  • Double Mast Towing Hydraulic Lift Platform 10 Meters

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: GTWY10-200 (ME1000-2)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallet or in wooden case
    Delivery Time: 30day after down payment
    Payment Terms: T/T L/C
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Loading Capacity: 200kg Platform Height: 10m
    Working Height: 12m Platform Size: 1.52*0.62m
    Lifting Power: 1.1kw Lifting Time: 88s
    Overall Size: 1.76*1.00*2.00m Outrigger Footprint: 2.1*2.0m
    Weight: 800kg


    Double Mast Towing Hydraulic Lift Platform 10 Meters



    Quick Detail:


    Name Towing Aerial Work Platform Brand Name Xunte
    Loading Capacity 200Kg Platform Height 10m
    Platform Size 1.52*0.62m Color Blue or Optional
    Motor Power 1.10Kw Power Supply AC/DC





    Towing Aerial Work Platform is the upgrade model of our standard Aluminum Aerial Work Platform to let it travel long road distance, the spped of the pulling vehicle can not fater than 30Km/h.




    It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 12m and lifting capacity varies from 200kg to 250kg.The power sources could be 220V, 380V or chargeable battery.



    Main Features:


    1. Most rigid aluminum alloy profile

    2. Auxiliary platform lowering

    3. Multi-guide pulley on mast

    4. Durable base system

    5. Chassis with level gauge

    6. DC working power on the platform

    7. Easily rolls through a narrow space

    8. Emergency stop button

    9. Over load protection

    10 .Built-in pressure release valve

    11. Dual activated up/down switch

    12. Locking Key Switch

    13. Optional extended platform

    14. Entry ladder





    MODEL GTWY10-200 (ME1000-2)
    Lift capacity 441lbs 200kg
    Working height 39ft 4.44in 12m
    Platform floor height 32ft 9.71in 10m
    Platform length 4ft 11.84in 1.52m
    Platform width 2ft 0.41in 0.62m
    Ground Clearance 1.97in 0.05m
    Lifting Power 1.1kw
    Lifting Speed 0.09-0.1m/s
    Motorized Power 0.75Kw
    Descending Speed 0.08m/s
    Anti Wind Capacity Max. force 5
    Overall length 5ft 9.29in 1.76m
    Overall width 3ft 3.37in 1.00m
    Overall height 6ft 6.74in 2.00m
    Outrigger footprint:
    A Length 6ft 10.68in 2.10m
    B Width 6ft 6.74in 2.00m
    C Corner access 3.94in 0.10m
    D Wall access front 11.42in 0.29m
    E Wall access side 2ft 0.02in 0.61m
    Weight 1764lbs 800kg

    Double Mast Towing Hydraulic Lift Platform 10 Meters



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Flame proof electric cabinet


    Competitive Advantage:


    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience



    Communication with Customers


    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material


    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1. Strict quality control system on the whole process of production
    2. Imported key arts to ensure the high quality of our products
    3. Advanced equipment and tools for examination and quality control
    4. 100% strict examining products before shipment
    5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.


    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation


    A: What spare parts that you can offer?

    B: Find the list below which we are offering with the machine when shipment for free:

    Item Model Quantity
    O-shape rubber ring 40×3.1 4
    O-shape rubber ring 11×1.9 2
    O-shape rubber ring 40×30×6 1
    Spanner   1
    screwdriver 4# 1


    A: How long is your quality guarantee period?

    B: We have one year warranty.
