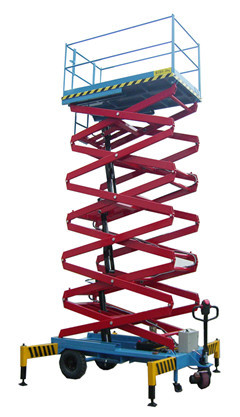

24V Cleaning Painting Extension Aluminum Alloy Small Scissor Lift for Theatre

24V Cleaning Painting Extension Aluminum Alloy Small Scissor Lift for Theatre

    • 24V Cleaning Painting Extension Aluminum Alloy Small Scissor Lift for Theatre
    • 24V Cleaning Painting Extension Aluminum Alloy Small Scissor Lift for Theatre
    • 24V Cleaning Painting Extension Aluminum Alloy Small Scissor Lift for Theatre
  • 24V Cleaning Painting Extension Aluminum Alloy Small Scissor Lift for Theatre

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: SJZ0.5-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: T/T or L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Application: Fixing Ceiling,Pasting Wall Work Ect Platform Height: 12m
    Name: Mobile Scissor Lift Lifting Power: 2.2Kw*2
    Motorized Power: 1.2Kw Lifting Time: 118s
    Weight: 2180kg Feature: Low Noise



    24V Cleaning Painting Extension Aluminum Alloy Small Scissor Lift for Theatre​





    Quick Detail:



    Name Mobile Scissor Lift Brand Name Xunte
    Loading Capacity 500Kg Platform Height 12m
    Platform Size 2.45*1.35m Color Red Color or Optional
    Lifting Power 2.2Kw*2 Power Supply AC/DC
    Motorized Power 1.2Kw





    Description:



    1) Can travel at slow speed and rapid speed self propelled.
    2) Only one person is needed to lower, raise, forward, backward, steer the machine.It improves working efficiency and reduces man-power and labor intensity greatly
    3) Maneuverable, extremely easy to use
    4) Safe ground clearance for indoor/outdoor Operation
    5) Robust, reliable and easy to maintain
    6) Pit protection system for max. Safety
    7) Flexible turning unit
    8) Slope alarm/ Double wheel traveling speed/Double wheel driving & turning
    9) It is especially good for long time work at airport terminals, stations, docks, shopping markets, stadiums and work shops.







    Major Parameters

    • Model: SJZ0.5-12
    • Loading Capacity 500kg
    • Maximum Height 12000mm
    • Minimum Height 2000mm
    • Platform Size 2450*1350mm
    • Lifting Power 2.2kw*2
    • Motorized Power: 1.2Kw
    • Power Voltage DC24V
    • Lifting Time 118s
    • Cylinder Ф100(3Pcs)
    • Gear Pump 6ml/r
    • Total Weight 2180kg
    • Measurement 2750*1740*2000mm



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack ,NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Antiskid checkered plate
    • Tire: Ø500-8 Inflated tires
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
    • Battery: (DC12V,150AH)*4 with charger



    Optional Configuration:

    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Rubber Solid Tire
    • Flame Proof Control Cabinet



    Applications:



    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





    Why to choose Xunte Mobile Scissor Lift?



    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience





    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
