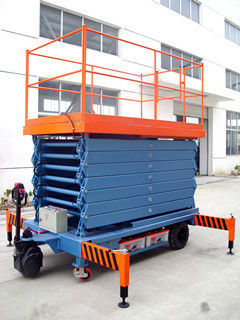

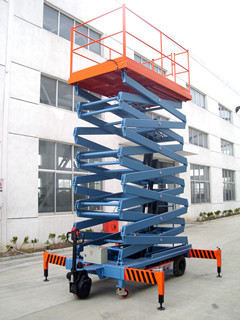

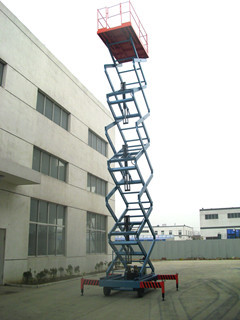

3Kw Motorized Adjustable Hydraulic Lift Platform for Hotel Exhibition Hall , Folding Guardrails

    • 3Kw Motorized Adjustable Hydraulic Lift Platform for Hotel Exhibition Hall , Folding Guardrails
    • 3Kw Motorized Adjustable Hydraulic Lift Platform for Hotel Exhibition Hall , Folding Guardrails
    • 3Kw Motorized Adjustable Hydraulic Lift Platform for Hotel Exhibition Hall , Folding Guardrails
  • 3Kw Motorized Adjustable Hydraulic Lift Platform for Hotel Exhibition Hall , Folding Guardrails

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: SJZ0.5-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or in Wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: T/T or L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 500kg Platform Height: 10m
    Platform Size: 2100mm*1150mm Lifting Power: 3kw
    Lifting Time: 90s Weight: 1380kg
    Measurement: 2500*1350*1700mm



    3Kw Motorized Adjustable Hydraulic Lift Platform for Hotel Exhibition Hall , Folding Guardrails





    Quick Detail:



    Name Mobile Scissor Lift Brand Name Xunte
    Loading Capacity 500Kg Platform Height 10m
    Platform Size 2100mm*1150mm Color Blue Color or Optional
    Lifting Power 3Kw Power Supply AC&DC / DC
    Motorized Power 0.75 Kw





    Description:



    Mobile Scissor lifts are also called as mobile elevated work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.



    The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.





    Main Features:



    1. Pointing control of lifting up and down.

    2. Manganese steel lifting arm in high strength with rectangle shape

    3. Anti-skid floor in platform

    4. The control panels are available on the platforms and ground.

    5. Fine grinding cylinder in good sealing performance

    6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.





    Safety Precaution:



    1. The operation voltage on the platform is 24V

    2. Emergency stop button on the platform and ground

    3. Auxiliary platform lowering

    4. Telescopic legs on the chassis

    5. Hose burst valve safety

    6. Rain-proof design electric cabinet

    7. Fence on the platform





    Major Parameters

    • Model:                          SJZ0.5-10
    • Loading Capacity         500kg
    • Maximum Height         11000mm
    • Minimum Height           1700mm
    • Platform Size               2100*1150mm
    • Lifting Power                3kw
    • Motorized Power:         0.75Kw
    • Power Voltage              DC24V
    • Lifting Time                  90s
    • Cylinder                       Ф80 (3PCS)
    • Gear Pump                  6ml/r
    • Total Weight                1380kg
    • Measurement              2500*1350*1700MM



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack ,NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Antiskid checkered plate
    • Tire: Ø600-9 Inflated tires
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
    • Battery: (DC12V,150AH)*4 with charger



    Optional Configuration:

    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Rubber Solid Tire
    • Flame Proof Control Cabinet



    Applications:



    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





    Why to choose Xunte Mobile Scissor Lift?



    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience





    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
