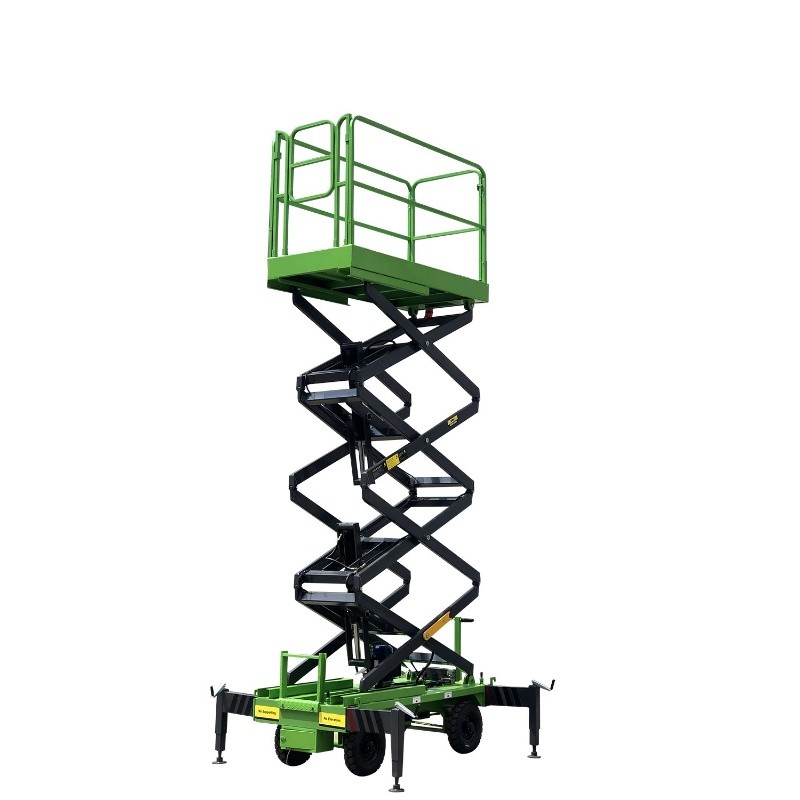

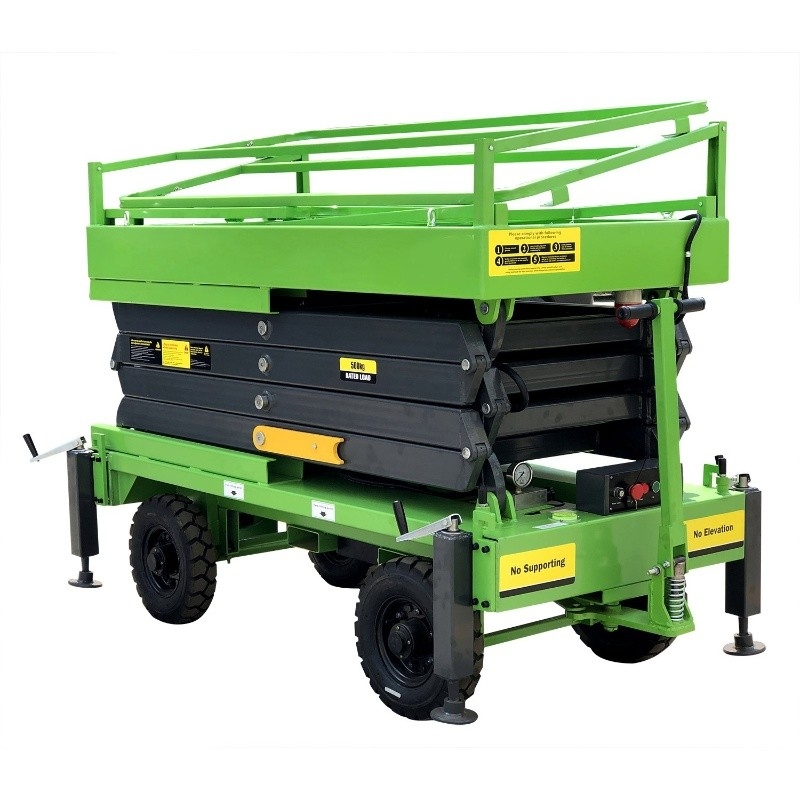

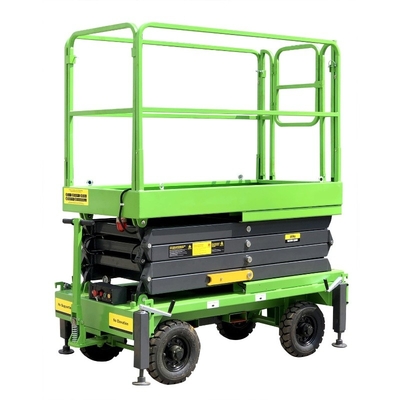

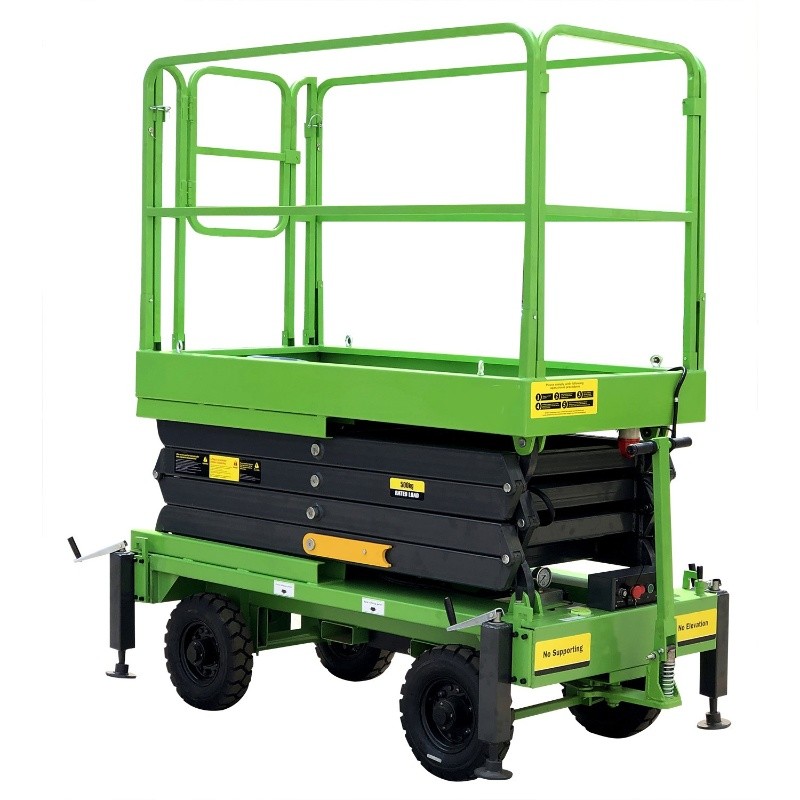

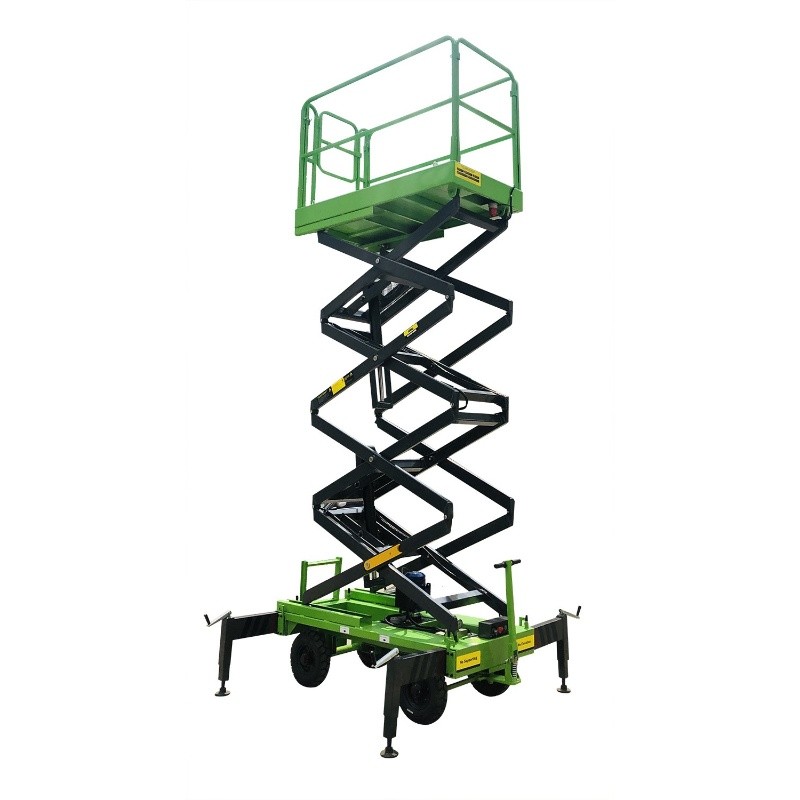

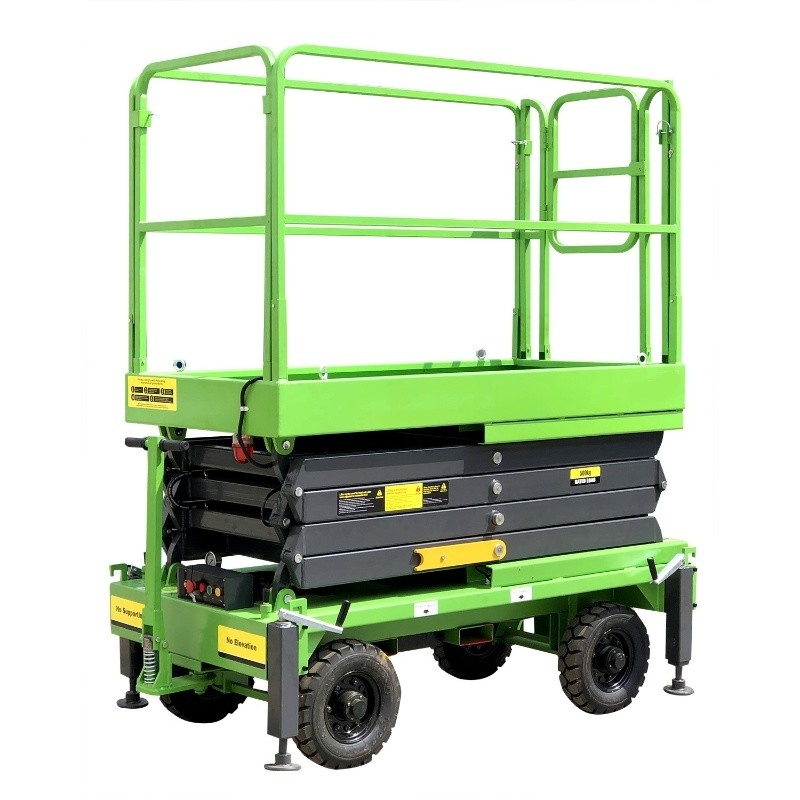

Portable Motorized Aerial Working Mobile Scissor Lift Platform 14 Meters Height

Portable Motorized Aerial Working Mobile Scissor Lift Platform 14 Meters Height

    • Portable Motorized Aerial Working Mobile Scissor Lift Platform 14 Meters Height
    • Portable Motorized Aerial Working Mobile Scissor Lift Platform 14 Meters Height
    • Portable Motorized Aerial Working Mobile Scissor Lift Platform 14 Meters Height
  • Portable Motorized Aerial Working Mobile Scissor Lift Platform 14 Meters Height

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: SJZ 0.45-14

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: T/T or L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 450kg Platform Height: 14m
    Platform Size: 2.45*1.35m Lifting Power: 2.2kw*2
    Motorized Power: 1.2kw Lifting Time: 118s
    Weight: 2180kg Measurement: 2750*1740*2000mm



    Portable Motorized Aerial Work Table Mobile Scissor Lift Platform 14 Meters Height​



    Quick Detail:



    Name Mobile Scissor Lift Brand Name Xunte
    Loading Capacity 450Kg Platform Height 14m
    Platform Size 2.45*1.35m Color Red or Optional
    Lifting Power 2.2kw*2 Power Supply AC/DC
    Motorized Power 1.2kw



    Description:



    Mobile Scissor lifts with Pulling Device is to change the spring handler to a motorized one, and the tyre of the machine need to be modified accordingly. There has ledt, right transction button and brake button on the pulling device for convenient operation.



    Main Features:



    1. Pointing control of lifting up and down.

    2. Manganese steel lifting arm in high strength with rectangle shape

    3. Anti-skid floor in platform

    4 The control panels are available on the platforms and ground.

    5. Fine grinding cylinder in good sealing performance

    6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.



    Safety Precaution:



    1. The operation voltage on the platform is 24V

    2. Emergency stop button on the platform and ground

    3. Auxiliary platform lowering

    4. Telescopic legs on the chassis

    5. Hose burst valve safety

    6. Rain-proof design electric cabinet

    7. Fence on the platform



    Major Parameters

    • Model: SJZ 0.45-14
    • Loading Capacity: 450kg
    • Maximum Height :14000mm
    • Minimum Height: 2000mm
    • Platform Size: 2450*1350mm
    • Lifting Power: 2.2kw*2
    • Motorized Power: 1.2kw
    • Power Voltage: DC24V
    • Lifting Time: 118s
    • Cylinder: Ф100(3Pcs)
    • Gear Pump: 6ml/r
    • Total Weight: 2180kg
    • Measurement: 2750*1740*2000mm



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack, NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface: Anti-skid checkered plate
    • Tire: Ø500-8 Inflated tires
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
    • Battery: (DC12V,150AH)*4 with charger



    Optional Configuration:

    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Rubber Solid Tire
    • Flame Proof Control Cabinet



    Applications:



    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



    Why choose Xunte Mobile Scissor Lift?



    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience



    Portable Motorized Aerial Working Mobile Scissor Lift Platform 14 Meters Height



    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:



    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
