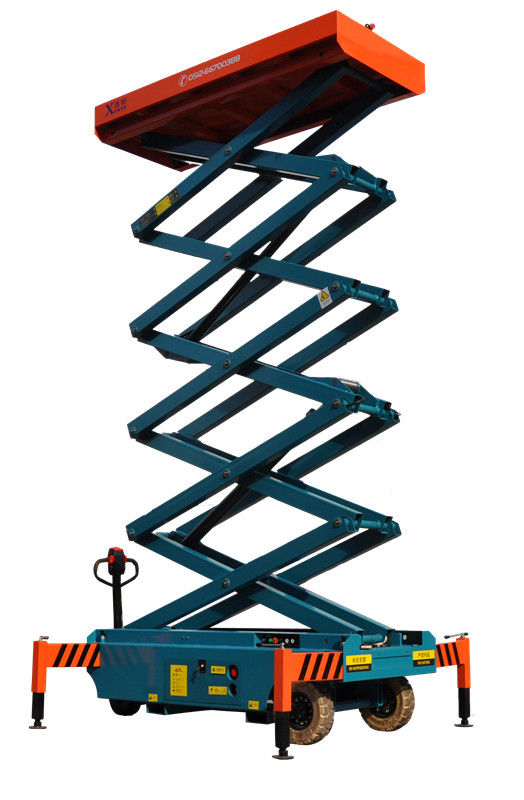

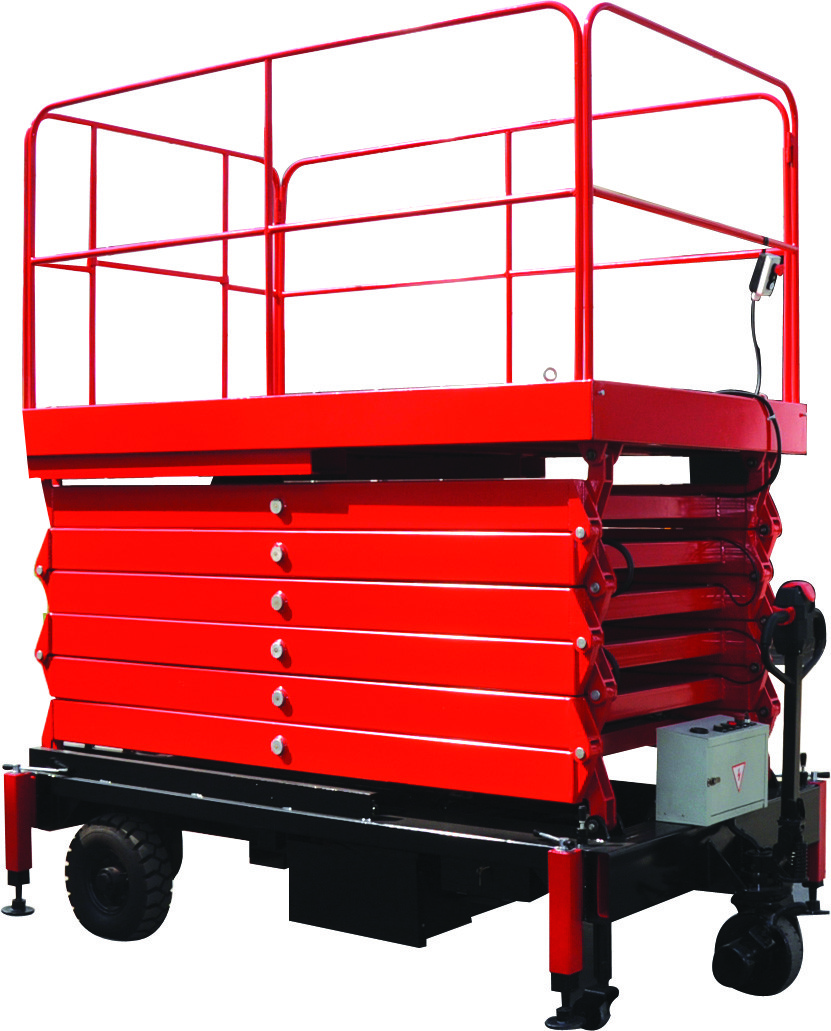

12 meters height mobile hydraulic scissor lift with motorized device loading capacity at 450Kg

12 meters height mobile hydraulic scissor lift with motorized device loading capacity at 450Kg

  • 12 meters height mobile hydraulic scissor lift with motorized device loading capacity at 450Kg
  • 12 meters height mobile hydraulic scissor lift with motorized device loading capacity at 450Kg
12 meters height mobile hydraulic scissor lift with motorized device loading capacity at 450Kg
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: SJZ0.45-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Model: SJZ0.45-12 Lift Capacity: 450kg
Platform Height Max: 12m Platform Size: 2.45m*1.35m
Power Source: DC 24V Weight: 2180kg
Color: Customizable Overall Dimension: 2.75m*1.59m*2m
High Light:

automobile scissor lift

,

mobile aerial work platform

Quick Detail:



Name Mobile Scissor Lift Brand Name CHEN LIFT
Loading Capacity 450Kg Platform Height 12m
Platform Size 2.45*1.35m Color Red Color or Optional
Lifting Power 2.2Kw*2 Power Supply DC
Motorized Power 1.2Kw



Description:



Mobile Scissor lifts are also called as mobile elevated work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



Main Features:



1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4. The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.



Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform



Major Parameters



  • Model: SJZ0.45-12
  • Loading Capacity 450kg
  • Maximum Height 12000mm
  • Minimum Height 2000mm
  • Platform Size 2450*1350mm
  • Lifting Power 2.2kw*2
  • Motorized Power: 1.2Kw
  • Power Voltage DC24V
  • Lifting Time 118s
  • Cylinder Ф100(3Pcs)
  • Gear Pump 6ml/r
  • Total Weight 2180kg
  • Measurement 2750*1740*2000mm



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack ,NOK sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø500-8 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
  • Battery: (DC12V,150AH)*4 with charger

Optional Configuration:

  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



Why to choose CHEN LIFT Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
