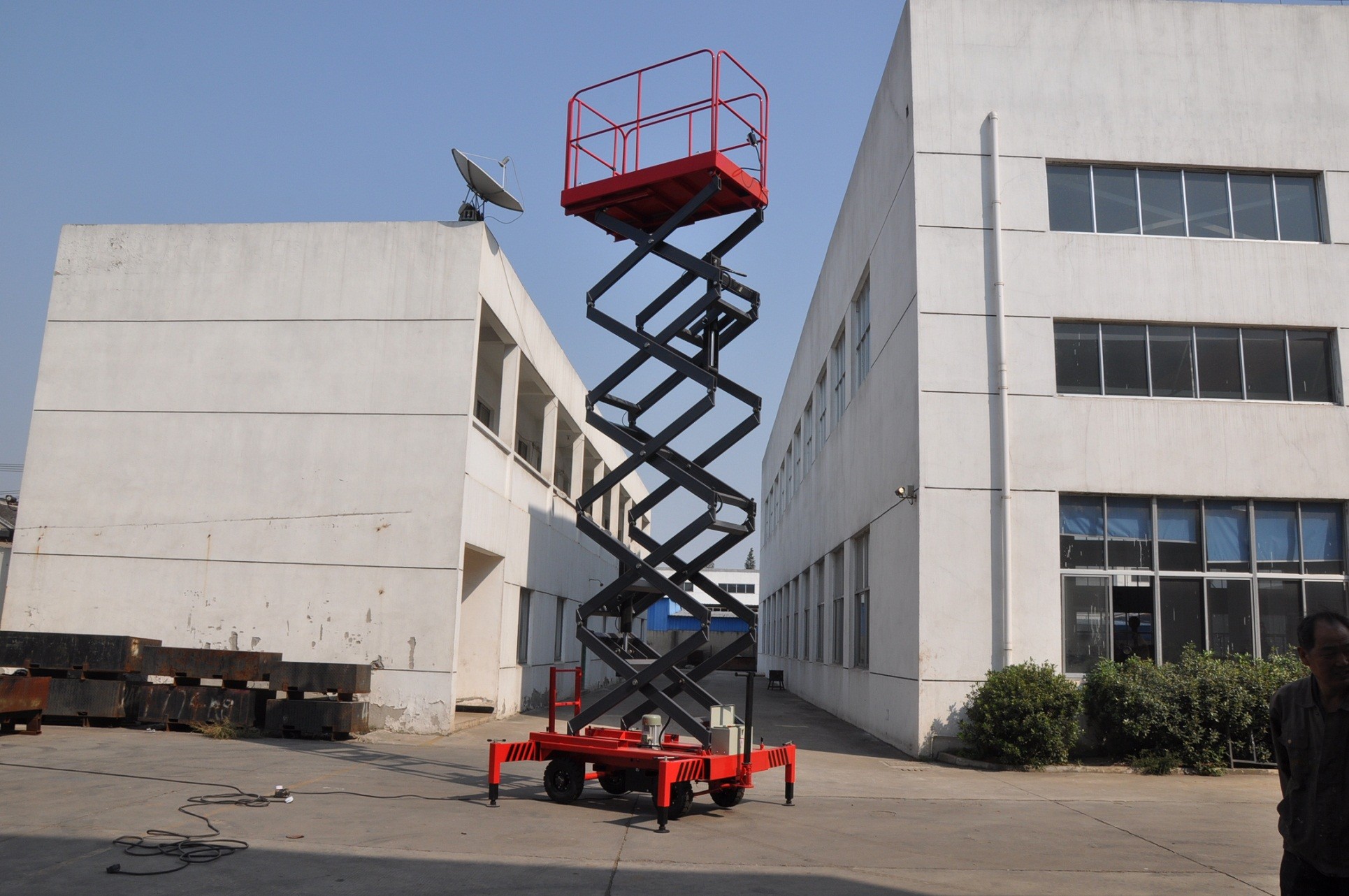

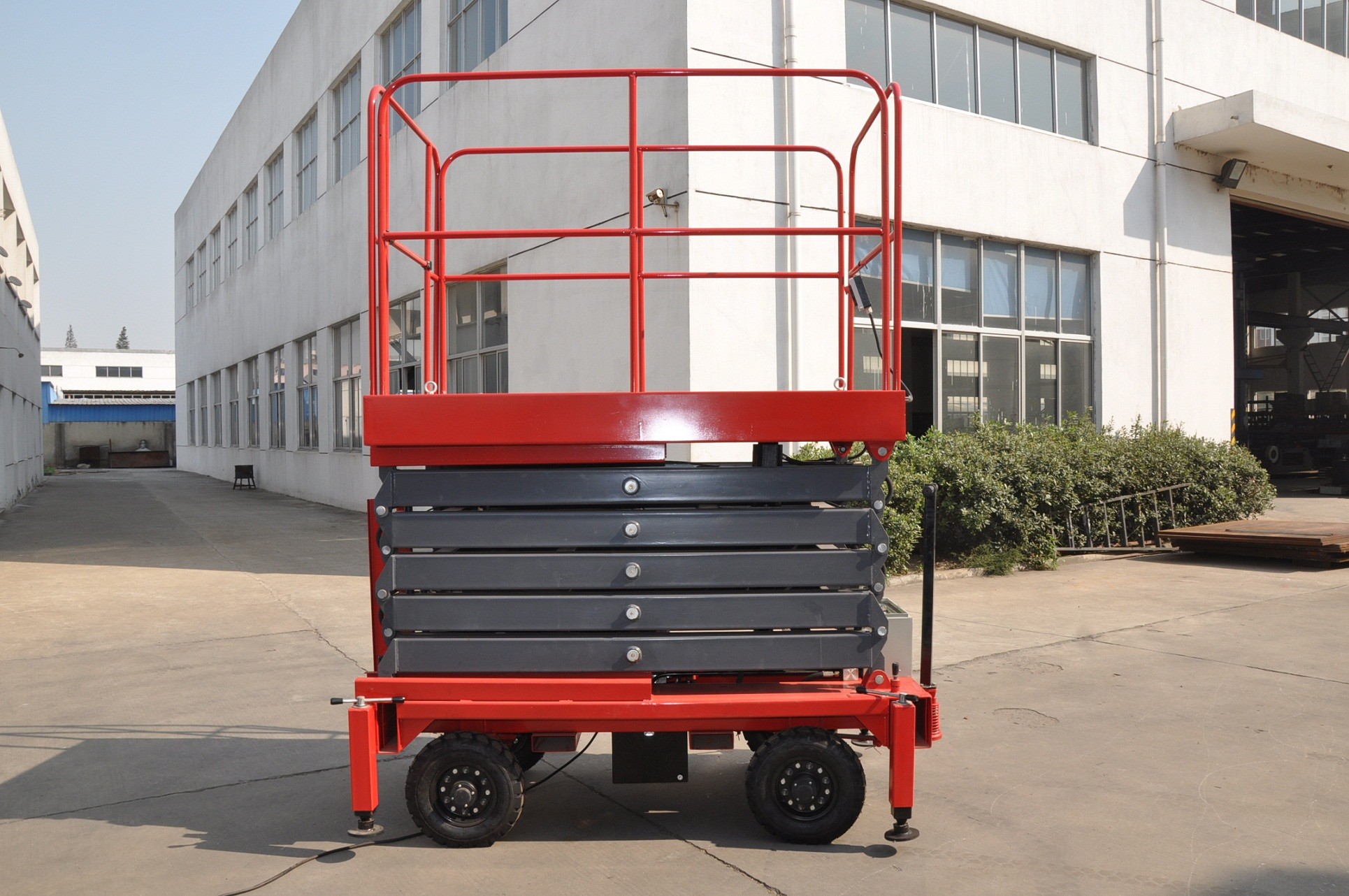

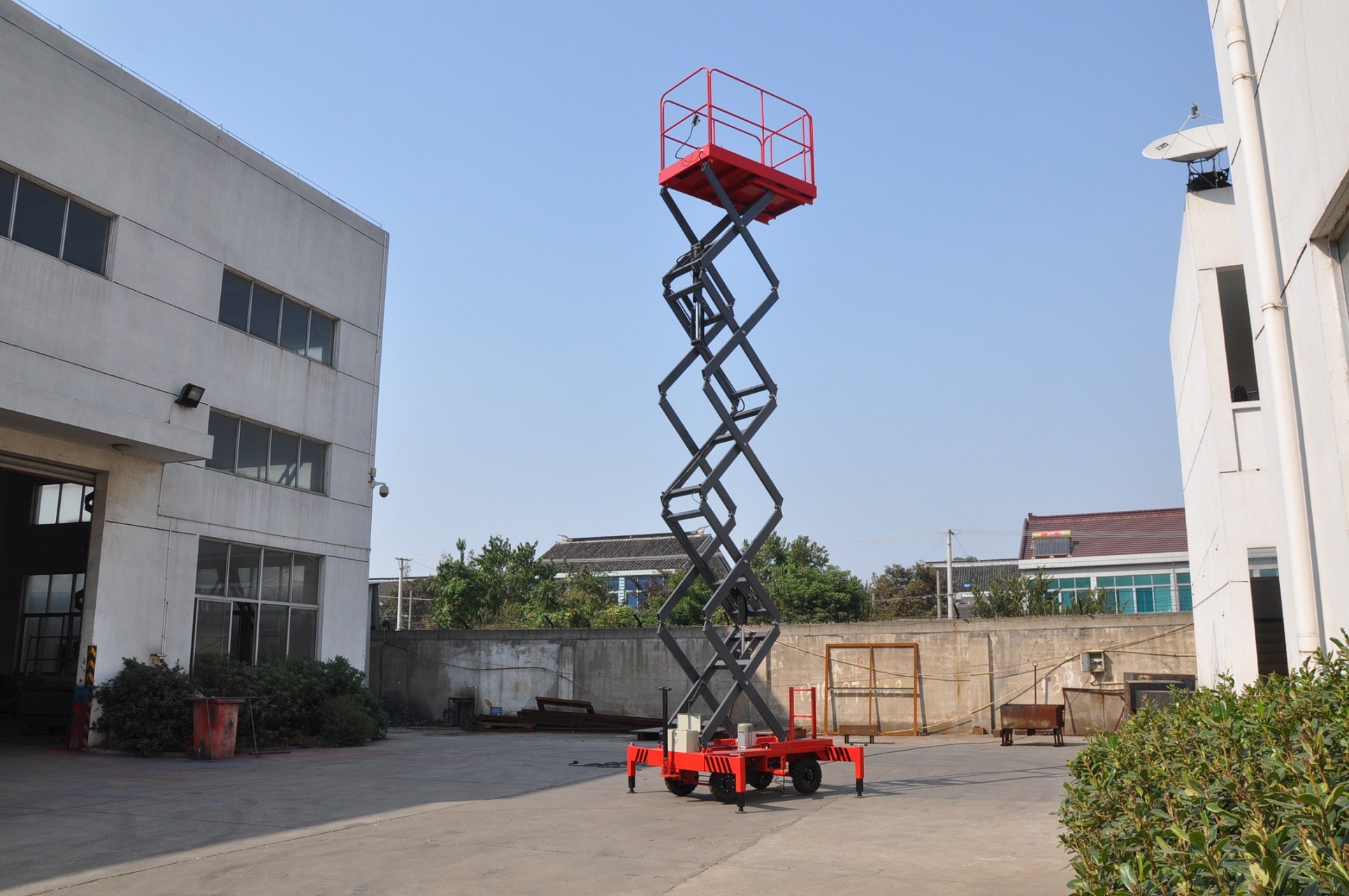

Manual Pushing Mobile Scissor Lift 9 Meters Height Hydraulic Lift Table 500Kg Loading

Manual Pushing Mobile Scissor Lift 9 Meters Height Hydraulic Lift Table 500Kg Loading

    • Manual Pushing Mobile Scissor Lift 9 Meters Height Hydraulic Lift Table 500Kg Loading
    • Manual Pushing Mobile Scissor Lift 9 Meters Height Hydraulic Lift Table 500Kg Loading
    • Manual Pushing Mobile Scissor Lift 9 Meters Height Hydraulic Lift Table 500Kg Loading
  • Manual Pushing Mobile Scissor Lift 9 Meters Height Hydraulic Lift Table 500Kg Loading

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE IOS9001:2008 IPAF member
    Model Number: MK900

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 days after receipt of deposit
    Payment Terms: T/T or L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 500kg Platform Height: 9m
    Platform Size: 1.8*1.0m Lifting Time: 65s
    Weight: 1260kg Lifting Power: 1.5kw
    Lift Drive / Actuation: Hydraulic Lift Mechanism: Scissor Lift



    Manual Pushing Mobile Scissor Lift 9 Meters Height Hydraulic Lift Table 500Kg Loading



    Quick Detail:



    Name Mobile Scissor Lift  Brand Name Bestmax
    Loading Capacity 500Kg Platform Height 9m
    Platform Size 1.8*1.0m Color Blue or Optional
    Lifting Power 1.5Kw Weight 1260kg



    Description:

    Manual Pushing Scissor Lift is a scissor structure man lift for aerial work which can be towed by man power.
    It is for one or two persons aerial working purpose.
    The maximum platform height is 3m, 6m, 7.5m, 9m, 11m, 12m, 14m, 16m.
    And the maximum loading capacity is 300Kg, 500Kg, 1000Kg.
    The mechanical structure make the platform stability, wide operating and high loading capacity.
    Normal scissor lift lifting power is AC power, DC and both AC&DC power are also available for option.



    Standard Configuration for Manual Pushing Around Scissor Lift:

    1. AC power: 220V 50Hz/60Hz, single phase or 380V 50Hz/60Hz, three phases
    2. Rain-proof electric cabinet
    3. Beacon light
    4. Inflated Tyre
    5. Forklift slot
    6. Towing hook
    7. Chinese domestic brand hydraulic power pack
    8. Pressure gauge
    9. Auxiliary release valve
    10. Level gauge
    11. Emergency stop button both on platform and ground
    12. Key lock power switch
    13. Lockable stabilizer
    14. Anti-skid floor on platform with removable handrails
    15. Toe protection boards on the platform
    16. Operation voltage at 24V
    17. Ladders for access to the stowed platform (Ladder for easy accessibility)
    18. Limit switch provided for top motor shut off
    19. Removable control box on platform
    20. Interlock doors on platform
    21. Detachable/Foldable Fence
    22. Powder coating painting
    23. Spring mounted handles
    24. Nylon bush assembled in between each scissor
    25. Short Circuit and leakage protection system



    Optional Configuration for Manual Pushing Around Scissor Lift:

    1. Platform extension
    2. Overloading protection
    3. DC power supply
    4. Battery Indicator for DC power
    5. Hour meter for DC power
    6. AC&DC power supply
    7. Motorized device for easily pulling
    8. Horn available for motorized device
    9. Explosion proof type
    10. Maintenance supporting bar
    11. Solid Tyre
    12. Overseas brand hydraulic power pack
    13. Outrigger sensor
    14. Horn on the platform
    15. AC power to the platform
    16. Platform working light
    17. Anti-burst valve on cylinder

    Main Features:
    1. Pointing control of lifting up and down.
    2. Manganese steel lifting arm in high strength with rectangle shape
    3. Anti-skid floor in platform
    4 The control panels are available on the platforms and ground.
    5. Fine grinding cylinder in good sealing performance
    6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.

    Safety Precautions:
    1. The operation voltage on the platform is 24V
    2. Emergency stop button on the paltform and ground
    3. Auxiliary platform lowering
    4. Telescopic legs on the chassis
    5. Hose burst valve safety
    6. Rain-proof design electirc cabinet
    7. Fence on the platform



    Applications:

    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



    Why choose Our Mobile Scissor Lift?

    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience



    Manual Pushing Mobile Scissor Lift 9 Meters Height Hydraulic Lift Table 500Kg Loading



    Communication with Customers:

    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30 days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:



    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
