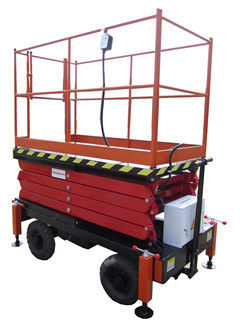

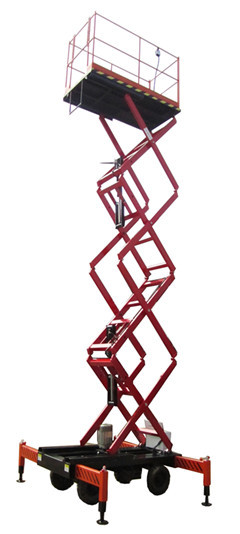

14 Meters Mobile Hydraulic Scissor Lift , AC / DC Power Supply 3Kw

14 Meters Mobile Hydraulic Scissor Lift , AC / DC Power Supply 3Kw

  • 14 Meters Mobile Hydraulic Scissor Lift , AC / DC Power Supply 3Kw
  • 14 Meters Mobile Hydraulic Scissor Lift , AC / DC Power Supply 3Kw
  • 14 Meters Mobile Hydraulic Scissor Lift , AC / DC Power Supply 3Kw
14 Meters Mobile Hydraulic Scissor Lift , AC / DC Power Supply 3Kw
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SJY0.45-14
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Mobile Scissor Lift Material: High-duty Steel Structure
Voltage: 12V 24V 110V 220V 240V 380V Optional Lifting Time: 120s
Certification: CE Application: Indoor Or Outdoor Aerial Work
High Light:

automobile scissor lift

,

mobile aerial work platform

14 Meters Mobile Hydraulic Scissor Lift , AC / DC Power Supply 3Kw



Description:



Mobile Scissor lifts are also called as mobile scissor aerial work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



Quick Detail:



Name Mobile Scissor Lift Brand Name CHEN LIFT
Loading Capacity 450Kg Platform Height 14m
Platform Size 1.80*1.00m Color Red Color or Optional
Lifting Power 3Kw Power Supply AC/DC







Main Features:



1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4 The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.





Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform





Major Parameters

  • Model: SJY0.45-14
  • Loading Capacity 450kg
  • Maximum Height 14000mm
  • Minimum Height 2000mm
  • Platform Size 2450*1350mm
  • Lifting Power 3kw
  • Power Voltage 1phase/220V/50HZ
  • Lifting Time 120s
  • Cylinder Ф100(3Pcs)
  • Gear Pump 6ml/r
  • Total Weight 2150kg
  • Measurement 2600*1590*2000mm



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack ,NOK sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø500-8 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabine
