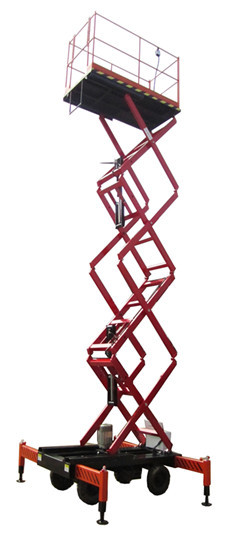

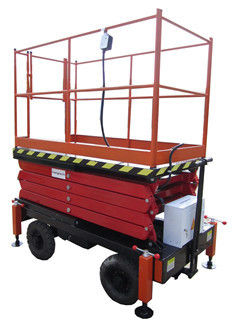

Loading Weight 1t Hydraulic Mobile Scissor Lift of 12m Lifting Height

Loading Weight 1t Hydraulic Mobile Scissor Lift of 12m Lifting Height

Description:

The scissor working platform is a special equipment for high altitude operation, which is widely used. Its shear fork type mechanical structure makes the lifting platform have higher stability, wide working platform and higher bearing capacity. It makes aerial work more efficient and safer. It is suitable for many people to work at the same time. It is widely used at warehouse, freight station, sales room, exterior components, it's working height could reach to 14m, two workers loaded, it's better than a folding arm lift platform.

Safety Precaution:

Self-propelled Scissor Lift does not need to be manually towed or connected to external power supply. It's applied in all kinds of aerial working place, and a useful vertical lifting/lowering assistant device.

Operator could control lifting and lowering on platform, driving and turning could also be done on platform at lowest height.

Self-propelled Scissor Lift with safety load, steady lifting up and down, constant driving speed, easy operation and convenient maintenance.

It's widely used in machinery, chemistry industry, water engineering projects, hotel, restaurants, train station, airport, shipping yard, electronics and electric power industry etc.

Quick Detail:

Major Parameters

• Model: SJY1-12
• Loading Capacity 1000kg
• Maximum Height 12000mm
• Minimum Height 1880mm
• Platform Size 2450mm*1350mm
• Lifting Power 4kw
• Power Voltage 1phase/220V/50HZ or 3phases/380V/50HZ
• Lifting Time 135s
• Cylinder Ф100(2Pcs) Ø80(2Pcs)
• Gear Pump 6ml/r
• Total Weight 2700kg
• Measurement 2650*1550*1880mm

Configurations:

• Electric system: Schneider contactor, SANLICO button, CHNT electrical
• Hydraulic System: Hycman brand power pack ,NOK sealing
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate
• Tire: Ø600-9 Inflated tires
• High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Optional Configuration:

• Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
• Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
• Extension Platform
• Rubber Solid Tire
• Flame Proof Control Cabinet

Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.

Why to choose CHEN LIFT Mobile Scissor Lift?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience

Communication with Customers

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material

A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?

B: it is 30days after order confirmation

A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

A: How long is your quality guarantee period?

B: We have one year warranty.
