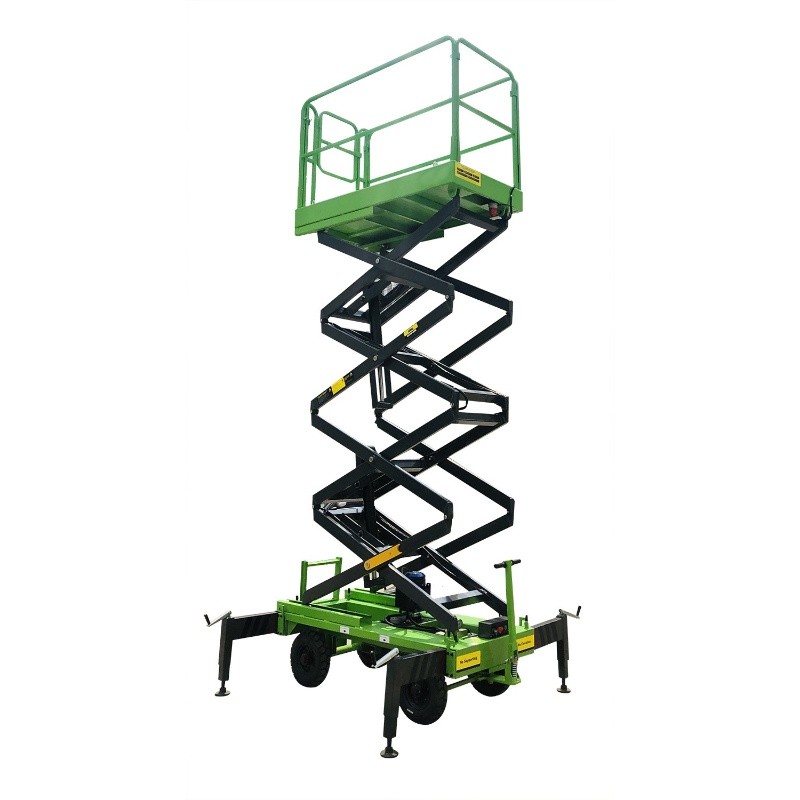

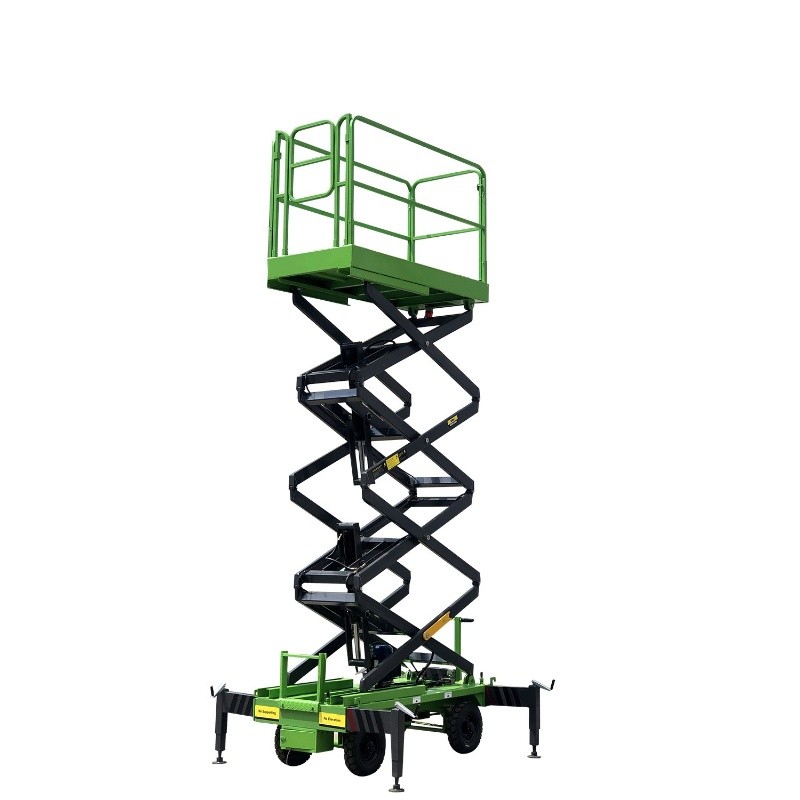

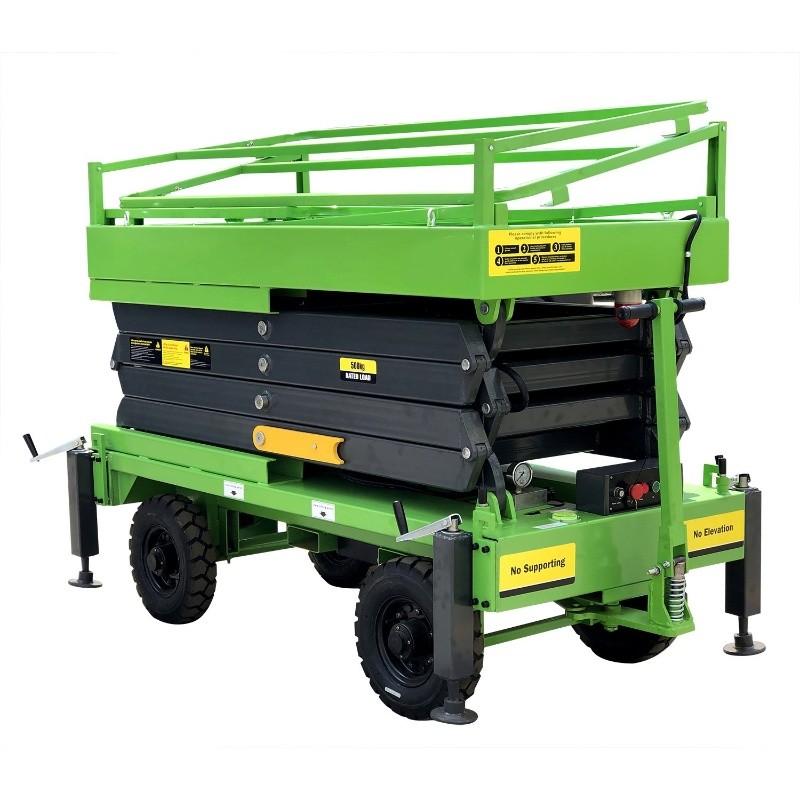

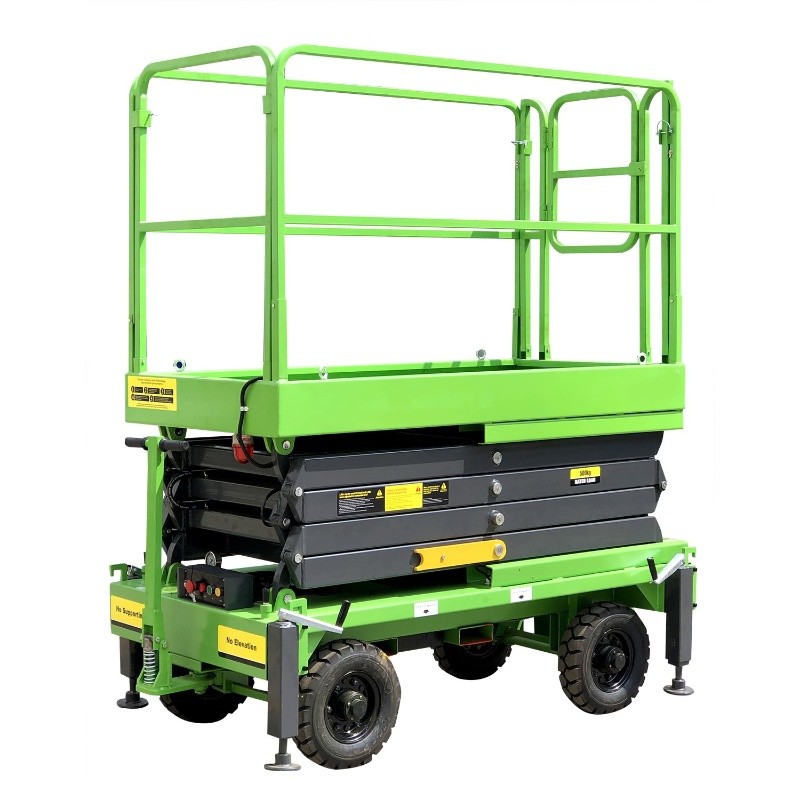

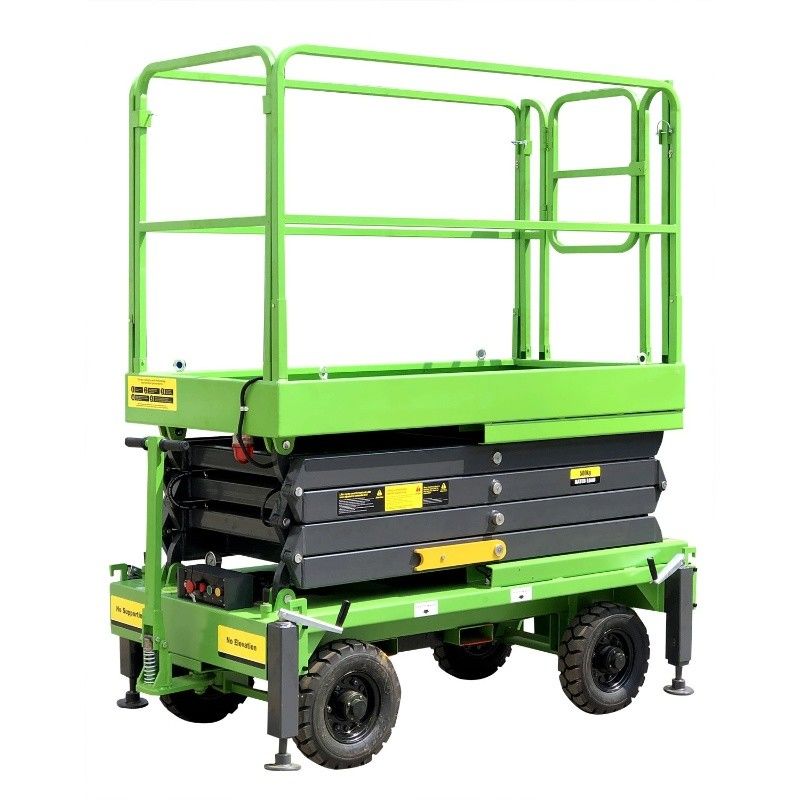

Adjustable Manual Pushing Hydraulic Lift Platform , Hydraulic Work Platform 6m 500kg

Adjustable Manual Pushing Hydraulic Lift Platform , Hydraulic Work Platform 6m 500kg

    • Adjustable Manual Pushing Hydraulic Lift Platform , Hydraulic Work Platform 6m 500kg
    • Adjustable Manual Pushing Hydraulic Lift Platform , Hydraulic Work Platform 6m 500kg
    • Adjustable Manual Pushing Hydraulic Lift Platform , Hydraulic Work Platform 6m 500kg
  • Adjustable Manual Pushing Hydraulic Lift Platform , Hydraulic Work Platform 6m 500kg

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: SJY 05-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
    Delivery Time: 20 days after order confirmed
    Payment Terms: T/T or L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 500kg Platform Height: 6m
    Platform Size: 1850*880mm Extension Platform Length: 0mm
    Lifting Power: 1.5kw Lifting Time: 54s
    Weight: 650kg Measurement: 1900*1120*750mm



    Adjustable Manual Pushing Mobile Mini Scissor Lift Hydraulic Aerial Work Platform 3m 450kg



    Quick Detail:



    Name Mobile Scissor Lift Brand Name Xunte
    Loading Capacity 500Kg Platform Height 6m
    Platform Size 1850*880mm Color Yellow or Optional
    Lifting Power 1.5Kw Overall Size 1900*1120*750mm



    Description:



    Mobile Scissor lifts enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



    Main Features:



    1. Pointing control of lifting up and down.

    2. Manganese steel lifting arm in high strength with rectangle shape

    3. Anti-skid floor in platform

    4. The control panels are available on the platforms and ground.

    5. Fine grinding cylinder in good sealing performance

    6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.



    Safety Precaution:



    1. Emergency stop button on the platform and ground

    2. Auxiliary platform lowering

    3. Hose burst valve safety

    4. Fence on the platform



    Major Parameters

    • Model:                          SJY 0.5-6
    • Loading Capacity         500kg
    • Maximum Height          6000mm
    • Minimum Height           1900mm
    • Platform Size               1850*880mm
    • Lifting Power                1.5kw
    • Lifting Time                  54s
    • Gear Pump                  6ml/r
    • Total Weight                650kg
    • Measurement              1900*1120*750mm



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack ,NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Antiskid checkered plate
    • Tire: Ø600-9 Inflated tires
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :



    Optional Configuration:

    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Rubber Solid Tire
    • Flame Proof Control Cabinet



    Applications:



    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



    Why choose Xunte Mobile Scissor Lift?



    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience







    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:



    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
