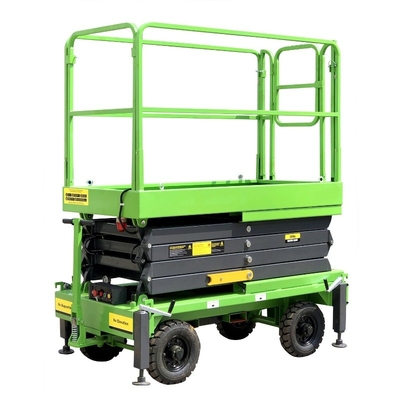

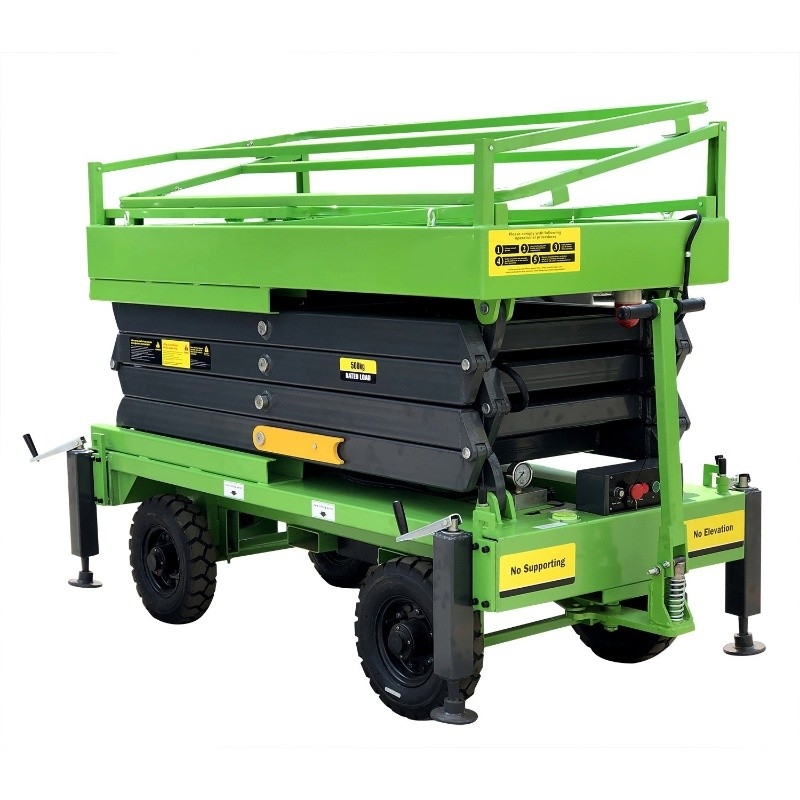

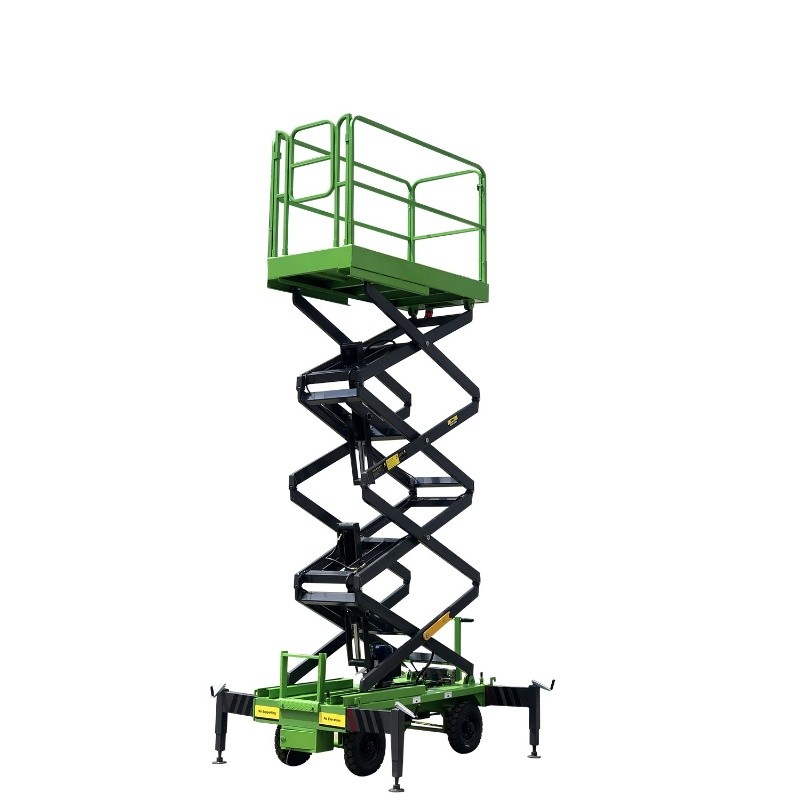

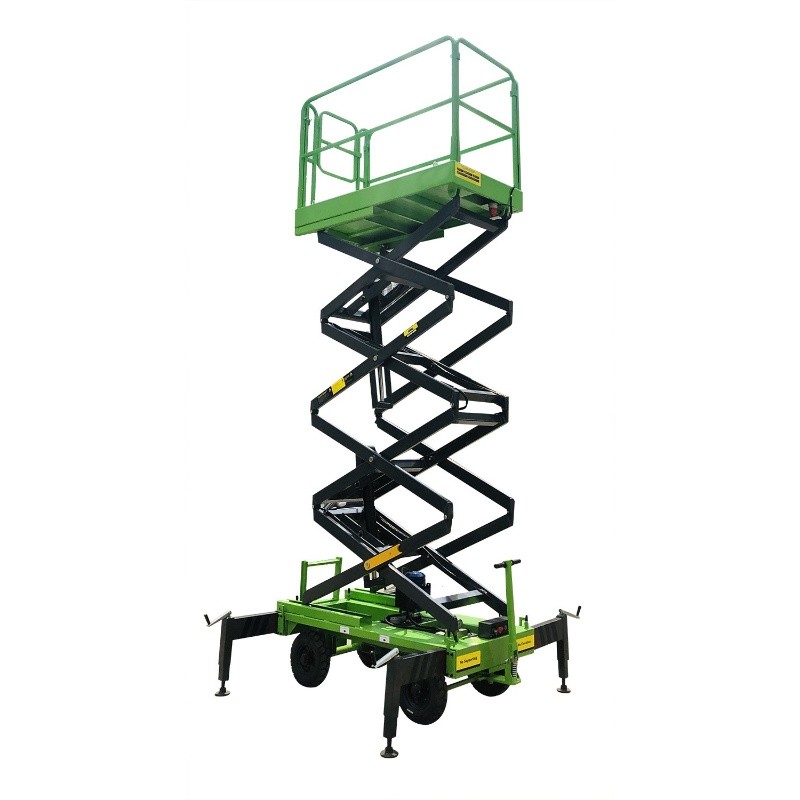

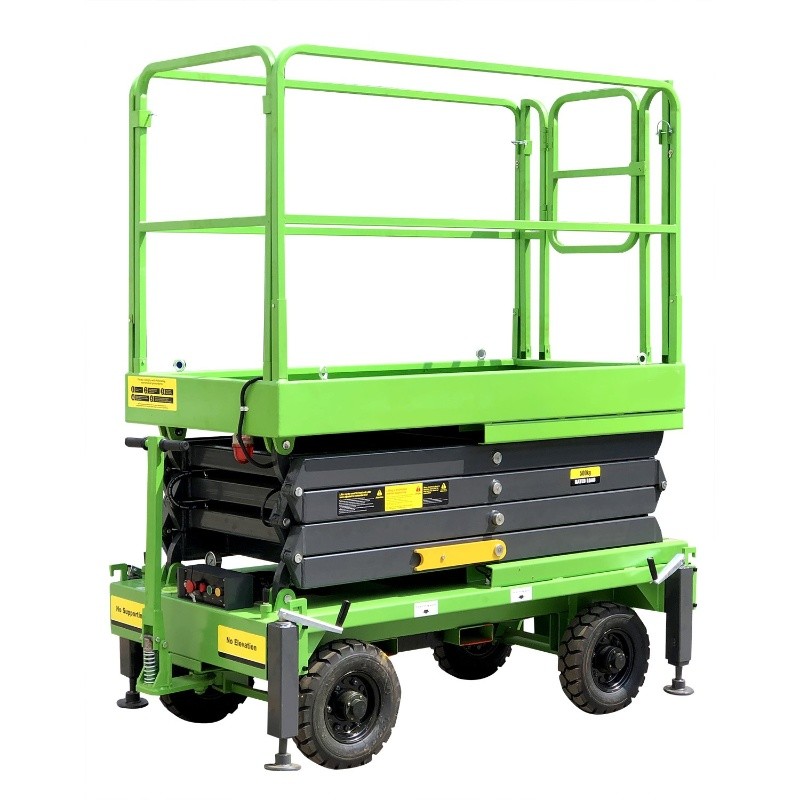

12 Meters Mobile Scissor Lift Hydraulic X Lift Platform For Work At Height

    • 12 Meters Mobile Scissor Lift Hydraulic X Lift Platform For Work At Height
    • 12 Meters Mobile Scissor Lift Hydraulic X Lift Platform For Work At Height
  • 12 Meters Mobile Scissor Lift Hydraulic X Lift Platform For Work At Height

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE
    Model Number: MK1200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: T/T or L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Name: Mobile Scissor Lift Application: Aerial Working Platform
    Type: Mobile, Manual Feature: Easy Operation Safety Convenience
    Loading Capacity: 500Kg Platform Height: 12m
    Platform Size: 2.45*1.35m Working Height: 14m



    12 Meters Mobile Scissor Lift Hydraulic X Lift Platform For Work At Height



    Description:

    It is ideal lift platform for aerial maintain and clean, used indoor or outdoor. With AC driven system. Electric lift makes low noise and no emission when working. 90s Lifting Time can run in both high and low speeds,



    The scissor lift can be easily and flexibly operated in crowded working conditions, such as construction site, elevator, and narrow corridor. Lift down, turning, forward and backward movements can be easily operated by single person.



    Mobile Scissor lifts can be used to lift goods or people to the high place. There are two control boxes for this machine-Up Control and Ground Control, and has switch to choose the controlling one.



    Quick Detail:

    Name Mobile Scissor Lift Brand Name Bestmax
    Loading Capacity 500Kg Platform Height 12m
    Platform Size 2.45*1.35m Color Red Color or Optional
    Lifting Power 3Kw Power Supply AC/DC



    Major Parameters

    • Model: MK1200
    • Loading Capacity 500Kg
    • Maximum Height 12000mm
    • Minimum Height 1850mm
    • Platform Size 2450*1350mm
    • Lifting Power 3kw
    • Power Voltage 1phase/220V/50HZ
    • Lifting Time 90s
    • Cylinder Ф100(3Pcs)
    • Gear Pump 6ml/r
    • Total Weight 1850kg
    • Measurement 2450*1590*2000mm



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack ,NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Anti-skid checkered plate
    • Tire: Ø500-8 Inflated tires
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Rubber Solid Tire
    • Flame Proof Control Cabinet



     12 Meters Mobile Scissor Lift Hydraulic X Lift Platform For Work At Height





    Communication with Customers:

    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
