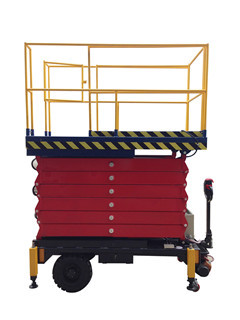

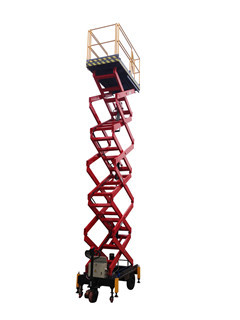

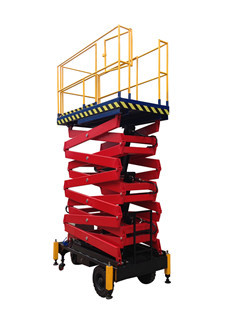

Lifting Height 16m Mobile Scissor Lift Hydraulic Lift Aerial Work Platform 300Kg Loading Capacity

Lifting Height 16m Mobile Scissor Lift Hydraulic Lift Aerial Work Platform 300Kg Loading Capacity

    • Lifting Height 16m Mobile Scissor Lift Hydraulic Lift Aerial Work Platform 300Kg Loading Capacity
    • Lifting Height 16m Mobile Scissor Lift Hydraulic Lift Aerial Work Platform 300Kg Loading Capacity
    • Lifting Height 16m Mobile Scissor Lift Hydraulic Lift Aerial Work Platform 300Kg Loading Capacity
  • Lifting Height 16m Mobile Scissor Lift Hydraulic Lift Aerial Work Platform 300Kg Loading Capacity

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE
    Model Number: SJY0.3-16

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: T/T or L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 300Kg Platform Height: 16m
    Platform Size: 2750*1500mm Lifting Power: 3Kw
    Measurement: 2850*1750*2100mm Weight: 2680Kg



    Lifting Height 16m Mobile Scissor Lift Hydraulic Lift Aerial Work Platform 300Kg Loading Capacity



    Description:

    This series mobile Scissor lift table use for plant, site, hotels, airports, stations, terminals, sports areas, such as tall buildings
    of the high-altitude equipment installation, maintain and cleaning Health, the field of power facilities, over head pipes,
    and other lifting efficiency ideal equipment, Order-at-height safety, convenient and fast.


    Advantages:

    1) Four wheels movable.

    2) This series lift platforms can be moved in many different workplaces, they don't need external power supply.

    3) They are easy to move and to operate. can be move while extended and controlled from platform by the one
    person.
    4) Spacious working platforms, high working efficiency.



    Quick Detail:

    Name Mobile Scissor Lift Brand Name Bestmax
    Loading Capacity 300Kg Platform Height 16m
    Platform Size 2750*1500mm Color Red Color or Optional
    Lifting Power 3Kw Power Supply AC/DC





    Major Parameters

    • Model: SJY0.3-16
    • Loading Capacity 300kg
    • Maximum Height 16000mm
    • Minimum Height 2100mm
    • Platform Size 2750*1500mm
    • Lifting Power 3kw
    • Power Voltage 1phase/220V/50HZ or 3phases/380V/50HZ
    • Lifting Time 130s
    • Cylinder Ф100mm (1Pc) Ф80(4Pcs)
    • Gear Pump 6ml/r
    • Total Weight 2680kg
    • Measurement 2850*1750*2100mm



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack ,NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Antiskid checkered plate
    • Tire: Ø600-9 Inflated tires
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Rubber Solid Tire
    • Flame Proof Control Cabinet



    Applications:

    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



    Lifting Height 16m Mobile Scissor Lift Hydraulic Lift Aerial Work Platform 300Kg Loading Capacity          Lifting Height 16m Mobile Scissor Lift Hydraulic Lift Aerial Work Platform 300Kg Loading Capacity



    Why choose Xunte Mobile Scissor Lift?

    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience



    Communication with Customers:

    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
