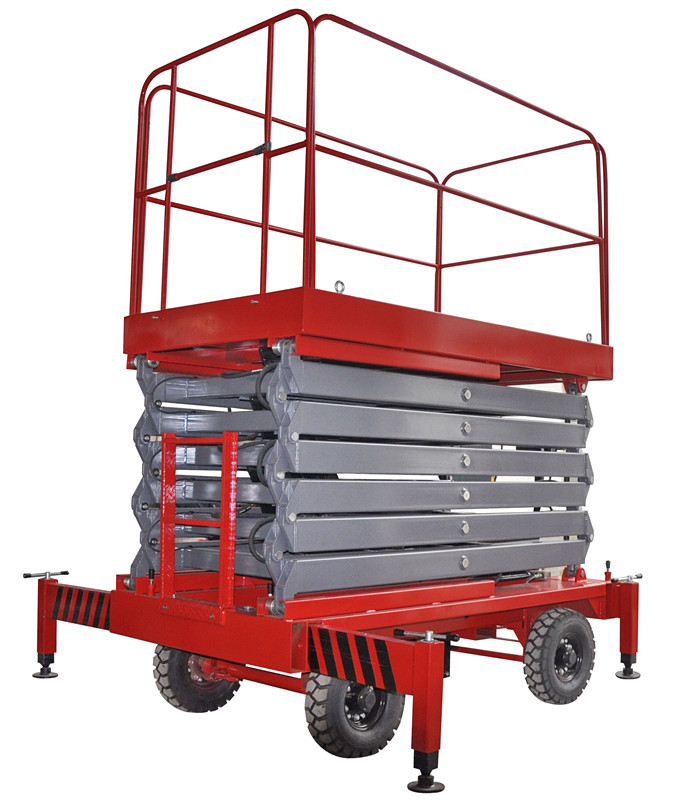

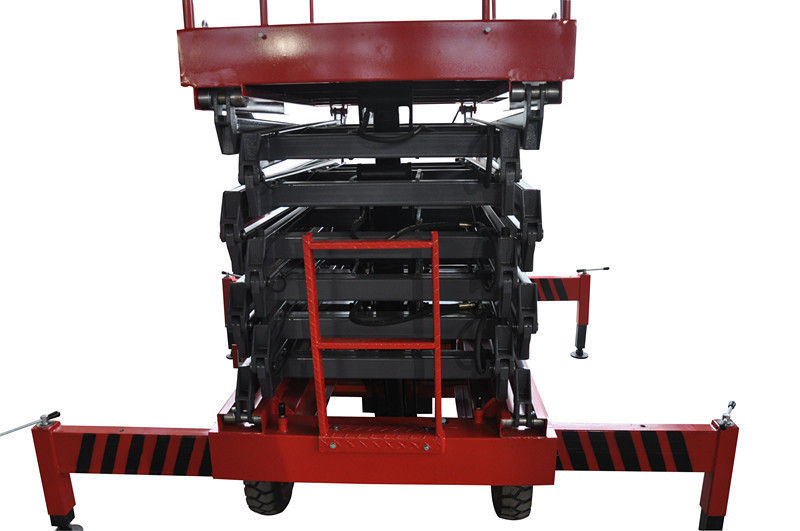

Working Height 14m Mobile Scissor Lift Manual Pushing With Rain Proof Control Cabinet

Working Height 14m Mobile Scissor Lift Manual Pushing With Rain Proof Control Cabinet

    • Working Height 14m Mobile Scissor Lift Manual Pushing With Rain Proof Control Cabinet
    • Working Height 14m Mobile Scissor Lift Manual Pushing With Rain Proof Control Cabinet
    • Working Height 14m Mobile Scissor Lift Manual Pushing With Rain Proof Control Cabinet
  • Working Height 14m Mobile Scissor Lift Manual Pushing With Rain Proof Control Cabinet

    Product Details:

    Place of Origin: CHINA
    Brand Name: XUNTE
    Certification: CE
    Model Number: SJY0.5-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 days after receipt of deposit
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Working Height: 14m Platform Height: 12m
    Loading Capacity: 500Kg Platform Size: 2450*1350mm
    Power Source: 220V 50Hz Or 380V 50 Hz Motor Power: 3Kw
    Lifting Time: 90s Weight: 1850kg



    Working Height 14m Mobile Scissor Lift Manual Pushing With Rain Proof Control Cabinet



    Description:

    Mobile scissor lifts are also called as mobile scissor aerial work platform. The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



    Applications:

    Mobile Scissor Lift is commonly seen in the workshop or railway station or the shopping mall or the lobby of the hotel, it can be used to clean walls and windows, change lights, maintenance facilities or transport goods to a high place.



    Main Features:

    1. Pointing control of lifting up and down.

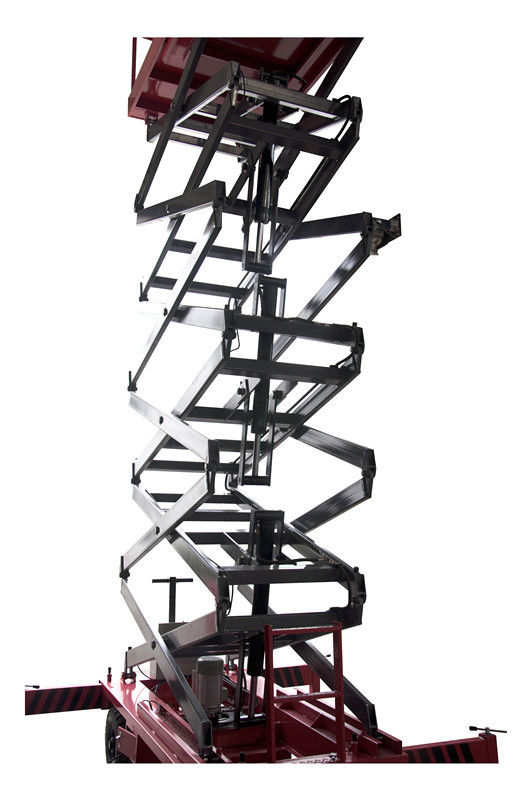

    2. Manganese steel lifting arm in high strength with rectangle shape
    3. Anti-skid floor in platform
    4 The control panels are available on the platforms and ground.
    5. Fine grinding cylinder in good sealing performance
    6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.



    Safety Precaution:

    1. The operation voltage on the platform is 24V
    2. Emergency stop button on the platform and ground
    3. Auxiliary platform lowering
    4. Telescopic legs on the chassis
    5. Hose burst valve safety
    6. Rain-proof design electric cabinet
    7. Fence on the platform



    Parameters:

    Loading Capacity 500kg
    Maximum Height 12 m
    Minimum Height 1.85 m
    Platform Size 2.45*1.35m
    Lifting Power 3kw
    Power Voltage 1phase/220V/50HZ or 3phases/380V/50HZ
    Lifting Time 90s
    Cylinder Ф100(3Pcs)
    Gear Pump 6ml/r
    Total Weight 1850kg



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical

    • Hydraulic System: Hycman brand power pack ,NOK sealing

    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B

    • Platform Surface : Antiskid checkered plate

    • Tire: Ø500-8 Inflated tires

    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

     Optional Configuration:

    • Optional Power: AC220V, DC24/48V, Manual Hydraulic Pump
    • Oversea Brand Hydraulic System
    • Explosion-proof Electronic Control System
    • Solod Rubber Tire
    • Extended Working Platform



    Working Height 14m Mobile Scissor Lift Manual Pushing With Rain Proof Control Cabinet
