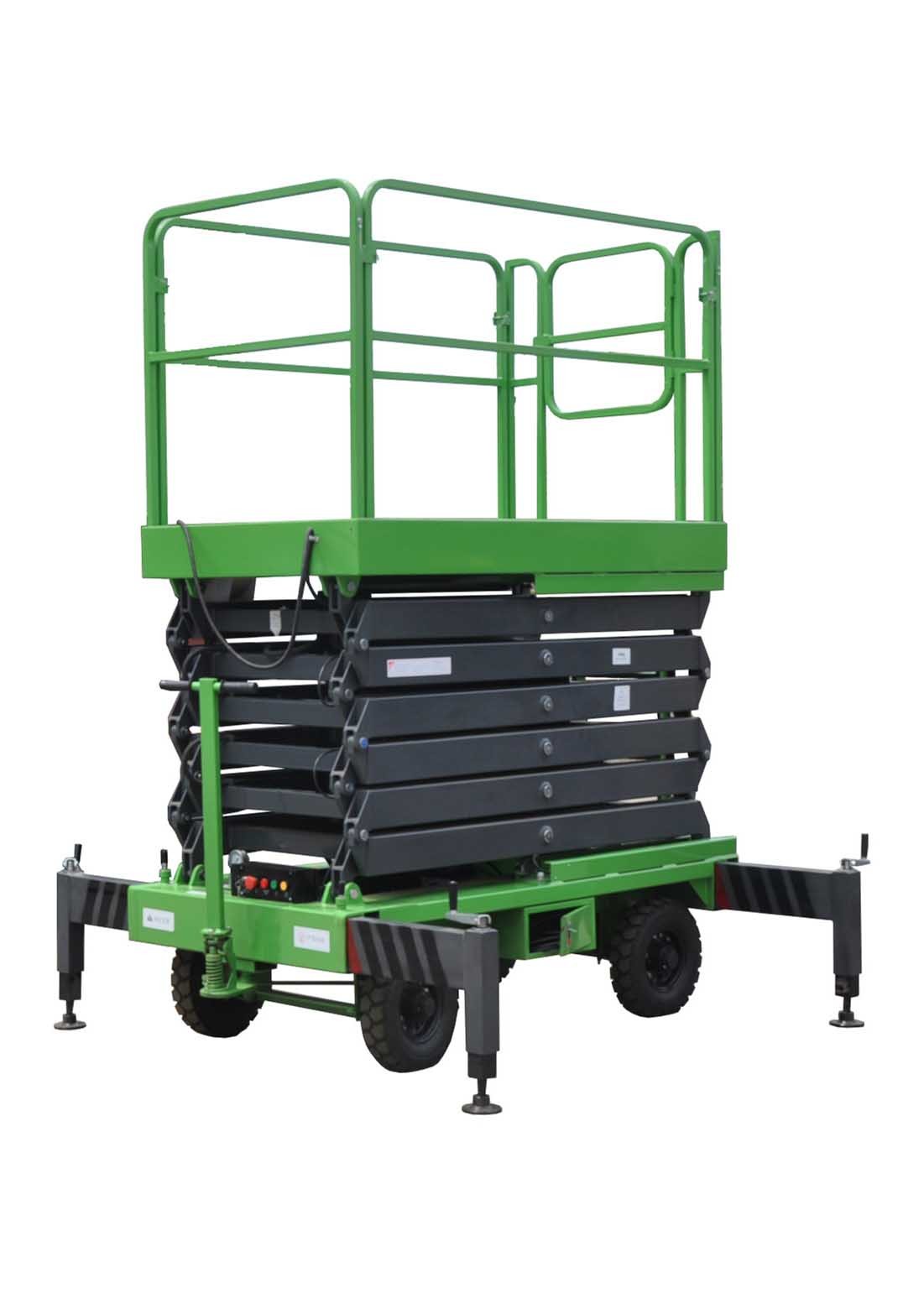

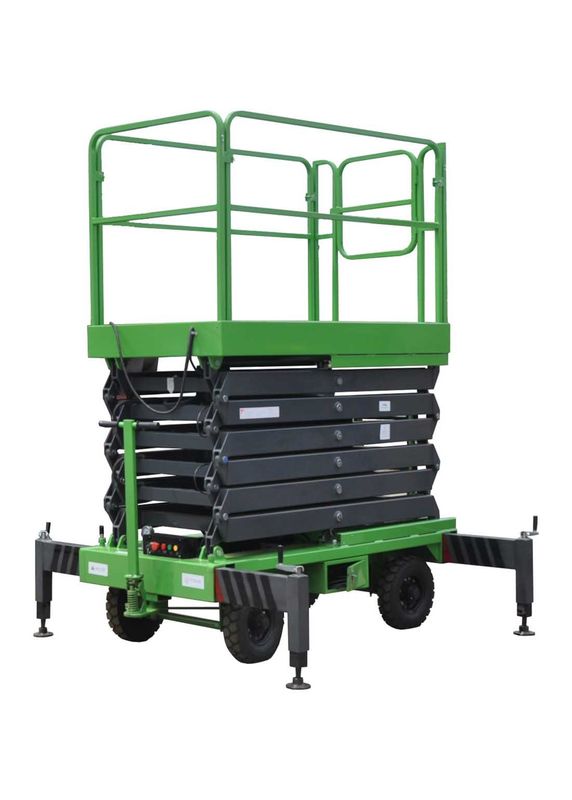

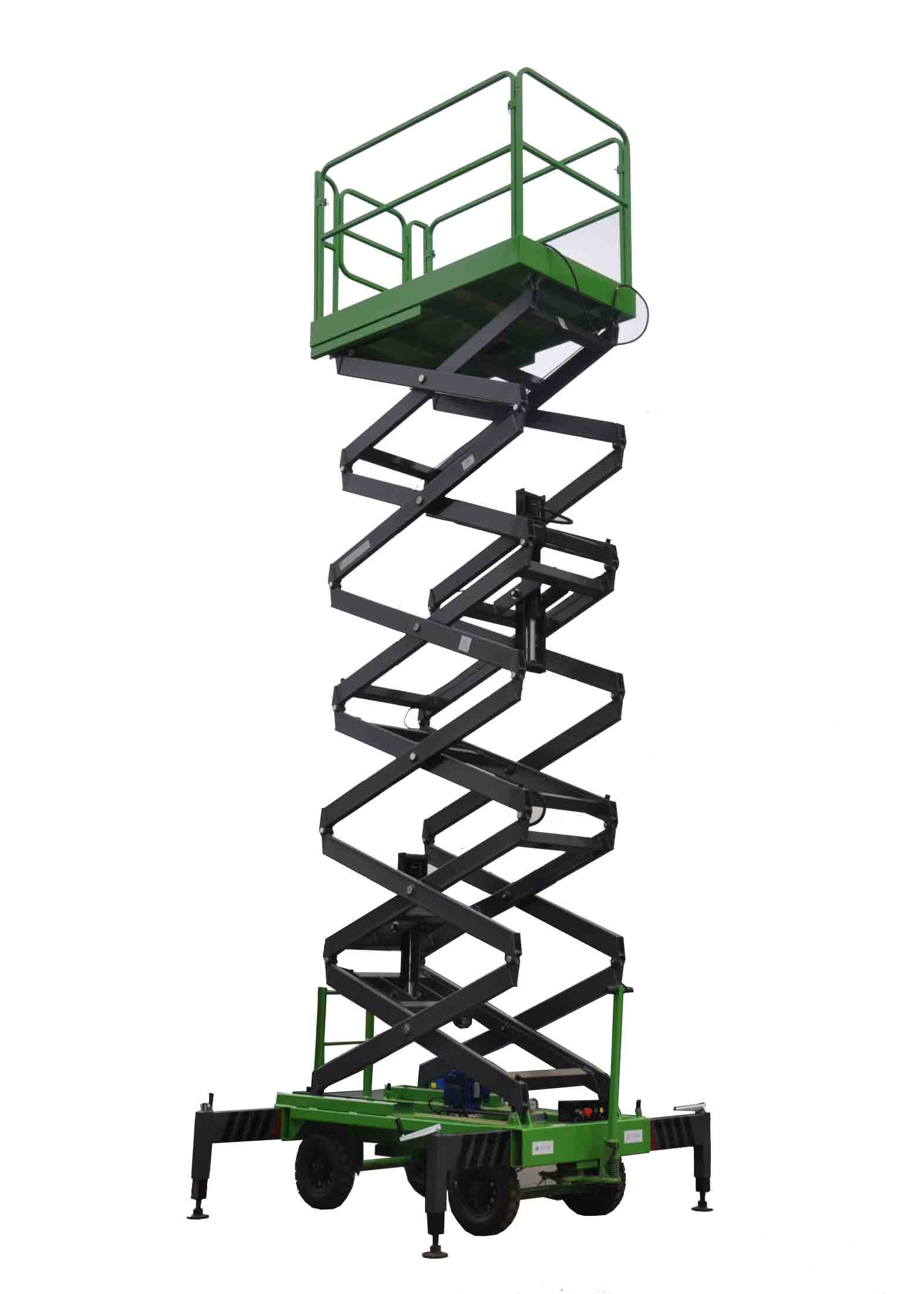

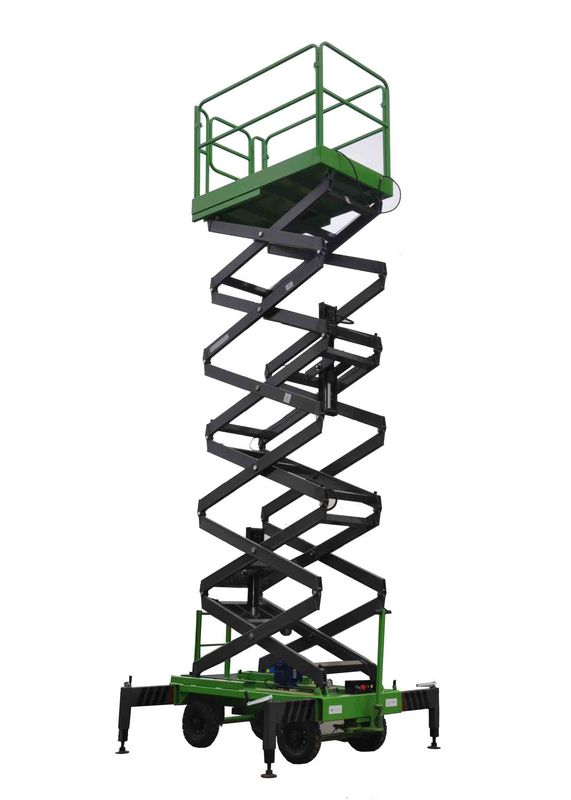

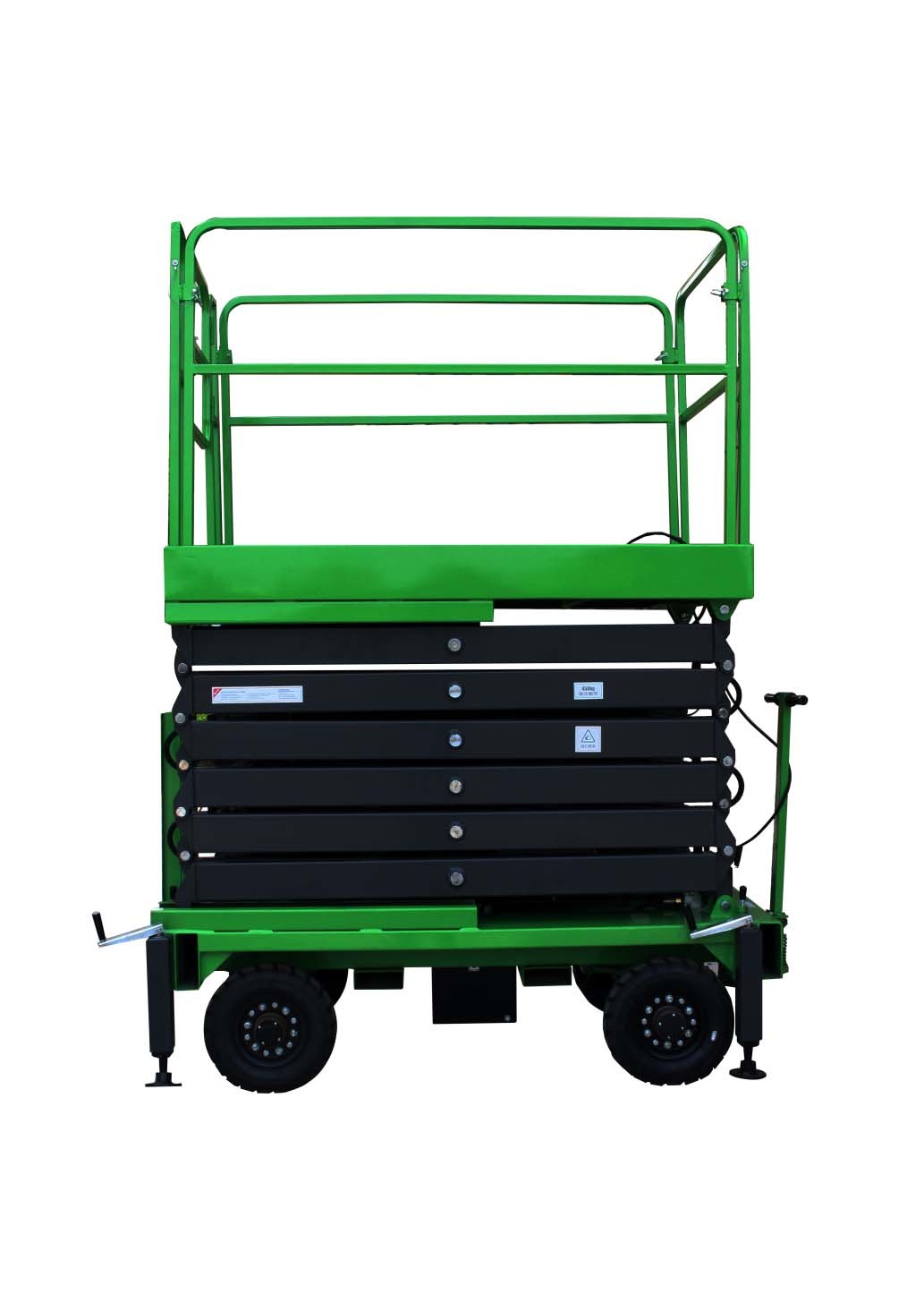

6M Platform Height Mobile Scissor Lift Capacity 500kg

6M Platform Height Mobile Scissor Lift Capacity 500kg

    • 6M Platform Height Mobile Scissor Lift  Capacity 500kg
    • 6M Platform Height Mobile Scissor Lift  Capacity 500kg
    • 6M Platform Height Mobile Scissor Lift  Capacity 500kg
  • 6M Platform Height Mobile Scissor Lift  Capacity 500kg

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE
    Model Number: MK600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or Wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: L/C, T/T
    Supply Ability: 100 sets/ month
    Contact Now
    Detailed Product Description
    Loading Capacity: 300kg Platform Height: 6m
    Working Height: 8m Minimum Height (rails Up): 2.166m
    Minimum Height (rails Down): 1.636m Platform Size: 1.85*0.88m
    Ground Clearance​: 0.43m Motor Power: 1.5kw
    Raise / Lower Time: 50s / 40s Outrigger Footprint: 1740*1640mm
    Weight: 650kg Overall Size: 1.95*1.08*1.1m




    6M Platform Height Mini Aerial Scissor Lift 2.2KW 300kg Loaing Capacity​



    Parameter:



    Loading Capacity 300kg
    Platform Height 6000mm
    Minimum Height (rails up) 2166mm
    Minimum Height (rails down) 1636mm
    Platform Size 1270mm*650mm
    Ground Clearance​ 430mm
    Motor Power 2.2kw
    Power Voltage DC24V
    Raise / Lower Time 50s / 40s
    Cylinder Ф55(1Pc)
    Gear Pump 4ml/r
    Outrigger Footprint 1740*1640mm
    Total Weight 650kg
    Overall Size 1320*775*2166mm





    Description:



    This mini scissor lift is easy to use. The control panels are available on the platforms and ground.


    The user can control the machine walking and lifting operation directly on the platform, and realize the single person working continuously at high altitude.



    Because it is miniature, the height is limited, suit low position aerial work. They are used to provide contractors with temporary access to high-altitude areas that are inaccessible to various workplaces, such as maintenance, construction projects or fire crews emergency access.



    The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.





    Main Features:


    1.Pointing control of lifting up and down.
    2.Manganese steel lifting arm in high strength with rectangle shape
    3.Anti skid floor in platform
    4.The control panels are available on the platforms and ground.
    5.Fine grinding cylinder in good sealing performance
    6.Neatly folding guardrails
    7.Battery and battery charger in bulit
    8.Optional extension platform





    Major Parameters

    • Model: MK600
    • Loading Capacity 300kg
    • Maximum Height 6000mm
    • Minimum Height (rails up) 2166mm
    • Minimum Height (rails down) 1636mm
    • Platform Size 1270*650mm
    • Lifting Power 2.2kw
    • Power Voltage DC24V
    • Raise / Lower Time 50s / 40s
    • Outrigger Footprint 1740*1640mm
    • Total Weight 650kg
    • Overall Size 1320*775*2166mm



    Configurations:



    · Electric system: Schneider contactor, SANLICO button, CHNT electrical

    · Hydraulic System: Hycman brand power pack ,NOK sealing

    · Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B

    · Platform Surface : Antiskid checkered plate

    · Tyre: 6inch and 8inch

    · High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose


    Safety Precautions​


    1.The operation voltage on the platform is 24V
    2.Emergency stop button on the paltform and ground
    3.Auxiliary platform lowering
    4.Hose burst valve safety
    5.Rain-proof design electirc cabinet
    6.Fodable fence on the platform
    7. Outrigger on the chassis for more stability​



    Applications:



    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



    Why to choose Bestmax Mobile Scissor Lift?



    • High Quality
    • Reasonable Price
    • Good after Service
    • 1 Year Warranty
    • More Than 10 Years Experience





    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
