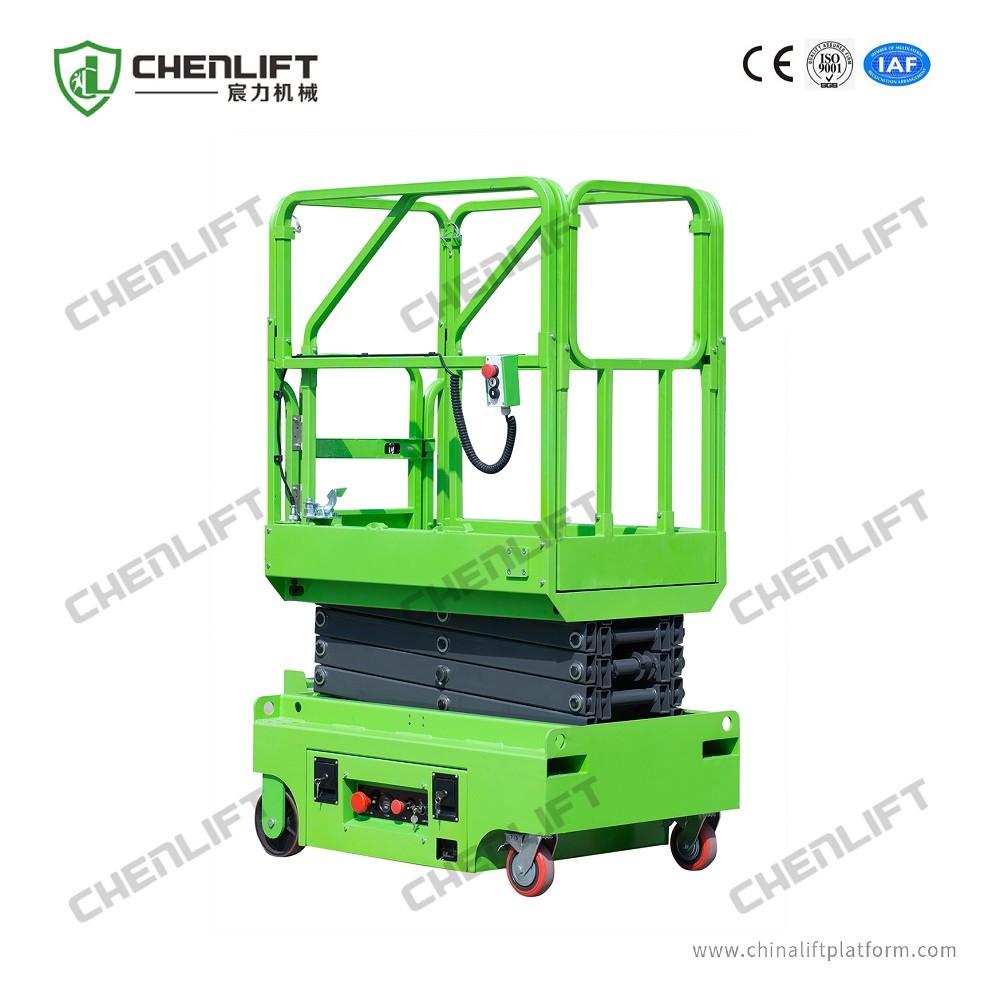

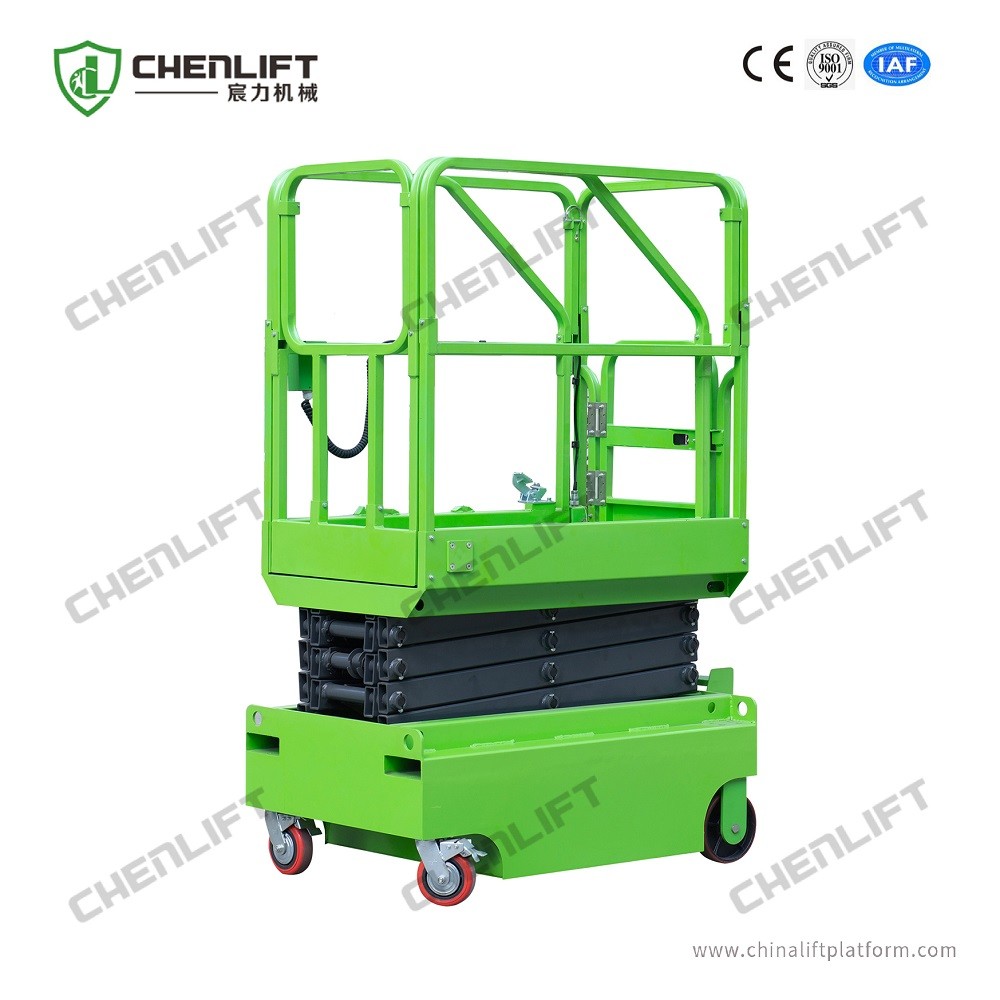

5.9m Mini Manual Pushing Mobile Scissor Lift with Loading Capacity of 240Kg

5.9m Mini Manual Pushing Mobile Scissor Lift with Loading Capacity of 240Kg

    • 5.9m Mini Manual Pushing Mobile Scissor Lift with Loading Capacity of 240Kg
    • 5.9m Mini Manual Pushing Mobile Scissor Lift with Loading Capacity of 240Kg
    • 5.9m Mini Manual Pushing Mobile Scissor Lift with Loading Capacity of 240Kg
    • 5.9m Mini Manual Pushing Mobile Scissor Lift with Loading Capacity of 240Kg
  • 5.9m Mini Manual Pushing Mobile Scissor Lift with Loading Capacity of 240Kg

    Product Details:

    Place of Origin: Original from China
    Brand Name: Bestmax
    Certification: CE ISO9001:2008 IPAF member
    Model Number: MK390R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 days after receipt of deposit
    Supply Ability: 100 set/ month
    Contact Now
    Detailed Product Description
    Model: MK390R Lift Capacity: 240kg
    Platform Height Max: 3.9m Working Height Max: 5.9m
    Platform Size: 1.15m*0.6m Power Source: DC12V
    Charger: 24V 12A Weight: 520kg



    5.9m Mini Manual Pushing Mobile Scissor Lift with Loading Capacity of 240Kg



    Description

    Mini Scissor Lift is an aerial machine with good Lifting stability and widely used. Our factory develop and design it basing on absorbing domestic and abroad product advantages.

    They are mainly applicable to office operations. Due to the whole machine has a small volume,it has better flexibility and maneuverability. Meanwhile, the machine has a wide use range and high mobility.



    Mini Mobile Scissor Lift has compact design structure (without outrigger, so the preparation time will be less, and enhance the working efficiency) less weight(can push easily by manpower)
    The operators can operate the machine up&down on platform and ground. (It lifts by battery power)



    Main Feature​



    1.Pointing control of lifting up and down.
    2.Manganese steel lifting arm in high strength with rectangle shape
    3.Anti skid floor in platform
    4 The control panels are available on the platforms and ground.
    5. Fine grinding cylinder in good sealing performance
    6.Neatly folding guardrails
    7. Battery and battery charger in bulit
    8. Optional extension platform



    Safety Precautions​



    1.The operation voltage on the platform is 24V
    2.Emergency stop button on the paltform and ground
    3.Auxiliary platform lowering
    4.Hose burst valve safety
    5.Rain-proof design electirc cabinet
    6.Fodable fence on the platform



    Parameters



    Loading Capacity 240kg
    Maximum Height(rails folded up) 3000mm
    Minimum Heght(rails folded down) 1430mm
    Minimum Heightt(rails folded up) 1830mm
    Platform Size 1150*600mm
    Lifting Power 0.8kw
    Power Voltage DC12V
    Lifting Time 34s
    Cylinder Ф55(1Pc)
    Battery 80Ah
    Battery Charger 24V 12A
    Extension platfirm(optional) 100mm
    Ground Clearance 50mm
    Gear Pump 4ml/r
    Total Weight 495kg
    Measurement 1320*760*1430mm





    Configuration



    Electric system Schneider contactor,SANLICO button,CHNT electrical
    Hydraulic System Hycman power pack ,NOK sealing
    Scissor Arm Support Hi-strength Maganese steel rectangle tube Q345 B
    Platform Surface antiskid checkered plate
    Driving Tyre 6inch and 8inch , two swivel and two fixed

    High-pressure Oil Pipe

    double wire hydraulic intensifier rubber hose







    5.9m Mini Manual Pushing Mobile Scissor Lift with Loading Capacity of 240Kg





    Details:

    5.9m Mini Manual Pushing Mobile Scissor Lift with Loading Capacity of 240Kg



    Clients & Exhibition

    5.9m Mini Manual Pushing Mobile Scissor Lift with Loading Capacity of 240Kg



    Our Service
    1. We can design the customized the machines based on your requirement.
    2. After knowing your detailed need, the right models will be recommened to you with good price.
    3. Shipment can be arranged from our port to your destination port.
    4. Opetion video can be sent to you if needed.
    5. Parts of machines can be sent to you by express within 7 days if needed.
