8m Working Height Manganese Steel Mobile Scissor Lift Electrical Pulling Loading Capacity 450kg

8m Working Height Manganese Steel Mobile Scissor Lift Electrical Pulling Loading Capacity 450kg

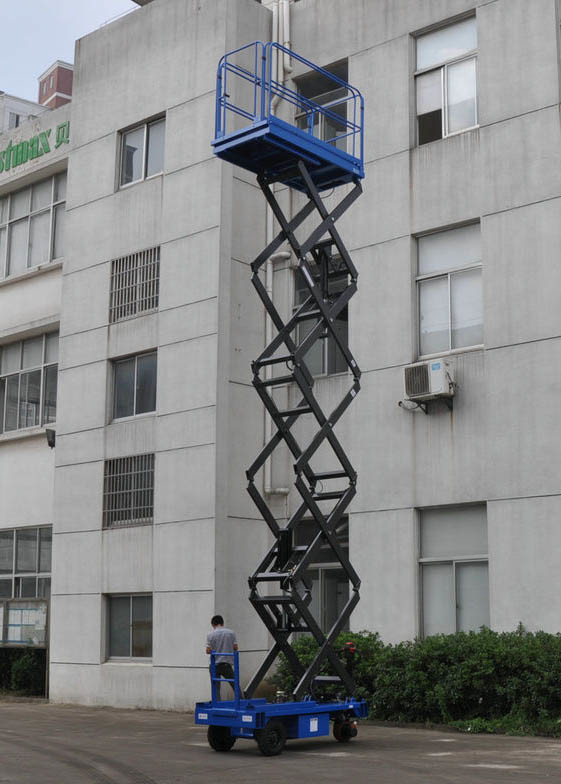

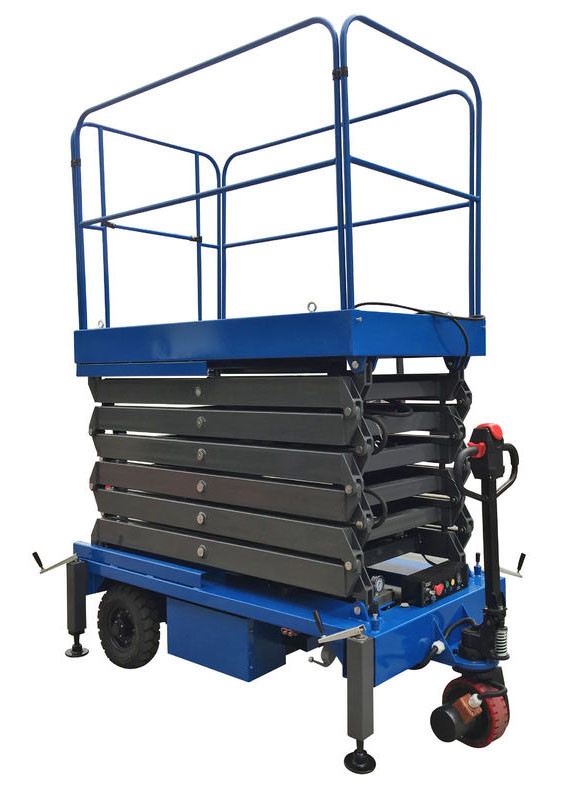

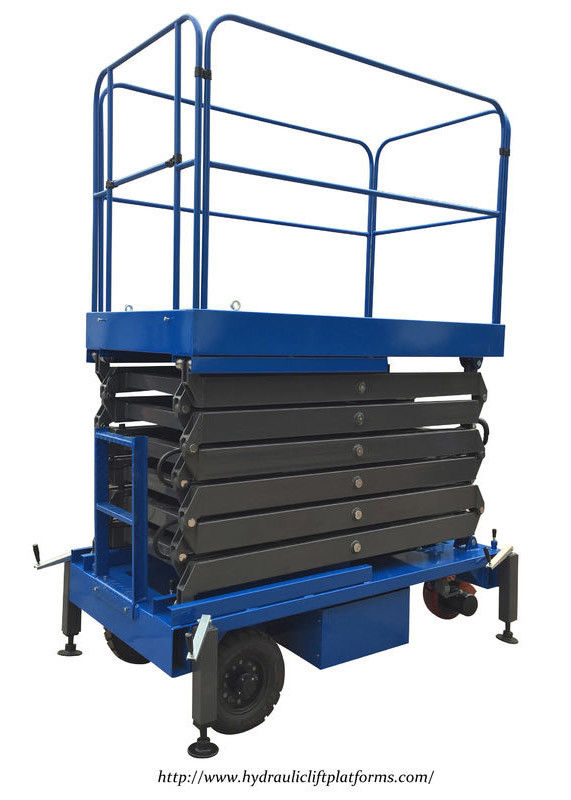

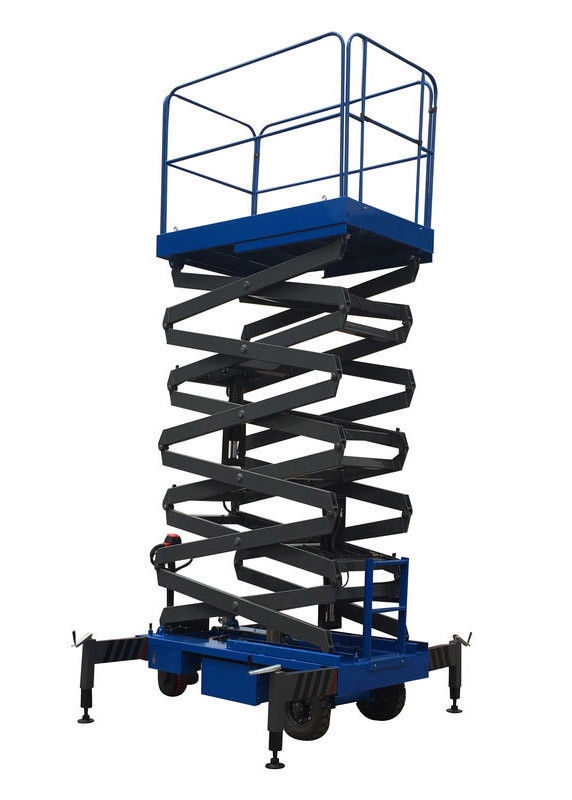

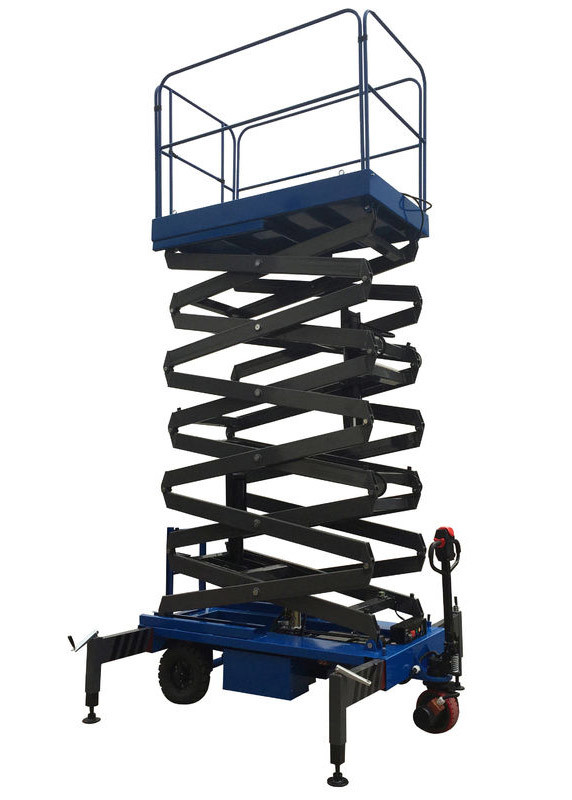

  • 8m Working Height Manganese Steel Mobile Scissor Lift  Electrical Pulling Loading Capacity 450kg
  • 8m Working Height Manganese Steel Mobile Scissor Lift  Electrical Pulling Loading Capacity 450kg
  • 8m Working Height Manganese Steel Mobile Scissor Lift  Electrical Pulling Loading Capacity 450kg
  • 8m Working Height Manganese Steel Mobile Scissor Lift  Electrical Pulling Loading Capacity 450kg
  • 8m Working Height Manganese Steel Mobile Scissor Lift  Electrical Pulling Loading Capacity 450kg
8m Working Height Manganese Steel Mobile Scissor Lift  Electrical Pulling Loading Capacity 450kg
Product Details:
Place of Origin: Original of China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SJZ 0.45-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets/ wooden case
Delivery Time: 30 day after receipt of deposit
Payment Terms: T/T, L/C
Supply Ability: 100 set/ month
Contact Now
Detailed Product Description
Model: SJZ 0.45-6 Material: High-strenght Manganses Steel
Platform Size: 1.85 X 0.88m Measurement: 2.1m X 1.24 M X 1.5m
Lifting Power: 3KW Total Weight: 910kg
Color: Customizable
High Light:

scissor lift mobile

,

automobile scissor lift

Electrical hydraulic mobile scissor lift manganese steel for material handling



Design details

Description: Compact design makes it ideal for operations in narrow aisles or spaces. This Motorized hydraulic elevator is made up of stronger and rigid manganese steel. With a motor device and a spring towing handle for pulling, pushing & steering the table, it can save man power a lot. Suitable for one single person operation, mainly used in airports, convention and exhibition center, hotel, supermarket, factory, warehouse, station, dock, station and other places for material handling or fixing or construction.



Parameters:

Maximum height

6.0m

Stood height

1.5m

Rated load

450KG

Platform size

l.85*0.88m

Lifting power

2.2KW

Motorized power

0.75KW

Lifting time

49s

Charger

15A

Total Weight

910kg

Measurement

2.1*1.24*1.5m



Technical Characteristics

Operating principle: (1) Electrically controlled hydraulic system to support lifting movement. (2) Four fixed wheels to assist travelling movements

All the parts are designed so that the forces do not exceed half the yield strength of the material used.

The elevator is fitted with overload valve and slow lowering valve to control the lowering speed. It can be fitted with many extras including roller tops, bellows, ball tops etc.



Hydraulic system

The hydraulic unit comprise a squirrel cage induction motor, a high pressure gear pump, a distributor with solenoid valves and a start up valve, Highly compensated VSC lowing valve



Mechanical part

The upper and lower chassis will be oversized. The upper chassis plating is smooth metal plate at least 6mm thick.

The electrical cabinet and systems as well as hydraulic gear will be mounted on the chassis.



Lifting arms

The plate will be elevated by actuating 2 single-action hydraulic jacks acting directly on the lifting arms guided by the roller bearings, smoothly lifting up and lowering down.



Electrical part

The electrical power supply is 380V, 50 Hz, three-phase, 4 wires. The supply installed beneath the basic chassis, comprise:

-The electrical cabinet,

-The power and control cables,

-The control systems,

-The operating and safety switch gear

All steel tube cable outlets will be protected by insulating ferrules.



Electrical cabinet

All electrical and electronic control, regulation and other equipment are placed in this cabinet whose protection index will be IP 55. Side opening drawer for convenient and easy maintenance and operation purpose. Sufficiently large louvers provide good ventilation

The cabinet comprise:

- A main, three-pole isolating switch with fuses preventing single-phase operation,

- A main contactor-circuit breaker,

- Contactors and relays used for operation of the elevator table,

- Magnetic/thermal protection of the motor pump unit,

- The transformers supplying the low controlled voltage (24V)



Control button box

The control button box is both at ground and platform for convenient and control. It has many commands, door to lock, protection from rain, moisture and dust.

The box comprise:

- 1 voltage presence lamp,

- ON/OFF button,

- UP and DOWN buttons,

- One emergency stop pushbutton, just acting on raising and lowering movement



Precaution

  • Auxiliary lowing system
  • Anti-burst device for cylinder
  • Overload safety protection device
  •  screw-type support levelling device
  • Rain-proof control cabinet
  • Emergency stop botton

8m Working Height Manganese Steel Mobile Scissor Lift  Electrical Pulling Loading Capacity 450kg 0





Why to choose CHEN LIFT Motorized Scissor Lift?
· High Quality product
· Reasonable Price
· Easy payment mode
· Timely delivery
· Good after Service
· Client-centric approach
· one year warranty



Thank you for your reading and welcome your inquiry. We will respond you as soon as possible.
