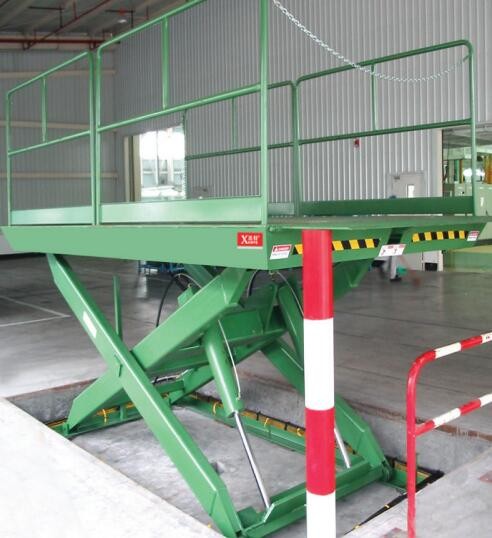

Name: Customized Cargo Lift Table 5 Tons Stationary Scissor Lift Platform For Warehouse
Brand: CHEN LIFT
SKU: SJG 5-1.6
Rating: 4.6 (186 reviews)

Home Products Cargo Lift Table

Customized Cargo Lift Table 5 Tons Stationary Scissor Lift Platform For Warehouse

Product Details:

Place of Origin:	China
Brand Name:	CHEN LIFT
Certification:	CE
Model Number:	SJG 5-1.6

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wrapped in pallet
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Loading Capacity:	5000kg	Lifting Height:	1.60m
Platform Size:	2.50*2.00m	Minimum Height:	0.50m
Keywords:	Cargo Lift	Platform:	Anti-skid
High Light:	hydraulic cargo lift , cargo lifting equipment

Customized Cargo Lift Table 5 Tons Stationary Scissor Lift Platform For Warehouse

Description:

Cargo Lift Table are widely used for carrying the goods in stability. It is mainly used in production lines transferring goods between different heights loading and uploading, lifting for parts, assembling, the platforms, the driving types, the control panels and all the accessories are available for different working conditions and requirements.

Main Character of Cargo Lift Table
1. Easily installation and maintenance
2. The number of forks for the lift are different from one, two three or more, it depends on the size of the platform and the lifting height.
3. Excellent mechanical structure, it works in lower initial lifting height with maximum lifting stroke.
4. The antiskid design endows the platforms with excellent antiskid property
5. Fine grinding cylinder in good sealing performance
6. Equipped with safeguard valve to avoid hydraulic pipe rupture

Major Parameter of Cargo Lift Table

To customize a stationary (fixed) scissor lift, below three major parameters have to be provided:

LOADING CAPACITY
PLATFORM SIZE
MAXIMUM HEIGHT (STOWED HEIGHT+ TRAVELLIGN HEIGHT)

Type	Model No.	Loading Capacity (T)	Stowed Height (mm)	Lift Height (mm)	Maximum Height (mm)	Platform Size (mm)	Lift Time (s)	Motor Power (Kw)	Weight (kg)
Single-Fork	SJG0.9-0.5	0.9	180	500	680	1220X700	15	0.75	400
	SJG2.65-1.2	2.65	230	1200	1430	1680X1000	39	3	650
	SJG3-1.2	3	240	1200	1440	1800X1800	40	3	1100
Double-Forks	SJG0.5-2.8	0.5	460	2800	3260	2200X1000	25	1.5	600
	SJG2.5-2	2.5	620	2000	2620	2200X1200	40	3	1300
	SJG5-1.5	5	460	1500	1960	1700X1000	50	4	1450
Multi-Forks	SJG1-4.1	1	913	4100	5013	2200X1000	39	3	1160
	SJG2-3.5	2	722	3500	4222	2100X1500	48	5.5	2100
	SJG3-7.2	3	1050	7200	8250	3400x1500	117	7.5	5500

Application of Cargo Lift Table

For different application purpose, the cargo lift table can be customized upon request, hereby below showing some customization cases
Fences can be added on the platform as required
The material is also by the manganese steel but stainless steel can also be used in meat processing factory for example
The table can be made to be round shape or make it to be tilting type, or with nipple on it or with roller on it.
The organ cover can also be made for the protection purpose

Why to choose CHEN LIFT Hydraulic Lift Platform?

High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 20 Years Experience

Communication with Customers

A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?

B: it is 30 days after order confirmation

A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item	Quantity
Fuse	3
"O" Rubber Seals Φ11	3
Wrench	1
Pressure Oiler	1
Cross Screwdriver	1
Straight Screwdrive	1

A: How long is your quality guarantee period?

B: We have one year warranty.
