Palletpal Lift Table Lever Loader

This Palift Pallet Positioner has a static square top for when rotating the load is not required.

Pallet Positioners resemble scissor lift tables in appearance. They have a top deck and a base connected by a pair of scissor legs. The levelling mechanism is a set of springs set to the weight and height (the density) of the product. Pallet Positioners work automatically and raise or lower as the weight changes. Load setting is a simple process and for most users, springs never have to be changed. A shock absorber prevents any bounce and all Australian Palift Pallet Positioners are supplied with a standard galvanised finish.


A Palift Pallet Positioner is one of the best ways to save workers' backs. They automatically keep pallets or stillage loads at an optimum working height when loading or unloading goods. They dramatically reduce the effort required to palletise goods. The proven design is incredibly robust and can last more than 15 years of daily use without maintenance.


Palift Pallet Positioners increase productivity, reduce injuries and improve work force morale.

Features

• Rugged tubular steel frame for loads up to 2000 kgs.
• Heavy-duty springs calibrated to bring pallet to most convenient loading and unloading height.
• Proven linkage design maintains level under uneven loading.
• Dampener provides smooth, gradual raising and lowering action, without overshoot or spring bounce.
• Fork pockets for relocation by fork truck also extend base for free standing stability.
• Levelling feet (optional) allow use on sloping or uneven floors.
• Free standing, can be easily relocated by fork truck.
• Saves workers backs.
• Productivity gains of up to 40%.
• Standard adjustable feet to allow levelling on uneven surfaces
• No power, air or maintenance required.
• Durable and tough, Palift is galvanised and suitable for washdown.
• Lifetime spring warranty and 3 year frame warranty

Specification

Details

1.Widening anti-pinvh scissors

Scissor-type bracket structure,the platform maintains a horizontal state,and the stability is good; the gap is widened in thr middle to prevent accidental pinching of other items.

2.Socket slot

The base is designed with a toothed groove to facilitate the overall movement, and the handing of the loading and unloading is convenient for the forklift to be practical and easy to operate.

3.Lifting shock absorber

The shock absorber plays a mitigating role,making the platform more stable and improving the safety performance of the whole vertical.

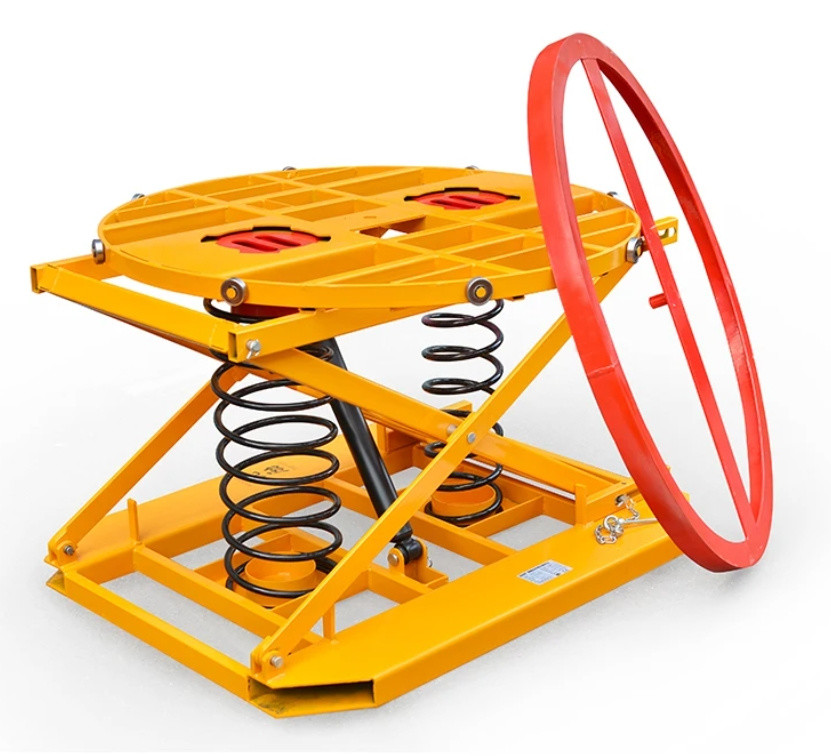

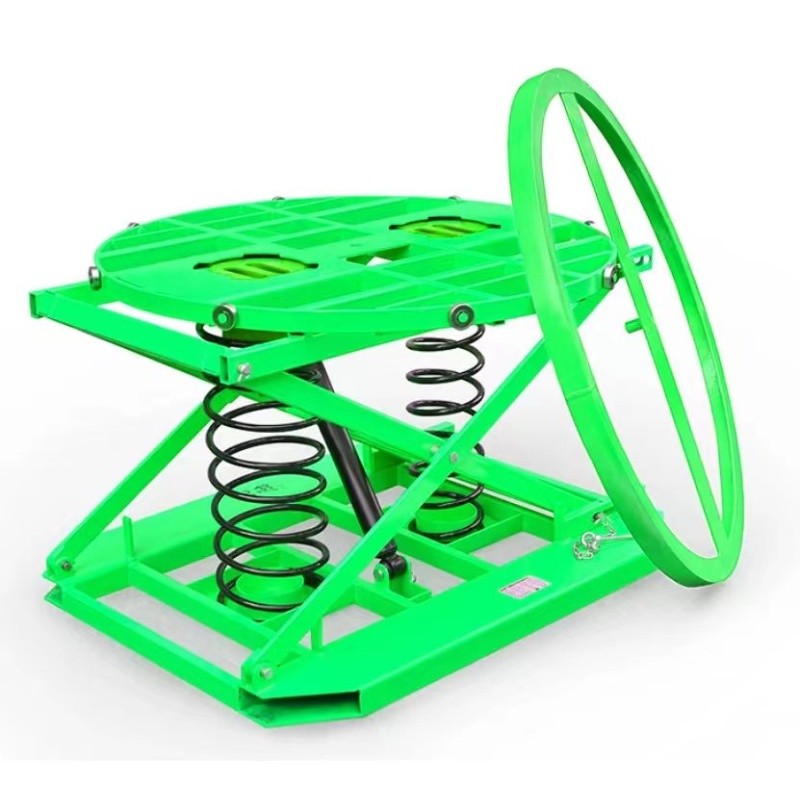

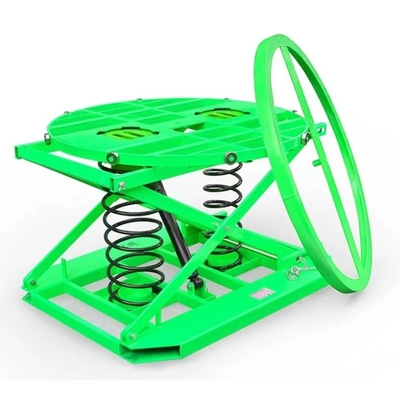

4.Rotating balls

The ball-type rotating platform is used for smooth rotation and easy operation in any direction of the platform.

Our Company

Factory Equipments

Our Certificates

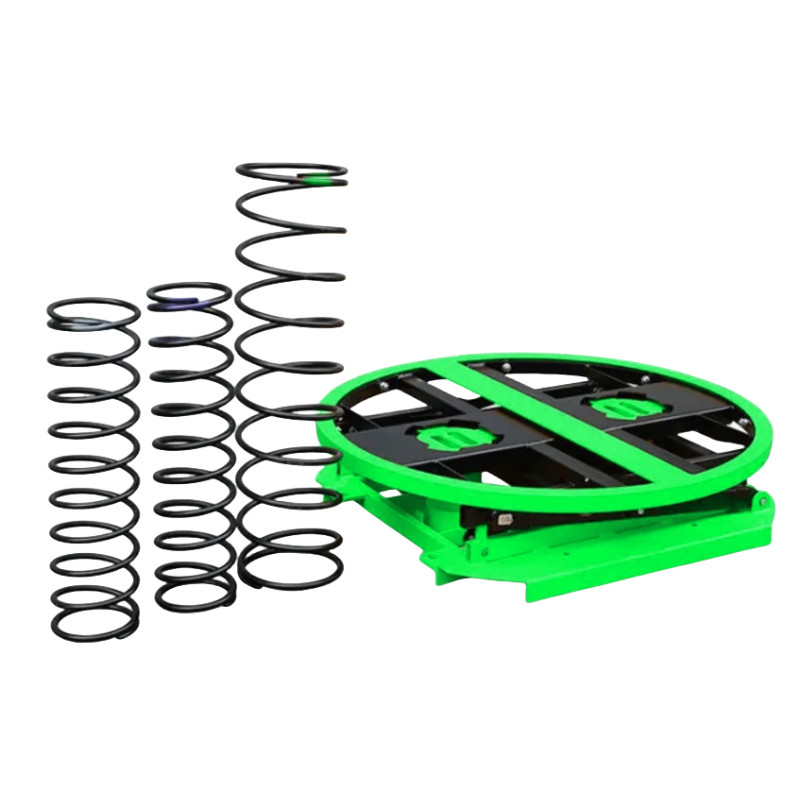

Load Size Switch at Will

Detachable springs can be combined and used for stacking operations with different load capacities. The spring automatically moves up and down according to the weight of the cargo, and the table is rotated 360 degrees manually.

Our Clients

Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
