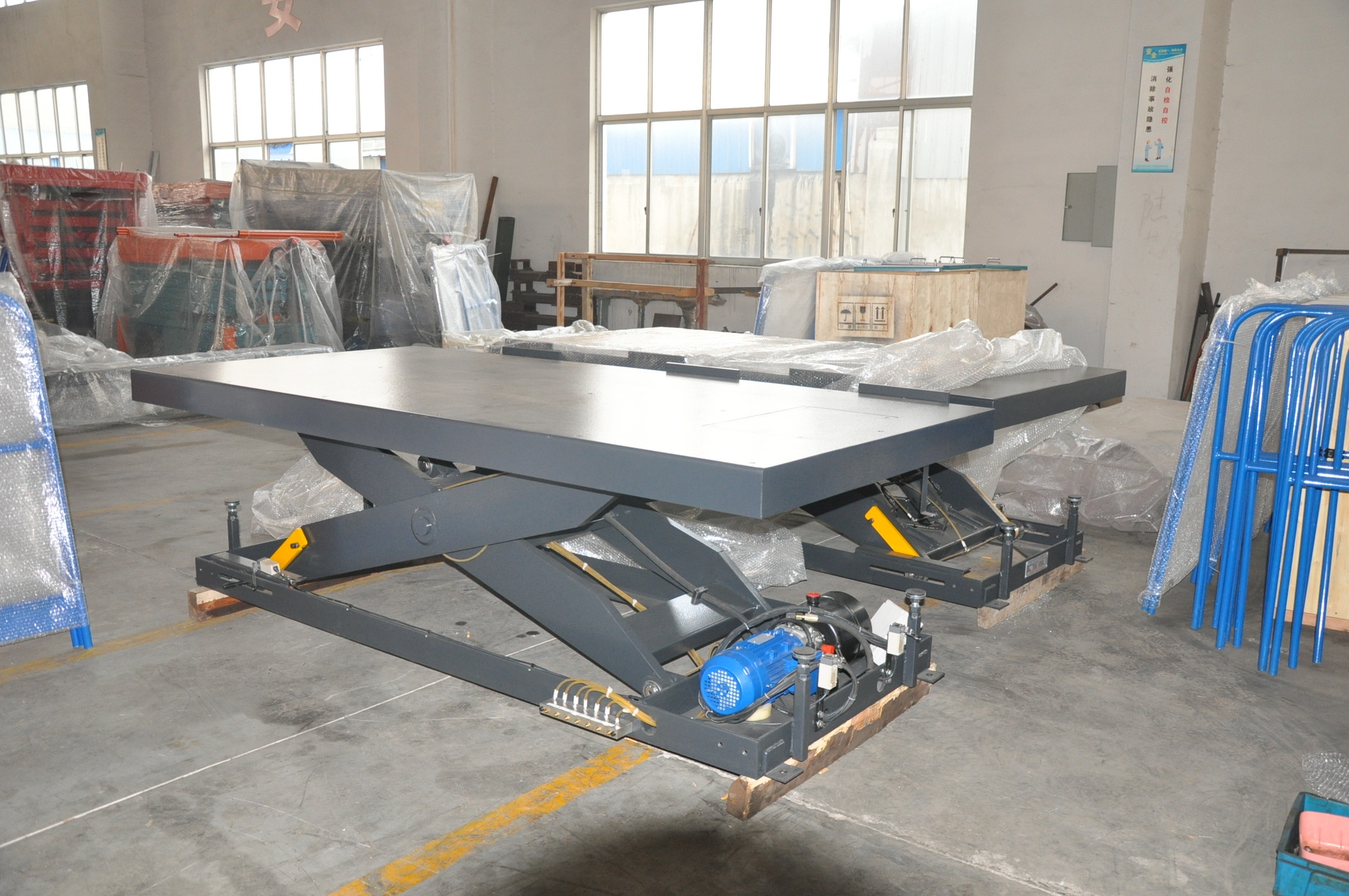

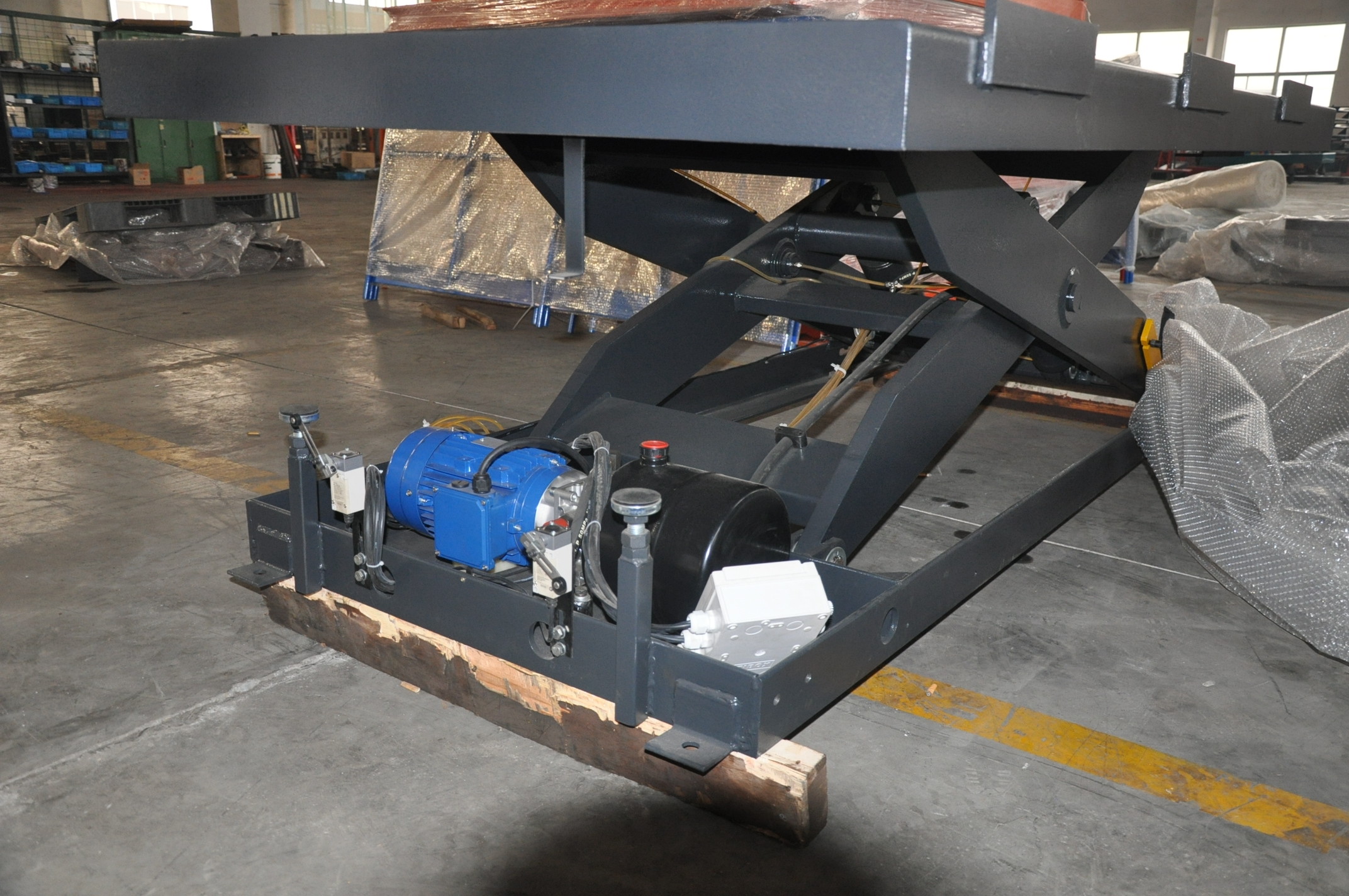

4T Cargo Lift Table for Aerial Assembly Work Station With 1.85m Height

4T Cargo Lift Table for Aerial Assembly Work Station With 1.85m Height

  • 4T Cargo Lift Table for Aerial Assembly Work Station With 1.85m Height
  • 4T Cargo Lift Table for Aerial Assembly Work Station With 1.85m Height
  • 4T Cargo Lift Table for Aerial Assembly Work Station With 1.85m Height
4T Cargo Lift Table for Aerial Assembly Work Station With 1.85m Height
Product Details:
Place of Origin: China
Brand Name: Xunte
Certification: CE
Model Number: SJG 4-1.85
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 4000Kg Lifting Height: 1.85m
Platform Size: 5000*2000mm Minimum Height: 500mm
Motor Power: 5.5Kw Voltage: 380V/50Hz
Color: Optional
High Light:

hydraulic cargo lift

,

cargo lifting equipment



4T Cargo Lift Table for Aerial Assembly Work Station With 1.85m Height





Quick Detail:



Name Customary Lift Platform for Work Station Brand Name Xunte
Loading Capacity 4000Kg Lifting Height 1.85m
Platform Size 5000*2000mm Color Optional
Lifting Power 5.5 Kw Power Supply

AC





Description of Lift Platform for Work Station:

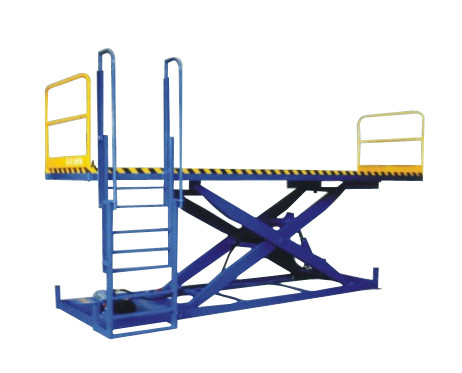

Customary Lift Platform for work station is used for aerial assembly work station, with retractable ladders in convenience of the operators going up and down.



Main Features:



1. Easily installation and maintenance

2. Excellent mechanical structure, which works in lower initial lifting height with maximum lifting stroke.

3. The antiskid design endows the platforms with excellent antiskid property

4. Fine grinding cylinder in good sealing performance

5. Gas Shield Welding (in stronger hardness and everlasting)

6. Built-in pressure release valve

7. Auxiliary platform lowering when electricity off

8. Oil less bearing mounted in the joint parts, pin roll with grease fitting.

9. Overall hook by CNC torch flame cut





Major Parameters:



Model SJG 4-1.85
Lifting Height 1.85 m
Loading Capacity 4000KG
Platform Size 5000*2000mm
Minimum Height 500mm
Motor Power 5.5Kw
Voltage 380V/50Hz





Configurations:

  • Electric system:Schneider contactor, SANLICO button, CHNT electrical

  • Hydraulic System:Hycman brand power pack , sealing

  • Scissor Arm Support:Hi-strength Manganese steel rectangle tube Q345 B

  • Platform Surface:Antiskid checkered plate

  • High-pressure Oil Pip:Double wire hydraulic intensifier rubber hose



Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V; manual pump

  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher

  • Extension Platform

  • Flame Proof Control Cabinet



Applications:

  1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

  2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



Why to choose Xunte Hydraulic Lift Platform?

  • High Quality

  • Reasonable Price

  • Good after Service

  • 1 Year Warranty

  • More Than 10 Years Experience



Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
