Detail Information

Loading Capacity:	3000kg	Travel Height:	1.6m
Platform Size:	2500*2000mm	Minimum Height:	400mm
Lifting Power:	4kw	Application:	Hydraulic Scissor Lift For Cargo Delivery
Highlight:	scissor lift table , stationary scissor lift platforms

Product Description

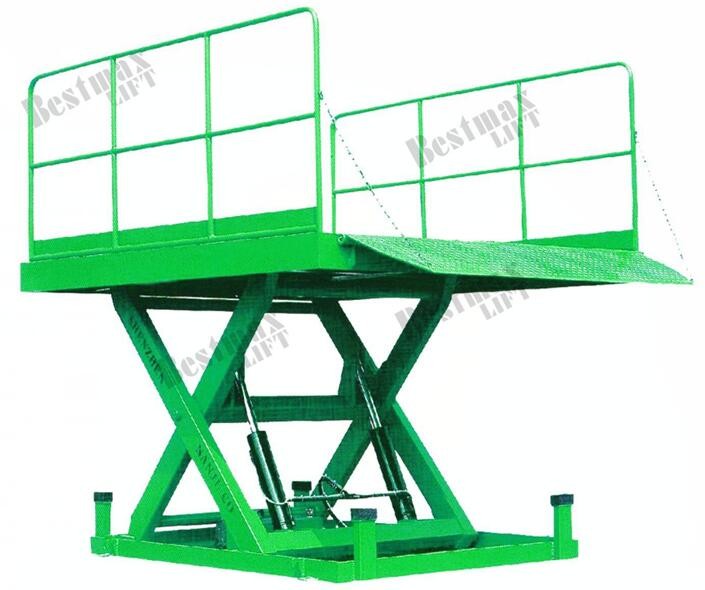

3000Kg Loading Capacity Hydraulic Stationary Scissor Lift 1.6M

Description of Stationary Scissor Lift

Stationary Scissor Lifts are widely used for carrying the goods in stability. It is mainly used in production lines transferring goods between different heights loading and uploading, lifting for parts, assembling, the platforms, the driving types, the control panels and all the accessories are available for different working conditions and requirements.

Main Character of Stationary Scissor Lift
1. Easily installation and maintenance
2. The number of forks for the lift are different from one, two three or more, it depends on the size of the platform and the lifting height.
3. Excellent mechanical structure, it works in lower initial lifting height with maximum lifting stroke.
4. The antiskid design endows the platforms with excellent antiskid property
5.Fine grinding cylinder in good sealing performance
6.Equipped with safeguard valve to avoid hydraulic pipe rupture

Application of Stationary Scissor Lift

For different application purpose, the stationary scissor lift can be customized upon request, hereby below showing some customization cases
Fences can be added on the platform as required
The material is also by the manganese steel but stainless steel can also be used in meat processing factory for example
The table can be made to be round shape or make it to be tilting type, or with nipple on it or with roller on it.
The organ cover can also be made for the protection purpose

Major Parameters

Name	Stationary Scissor Lift	Brand Name	Bestmax
Loading Capacity	3000Kg	Lifting Height	1.60 m
Platform Size	2500*2000mm	Color	Optional
Lifting Power	4 Kw	Power Supply	AC

Configurations:

Electric system:Schneider contactor, SANLICO button, CHNT electrical
Hydraulic System:Hycman brand power pack , sealing
Scissor Arm Support:Hi-strength Manganese steel rectangle tube Q345 B
Platform Surface:Antiskid checkered plate
High-pressure Oil Pip:Double wire hydraulic intensifier rubber hose

Optional Configuration:

Power Supply: 3phases/380V/50HZ; DC 24V; manual pump
Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
Extension Platform
Flame Proof Control Cabinet

3000Kg Loading Capacity Hydraulic Stationary Scissor Lift 1.6M 0

The Hydraulic power pack can be built in or out

Applications:

Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
Aerial Working Purpose: machine maintenance, painting, cleaning etc.

Why to choose Bestmax Hydraulic Lift Platform?

High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 20 Years Experience

Tag:

Place of Origin:	China
Brand Name:	Bestmax
Certification:	CE; ISO; IPAF
Model Number:	SJG 3-1.6

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Wrapped in pallet
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	1000 units/month
