Name: 3000Kg Loading Hydraulic Stationary Scissor Lift Table For Cargo Transfer
Brand: CHENLIFT (SUZHOU) MACHINERY CO LTD
SKU: SJG 3-5
Price: Negotiable USD
Availability: InStock

Home Products Stationary Scissor Lift

3000Kg Loading Hydraulic Stationary Scissor Lift Table For Cargo Transfer

Product Details:

Place of Origin:	China
Brand Name:	CHEN LIFT
Certification:	CE
Model Number:	SJG 3-5

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wrapped in pallet
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Loading Capacity:	3000Kg	Lifting Height:	5m
Platform Size:	2.9*1.7m	Power Voltage:	AC380V
Lift Drive / Actuation:	Hydraulic	Lift Mechanism:	Scissor Lift
Application:	Hydraulic Scissor Lift For Cargo Delivery	Type:	Fixed
Highlight:	stationary scissor lift platforms , hydraulic scissor lift

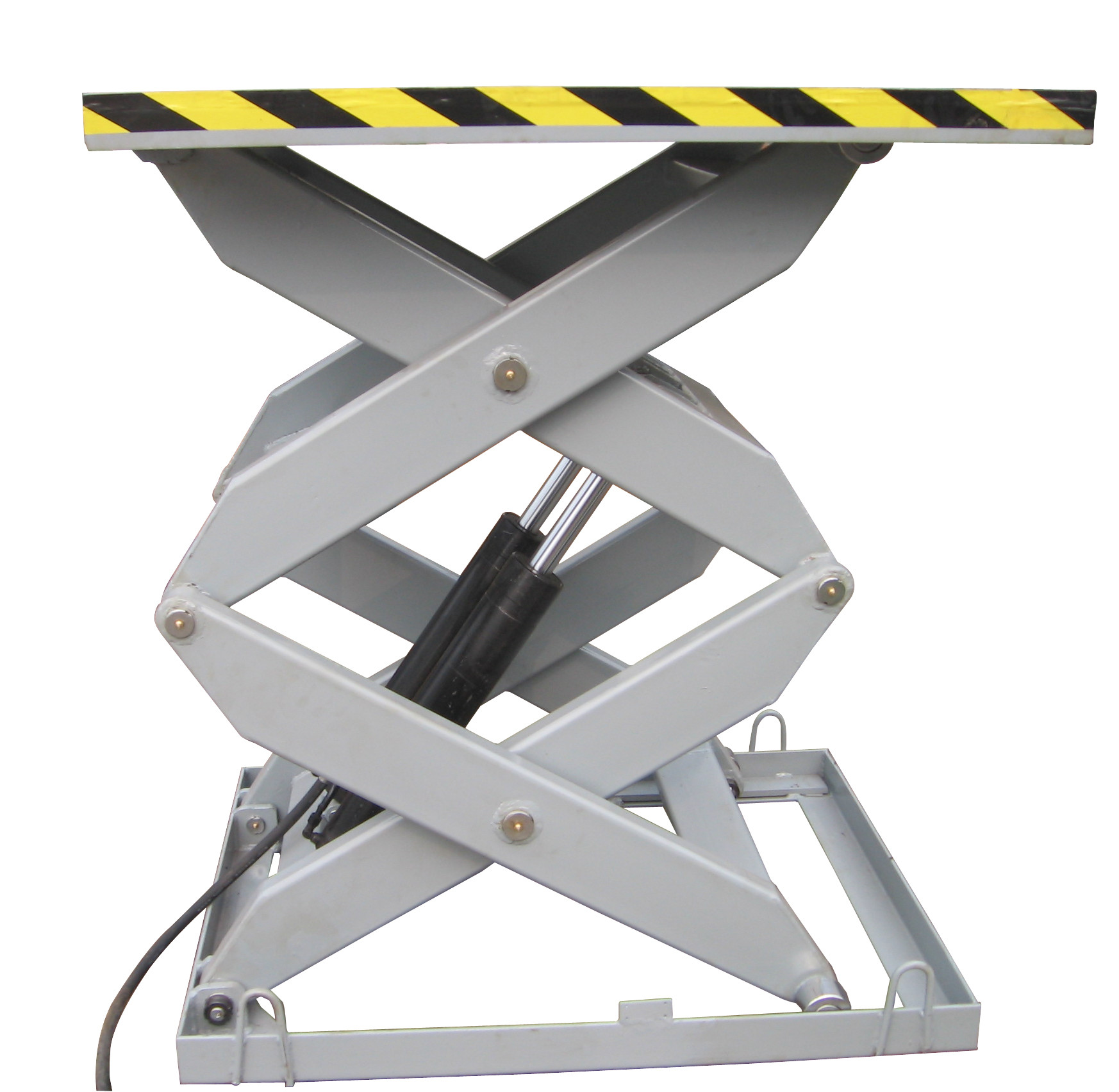

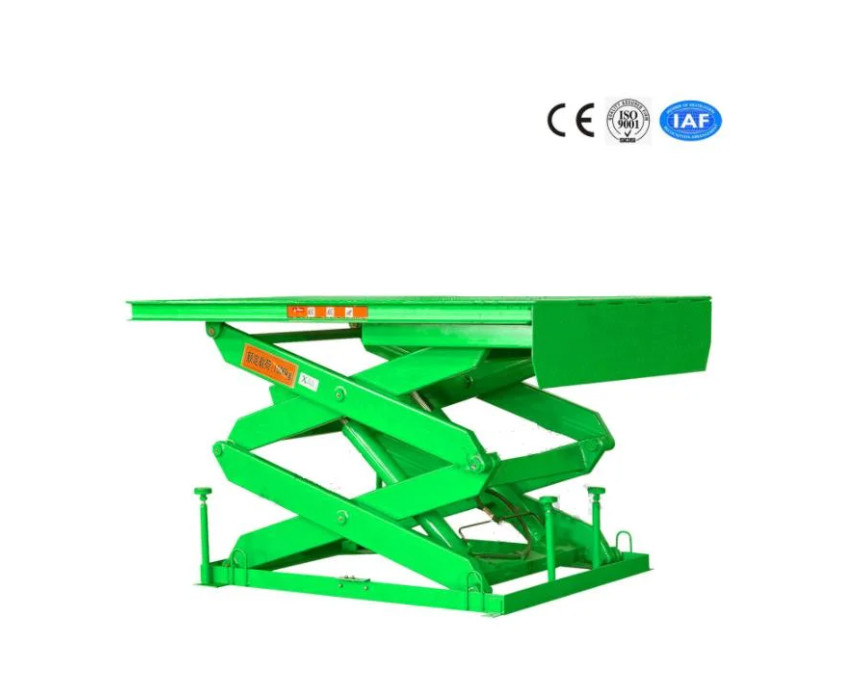

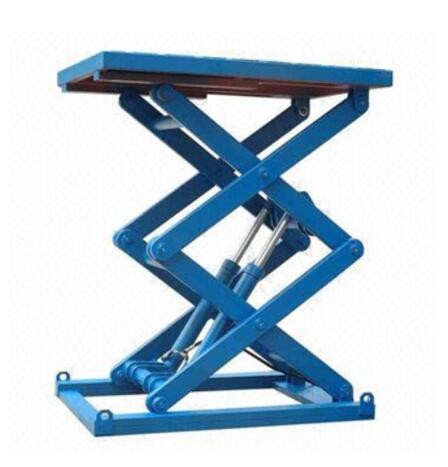

3000Kg Loading Hydraulic Stationary Scissor Lift Table For Cargo Transfer

Description

Stationary Scissor Lifts are widely used for carrying the goods in stability. It is mainly used in production lines transferring goods between different heights loading and uploading, lifting for parts, assembling, the platforms, the driving types, the control panels and all the accessories are available for different working conditions and requirements.

Major Parameter of Stationary Scissor Lift

To customize a stationary (fixed) scissor lift, below three major parameters have to be provided:

LOADING CAPACITY
PLATFORM SIZE
MAXIMUM HEIGHT (STOWED HEIGHT+ TRAVELLIGN HEIGHT)

Type	Model No.	Loading Capacity (T)	Stowed Height (mm)	Lift Height (mm)	Maximum Height (mm)	Platform Size (mm)	Lift Time (s)	Motor Power (Kw)	Weight (kg)
Single-Fork	SJG0.9-0.5	0.9	180	500	680	1220X700	15	0.75	400
	SJG2.65-1.2	2.65	230	1200	1430	1680X1000	39	3	650
	SJG3-1.2	3	240	1200	1440	1800X1800	40	3	1100
Double-Forks	SJG0.5-2.8	0.5	460	2800	3260	2200X1000	25	1.5	600
	SJG2.5-2	2.5	620	2000	2620	2200X1200	40	3	1300
	SJG5-1.5	5	460	1500	1960	1700X1000	50	4	1450
Multi-Forks	SJG1-4.1	1	913	4100	5013	2200X1000	39	3	1160
	SJG2-3.5	2	722	3500	4222	2100X1500	48	5.5	2100
	SJG3-7.2	3	1050	7200	8250	3400x1500	117	7.5	5500

Main Character of Stationary Scissor Lift
1. Easily installation and maintenance
2. The number of forks for the lift are different from one, two three or more, it depends on the size of the platform and the lifting height.
3. Excellent mechanical structure, it works in lower initial lifting height with maximum lifting stroke.
4. The antiskid design endows the platforms with excellent antiskid property
5.Fine grinding cylinder in good sealing performance
6.Equipped with safeguard valve to avoid hydraulic pipe rupture

Application of Stationary Scissor Lift

For different application purpose, the stationary scissor lift can be customized upon request, hereby below showing some customization cases
Fences can be added on the platform as required
The material is also by the manganese steel but stainless steel can also be used in meat processing factory for example
The table can be made to be round shape or make it to be tilting type, or with nipple on it or with roller on it.
The organ cover can also be made for the protection purpose

3000Kg Loading Hydraulic Stationary Scissor Lift Table For Cargo Transfer 0

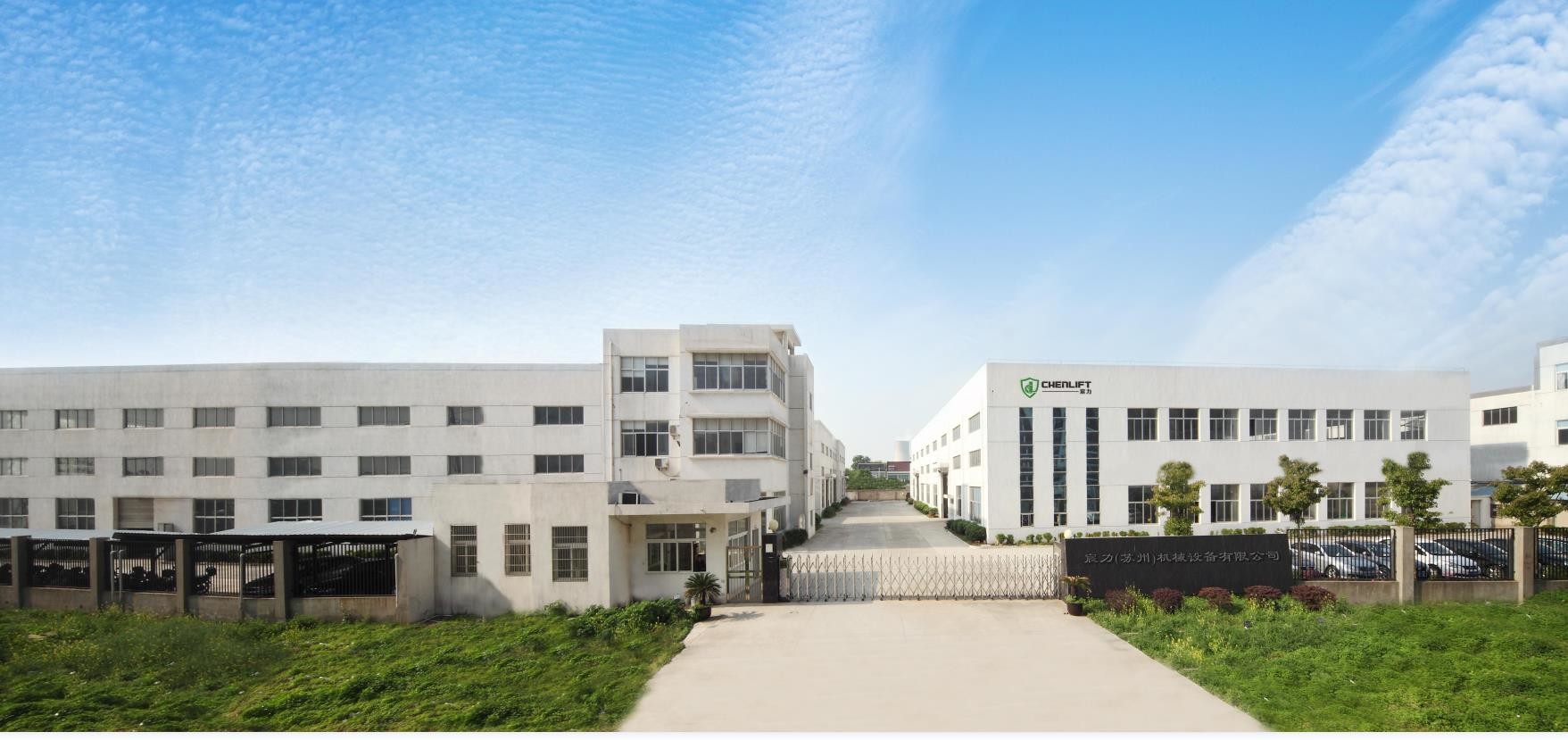

Company Introduction

As a subsidary company of Chenlift (Suzhou) Machinery Co Ltd. Is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.

We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and Africa

Why choose CHEN LIFT Hydraulic Lift Platform?

High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 20 Years Experience
