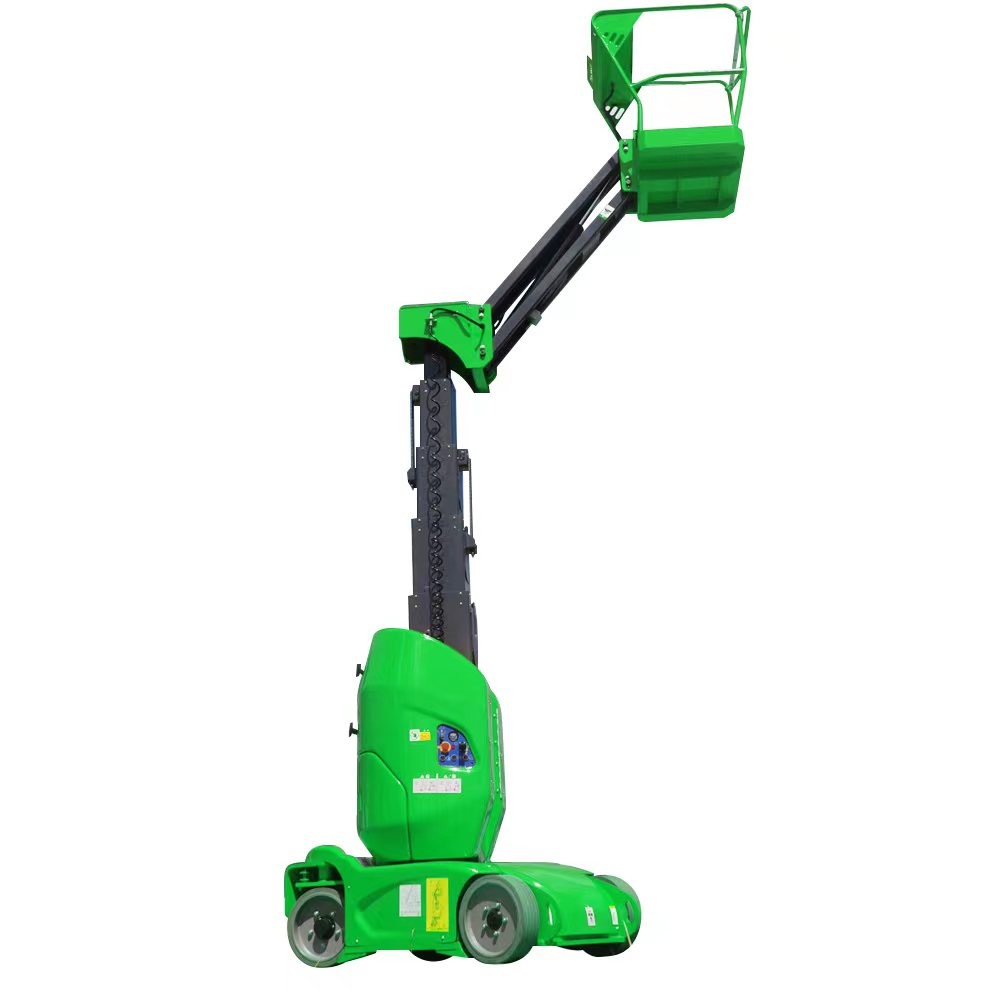

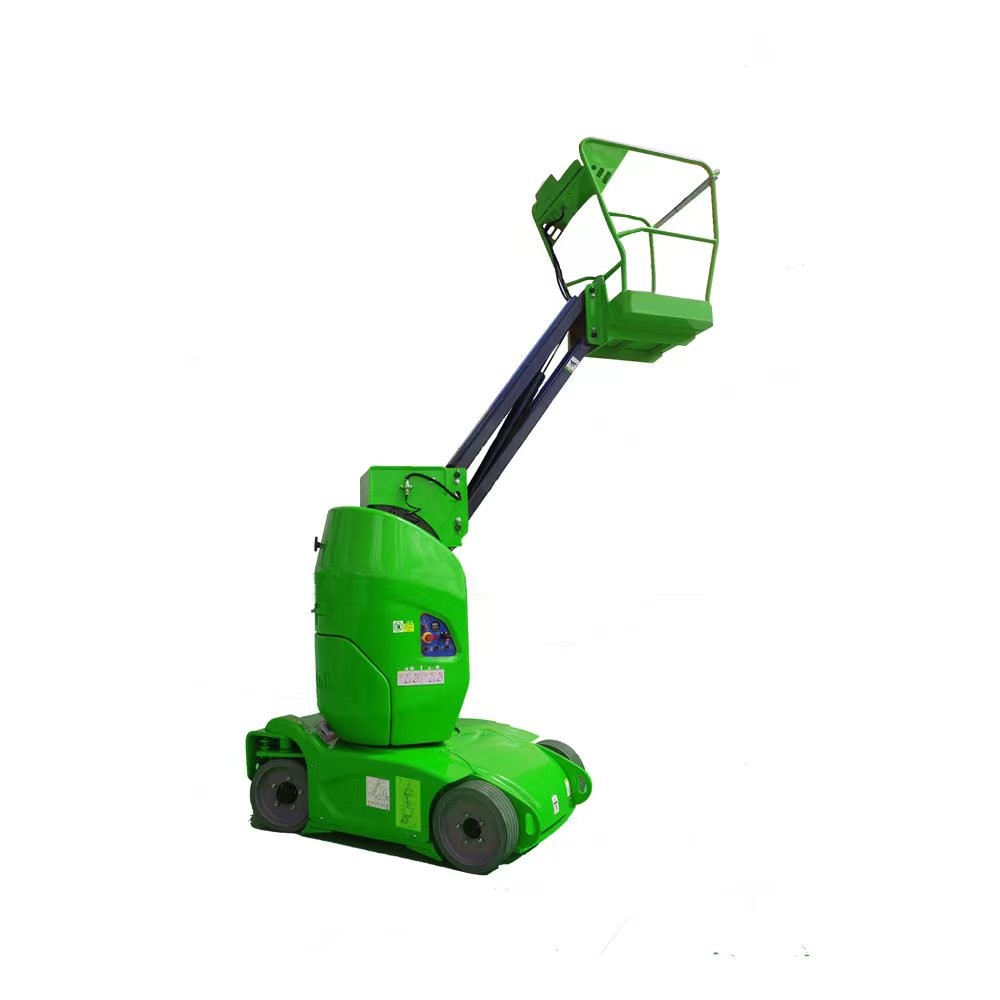

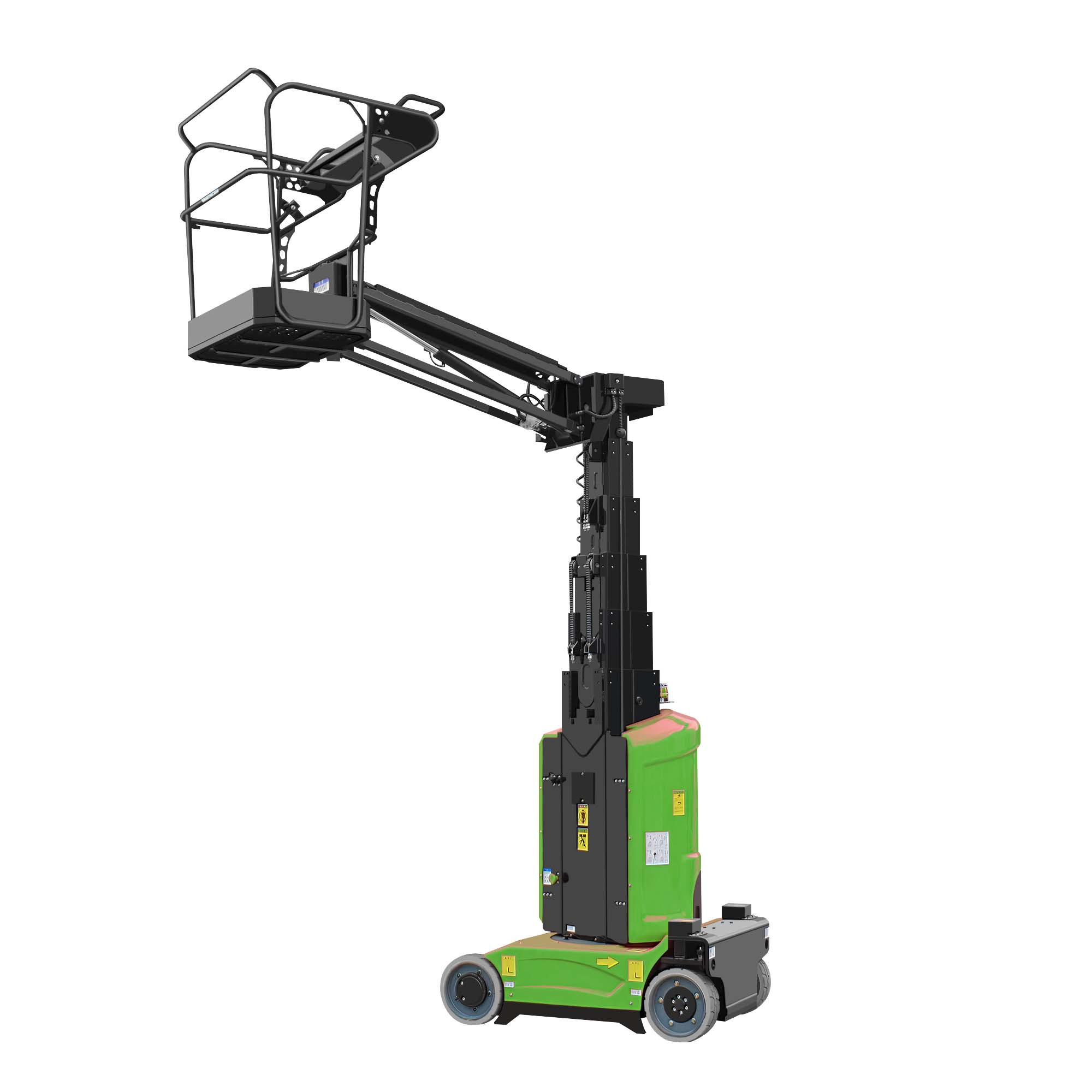

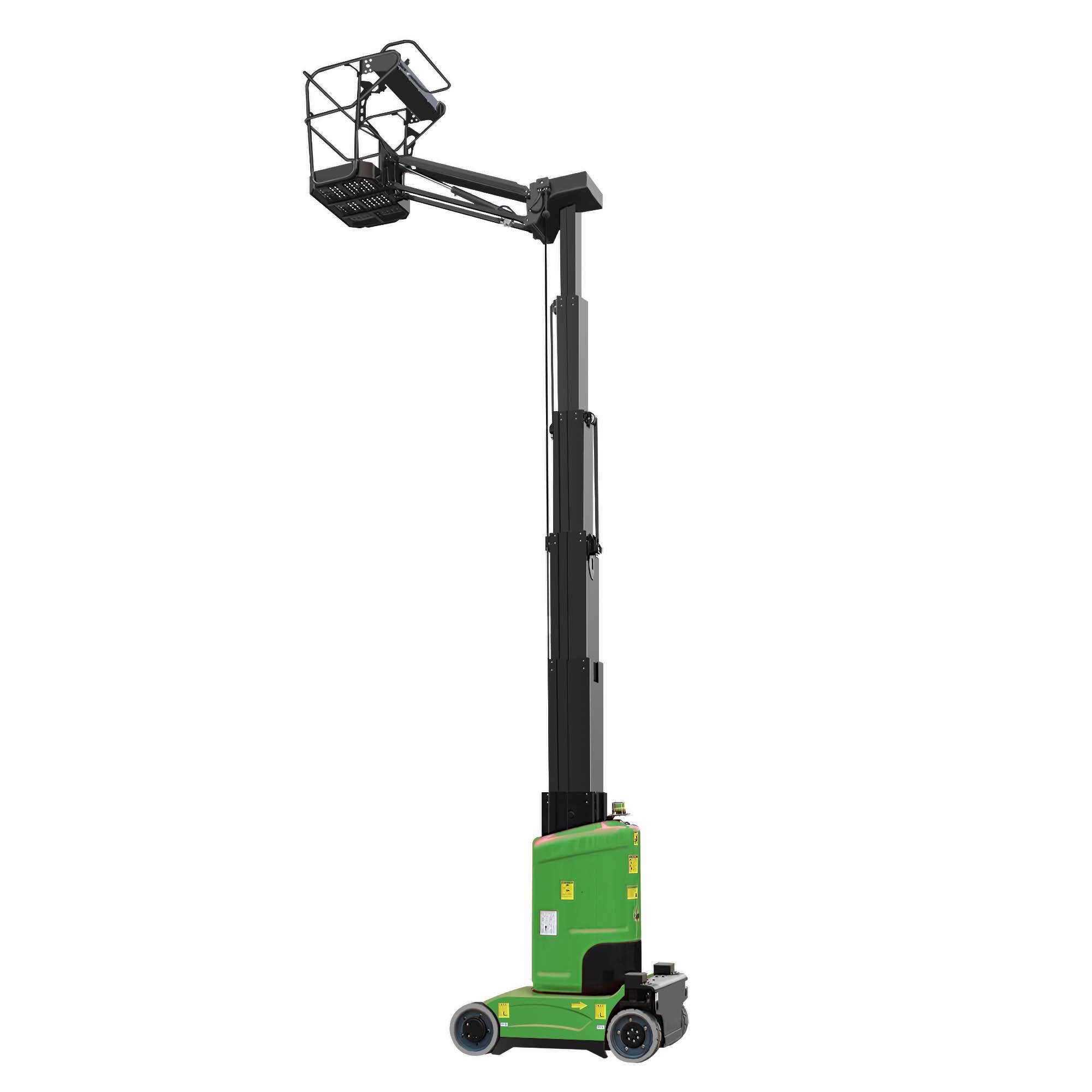

Self-propelled Mast Lift Platform – Precision, Power, and Performance
Engineered for efficiency and safety, the Self-propelled Mast Lift Platform delivers superior vertical access with unmatched maneuverability. Designed for both indoor and outdoor applications, this robust yet compact lift combines advanced self-propelled technology with industry-leading stability—ideal for construction, facility maintenance, warehousing, and industrial operations.
Why Choose Our Mast Lift Platform?
✅ Self-propelled Agility – Effortless navigation via intuitive proportional controls (joystick or dual-button panel), allowing smooth operation even in confined spaces.
✅ Heavy-Duty Mast System – Engineered for optimal rigidity and minimal sway
✅ 360° Rotating Platform – Full rotation capability ensures precise positioning, enhancing productivity for electrical work, HVAC servicing, and overhead installations.
✅ Non-Marking & Pneumatic Tires – Protects sensitive flooring while providing excellent traction on uneven surfaces. Optional all-terrain tires available for outdoor use.
✅ Enhanced Safety Features – Includes automatic braking, tilt sensors, emergency descent, and overload protection to meet CE standards.
✅ Low Maintenance & Eco-Friendly – Efficient electric power reduce noise and emissions, making it perfect for indoor environments.
Applications:
✔ Warehouse racking & inventory management
✔ Lighting & signage installation
✔ Building maintenance & repair
✔ Manufacturing & assembly lines
✔ Retail store setups & event staging
Maximize Uptime, Minimize Footprint – Experience Next-Level Aerial Access!
Standard configurations:
| ▲AC Driving Motor |
▲Proportional Joystick Controls |
▲Self-Locking Gates |
▲Drivable At Full Height |
| ▲Non-Marking Tires |
▲4 x 2 Drive |
▲Automatic Braking System |
▲Emergency Descent System |
| ▲Tubing Explosion-Proof System |
▲Fault Diagnosis System |
▲Tilt Sensor Alarm |
▲Motion Alarm |
| ▲345° Turret Rotation |
▲Horn |
▲Hour Meter |
▲Charging Protection System |
| ▲Flashing Beacon |
▲Automatic Pothole Protection |
▲Drive Enable |
▲Charging Indicator |
| ▲Manual Brake Release |
▲Lanyard Attachment Point |
▲Tie-Down And Lifting Points |
▲Platform Load Sense System |
| ▲Emergency Stop Button |
▲Swing Out Components Cover |
▲Overload Sensor Alarm |
|
Specification:
|
Model
|
CLP90J
|
|
Max. Working Height
|
11.2m
|
|
Max. Platform Height
|
9.2m
|
|
Max. Horizontal Reach
|
3m
|
|
Up and Over Height
|
7.89m
|
| Guardrail Height
|
1.1m |
| Overall Length |
2.53m
|
| Overall Width |
1.0m |
| Overall Height(Stowed) |
1.99m |
| Platform Dimension |
0.62*0.87m |
| Ground Clearance(Stowed) |
70mm |
| Ground Clearance(Raised) |
19mm |
| Wheelbase |
1.22m |
| Loading Capacity |
200kg |
| Occupants |
2 |
| Turning Radius(Inside/Outside) |
0.23/1.65m |
| Turret Rotation |
345° |
| Jib Movement |
130° |
| Travel Speed(Stowed) |
4.5km/h |
| Travel Speed(Raised) |
0.5km/h |
| Up/Down Speed |
42/38s |
| Max. Working Slope |
X-2.5° , Y-2.5° |
| Tyres |
Φ381*127mm |
| Driving Motor |
24V/0.9kw |
| Lifting Motor |
24V/3kw |
| Battery |
24V/240Ah |
| Charger |
24V/30A |
| Weight |
2950kg |

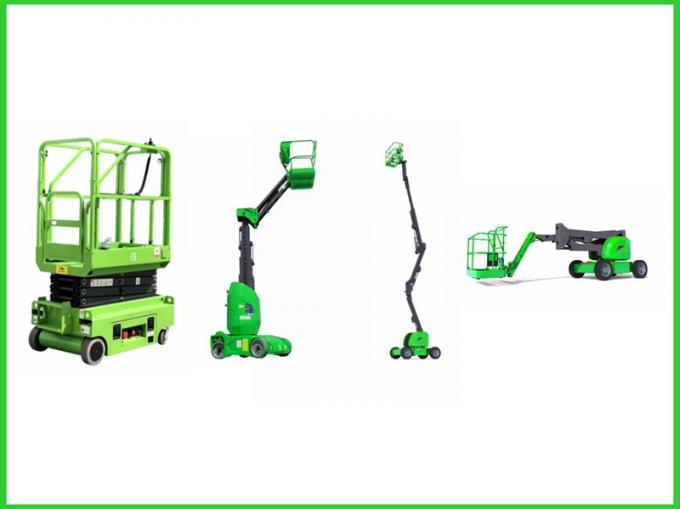

Other Related Products
