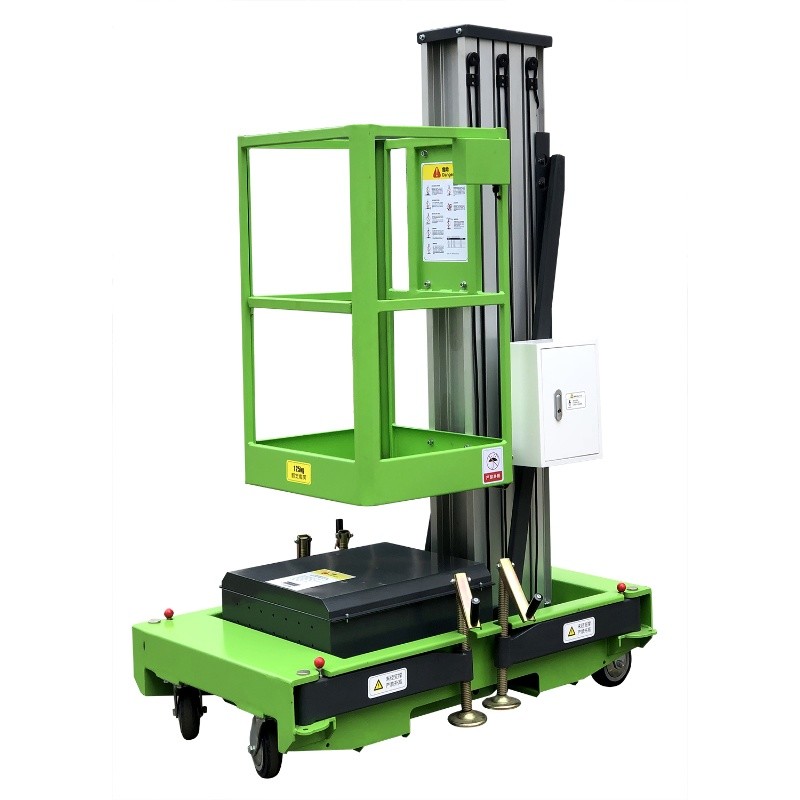

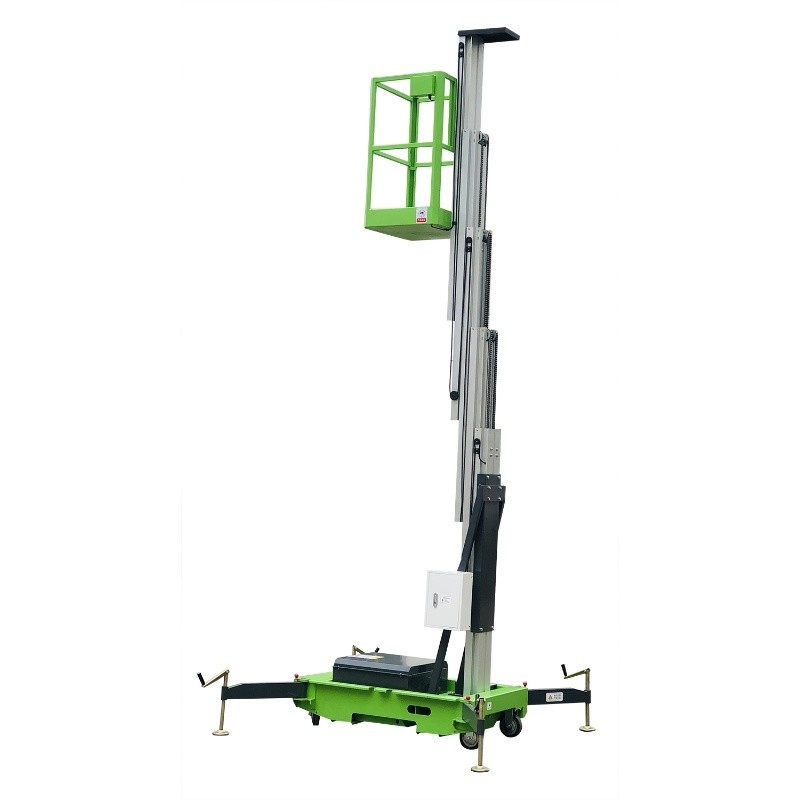

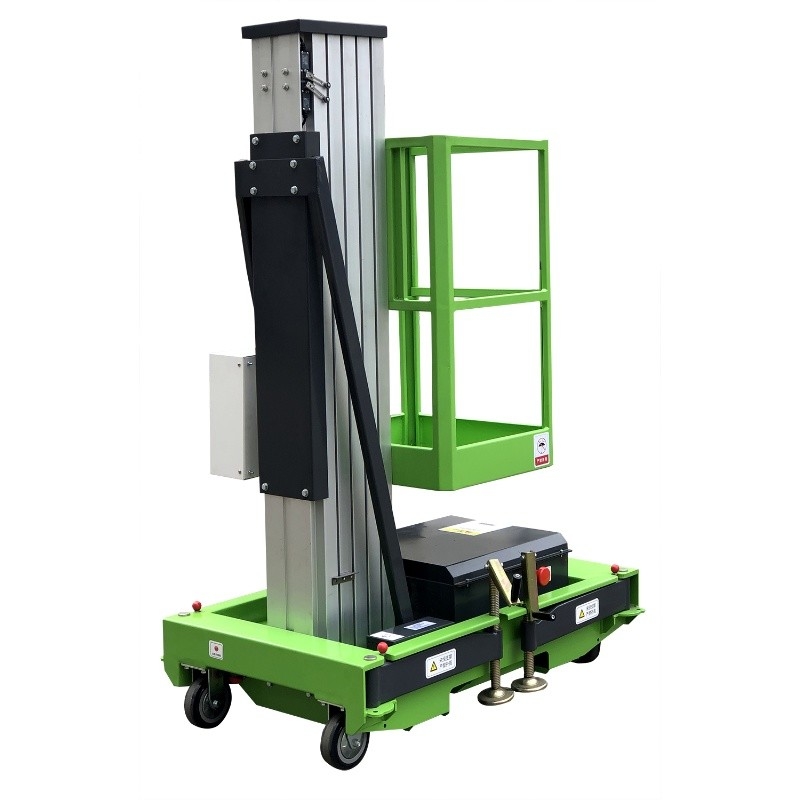

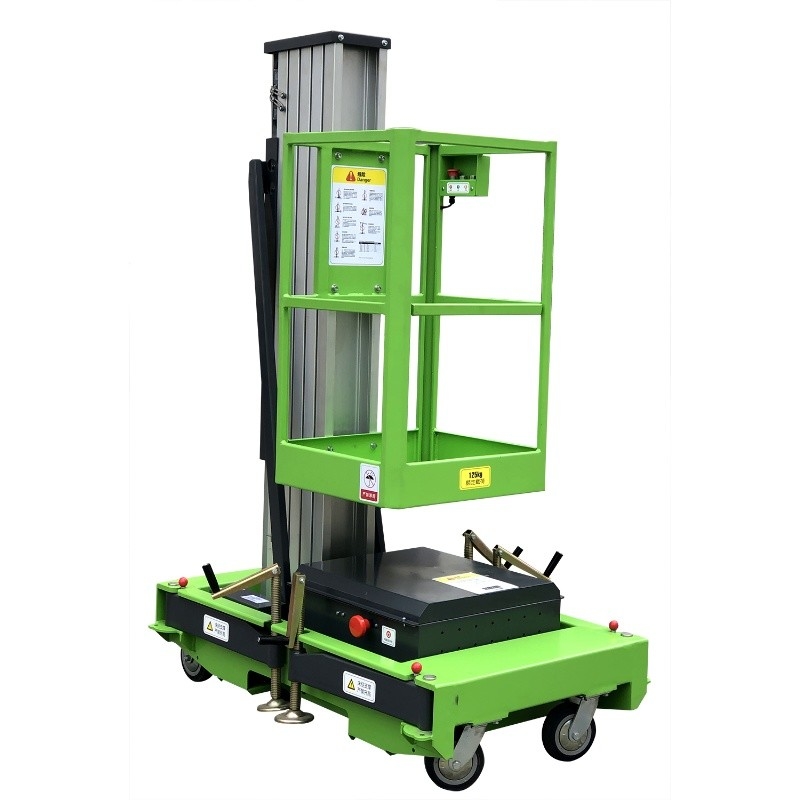

Mobile Single Mast Electric Vertical Lift 10m Platform Height 130kg Load Capacity

Mobile Single Mast Electric Vertical Lift 10m Platform Height 130kg Load Capacity

  • Mobile Single Mast Electric Vertical Lift 10m Platform Height 130kg Load Capacity
  • Mobile Single Mast Electric Vertical Lift 10m Platform Height 130kg Load Capacity
  • Mobile Single Mast Electric Vertical Lift 10m Platform Height 130kg Load Capacity
Mobile Single Mast Electric Vertical Lift 10m Platform Height 130kg Load Capacity
Product Details:
Place of Origin: CN
Brand Name: Bestmax Lift
Certification: ISO; IPAF; CE
Model Number: ME1000-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 1800-2500
Packaging Details: Packed in Pallet, Wrapped with Film
Delivery Time: Within 15 days
Payment Terms: L/C, T/T
Supply Ability: 2000 units per month
Contact Now
Detailed Product Description
Material: Aluminum Max Platform Height: 10m
Max Working Height: 12m Platform Size: 0.60*0.55 M
Standard Power: AC Optional Power: DC; AC+DC
High Light:

electric vertical lift

,

vertical man lift

10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform with Single Mast



Quick Detail:



Name Mobile Aerial Work Platform Brand Name BestmaxLift
Loading Capacity 130Kg Platform Height 10m
Platform Size 0.60*0.55m Color Blue, Green or Optional
Motor Power 0.75Kw Power Supply AC/DC




Description
By the mast quantity: single mast, double mast, triple mast, quadruple mast and six masts (four plus two) are ranked in the product range of man pushing around aerial work platform
Features non-marking tires and anodized aluminum mast. Easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable. It is operated by the telescopic cylinder which is strong and reliable working and the control panels are available on the lift platforms and ground.

Power supply standard is AC version (110V or 220V) and DC chargeable battery version (12V or 24V) or AC &DC version are both optional. Extendable platform can be made also for double mast type.
DC battery version always comes with battery charger, batteries can be recharged using automatic, built-in charger, and battery discharge indicator warns of low charge conditions.

The lifting height ranges from 4m to 22m for different mast Aluminum Aerial Work Platform and the loading capacity varies from 130Kg to 300Kg.


Application
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.


Main Configurations of Man Pushing Around Aluminum Aerial Work Platform

Mobile Single Mast Electric Vertical Lift 10m Platform Height 130kg Load Capacity 0



Safety Features of Man pushing Around Aluminum Aerial Work Platform

  • Toe protection boards on the platform
  • Anti-skid deck on the platform
  • Auxiliary Lowering
  • Dual limit switch for safety
  • Operation voltage at 24V
  • Safety belt holding
  • Anti-burst valve on the cylinder
  • Emergency stop button both on platform and ground
  • Short Circuit and leakage protection system for AC version
  • Fuse for DC version for electric shock protection

Major Parameter of Single Mast Aluminum Aerial Work Platform



Model NO. Working Height (m) Loading Capacity (Kg) Platform
Size (m)
Lifting
Power (Kw)
Weight
(Kg)
Dimension (m)
ME600-1 8 130 0.60x0.55 0.75 325 1.34x0.85x2.00
ME800-1 10 130 0.60x0.55 0.75 378 1.34x0.85x2.00
ME900-1 11 130 0.60x0.55 0.75 400 1.45x0.85x2.00
ME1000-1 12 130 0.60x0.55 0.75 430 1.45x0.85x2.00



Mobile Single Mast Electric Vertical Lift 10m Platform Height 130kg Load Capacity 1Mobile Single Mast Electric Vertical Lift 10m Platform Height 130kg Load Capacity 2





Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

Mobile Single Mast Electric Vertical Lift 10m Platform Height 130kg Load Capacity 3

Mobile Single Mast Electric Vertical Lift 10m Platform Height 130kg Load Capacity 4



Customer Visiting



Mobile Single Mast Electric Vertical Lift 10m Platform Height 130kg Load Capacity 5
