Detail Information

Name:	Self-propelled Lift Platform Mast Lift	Keyword:	Self-propelled Lift Platform，Mast Lift
Max. Working Height:	11.2m	Max. Platform Height:	9.2m
Max. Horizontal Reach:	3m	Up And Over Height:	7.89m
Guardrail Height:	1.1m	Platform Dimension:	0.62*0.87m
Ground Clearance(Stowed):	70mm	Ground Clearance(Raised):	19mm
Wheelbase:	1.22m	Loading Capacity:	200kg
Turret Rotation:	345°	Turning Radius(Inside/Outside):	0.23/1.65m
Battery:	24V/240Ah	Weight:	2950kg
Lifting Motor:	24V/3kw
Highlight:	drum lifter forklift attachment , oil drum lifting equipment

Product Description

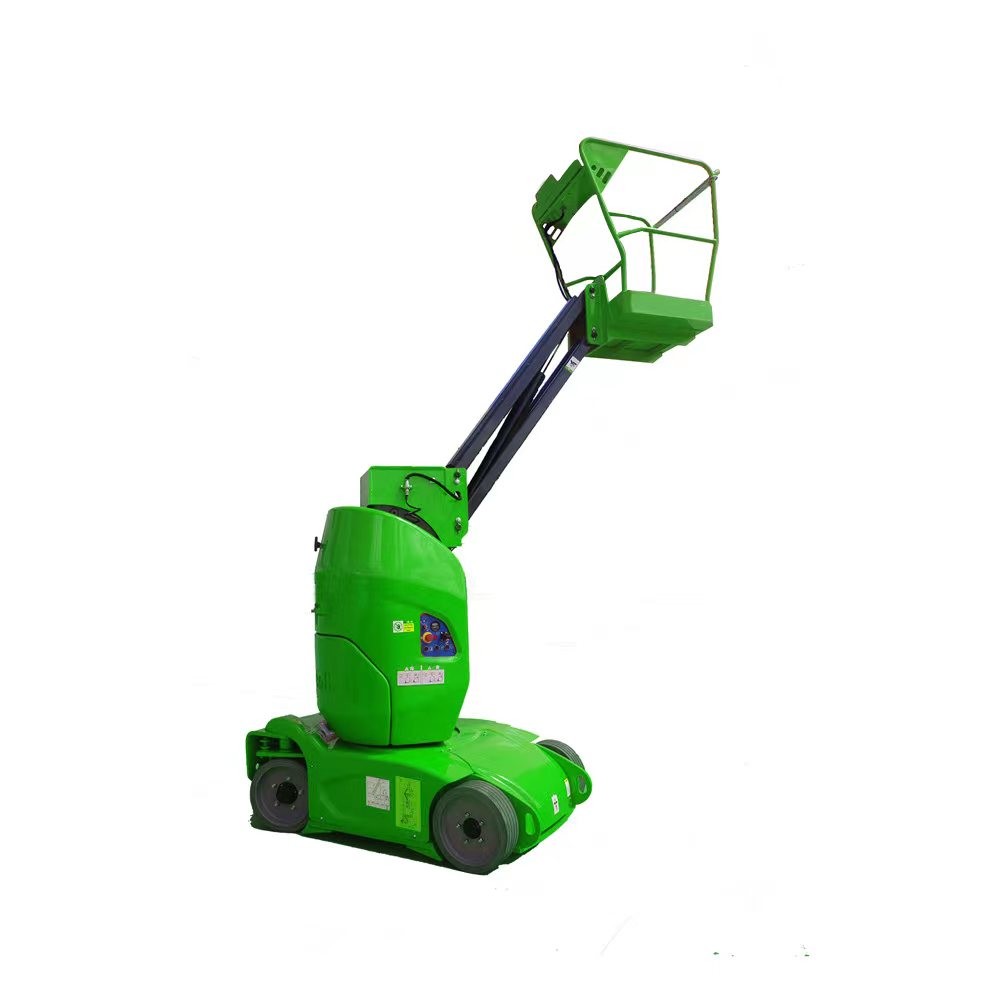

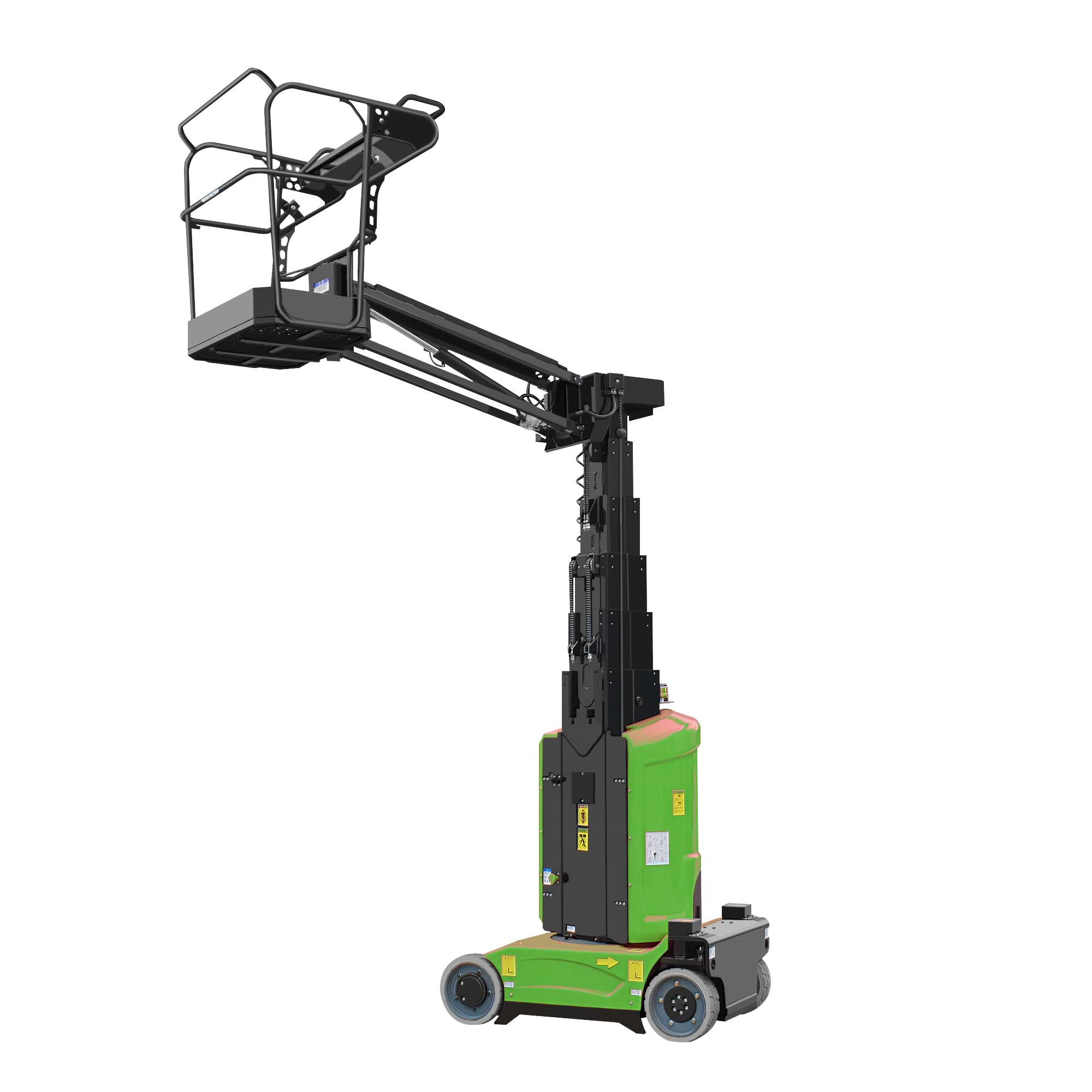

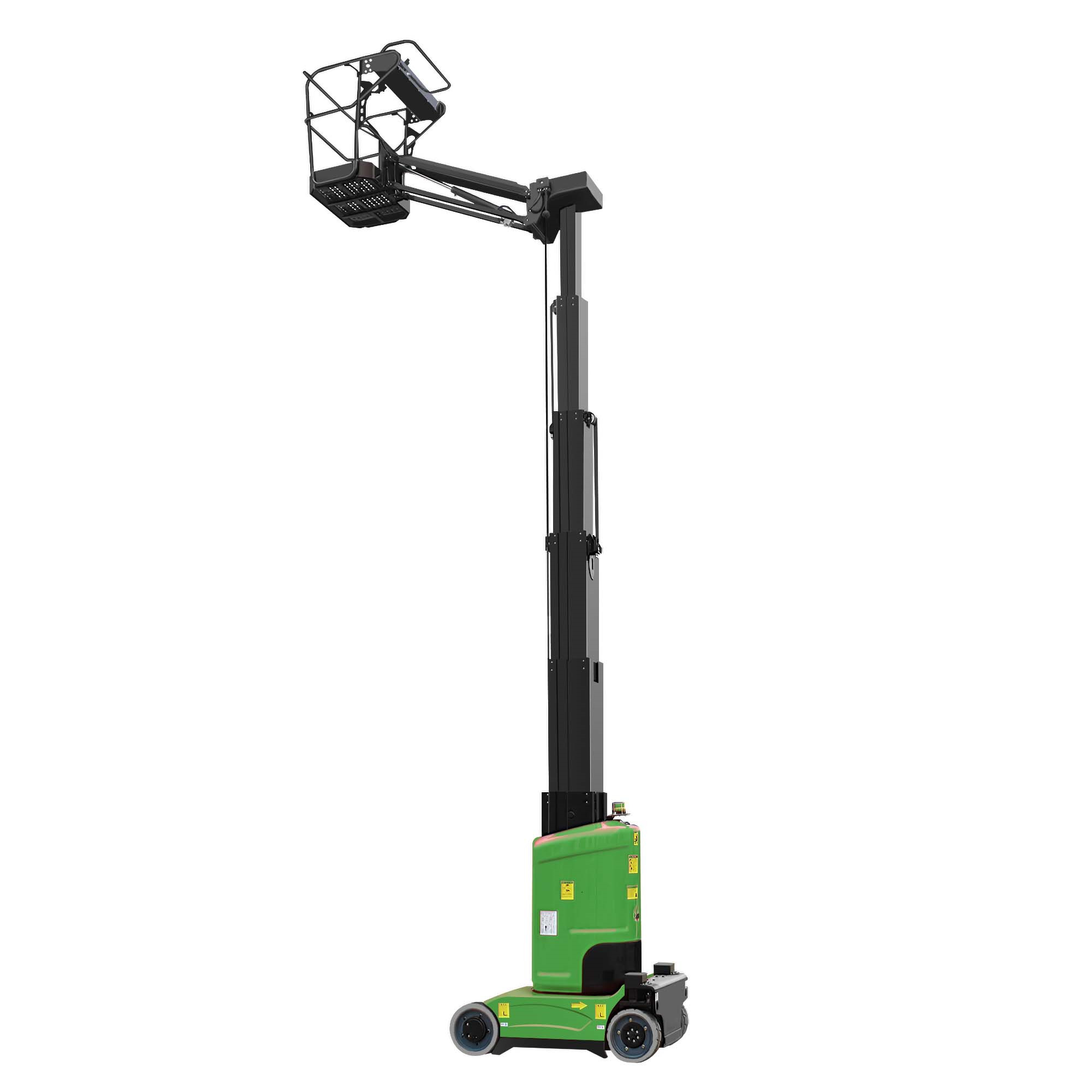

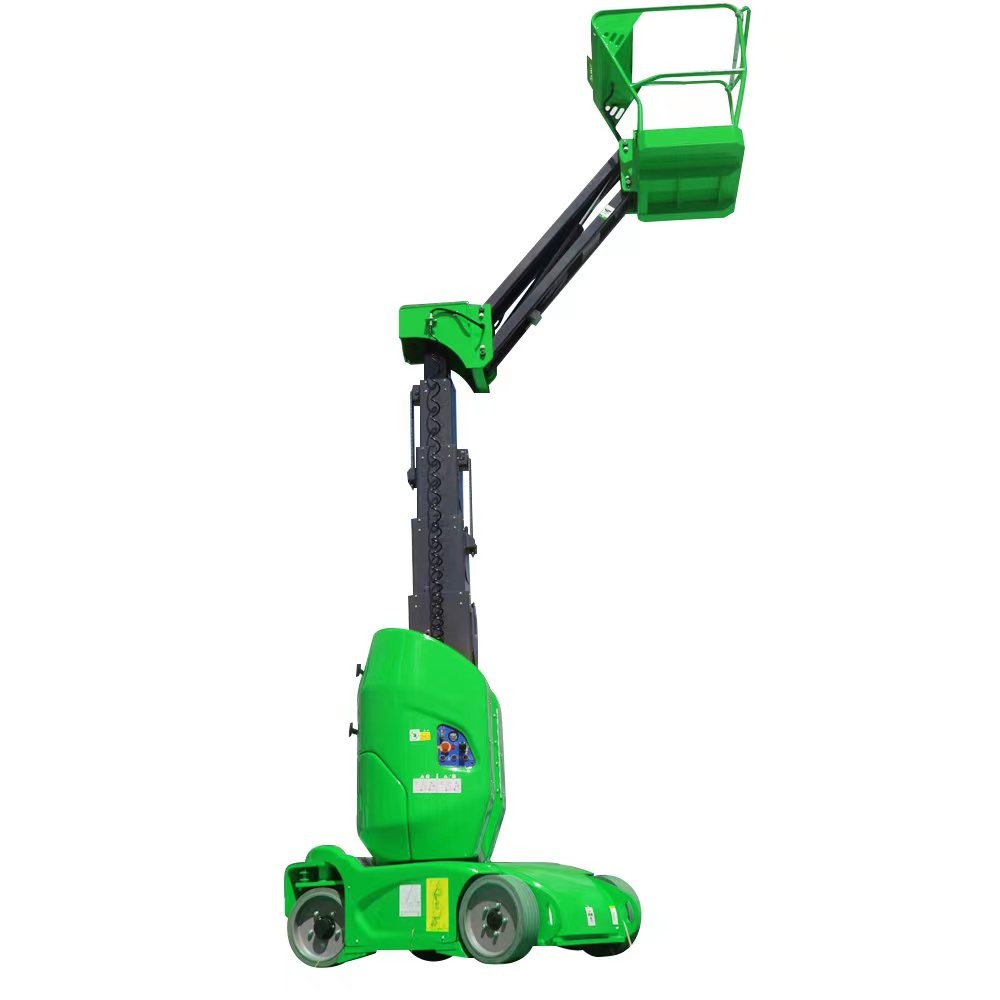

Self-Propelled Mast Lift Platform – Compact, Agile, and Efficient for Elevated Tasks

Designed for safe and efficient access to high work areas, the Self-Propelled Mast Lift Platform is ideal for maintenance, installation, and inspection in environments like warehouses, retail stores, and industrial sites.

Key Features:

Compact Design:With a narrow width, the platform can easily navigate through standard doorways and operate in confined spaces .
Self-Propelled Mobility:Operators can drive the lift while elevated, enhancing productivity by reducing the need to descend for repositioning .
Working Height:Models offer working heights ranging from approximately 4.5 meters to over 11 meters, accommodating various task requirements .
Platform Capacity:Supports loads up to 200 kg, suitable for one or two operators along with tools and materials .
Safety Features:Equipped with tilt sensors, descent alarms, emergency lowering systems, and non-marking tires to ensure operator safety and protect floor surfaces .
Energy Efficient:Powered by rechargeable batteries, the lift offers quiet, emission-free operation, ideal for indoor use .

Applications:

Facility maintenance and cleaning
Electrical and HVAC work
Stock picking and inventory
Signage and lighting installation
Painting and decorating

Standard configurations:

▲AC Driving Motor	▲Proportional Joystick Controls	▲Self-Locking Gates	▲Drivable At Full Height
▲Non-Marking Tires	▲4 x 2 Drive	▲Automatic Braking System	▲Emergency Descent System
▲Tubing Explosion-Proof System	▲Fault Diagnosis System	▲Tilt Sensor Alarm	▲Motion Alarm
▲345° Turret Rotation	▲Horn	▲Hour Meter	▲Charging Protection System
▲Flashing Beacon	▲Automatic Pothole Protection	▲Drive Enable	▲Charging Indicator
▲Manual Brake Release	▲Lanyard Attachment Point	▲Tie-Down And Lifting Points	▲Platform Load Sense System
▲Emergency Stop Button	▲Swing Out Components Cover	▲Overload Sensor Alarm

Specification:

Model	CLP90J
Max. Working Height	11.2m
Max. Platform Height	9.2m
Max. Horizontal Reach	3m
Up and Over Height	7.89m
Guardrail Height	1.1m
Overall Length	2.53m
Overall Width	1.0m
Overall Height(Stowed)	1.99m
Platform Dimension	0.62*0.87m
Ground Clearance(Stowed)	70mm
Ground Clearance(Raised)	19mm
Wheelbase	1.22m
Loading Capacity	200kg
Occupants	2
Turning Radius(Inside/Outside)	0.23/1.65m
Turret Rotation	345°
Jib Movement	130°
Travel Speed(Stowed)	4.5km/h
Travel Speed(Raised)	0.5km/h
Up/Down Speed	42/38s
Max. Working Slope	X-2.5° , Y-2.5°
Tyres	Φ381*127mm
Driving Motor	24V/0.9kw
Lifting Motor	24V/3kw
Battery	24V/240Ah
Charger	24V/30A
Weight	2950kg

Other Related Products

Why choose Our Mobile Vertical Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 20 Years Experience

Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.

A: How long is your quality guarantee period?
B: We have one year warranty.

Tag:

Place of Origin:	China
Brand Name:	CHENLIFT
Certification:	CE
Model Number:	CLP90J

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wrapped in pallets
Delivery Time:	30 days
Payment Terms:	T/T L/C
Supply Ability:	200 sets/month

Low Noise Self-propelled Lift Platform Mast Lift Platform CLP90J for Elevated Tasks
