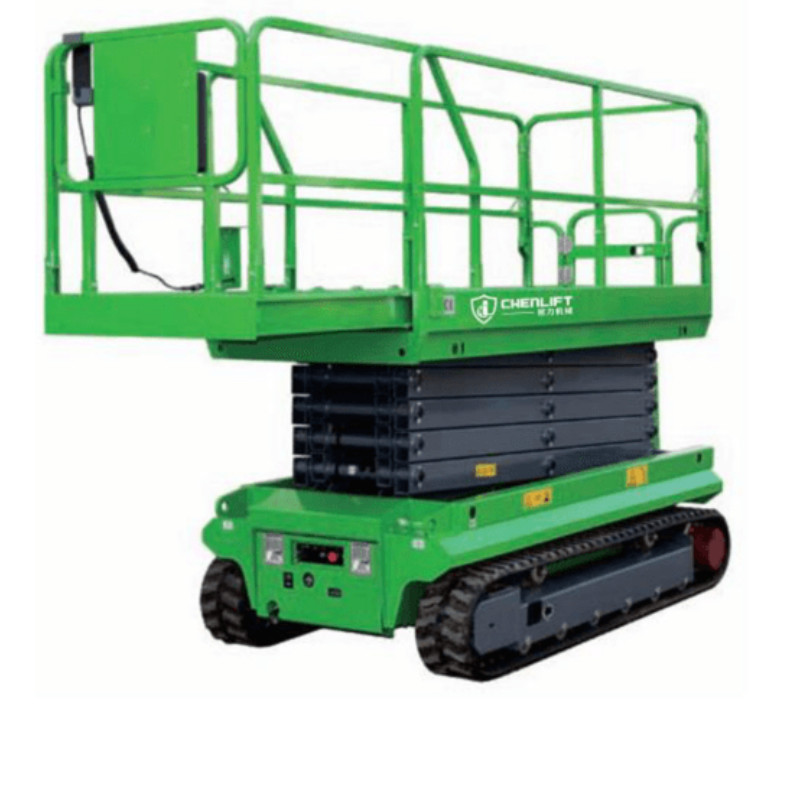

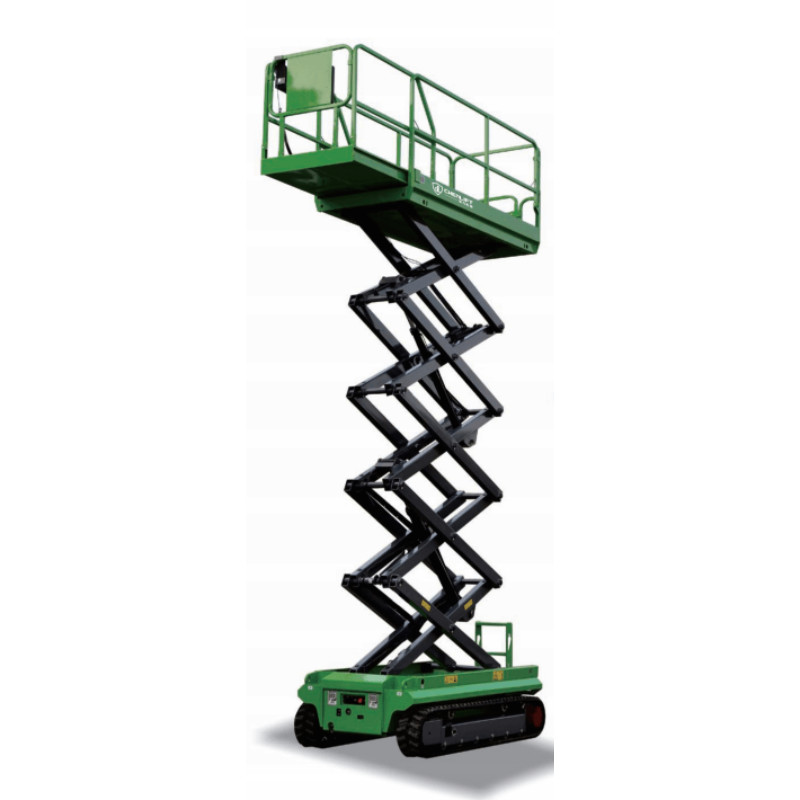

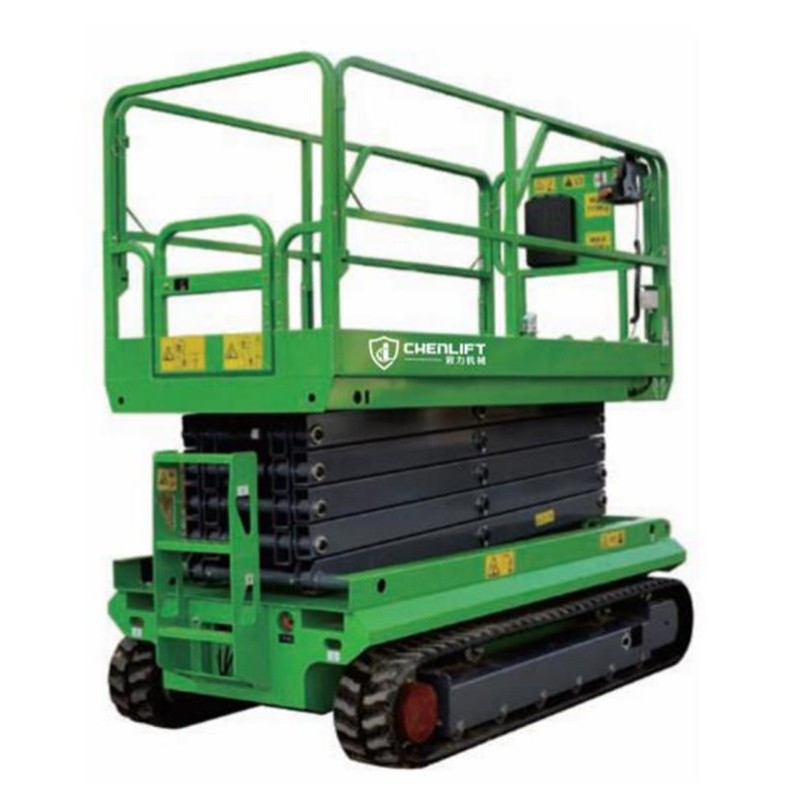

The Track Crawler Scissor Lift is a self-propelled, battery-powered aerial work platform designed for outdoor use on rough, muddy, or uneven terrain. With rubber tracks and strong off-road capability, it ensures smooth movement and stable lifting even in challenging environments. One operator can drive and control the lift directly from the platform, improving efficiency and safety.
All-terrain rubber crawler tracks – Excellent traction on mud, gravel, and slopes
Self-propelled control – Operate and drive the lift from the platform
Battery-powered – Quiet, zero-emission, and suitable for indoor/outdoor use
Compact design – Fits through standard doors and narrow spaces
No outriggers needed – Stable performance without additional support
Construction sites – Reach high areas for building and installation tasks
Warehouses – Navigate narrow aisles for inventory access
Equipment maintenance – Access hard-to-reach machinery
Building cleaning – Safe and efficient for facade cleaning and repairs
Choose our crawler scissor lift for reliable performance, flexible operation, and strong adaptability across various job sites.
Model | MC450 | MC600 | MC800 | MC1000 |
Load Capacity | 200kg | 450kg | 450kg | 320kg |
Extension Capacity | 100kg | 113kg | 113kg | 113kg |
Occupants | 1 | 2 | 2 | 2 |
Maximum Working Height | 6.5m | 8m | 10m | 12m |
Maximum Platform Height | 4.5m | 6m | 8m | 9.75m |
Overall Length ( Including ladder) | 1410mm | 2470mm | 2470mm | 2470mm |
Overall Length ( Excluding ladder) | 1340mm | 2280mm | 2280mm | 2280mm |
Overall Width | 782mm | 1390mm | 1390mm | 1390mm |
Overall Height (Guardrail unfolded) | 2070mm | 2280mm | 2400mm | 2530mm |
Overall Height (Guardrail folded) | 1683mm | 1745mm | 1865mm | 1995mm |
Platform Size | 1340*760mm | 2270*1120mm | 2270*1120mm | 2270*1120mm |
Platform Extension Size | 500mm | 900mm | 900mm | 900mm |
Minimum Turning Radius | 0m | 0m | 0m | 0m |
Lifting Motor | 24V/12Kw | 48V/4.5Kw | 48V/4.5Kw | 48V/4.5Kw |
Traveling Motor | 2*24V/12Kw | 2*48V/4Kw | 2*48V/4Kw | 2*48V/4Kw |
Machine Running Speed | 1.7Km/h | 2.4Km/h | 2.4Km/h | 2.4Km/h |
Rising/Descending Speed | 24/20sec | 38/30sec | 45/36sec | 70/62sec |
Batteries | 2*12v/120Ah | 8*6V/200Ah | 8*6V/200Ah | 8*6V/200Ah |
Charger | 24V/15A | 48V/25A | 48V/25A | 48V/25A |
Gradeability | 0.3 | 0.3 | 0.3 | 0.3 |
Max.Working Slope | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
Overall Weight | 790kg | 2400kg | 2550kg | 2840kg |
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
