Portable Hydraulic Lift Platform Single Mast Self Propelled Work Platform 6m

Portable Hydraulic Lift Platform Single Mast Self Propelled Work Platform 6m

  • Portable Hydraulic Lift Platform Single Mast Self Propelled Work Platform 6m
  • Portable Hydraulic Lift Platform Single Mast Self Propelled Work Platform 6m
Portable Hydraulic Lift Platform Single Mast Self Propelled Work Platform 6m
Product Details:
Place of Origin: Original of China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: MG600-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets/ wooden cases
Delivery Time: 30 days after receipt of deposit
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Platform Height: 6m Loading Capacity: 125Kg
Working Height: 8m Platform Size: 0.78*0.70m
Weight: 850kg Application: Aerial Work
High Light:

mobile hydraulic lift

,

hydraulic working platform

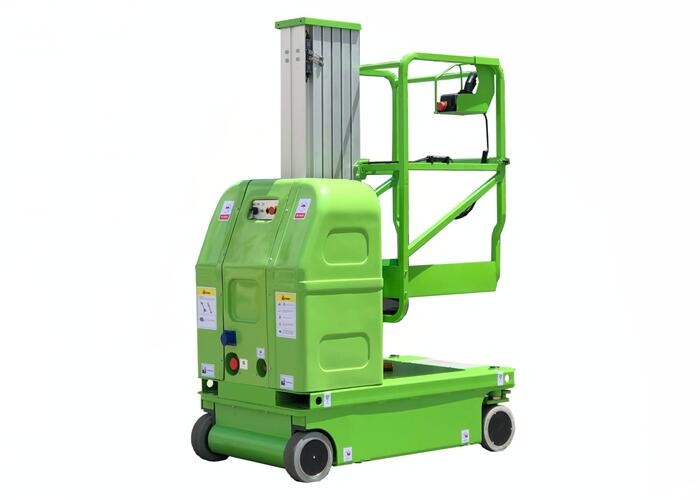

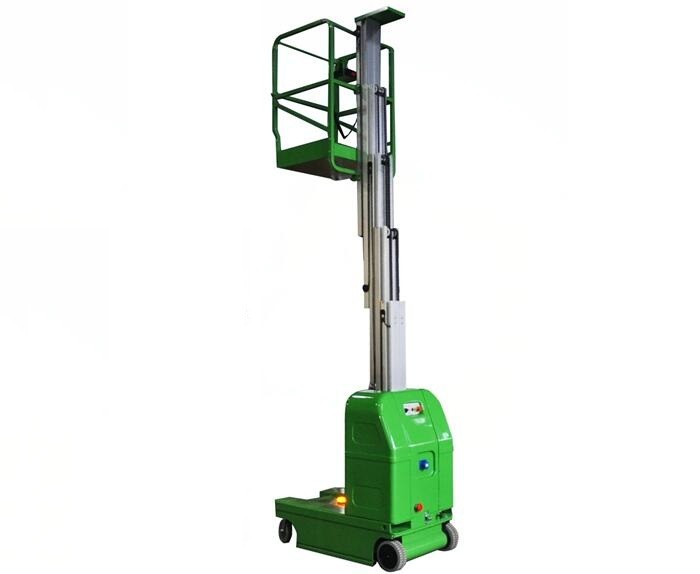

Portable Hydraulic Lift Platform Single Mast Self-Propelled Aerial Work Platform 6m



Description:

Self-Propelled Economical Vertical Lift is is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hotels, hospitals, stations, airports, warehouses and other occasions.



Parameters:

Platform height

6m

Working height

8m

Rated load

125Kg

Platform size

0.78*0.70m

Lifting power

2KW

Gradeability

25%

Power Source 2*12V/120Ah

Charger

24V/12A

Total Weight

850kg



Standard Configuration for Self-Propelled Vertical Lift

  1. Proportional controls
  2. DC power supply
  3. Drivable at full height
  4. Beacon
  5. Non marking tyre
  6. 2WD
  7. Automatic braking system
  8. Anti burst valve on cylinder
  9. Emergency stop button
  10. Auxiliary lowering
  11. On board Diagnostic system
  12. Tilt sensor with alarm
  13. Forklift pockets
  14. Charger protection
  15. All motion alarm
  16. Horn
  17. Double wheel brake
  18. Hydraulic braking release
  19. Anti-dust cover on the mast
  20. Powder coating painting


Optional Configuration for Self-Propelled Vertical Lift
1. AC power to platform
2. Overload sensor with alarm
3. Platform working light
4. Air tube to the platform
5. Platform extension
6. Self -lock gate on platform(Hinge type top open door)
7. Hour meter
8. Machine Body cover
9. Wireless tracking







Portable Hydraulic Lift Platform Single Mast Self Propelled Work Platform 6m 0







Portable Hydraulic Lift Platform Single Mast Self Propelled Work Platform 6m 1



Why choose Our Vertical Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 20 Years Experience

Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.

A: How long is your quality guarantee period?
B: We have one year warranty.
