Product Description

Double Masts Vertical Lift Aerial Work Platform

The double masts vertical lift uses high strength aluminum section bar to produce. It has the characteristics of beautiful appearance, small size, light weight, good stability and flexible operation.
The lifting height ranges from 1.99m to 16m for different size Aluminum Aerial Work Platform and the loading capacity varies from 150Kg to 250Kg.

The double masts vertical lift mainly composed by aluminum mast, work platform, basement, control system, wheels and outriggers. The main featured parts are showing in the below.

Standard Configuration
●Platform Control With Deadman Switch
●Emergency Stop Button both on PLatform and Ground

●Easily Loading to Pickup Truck
●Outrigger Interlock

●Forklift Pocket
●Emergency Lowing System

●Tilting Back Frame
●Detachable Outriggers

Optional Configuration

●Explosion-Proof System
●Motorized Device With Horn

●Isolation Platform
●Anti-Collision Sensor

●Over Loading Sensor
●Air Tube to PLatform

●PLatform Working Light

●PLatform Positioning Laser Lights

●Horn on PLatform

●DC Power with Charger

Specification

Model	MT600-2	MT800-2	MT1000-2	MT1200-2	MT1400-2	MT1600-2
Platform Capacity	250KG	250KG	250KG	200KG	200KG	150KG
Occupants	2	2	2	2	2	1
Working Height max	8M	10M	12.4M	14M	16M	18M
Platform Height max	6M	8M	10.4M	12M	14M	16M
Overall Length	1.45M	1.45M	1.45M	1.45M	1.88M	1.88M
Overall Width	0.81M	0.81M	0.81M	0.81M	0.81M	0.81M
Overall Height	1.99M	1.99M	1.99M	1.99M	2.68M	2.68M
Outrigger Coverage	2.45M*1.75M	2.45M*1.75M	2.45M*2.1M	2.45M*2.1M	2.7M*2.8M	2.7M*2.8M
Platform Size (LxW)	1.45M*0.7M	1.45M*0.7M	1.45M*0.7M	1.45M*0.7M	1.8M*0.7M	1.8M*0.7M
Total Weight (AC)	610KG	645KG	715KG	750KG	892KG	996KG
Total Weight (DC)	660KG	695KG	765KG	800KG	942KG	1046KG
Power AC	380V/220V/110V	380V/220V/110V	380V/220V/110V	380V/220V/110V	380V/220V/110V	380V/220V/110V
Power AC Motor	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW
Power DC	2*12V	2*12V	2*12V	2*12V	2*12V	2*12V
PowerDC Motor	2.2KW	2.2KW	2.2KW	2.2KW	2.2KW	2.2KW
Charger	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A

Details

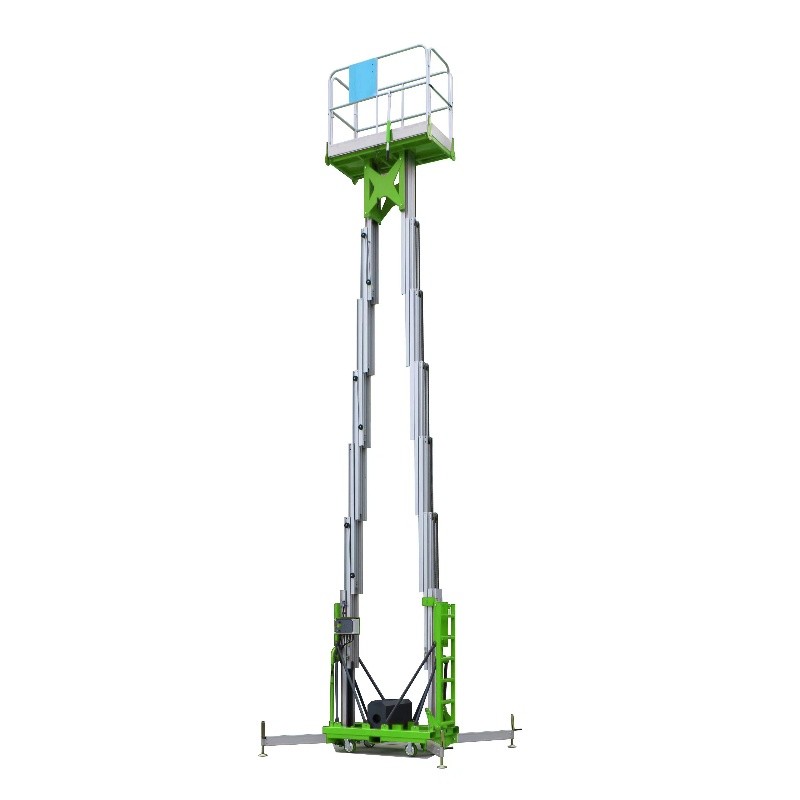

Double Masts Mobile Vertical Lift Aerial Work Platform CHENLIFT 0

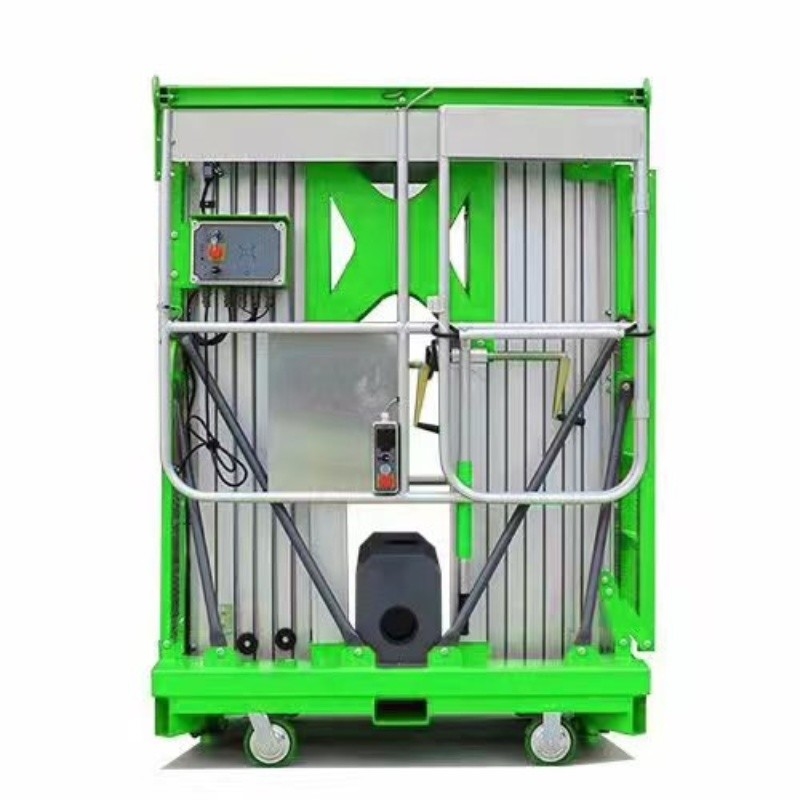

Double Masts Mobile Vertical Lift Aerial Work Platform CHENLIFT 1

Double Masts Mobile Vertical Lift Aerial Work Platform CHENLIFT 2

Other Related Products

Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.

Tag:

Place of Origin:	China
Brand Name:	CHENLIFT
Certification:	CE
Model Number:	MT

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wrapped in pallets
Delivery Time:	30 days
Payment Terms:	T/T L/C
Supply Ability:	200 sets/month
