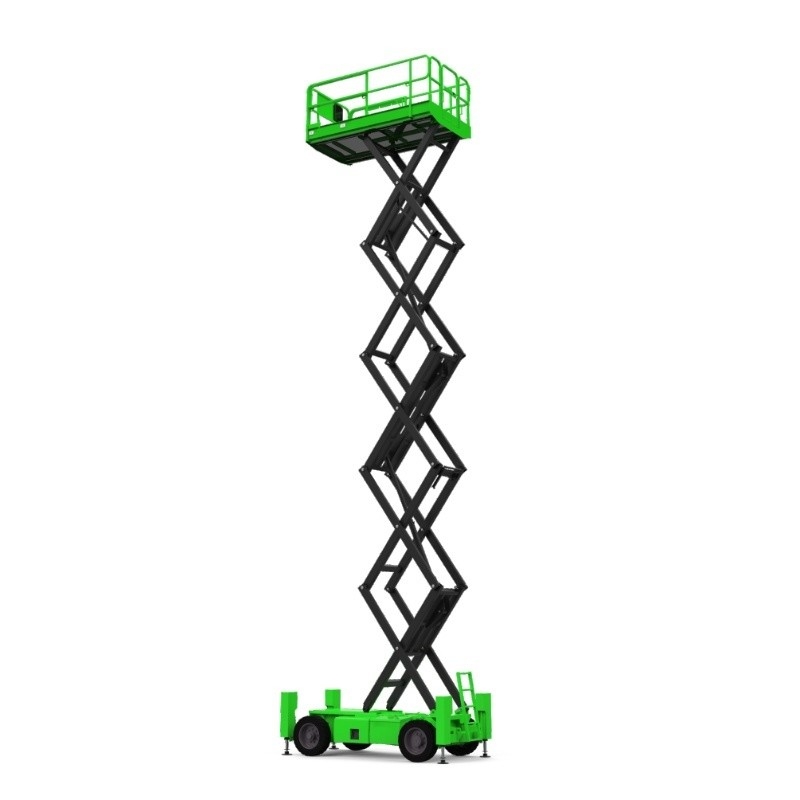

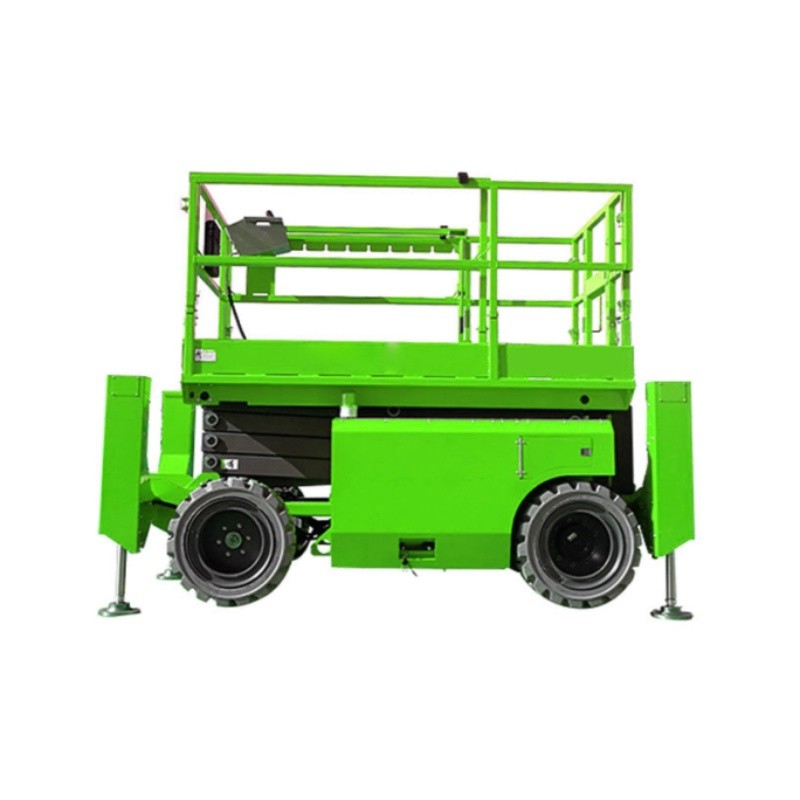

Built for performance, durability, and safety, our Self-Propelled Rough Terrain Scissor Lift is the ideal solution for elevated work in demanding outdoor conditions. Engineered to navigate uneven and rugged surfaces with ease, it delivers outstanding stability and dependable operation—wherever the job takes you.
Exceptional Rough Terrain Performance: Outfitted with robust 4x4 drive, heavy-duty tires, and high ground clearance, this lift handles gravel, mud, and sloped surfaces with confidence.
Self-Propelled Convenience: Easily maneuver between work areas without external towing, boosting productivity and saving time on site.
Spacious Platform & Heavy Load Capacity: A large extendable platform supports multiple workers and heavy tools, maximizing both efficiency and comfort at height.
Reliable Safety Systems: Equipped with dual safety controls, automatic leveling, and emergency lowering functions to ensure secure operation at every elevation.
Whether you're installing structural steel, performing façade maintenance, or handling exterior construction tasks, this lift gives you the height, mobility, and rugged power to get the job done—safely and efficiently.
Built to Rise Above. Engineered for the Extreme.
Specification:
Model | MRT800 | MRT1000 | MRT1200 | MRT1300 | MRT1600 |
Max Working Height | 10m | 12m | 14m | 15m | 18m |
Max Platform Height | 8m | 10m | 12m | 13m | 16m |
Max Outreach | 1.5m | 1.5m | 1.5m | 1.2m | 1.2m |
Length-PLatform Extended | 4m | 4m | 4m | 6.3m | 6.3m |
Length with Outreach | 3.23m | 3.23m | 3.23m | 4.88m | 4.88m |
Width Stowed | 1.81m | 1.81m | 1.81m | 2.3m | 2.3m |
Height Stowed(guardrails unfolded) | 2.62m | 2.74m | 2.87m | 2.99m | 3.26m |
Height Stowed(guardrails folded) | 1.91m | 2.04m | 2.16m | 2.19m | 2.47m |
Wheelbase | 1.89m | 1.89m | 1.89m | 2.97m | 2.97m |
Ground Clearance | 0.31m | 0.31m | 0.31m | 0.32m | 0.32m |
Platform Size | 2.5*1.6*1.15m | 2.5*1.6*1.15m | 2.5*1.6*1.15m | 3.9*1.9*1.15m | 3.9*1.9*1.15m |
Skirting Board Height | 0.15m | 0.15m | 0.15m | 0.15m | 0.15m |
Lifting Capacity | 567kg | 454kg | 345kg | 680kg | 680kg |
Extension Lifting Capacity | 136kg | 136kg | 136kg | 230kg | 230kg |
Drive Speed(Stowed) | 4.5km/h | 4.5km/h | 4.5km/h | 4.5km/h | 4.5km/h |
Drive Speed(Raised) | 0.7km/h | 0.7km/h | 0.7km/h | 0.7km/h | 0.7km/h |
Rising Time | 40s | 45s | 50s | 68s | 75s |
Lowering Time | 35s | 37s | 42s | 50s | 55s |
Gradeability | 35% | 30% | 30% | 45% | 45% |
Turning Radius | 1.58m/3.89m | 1.58m/3.89m | 1.58m/3.89m | 2.72m/5.9m | 2.72m/5.9m |
Tilt Sensor-Front to Back | 3° | 3° | 3° | 3° | 3° |
Tilt Sensor-Side to Side | 1.5° | 1.5° | 1.5° | 1.5° | 1.5° |
Tire Specification | 675*280mm | 675*280mm | 675*280mm | 33*12-20solid tire | 33*12-20solid tire |
Outrigger Level Ability-Front to Back | 6.6° | 6.6° | 6.6° | 7° | 7° |
Outrigger Level Ability-Side to Side | 10.6° | 10.6° | 10.6° | 11° | 11° |
Drive Mode | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS | Electric Drive,4WD*2WS |
Power Unit Motor | 48V/4.5kw | 48V/4.5kw | 48V/4.5kw | 48V/4.5kw | 48V/4.5kw |
Hydraulic Tank Capacity | 68L | 68L | 68L | 120L | 120L |
Battery Specification | 235Ah | 235Ah | 235Ah | 235Ah | 235Ah |
Control Voltage | 24V | 24V | 24V | 48V | 48V |
Charger | 90-264V/40A | 90-264V/40A | 90-264V/40A | 48V/40A | 48V/40A |
Weight(with Outriggers) | 4170kg | 4440kg | 5480kg | 8103kg | 9010kg |
