10m Aerial Work Platform Double Mast Vertical Lift With Extension Platform

10m Aerial Work Platform Double Mast Vertical Lift With Extension Platform
10m Aerial Work Platform Double Mast Vertical Lift With Extension Platform

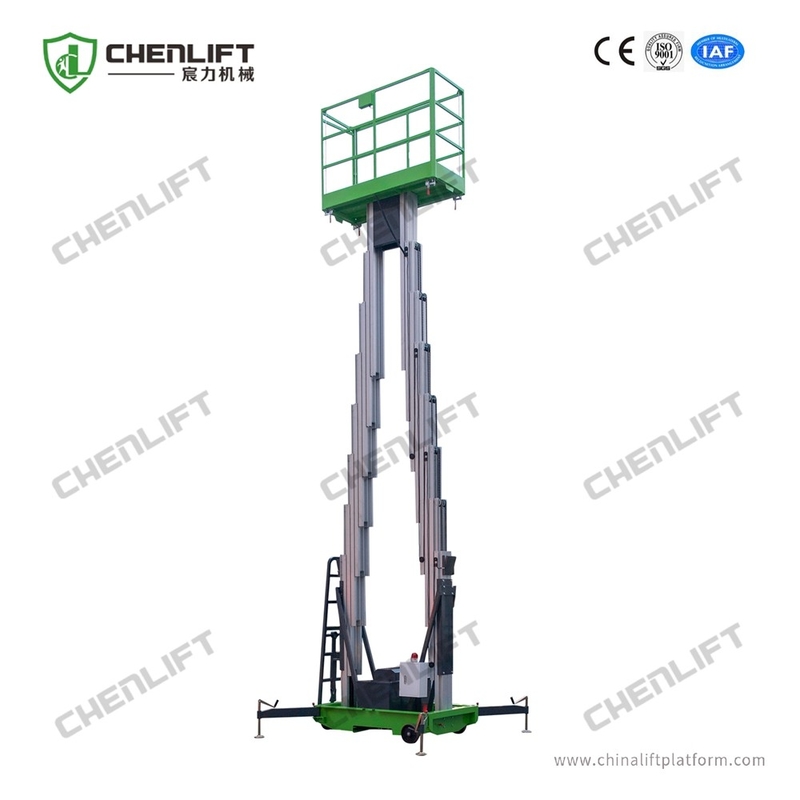

Large Image :  10m Aerial Work Platform Double Mast Vertical Lift With Extension Platform

Product Details:

Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: GTWY10-200 (ME1000-2)

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30 days after down payment
Payment Terms: T/T, L/C
Supply Ability: 200 sets per month
Detailed Product Description
Platform Height: 10m Loading Capacity: 200Kg
Working Height: 12m Platform Size: 1.52*0.62m
Power: 1.1kw Weight: 780Kg
Type: Vertical Feature: Light Weight
High Light:

hydraulic aerial work platform


aerial work platform


10m Aerial Work Platform Double Mast Vertical Lift With Extension Platform


Quick Detail:

Name Mobile Aerial Work Platform Brand Name Bestmax
Loading Capacity 200Kg Platform Height 10m
Platform Size 1.52*0.62m Color Green or Optional
Motor Power 1.10Kw Power Supply AC/DC



Power supply standard is AC version (110V or 220V) and DC chargeable battery version (12V or 24V) or AC &DC version are both optional. Extendable platform can be made also for double mast type.
DC battery version always comes with battery charger, batteries can be recharged using automatic, built-in charger, and battery discharge indicator warns of low charge conditions.


By the mast quantity: single mast, double mast, triple mast, quadruple mast and six masts (four plus two) are ranked in the product range of man pushing around aerial work platform
Features non-marking tires and anodized aluminum mast. Easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable. It is operated by the telescopic cylinder which is strong and reliable working and the control panels are available on the lift platforms and ground.



It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 4m to 22m for different mast Aluminum Aerial Work Platform and the loading capacity varies from 130Kg to 300Kg.


Main Features:

1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10. Built-in pressure release valve

11. Dual activated up/down switch

12. Locking Key Switch


Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet


Competitive Advantage:

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 20 Years Experience


Client & Exhibition:

10m Aerial Work Platform Double Mast Vertical Lift With Extension Platform 0


Communication with Customers:

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material


A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

  1. Strict quality control system on the whole process of production
  2. Imported key arts to ensure the high quality of our products
  3. Advanced equipment and tools for examination and quality control
  4. 100% strict examining products before shipment
  5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.


A: What is the delivery time for your goods?

B: it is 30days after order confirmation


A: What spare parts that you can offer?

B: Find the list below which we are offering with the machine when shipment for free:

Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1


A: How long is your quality guarantee period?

B: We have one year warranty.
