Aluminum Aerial Work Platform Double Mast Self propelled Vetical Lift 9 Meters

Aluminum Aerial Work Platform Double Mast Self propelled Vetical Lift 9 Meters

  • Aluminum Aerial Work Platform Double Mast Self propelled Vetical Lift 9 Meters
  • Aluminum Aerial Work Platform Double Mast Self propelled Vetical Lift 9 Meters
  • Aluminum Aerial Work Platform Double Mast Self propelled Vetical Lift 9 Meters
Aluminum Aerial Work Platform Double Mast Self propelled Vetical Lift 9 Meters
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: MG900-2S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30 days after down payment
Payment Terms: T/T, L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Platform Height: 9m Platform Size: 1.00*0.70m
Working Height: 11m Loading Capacity: 150kg
Lift Mechanism: Telescoping Lift Name: Aluminum Alloy Man Lift
High Light:

mobile aerial work platform

,

aerial work platform



Aluminum Aerial Work Platform Double Mast Self propelled Vetical Lift 9 Meters



Description:

Self-Propelled Vertical Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hotels, hospitals, stations, airports, warehouses and other occasions.



Parameters:

Model MG900-2S
Lift capacity 150kg
Platform height max 9m
Stowed length 1.5m
Stowed width 1.0m
Stowed height 2.08m
Platform size 1.00*0.70m
Ground clearance 0.05m
Wheelbase 1.28m
Grade ability 25%
Maximum working slope
Driving wheel φ0.25*0.08m
Front tire 8in
Driving motor 2*24V/0.5kw
Lifting motor 24V/2kw
Power source 2ˣ12V/115Ah
Charger 24V/12A
Weight 1250kg



Standard Configuration for Self-Propelled Vertical Lift

1. Proportional controls
2. DC power supply
3. Drivable at full height
4. Beacon
5. Non marking tyre
6. 2WD
7. Automatic braking system
8. Anti burst valve on cylinder
9. Emergency stop button
10. Auxiliary lowering
11. On board Diagnostic system
12. Tilt sensor with alarm
13. Forklift pockets
14. Charger protection
15. All motion alarm
16. Horn
17. Double wheel brake
18. Hydraulic braking release
19. Anti-dust cover on the mast
20. Powder coating painting


Optional Configuration for Self-Propelled Vertical Lift
1. AC power to platform
2. Overload sensor with alarm
3. Platform working light
4. Air tube to the platform
5. Platform extension
6. Self -lock gate on platform(Hinge type top open door)
7. Hour meter
8. Machine Body cover
9. Wireless tracking

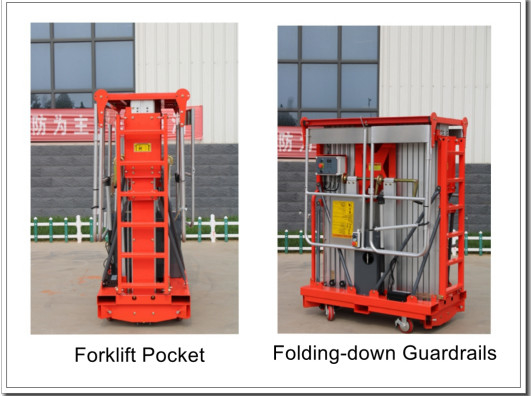

Aluminum Aerial Work Platform Double Mast Self propelled Vetical Lift 9 Meters 0





Factory Equipment:



Aluminum Aerial Work Platform Double Mast Self propelled Vetical Lift 9 Meters 1



Why choose Chen lift Vertical Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 20 Years Experience

Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.

A: How long is your quality guarantee period?
B: We have one year warranty.



Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
