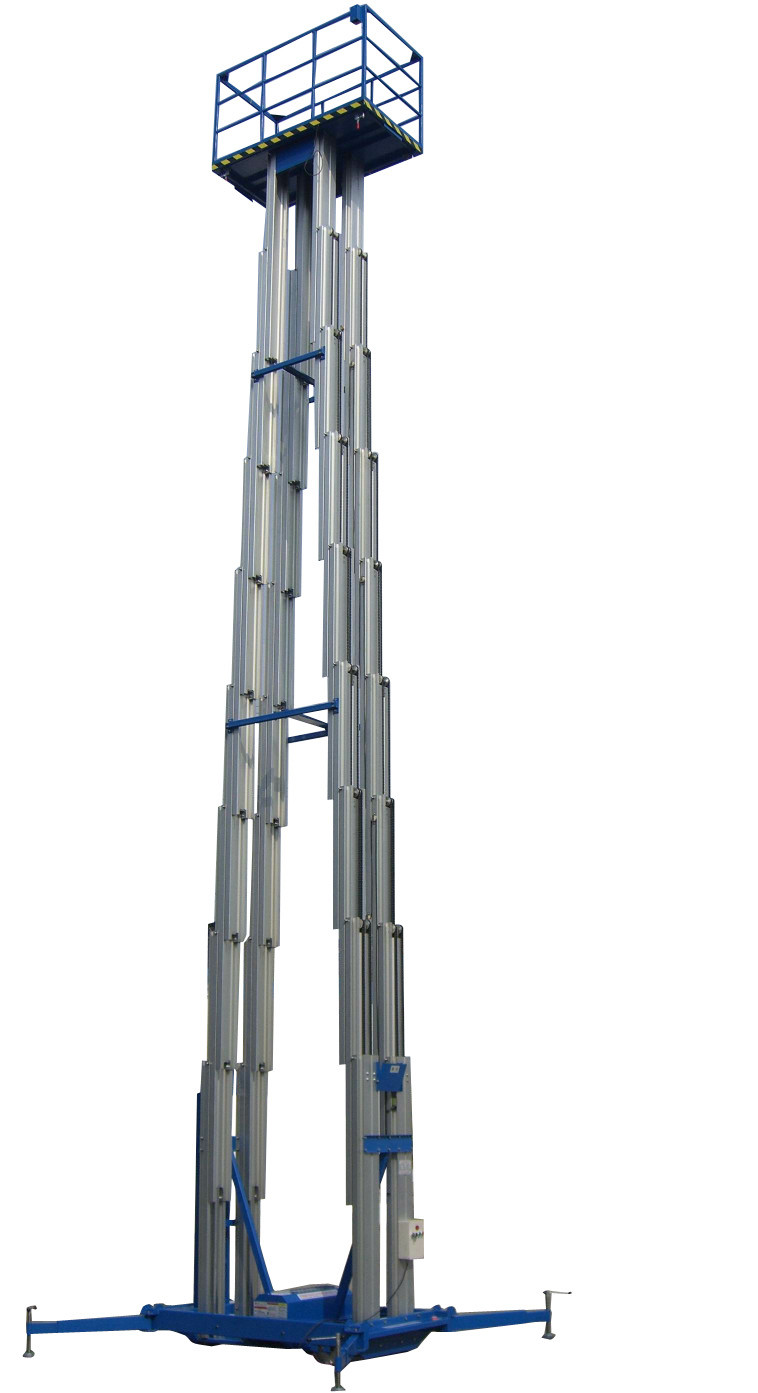

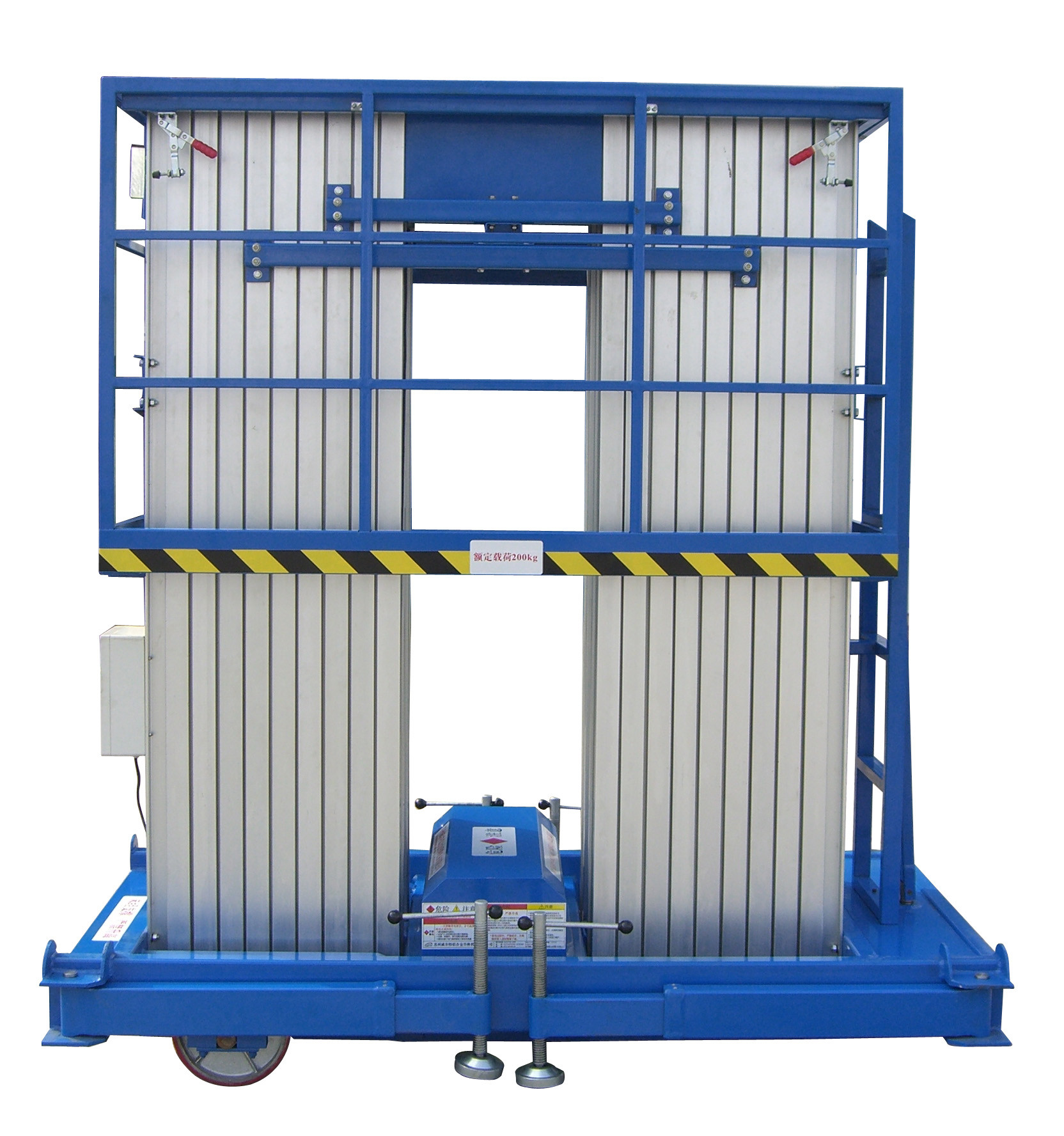

Electrical Pulling Device Quadruple Mast Aerial Work Platform 300Kg Load And 12 Meters Lifting Height

Electrical Pulling Device Quadruple Mast Aerial Work Platform 300Kg Load And 12 Meters Lifting Height

  • Electrical Pulling Device Quadruple Mast Aerial Work Platform 300Kg Load And 12 Meters Lifting Height
  • Electrical Pulling Device Quadruple Mast Aerial Work Platform 300Kg Load And 12 Meters Lifting Height
  • Electrical Pulling Device Quadruple Mast Aerial Work Platform 300Kg Load And 12 Meters Lifting Height
  • Electrical Pulling Device Quadruple Mast Aerial Work Platform 300Kg Load And 12 Meters Lifting Height
  • Electrical Pulling Device Quadruple Mast Aerial Work Platform 300Kg Load And 12 Meters Lifting Height
  • Electrical Pulling Device Quadruple Mast Aerial Work Platform 300Kg Load And 12 Meters Lifting Height
  • Electrical Pulling Device Quadruple Mast Aerial Work Platform 300Kg Load And 12 Meters Lifting Height
Electrical Pulling Device Quadruple Mast Aerial Work Platform 300Kg Load And 12 Meters Lifting Height
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: GTWY12-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30day after down payment
Payment Terms: T/T L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Lift Capacity: 300kg Platform Height: 12m
Working Height: 14m Platform Size: 1.43x0.88m
High Light:

hydraulic aerial work platform

,

aerial work platform

Electrical Pulling Device Quadruple Mast Aerial Work Platform 300Kg Load And 12 Meters Lifting Height


Quick Detail:


Name Mobile Aerial Work Platform Brand Name CHEN LIFT
Loading Capacity 300Kg Platform Height 12m
Platform Size 1.43*0.88m Color Blue or Optional
Motor Power 2.2Kw Power Supply AC/DC



Descriptions

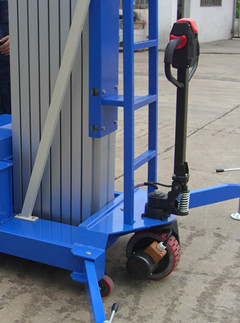

Mobile aluminum aerial work platform with motorized pulling device is to make the handler into motorized type, operator needs to control the handler to move themachine which is its big difference from the self-propelled scissor lift.

Applications:

It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 10m to 14m and lifting capacity varies from 200kg to 250kg.The power sources could be 220V, 380V or chargeable battery.


Main Features:

1. Most rigid aluminum alloy profile
2. Auxiliary platform lowering
3. Multi-guide pulley on mast
4. Durable base system
5. Chassis with level gauge
6. DC working power on the platform
7. Easily rolls through a narrow space
8. Emergency stop button
9. Over load protection
10 .Built-in pressure release valve
11. Dual activated up/down switch
12. Locking Key Switch
13. Optional extended platform
14. Entry ladder



Specifications:



MODEL GTWY12-400
PRODUCTIVITY US Metric
Lift capacity 661lbs 300kg
Working height 45ft 11.18in 14m
Platform floor height 39ft 4.44 in 12m
Platform length 4ft 8.30in 1.43m
Platform width 2ft 10.65in 0.88m
Ground Clearance 3.15in 0.08m
Lifting Power 2.2kw
Lifting Speed 0.09-0.1m/s
Motorized Power 0.75Kw
Descending Speed 0.08m/s
Anti Wind Capacity Max. force 5
Overall length 5ft 6.92in 1.7m
Overall width 3ft 7.31in 1.1 m
Overall height 7ft 7.34in 2.32m
Outrigger footprint:
A Length 7ft 10.49in 2.4m
B Width 7ft 6.55in 2.3m
C Corner access 3.94in 0.10m
D Wall access front 10.24in 0.26m
E Wall access side 2ft 0.41in 0.62m
Weight 2624lbs 1190kg

Electrical Pulling Device Quadruple Mast Aerial Work Platform 300Kg Load And 12 Meters Lifting Height 0




Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet


Competitive Advantage:


· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience




Communication with Customers


A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum material

A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

  1. Strict quality control system on the whole process of production
  2. Imported key arts to ensure the high quality of our products
  3. Advanced equipment and tools for examination and quality control
  4. 100% strict examining products before shipment
  5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.


A: What is the delivery time for your goods?
B: it is 30days after order confirmation

A: What spare parts that you can offer?
B: Find the list below which we are offering with the machine when shipment for free:

Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1


A: How long is your quality guarantee period?
B: We have one year warranty.
