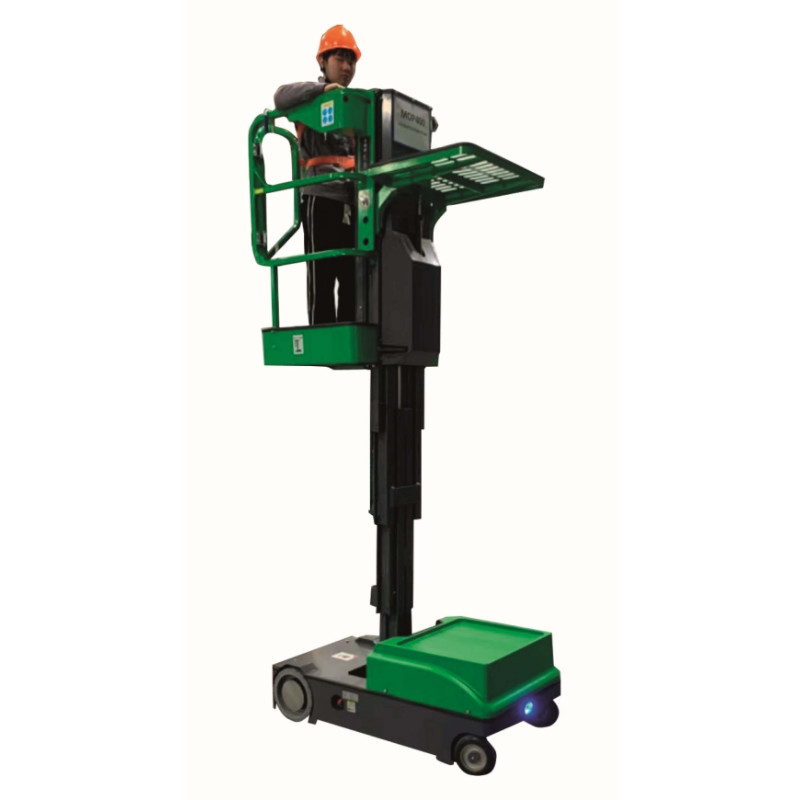

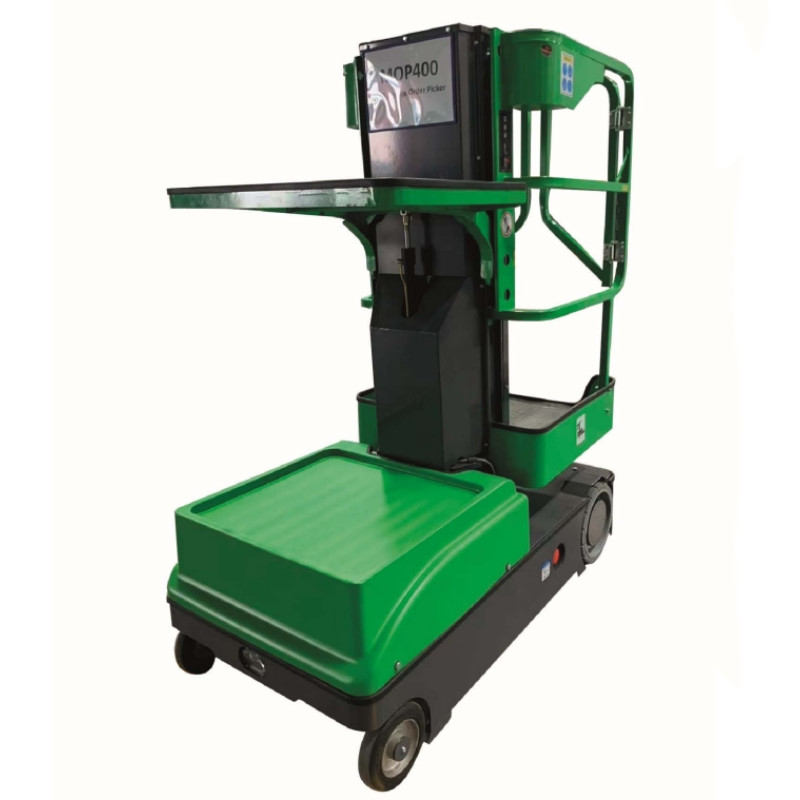

MOP400 Full Electric Self Propelled Aerial Order Picker Material Handling Solution

Basic Information
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE
Model Number: MOP400
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30 days after down payment
Payment Terms: T/T L/C
Supply Ability: 200 sets per month
Detail Information
Highlight:

hydraulic drum lifter

,

oil drum lifting equipment


Product Description

Standard Configuration:

※Electric Picking Tray and Front Guard Rails

※Self-locking Gates

※Drivable at Full Height

※Non-Marking Tires(Two-Wheel Drive Two-Wheel Steering)

※Emergency Descent System

※Emergency Stop Button

※Saloon-door Style Entry Gates / Top Open Door

※Flashing Beacon

※Charging Indicator

※Manual Brake Release

※Lanyard Attachment Point

※Tie-Down and Lifting Points

※Charging Protection System



Optional Configuration:

※AC Power to Platform

※Platform Working Light

※Extension Platform

※Wireless Tracking



Specification:

Model MOP400
Max Platform Height 4m
Max Working Height 6m
Platform Capacity(For Person) 136kg
Platform Capacity(For Goods Up) 90kg
Platform Capacity(For Goods Down) 110kg
Platform Size 0.5*0.73m
Stowed Length 1.48m
Stowed Width 0.75m
Stowed Height 1.78m
Travel Speed(Stowed) 4km/h
Travel Speed(Raised) 0.8km/h
Turning Radius 0.23m
Gradeability 15-20%
Max Ground Clearance 0.05m
Ground Clearance(Pothole Protection) 0.015m
Battery 24V/108AH
Charger 24V/15A
Wheel Φ305x100
Weight 930kg


Company Introduction:

Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
