Product Description

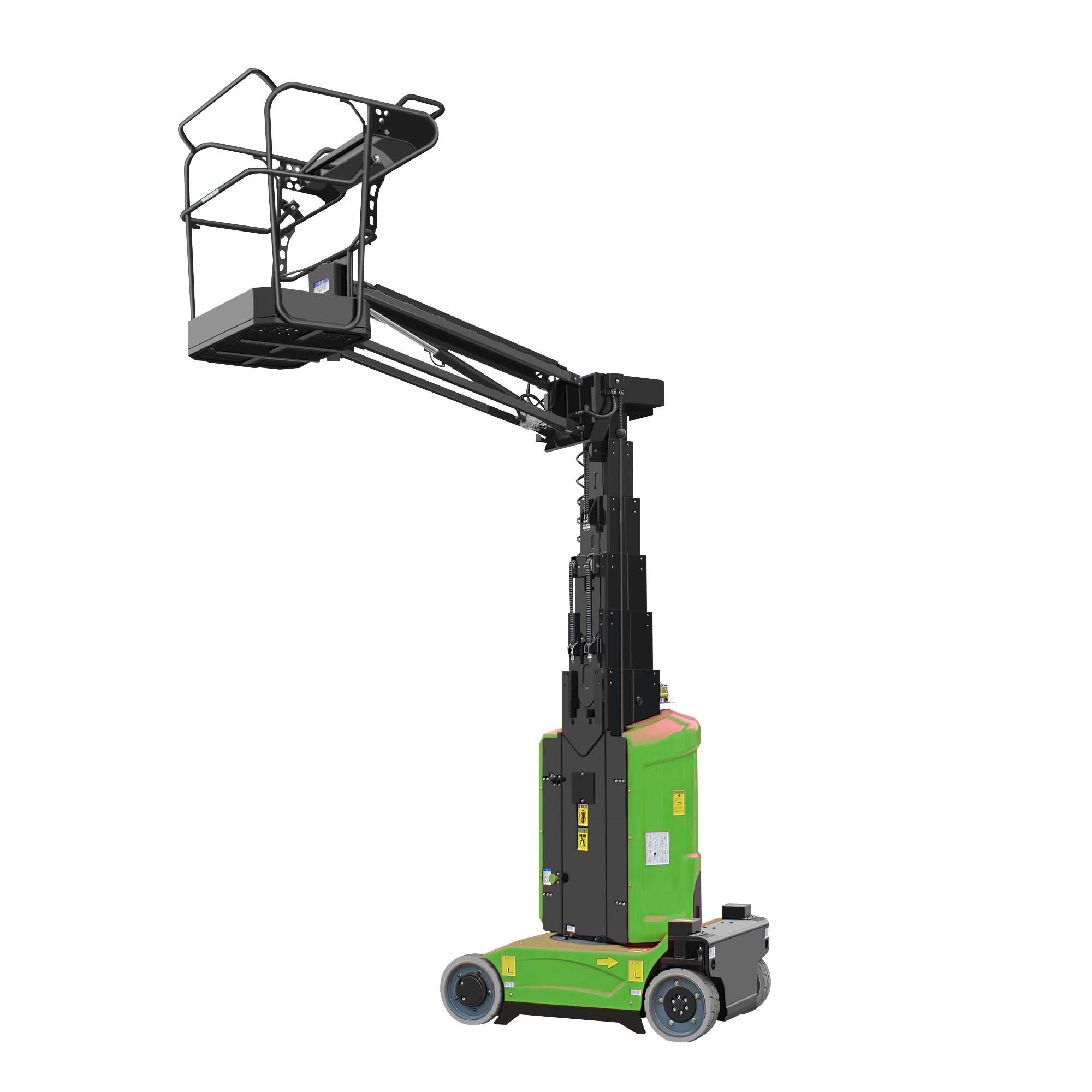

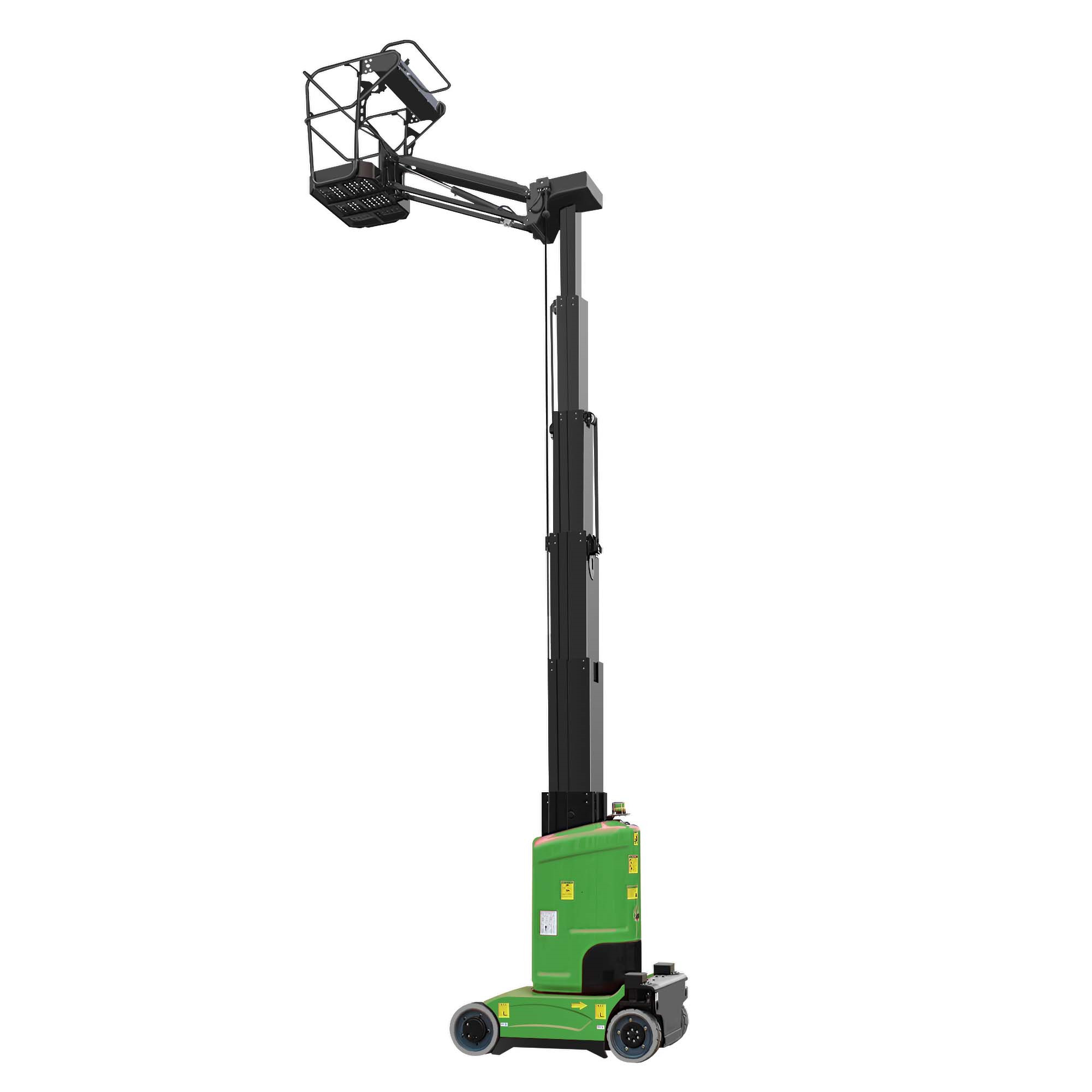

Small Aerial Boom Lift – Mini Self-Propelled Vertical Work Platform

The Mini Self-Propelled Vertical Mast Lift with Jib is a compact and versatile aerial work platform designed to safely lift personnel and tools to elevated work areas. Ideal for maintenance, construction, and industrial tasks, it offers precision access in confined or hard-to-reach spaces.

Key Features:

*Self-Propelled Mobility

Operates independently without the need for towing or manual movement, enhancing efficiency and flexibility on job sites.

*Vertical Mast Design

The vertical mast provides stable, space-saving elevation, delivering reliable height access in tight indoor or outdoor environments.

*Articulating Jib Arm

The integrated jib offers additional outreach and articulation, allowing precise positioning over obstacles and into hard-to-access zones.

Standard configurations:

▲AC Driving Motor	▲Proportional Joystick Controls	▲Self-Locking Gates	▲Drivable At Full Height
▲Non-Marking Tires	▲4 x 2 Drive	▲Automatic Braking System	▲Emergency Descent System
▲Tubing Explosion-Proof System	▲Fault Diagnosis System	▲Tilt Sensor Alarm	▲Motion Alarm
▲345° Turret Rotation	▲Horn	▲Hour Meter	▲Charging Protection System
▲Flashing Beacon	▲Automatic Pothole Protection	▲Drive Enable	▲Charging Indicator
▲Manual Brake Release	▲Lanyard Attachment Point	▲Tie-Down And Lifting Points	▲Platform Load Sense System
▲Emergency Stop Button	▲Swing Out Components Cover	▲Overload Sensor Alarm

Specification:

Model	CLP90J
Max. Working Height	11.2m
Max. Platform Height	9.2m
Max. Horizontal Reach	3m
Up and Over Height	7.89m
Guardrail Height	1.1m
Overall Length	2.53m
Overall Width	1.0m
Overall Height(Stowed)	1.99m
Platform Dimension	0.62*0.87m
Ground Clearance(Stowed)	70mm
Ground Clearance(Raised)	19mm
Wheelbase	1.22m
Loading Capacity	200kg
Occupants	2
Turning Radius(Inside/Outside)	0.23/1.65m
Turret Rotation	345°
Jib Movement	130°
Travel Speed(Stowed)	4.5km/h
Travel Speed(Raised)	0.5km/h
Up/Down Speed	42/38s
Max. Working Slope	X-2.5° , Y-2.5°
Tyres	Φ381*127mm
Driving Motor	24V/0.9kw
Lifting Motor	24V/3kw
Battery	24V/240Ah
Charger	24V/30A
Weight	2950kg

Other Related Products

Why choose Our Mobile Vertical Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 20 Years Experience

Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.

A: How long is your quality guarantee period?
B: We have one year warranty.

Tag:

Place of Origin:	China
Brand Name:	CHENLIFT
Certification:	CE
Model Number:	CLP90J

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wrapped in pallet or in wooden case
Delivery Time:	30day after down payment
Payment Terms:	T/T L/C
Supply Ability:	200 sets per month
