|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||Wrapped in pallet or in wooden case|
|Delivery Time:||30day after down payment|
|Payment Terms:||T/T L/C|
|Supply Ability:||200 sets per month|
drum lifter forklift attachment,
hydraulic drum lifter

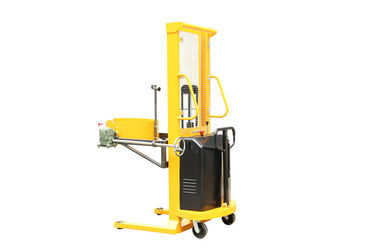

Manual Rotating Hoop Type Electric Drum Handling Equipment with 500Kg Load
|Name||Electric Drum Lift||Brand Name||CHENLIFT|
The Electric Drum Lift has simple and light-weight structure; the hoop type structure design is quite suitable for loading steel and plastic drums. The operation of the drum lift is simple and labor-saving. It is used for the transporting, loading and unloading liquid like dyes, paintings, adhesive, oil and so on. In general, the Electric Drum Lift can provide you with safe and easy transportation of drums.
Use high-quality hydraulic pump unit which can provide strong driving force and long-lasting and maintenance-free battery.
The gantry is made up of special-rolled industrial-manufactured C-type steel which is strong and safe.
High-quality oil cylinder with fast lifting speed and the lifting height can reach 1600mm. The drum lift can manual tilt 180°.
With electronic balance which has functions like resting to zero, taring and weighting. The accuracy of the electronic balance can reach ±3‰.
Loading Capacity 500kg
Net Weight 240Kg
Wheel Dimension Φ80*55,Φ150*50
Inner/Outer Width of Front Leg(mm) 640/800
Outline Dimension(mm) 1600*950*2060
Turning Radius (mm) 1750
Pump Unit Power (Kw/h) 1.5
Battery Parameter (Ah/V) 120/12
Lifting Height (mm) 1600
Lifting Speed (mm/s) 120
Why to choose CHENLIFT Electrical Drum Lift?
Good after Service
1 Year Warranty
More Than 10 Years Experience
