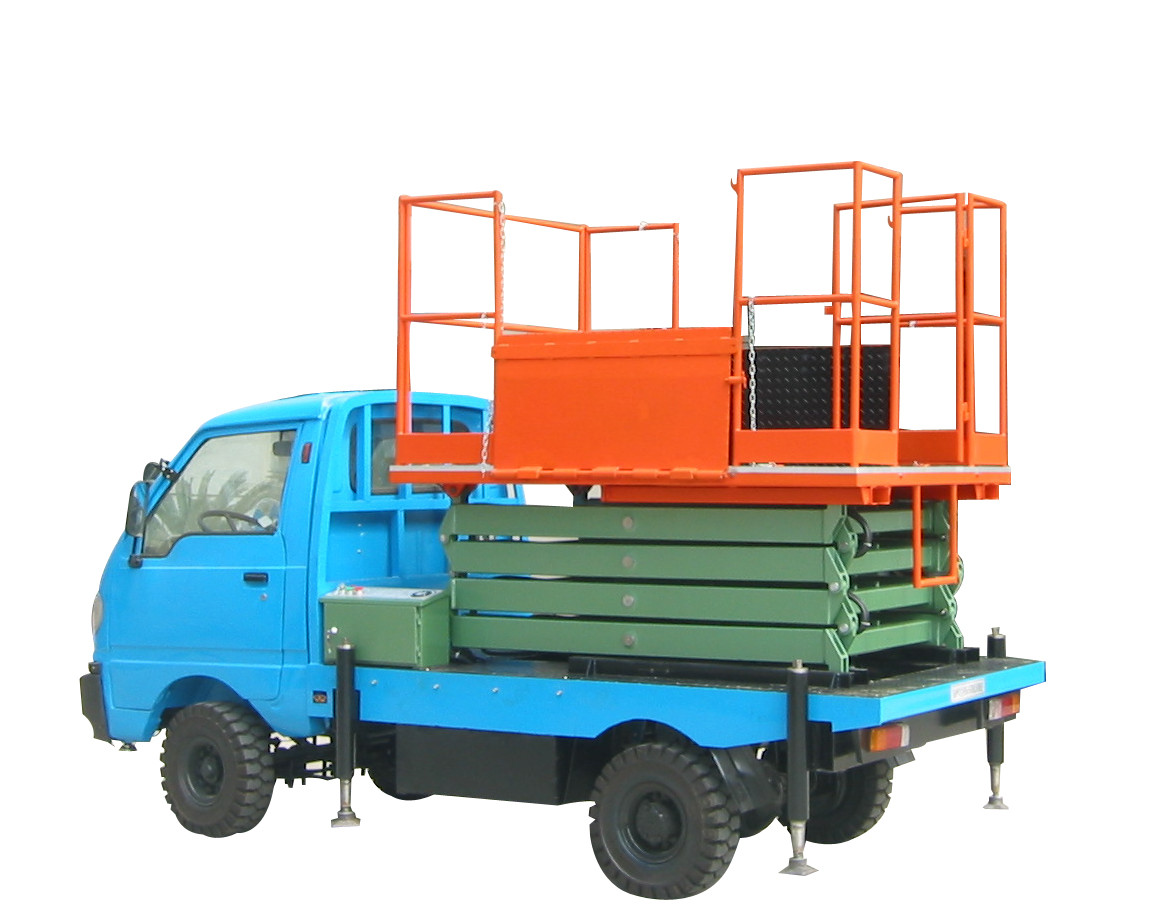

11m Lifting Height Truck Mounted Scissor Lift With 450Kg Loading Capacity

11m Lifting Height Truck Mounted Scissor Lift With 450Kg Loading Capacity

  • 11m Lifting Height Truck Mounted Scissor Lift With 450Kg Loading Capacity
11m Lifting Height Truck Mounted Scissor Lift With 450Kg Loading Capacity
Product Details:
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SJQC 0.45-11
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 450kg Platform Height: 11m
Working Height: 13m Platform Size: 2.10*1.15m
Standard Power: DC24V
High Light:

truck mounted manlift

,

truck mounted lift platform



11m Lifting Height Truck Mounted Scissor Lift With 450Kg Loading Capacity



Quick Detail:

Name Truck-mounted Scissor Lift Brand Name CHENLIFT
Loading Capacity 450Kg Lifting Height 11m
Platform Size 2.10*1.15m Color Red or Optional
Lifting Power 2.2Kw Working Height 13m



Description:

Truck-mounted Scissor Lifts are aerial working platform which combine with an automobile, the lifts are driven by DC or the engines of the vehicle The lifting platform is movable everywhere due to the vehicle can be driven as wishes. It is suitable for the aerial working for long distance and the frequently changing places.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



Main Features:

  • Power by the vehicle or battery , without the external power supply
  • The control panels are available both on the platform and the pedestal
  • Different models are available with the maximum working height at 6m to 16m
  • Pointing control of lifting up and down.
  • Manganese steel lifting arm in high strength with rectangle shape
  • Anti-skid floor in platform
  • The control panels are available on the platforms and ground.



Safety Precaution:

1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack ,NOK sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



11m Lifting Height Truck Mounted Scissor Lift With 450Kg Loading Capacity 0





Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning , light replacement etc.



Why choose Our Truck-mounted Scissor Lift?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
