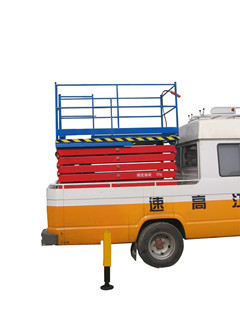

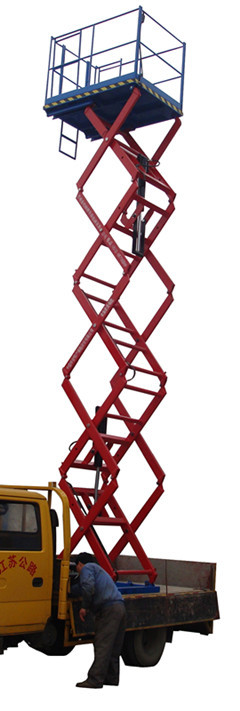

9 Meters Platform Height Truck Mounted Scissor Lift with 500kg Load Capacity

9 Meters Platform Height Truck Mounted Scissor Lift with 500kg Load Capacity

Description:

The truck-mounted scissor lift can devide into diesel engine operted and battery opertated.
The scissor lift is equipped on the diesel truck, can be easily moved especially applies to operation over long distance or field work; safely and smoothly lifting up and down.

The scissor lift can be powered by the diesel engine on the selected vehicle or by independent battery or external AC powers.

The bettery operated truck- mounted scissor lift is widely used for aerial installation & maintenance of the working site without power supply, such as large factroy, workshops, warehouse, bus stations, hotels, airports etc.

Specification:

The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.

Main Features:

• Power by the vehicle or battery , without the external power supply
• The control panels are available both on the platform and the pedestal
• Different models are available with the maximum working height at 6m to 16m
• Pointing control of lifting up and down.
• Manganese steel lifting arm in high strength with rectangle shape
• Anti-skid floor in platform
• The control panels are available on the platforms and ground.

Safety Precaution:

1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform

Major Parameters

• Model: SJDC 0.5-9
• Loading Capacity: 500 Kg
• Maximum Platform Height: 9 m
• Platform Size: 1800*1000 mm
• Power Voltage: DC24V
• Lifting Time: 80s

Configurations:

• Electric system: Schneider contactor, SANLICO button, CHNT electrical
• Hydraulic System: Hycman brand power pack , sealing
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate
• High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Optional Configuration:

• Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
• Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
• Extension Platform
• Rubber Solid Tire
• Flame Proof Control Cabinet

Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning , light replacement etc.

Why choose Our Truck-mounted Scissor Lift?

· High Quality

· Reasonable Price

· Good after Sales Service

· 1 Year Warranty

· More Than 20 Years Experience
