450Kg Automobile Truck Mounted Scissor Lift with 9M Lifting Height

450Kg Automobile Truck Mounted Scissor Lift with 9M Lifting Height

  • 450Kg Automobile Truck Mounted Scissor Lift with 9M Lifting Height
450Kg Automobile Truck Mounted Scissor Lift with 9M Lifting Height
Product Details:
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SJDC0.45-9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 450kg Lifting Height: 9m
Platform Size: 1.8x1m Overall Dimension: 3.5*1.35*1.65m
Rise Time: 80 S Weight: 2800kg
High Light:

truck mounted manlift

,

truck mounted lift platform

450Kg Automobile Truck Mounted Scissor Lift with 9M Lifting Height​





Quick Detail:



Name Truck-mounted Scissor Lift Brand Name CHENLIFT
Loading Capacity 450Kg Lifting Height 9m
Platform Size 1.80*1.00m Color Red Color or Optional
Lifting Power 1.5Kw Power Supply AC





Description:



Truck-mounted Scissor Lifts are aerial working platform which combine with an automobile, the lifts are driven by DC or the engines of the vehicle The lifting platform is movable everywhere due to the vehicle can be driven as wishes. It is suitable for the aerial working for long distance and the frequently changing places.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.





Main Features:

  • Power by the vehicle or battery , without the external power supply
  • The control panels are available both on the platform and the pedestal
  • Different models are available with the maximum working height at 6m to 16m
  • Pointing control of lifting up and down.
  • Manganese steel lifting arm in high strength with rectangle shape
  • Anti-skid floor in platform
  • 4 The control panels are available on the platforms and ground.



Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform





Major Parameters

  • Model: SJDC0.45-9
  • Loading Capacity 450kg
  • Maximum Height 9000mm
  • Minimum Height 1650mm
  • Platform Size 1800*1000mm
  • Lifting Power 1.5kw
  • Power Voltage DC24V
  • Lifting Time 80s
  • Cylinder Ф100(2Pcs)
  • Gear Pump 6ml/r
  • Total Weight 1260kg
  • Measurement 1850*1240*1650mm

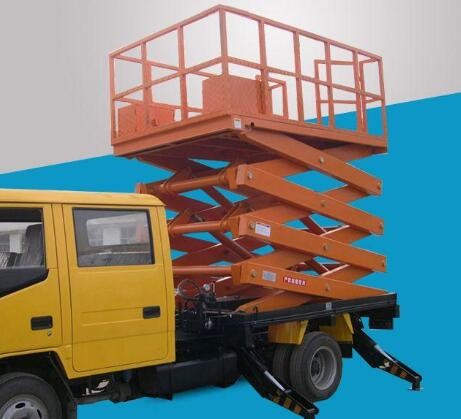

450Kg Automobile Truck Mounted Scissor Lift with 9M Lifting Height 0

Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack , sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



Optional Configuration:

  • Manual pump
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Applications:



1. Site: Farm or the other open field.

2. Aerial Working Purpose: machine maintenance, painting, cleaning, light replacement etc.





Why to choose our Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
