Truck-Mounted Mobile Aerial Work Platform 10m Lifting Height

Truck-Mounted Mobile Aerial Work Platform 10m Lifting Height

  • Truck-Mounted Mobile Aerial Work Platform 10m Lifting Height
  • Truck-Mounted Mobile Aerial Work Platform 10m Lifting Height
Truck-Mounted Mobile Aerial Work Platform 10m Lifting Height
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: GTWY10-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30day after down payment
Payment Terms: T/T L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
High Light:

hydraulic aerial work platform


aerial work platform

Truck-Mounted Mobile Aerial Work Platform 10m Lifting Height



Quick Detail:


Name Mobile Aerial Work Platform Brand Name CHEN LIFT
Loading Capacity 200Kg Platform Height 10m
Platform Size 1.38*0.62m Color Orange or Optional
Motor Power 1.10Kw Power Supply AC/DC

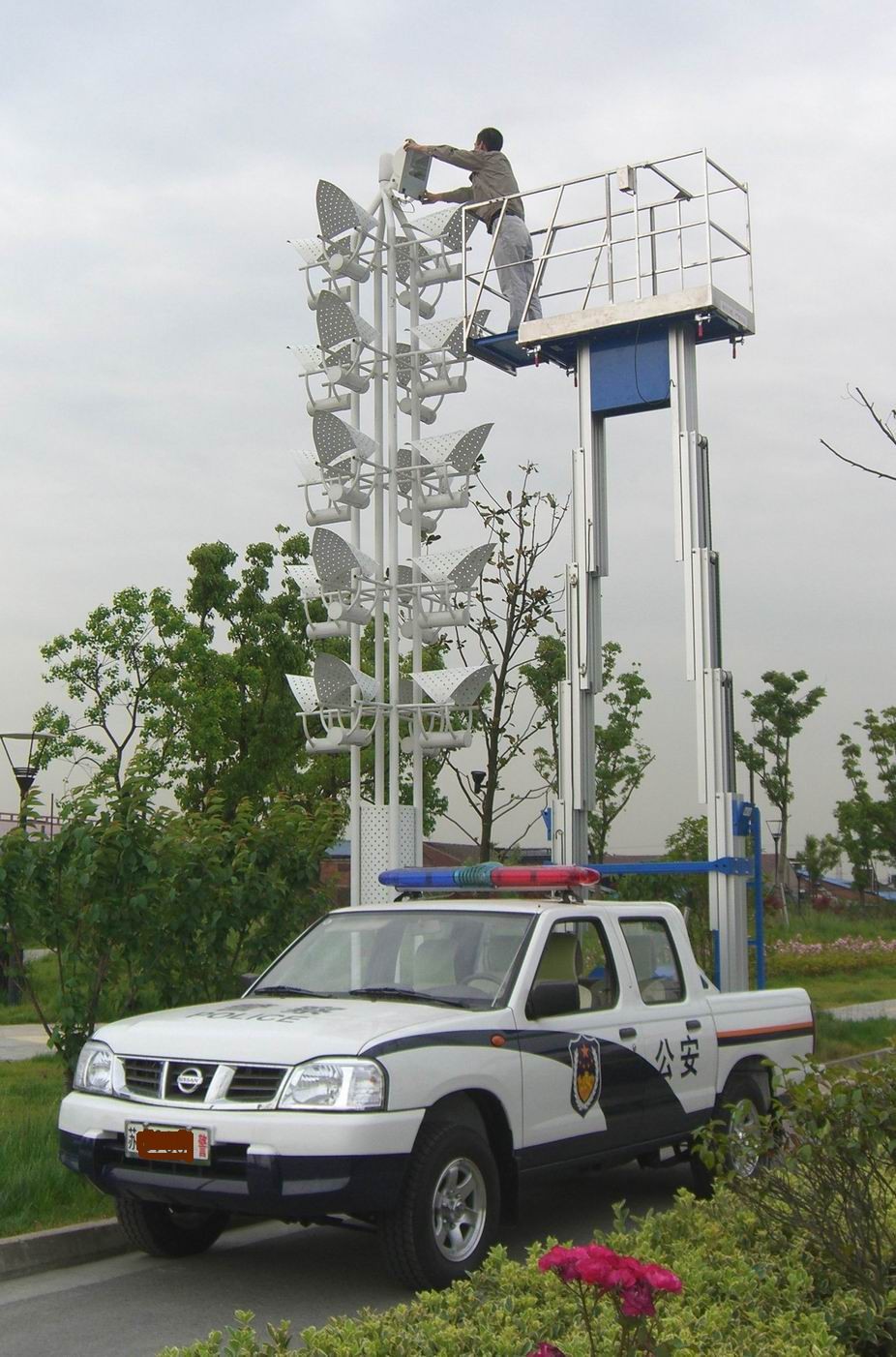

Truck-Mounted Aerial Work Platform is to fixed the aerial work platform on a pickup or truck for the long time and distance transportation . This design is very convenient for moving the machine here andd there .

And in the case of unsafety, only single mast and double mast can bemade into this type.





It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 12m and lifting capacity varies from 200kg to 250kg.The power sources could be 220V, 380V or chargeable battery.



Main Features:


1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10 .Built-in pressure release valve

11. Dual activated up/down switch

12. Locking Key Switch

13. Optional extended platform

14. Entry ladder





Lift capacity 441lbs 200kg
Working height 38ft 4.63in 11.7m
Platform floor height 32ft 9.71in 10m
Platform length 4ft 6.32in 1.38m
Platform width 2ft 0.41in 0.62m
Ground Clearance 2.36in 0.06m
Lifting Power 1.1kw
Lifting Speed 0.09-0.1m/s
Motorized Power 0.75Kw
Descending Speed 0.08m/s
Anti Wind Capacity Max. force 5
Overall length 5ft 2.20in 1.58m
Overall width 3ft 1.40in 0.95m
Overall height 6ft 6.74in 2.00m
Outrigger footprint:
A Length 7ft 0.65in 2.15m
B Width 6ft 6.74in 2.00m
C Corner access 3.94in 0.10m
D Wall access front 11.42in 0.29m
E Wall access side 2ft 0.02in 0.61m
Weight 1345lbs 610kg

Truck-Mounted Mobile Aerial Work Platform 10m Lifting Height 0



Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet


Competitive Advantage:


· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience



Communication with Customers


A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material


A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

  1. Strict quality control system on the whole process of production
  2. Imported key arts to ensure the high quality of our products
  3. Advanced equipment and tools for examination and quality control
  4. 100% strict examining products before shipment
  5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.


A: What is the delivery time for your goods?

B: it is 30days after order confirmation


A: What spare parts that you can offer?

B: Find the list below which we are offering with the machine when shipment for free:

Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1


A: How long is your quality guarantee period?

B: We have one year warranty.
