6M Platform Height 125KG Loading Capacity Aluminum Aerial Work Platform with Triple Mast

6M Platform Height 125KG Loading Capacity Aluminum Aerial Work Platform with Triple Mast

  • 6M Platform Height 125KG Loading Capacity Aluminum Aerial Work Platform with Triple Mast
  • 6M Platform Height 125KG Loading Capacity Aluminum Aerial Work Platform with Triple Mast
  • 6M Platform Height 125KG Loading Capacity Aluminum Aerial Work Platform with Triple Mast
  • 6M Platform Height 125KG Loading Capacity Aluminum Aerial Work Platform with Triple Mast
6M Platform Height 125KG Loading Capacity Aluminum Aerial Work Platform with Triple Mast
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: GTWY6-100 (ME600-1)
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Packed with Pallet, Wrapped with Film
Delivery Time: 30day after down payment
Payment Terms: T/T
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Lift Capacity: 125kg Platform Height: 6m
Working Height: 8m Platform Size: 0.60x0.55m
Weight: 370kg
High Light:

hydraulic aerial work platform

,

aerial work platform



6M Platform Height 130KG Loading Capacity Aluminum Aerial Work Platform with Triple Mast





Quick Detail:



Name Mobile Aerial Work Platform Brand Name CHEN LIFT
Loading Capacity 125Kg Platform Height 6m
Platform Size 0.60*0.55m Color Blue or Optional
Motor Power 0.75Kw Power Supply AC/DC





Description:

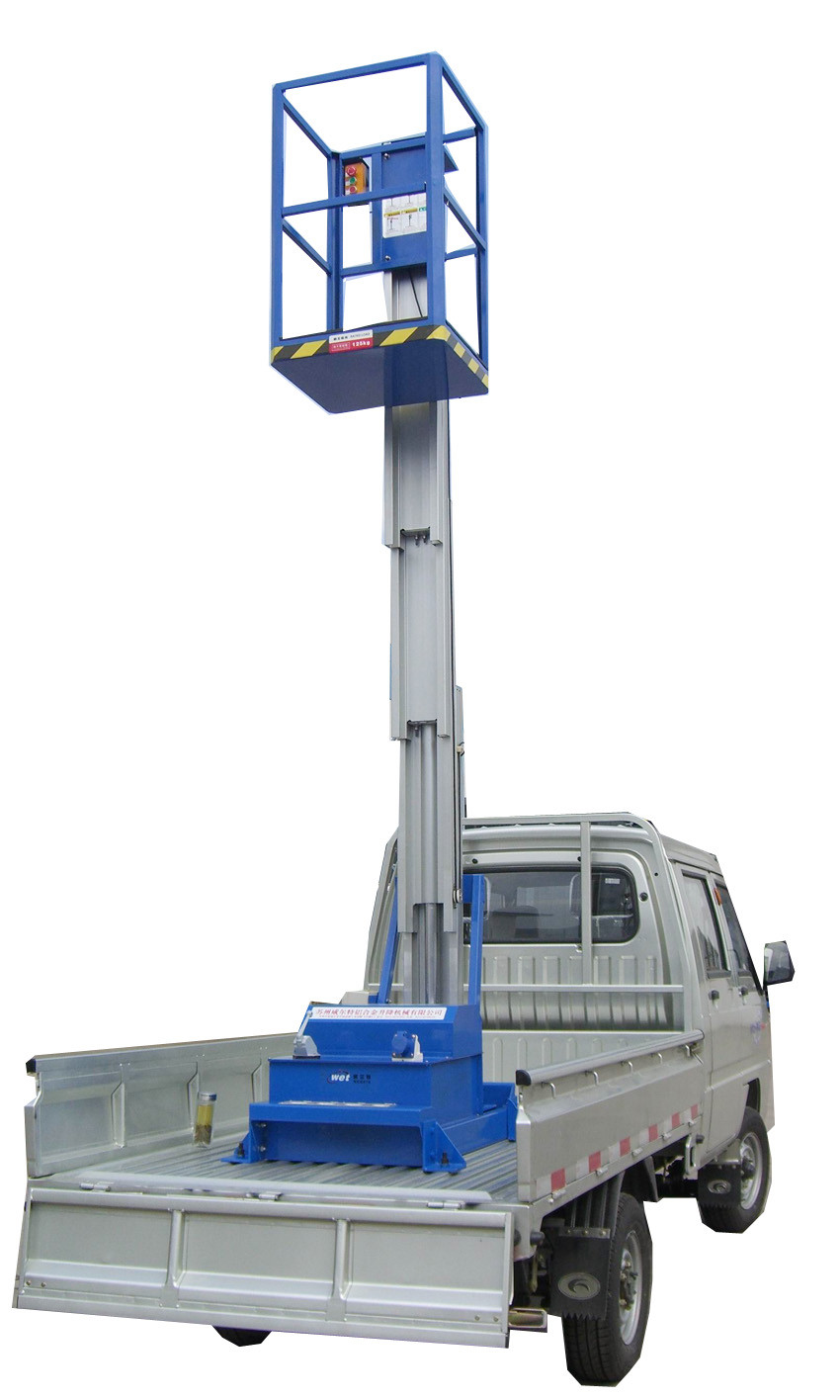

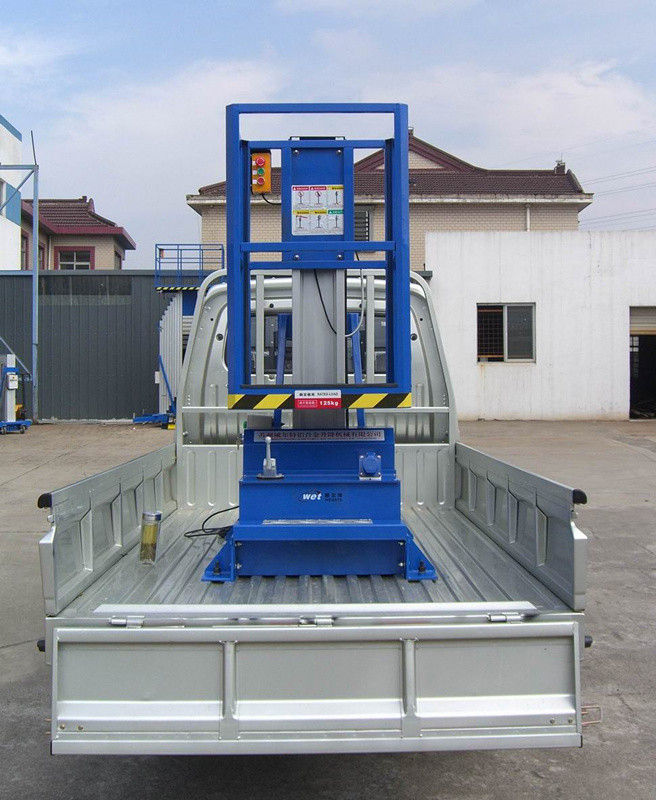

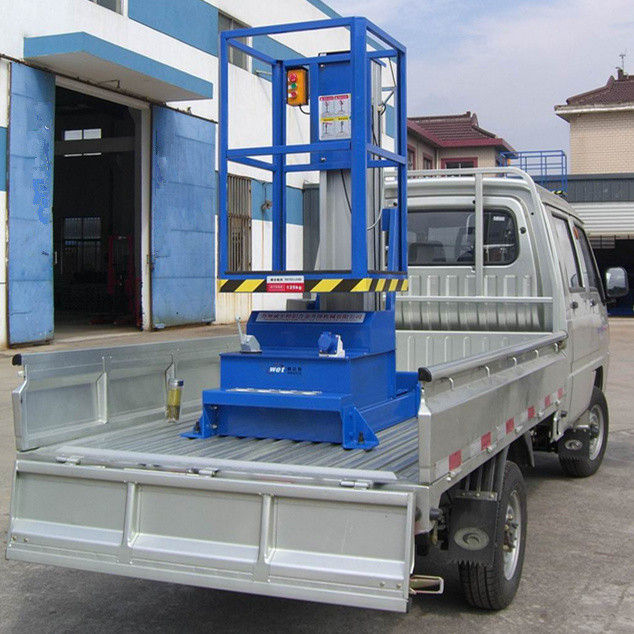

Truck-Mounted Aerial Work Platform is to fixed the aerial work platform on a pickup or truck for the long time and distance transportation . This design is very convenient for moving the machine here andd there .

And in the case of unsafety, only single mast and double mast can bemade into this type.





Applications:



It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 4m to 9m and lifting capacity varies from 100kg to 125kg.The power sources could be 220V, 380V or chargeable battery.





Main Features:



1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10. Built-in pressure release valve

11. Dual activated up/down switch

12. Locking Key Switch





Specification:



MODEL GTWY6-100 (ME600-1)
PRODUCTIVITY US Metric
Lift capacity 287lbs 130kg
Working height 26ft 2.96in 8m
Platform height 19ft 8.22in 6m
Platform length 1ft 11.62in 0.60m
Platform width 1ft 9.65in 0.55m
Ground Clearance 1.97in 0.05m
Lifting Power 0.75kw
Lifting Speed 0.09-0.1m/s
Descending Speed 0.08m/s
Anti Wind Capacity Max. force 5
Overall length 4ft 4.76in 1.34m
Overall width 2ft 9.46in 0.85m
Overall height 6ft 4.96in 1.65m
Outrigger footprint:
A Length 5ft 6.93in 1.70m
B Width 5ft 5.75in 1.67m
C Corner access 3.94in 0.10m
D Wall access front 9.06in 0.23m
E Wall access side 1ft 7.68in 0.50m
Weight 816lbs 370kg

6M Platform Height 125KG Loading Capacity Aluminum Aerial Work Platform with Triple Mast 0





Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet



Competitive Advantage:



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

  1. Strict quality control system on the whole process of production
  2. Imported key arts to ensure the high quality of our products
  3. Advanced equipment and tools for examination and quality control
  4. 100% strict examining products before shipment
  5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: Find the list below which we are offering with the machine when shipment for free:

Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1



A: How long is your quality guarantee period?

B: We have one year warranty.
